13.3 inch industrial panel PC with resistive touchscreen, fanless aluminium alloy body, IP65 front protection

partaker

partaker A3 13.3" i7-8565U 16GB DDR4 512GB SSD 1TB HDD all-in-one PC

SKU CH-MB5N-0YD9P

A 13.3" IP65-rated industrial all-in-one with resistive touchscreen, fanless aluminium cooling, i7-8565U processor, 16 GB DDR4, 512 GB SSD plus 1 TB HDD, dual LAN and dual COM ports.

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 8th Gen
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity16GB DDR4
  • SSD512GB

Memory Capacity 16GB DDR4

SSD 512GB

HDD 1TB

Přeškrtnuté varianty existují, ale zde nejsou skladem.

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminum alloy cooling runs silently for 24/7 uptime
  • Intel Core i7-8565U up to 4.60 GHz handles demanding industrial workloads
  • 16 GB DDR4 with 512 GB SSD and 1 TB HDD stores OS, apps and large data sets
  • Five-wire resistive touchscreen rated for 35 million touches ensures long-term reliability

Compact industrial all-in-one

The Partaker A3 is a 13.3-inch fanless panel PC built for continuous operation in industrial environments. Its IP65-rated front panel resists dust and water jets, while the Intel Core i7-8565U processor and 16GB DDR4 memory handle demanding control and monitoring tasks around the clock.

Embedded mounting with standard I/O

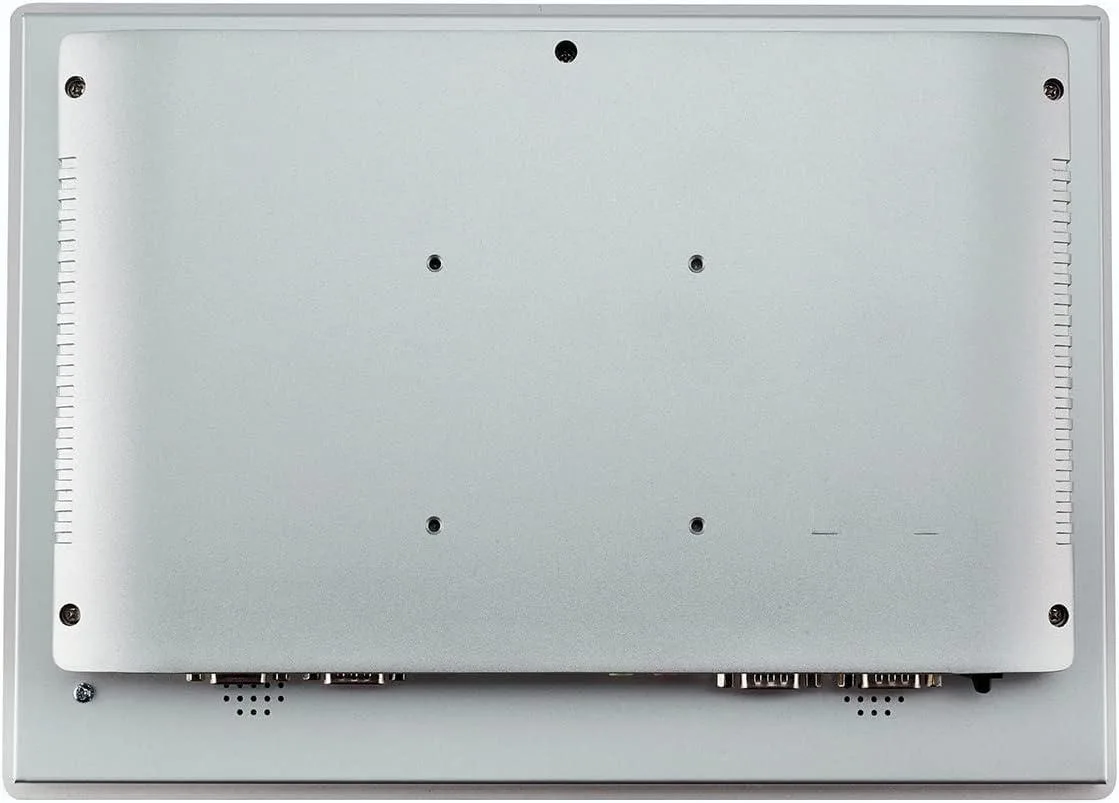

Installation uses a 326 by 232 millimetre cut-out for embedded, wall, desktop or cantilever mounting. The aluminium alloy chassis passesively dissipates heat without fans, eliminating moving-part failures. I/O includes HDMI, VGA, two USB 3.0, two USB 2.0, dual LAN, audio in/out, two COM ports and a 12V DC input, all accessible once the unit is seated.

Dual-drive storage up to 64GB RAM

A 512GB SSD and 1TB HDD come pre-installed across mSATA, M.2 2280 and 2.5-inch SATA bays, with two SODIMM slots supporting up to 64GB DDR4-2400 for future expansion. The resistive touchscreen operates from 0 to 50°C with SSD or 0 to 40°C with HDD, while the 1280 by 800 display at 300 cd/m² suits indoor industrial lighting.

Přednosti

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminum alloy cooling runs silently for 24/7 uptime
  • Intel Core i7-8565U up to 4.60 GHz handles demanding industrial workloads
  • 16 GB DDR4 with 512 GB SSD and 1 TB HDD stores OS, apps and large data sets
  • Five-wire resistive touchscreen rated for 35 million touches ensures long-term reliability

Specifikace

ModelA3-PA-133TPC-CE5A(I78)-16G512G1TB
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 8th Gen
GPU/VGA TypeIntel UHD Graphics
Memory Capacity16GB DDR4
SSD512GB
HDD1TB
Screen Size13.3"
TouchscreenYes

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

How do I confirm the fanless cooling is keeping the CPU within its operating range after installation?

The aluminium-alloy passive cooler is designed for 0–50 °C ambient with the SSD and 0–40 °C with the HDD installed; monitor CPU temperature in Windows 11 Pro to verify it stays below the 4.60 GHz throttle point under load.

Which items are included in the packing list and what must I source separately?

The box contains the A3 panel PC, a 12 V DC power supply and a power cord; any Wi-Fi or 4G module for the mini-PCIe slot, a SIM card, mounting hardware beyond the supplied kits and additional storage drives are not included.

Which storage combination matches the 16 GB / 512 GB SSD / 1 TB HDD configuration listed for this model?

This unit ships with 16 GB DDR4-2400 memory, a 512 GB mSATA SSD and a 1 TB 2.5″ SATA HDD pre-installed; the M.2 2280 slot remains free for a future NVMe or SATA SSD upgrade.
