13.3 inch industrial panel PC with resistive touchscreen and fanless aluminium chassis

partaker

partaker A3-PA-133TPC-CE5A(I58)-8G128G all-in-one PC 13.3" i5-8265U 8GB DDR4 128GB

SKU CH-4E6X-GNZB7

13.3-inch fanless industrial panel PC with a resistive touchscreen, Intel Core i5-8265U, 8 GB DDR4 and 128 GB SSD

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 8th Gen
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity8GB DDR4
  • HDDNo

Memory Capacity 8GB DDR4

  • 16GB DDR4
  • 32GB DDR4
  • 8GB DDR4

SSD

HDD None

  • 1TB
  • None

Přeškrtnuté varianty existují, ale zde nejsou skladem.

  • 3" IP65 front panel resists dust and water jets
  • Fanless aluminium alloy cooling runs silently in industrial settings
  • 5-wire resistive touchscreen rated for 35 million touches
  • Intel Core i5-8265U up to 3.90 GHz handles demanding workloads
  • Dual LAN and dual COM ports connect legacy and modern equipment

Industrial 13.3" Panel PC

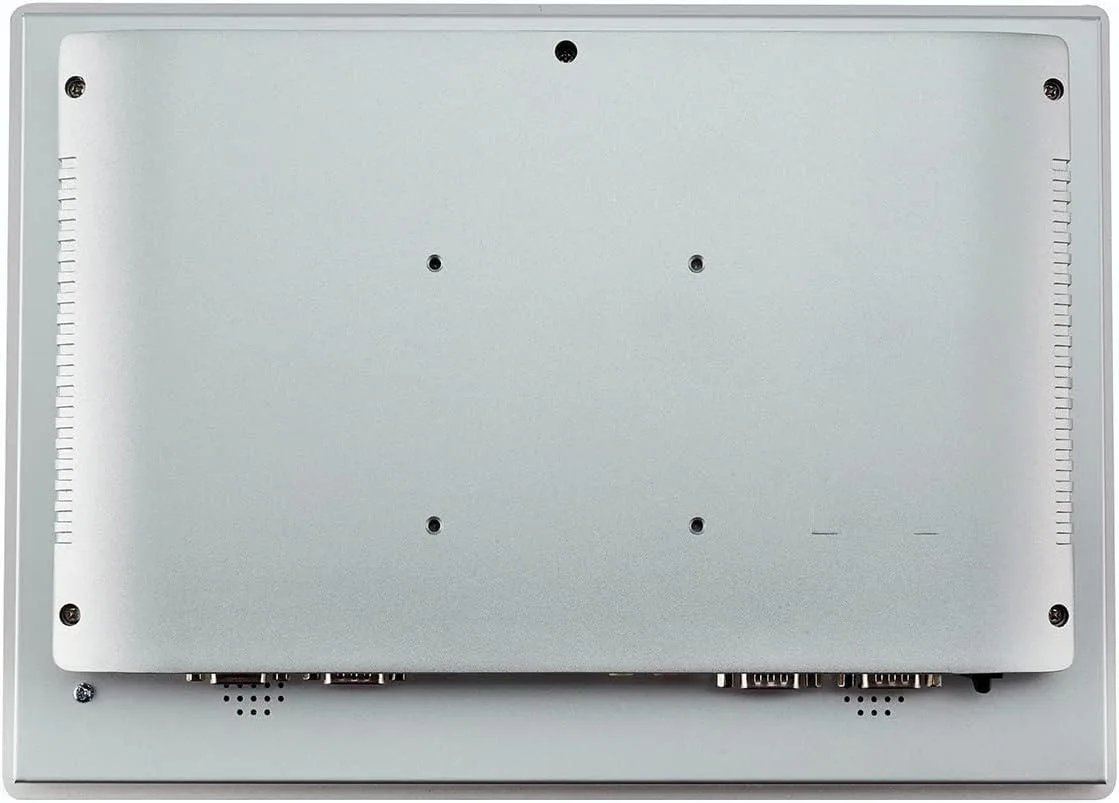

The Partaker A3-PA-133TPC-CE5A(I58)-8G128G is a new all-in-one computer built around a 13.3 inch TFT LED display with IP65 front-panel protection. It integrates an Intel Core i5-8265U processor, 8GB DDR4 memory and a 128GB SSD within a fanless aluminium chassis. The unit targets embedded industrial deployments requiring a sealed, resistive-touch interface and multiple legacy I/O ports.

5-wire resistive touchscreen

The defining specification is the high-temperature five-wire resistive touch panel rated for 35 million touches with 80±5% transmittance at 550 nm. It operates reliably with gloves or stylus input where capacitive screens fail, making the system suitable for factory floors, outdoor kiosks and harsh environments. Buyers needing multi-touch gestures or high optical clarity should consider alternative display technologies.

Fanless thermal design

Cooling relies on the aluminium alloy housing acting as a passive heatsink, eliminating moving parts and audible noise during normal operation. The CPU runs up to 3.90 GHz within an operating range of 0 to 50°C with the installed SSD. Power is supplied via an external 12V DC adapter accepting 100-240V AC input, so the enclosure itself generates minimal heat and requires no internal airflow management.

Přednosti

  • 3" IP65 front panel resists dust and water jets
  • Fanless aluminium alloy cooling runs silently in industrial settings
  • 5-wire resistive touchscreen rated for 35 million touches
  • Intel Core i5-8265U up to 3.90 GHz handles demanding workloads
  • Dual LAN and dual COM ports connect legacy and modern equipment

Specifikace

ModelA3-PA-133TPC-CE5A(I58)-8G128G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 8th Gen
GPU/VGA TypeIntel UHD Graphics
Memory Capacity8GB DDR4
HDDNo
Screen Size13.3"
TouchscreenYes

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

How does the 3.90 GHz turbo frequency behave inside this fanless chassis?

The Intel Core i5-8265U can reach 3.90 GHz in short bursts, but the fanless aluminium alloy cooling limits sustained clocks under heavy multi-core loads.

What display outputs does the HDMI port actually drive on this unit?

The HDMI and VGA ports both connect to the integrated Intel UHD Graphics and can drive external monitors up to the panel's native 1280 x 800 resolution.

What are the exact panel cut-out dimensions for embedded mounting?

The required opening hole measures 326 x 232 mm, matching the 334.2 x 229.85 mm outer dimensions of the IP65-rated front bezel.
