Gray 21.5 inch all-in-one PC with flat capacitive touch screen and fanless aluminum body

partaker

Partaker A30 21.5" all-in-one PC i5-4200U 16GB 512GB

SKU CH-T6KM-6NGHX

An industrial all-in-one with a 21.5" IP65 capacitive touchscreen, fanless cooling, dual LAN, dual COM, four USB 3.0 ports, 16 GB DDR3L memory and a 512 GB SSD

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 4th Gen
  • CPU NameIntel Core i5-4200U

A30 21.5" Capacitive I5 4200U 16GB RAM / 512GB SSD

  • IP65 front panel resists dust and water jets

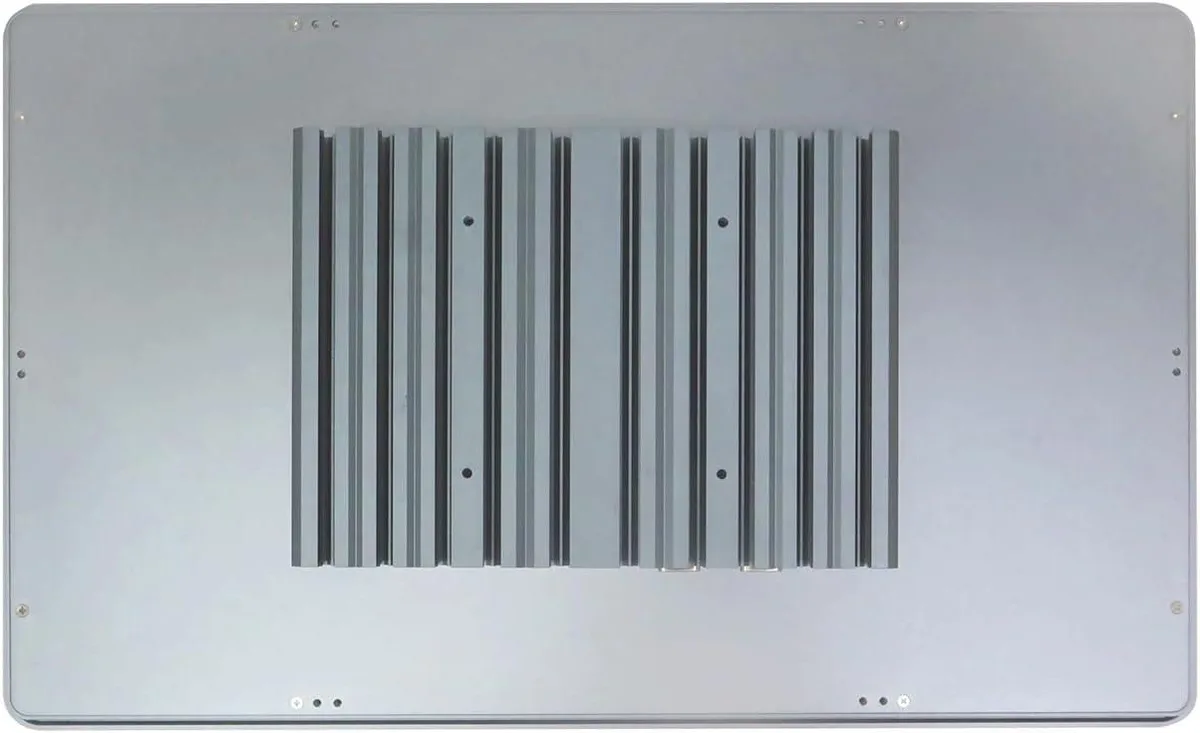

  • Fanless aluminium chassis runs silently from -20 °C to 60 °C
  • Dual Gigabit LAN plus four USB 3.0 ports for industrial connectivity
  • Capacitive touch rated beyond 50 million touches for long HMI life
  • 16 GB DDR3L and 512 GB SSD deliver responsive Windows 11 Pro performance

Industrial all-in-one with IP65 front panel

The Partaker A30 is a 21.5-inch all-in-one PC built for factory and automation use. Its IP65-rated flat front panel resists dust and water jets, while the fanless aluminium chassis runs silently from -20 °C to 60 °C. A Core i5-4200U processor, 16 GB of DDR3L memory and a 512 GB mSATA SSD come pre-installed with Windows 11 Pro. Capacitive touch rated for over 50 million touches provides durable human-machine interaction.

Upgrades from basic panel PCs and embedded boards

This unit replaces standalone industrial monitors paired with separate box PCs or older fan-cooled all-in-ones that need regular cleaning. The jump is worth it when a compact, sealed enclosure must survive vibration, temperature swings and 24/7 duty without moving parts. Dual Gigabit LAN, two COM ports for RS232/485 and four USB 3.0 ports consolidate cabling that would otherwise require external hubs or adapters.

512 GB mSATA plus 2.5-inch SATA bay for expansion

The 512 GB mSATA SSD handles the operating system, SCADA software and local logs with headroom for typical historian databases. A second 2.5-inch SATA slot accepts an additional SSD or HDD for archiving large recipe files or backup images. Memory is maxed at 16 GB across two SODIMM slots, so workloads needing more RAM will require a different platform.

Přednosti

  • IP65 front panel resists dust and water jets
  • Fanless aluminium chassis runs silently from -20 °C to 60 °C
  • Dual Gigabit LAN plus four USB 3.0 ports for industrial connectivity
  • Capacitive touch rated beyond 50 million touches for long HMI life
  • 16 GB DDR3L and 512 GB SSD deliver responsive Windows 11 Pro performance

Specifikace

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 4th Gen
CPU NameIntel Core i5-4200U
Screen Size21.5"
Screen TypeMulti-Touch Screen

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

What are the embedded mounting cut-out dimensions for the Partaker A30?

The embedded installation cut-out measures 528 x 320 mm, and four mounting clips are included in the packing list.

How is the Partaker A30 installed and what step is often missed?

Mount the unit using the supplied clips for embedded, wall, desktop or cantilever fitting, then connect the 12 V DC power adapter; the step often missed is seating all four clips evenly so the IP65 front seal remains intact.

Which storage drives can be added or replaced later in the Partaker A30?

The system accepts one mSATA SSD and one 2.5-inch SATA SSD or HDD; both slots are accessible after removing the rear cover for future capacity upgrades.
