15 inch industrial all-in-one with IP65 front panel and resistive touchscreen

partaker

partaker A5 15" all-in-one PC i5-1135G7 8GB DDR4 256GB SSD 1TB HDD

SKU CH-BWY8-XAYVM

15-inch IP65 industrial panel PC with resistive touchscreen, i5-1135G7, 8GB DDR4, 256GB SSD and 1TB HDD

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 11th Gen
  • GPU/VGA TypeIntel Iris Xe Graphics
  • Memory Capacity8GB DDR4
  • SSD256GB

Memory Capacity 8GB DDR4

SSD 256GB

  • 256GB
  • 512GB
  • 1TB

HDD 1TB

Přeškrtnuté varianty existují, ale zde nejsou skladem.

  • IP65 front panel resists dust and water jets
  • 5-wire resistive touchscreen works at 0–50 °C
  • Fanless aluminium chassis runs silently 24/7
  • Intel Core i5-1135G7 with 8 GB DDR4 handles industrial loads
  • 256 GB SSD plus 1 TB HDD stores OS and data

15″ IP65 Industrial Panel PC

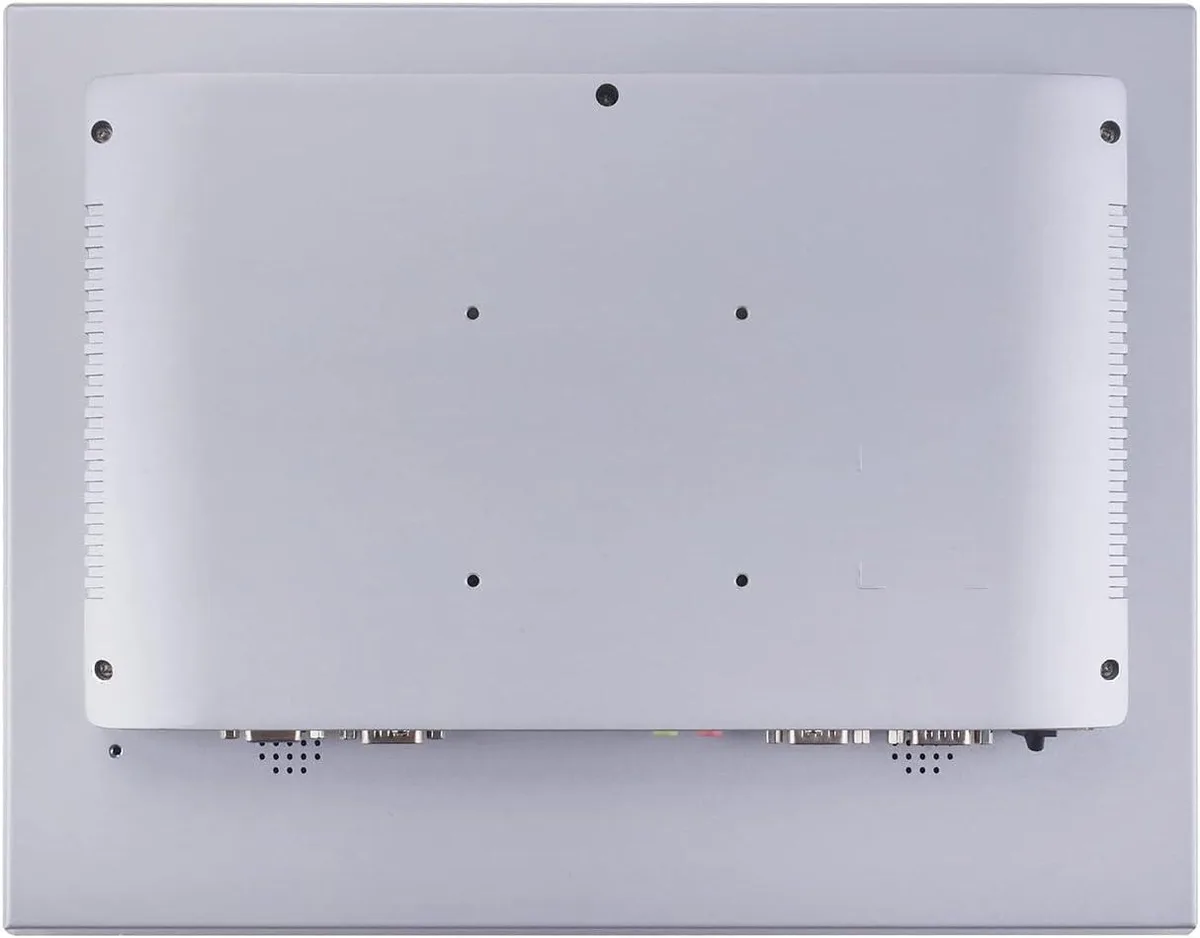

The Partaker A5 is a 15-inch all-in-one computer with an IP65-rated front panel and a high-temperature 5-wire resistive touchscreen. It runs on an Intel Core i5-1135G7 processor with Intel Iris Xe graphics, 8GB of DDR4 memory, a 256GB SSD and a 1TB HDD. Windows 11 Pro comes pre-installed for immediate deployment in industrial environments.

Fanless Embedded Installation

The aluminium alloy fanless chassis uses passive cooling for silent 24/7 operation. Mounting buckle kits support embedded, wall-mounted, desktop or cantilevered setups with a 348 x 272mm cut-out. The 12V DC power input accepts 100-240V AC via the included adapter. Resistive touch allows gloved operation but lacks multi-touch gestures common on capacitive screens.

Verify Power Mounting And OS Needs

Confirm your site provides a 12V DC supply and that the 354.3 x 278.3 x 54mm dimensions fit the intended enclosure. The panel operates at 0-50°C with SSD or 0-40°C with HDD installed. Two SODIMM slots support up to 64GB DDR4-3200 if more memory is required. M.2 Key E and Key B slots allow optional WIFI6 or 5G expansion. Linux Ubuntu is offered as an alternative to Windows 11 Pro.

Přednosti

  • IP65 front panel resists dust and water jets
  • 5-wire resistive touchscreen works at 0–50 °C
  • Fanless aluminium chassis runs silently 24/7
  • Intel Core i5-1135G7 with 8 GB DDR4 handles industrial loads
  • 256 GB SSD plus 1 TB HDD stores OS and data

Specifikace

ModelA5-PA-150TPC-CE5A(I5B)-8G256G1TB
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 11th Gen
GPU/VGA TypeIntel Iris Xe Graphics
Memory Capacity8GB DDR4
SSD256GB
HDD1TB
Screen Size15"
TouchscreenYes

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

How do I confirm the IP65 front panel is sealed correctly after embedded installation?

Verify the front bezel sits flush in the 348 x 272 mm opening hole with the mounting buckle kits secured; the 5-wire resistive touchscreen should register input across the full 1024 x 768 area without gaps.

Which items ship in the box and what must I source separately for Wi-Fi 6 or 5G connectivity?

The packing list includes the Partaker A5 panel PC and power supply; Wi-Fi 6 requires a Key E M.2 module and 5G needs a Key B M.2 module plus a SIM card, none of which are included.

Should I choose the 256 GB M.2 SSD plus 1 TB 2.5" HDD or plan a different storage mix for 0–50 °C operation?

The supplied 256 GB M.2 SSD and 1 TB 2.5" HDD support 0–40 °C with the HDD; for the full 0–50 °C range replace the HDD with a 2.5" SATA SSD, using the second M.2 slot for additional capacity if needed.
