15.6 inch industrial all-in-one touchscreen panel PC aluminium fanless IP65 front

partaker

Partaker A6 15.6" all-in-one PC i7-6500U 8GB DDR3 512GB SSD 1TB HDD

SKU CH-MC75-EJ5YE

15.6-inch IP65 industrial panel PC with i7-6500U, 8GB DDR3, 512GB SSD, 1TB HDD, 10-point capacitive touchscreen, fanless cooling, Windows 11 Pro

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 6th Gen
  • GPU/VGA TypeIntel HD Graphics 520
  • Memory Capacity8GB DDR3
  • SSD512GB

Memory Capacity 8GB DDR3

  • IP65 front panel resists dust and water jets
  • 10-point projected capacitive touch for precise input
  • Fanless aluminium alloy cooling runs silently
  • Intel Core i7-6500U up to 3.10 GHz
  • 512 GB SSD plus 1 TB HDD dual storage

Industrial Panel PC with IP65 Front Panel

This 15.6 inch all-in-one computer combines an Intel Core i7 6500U processor with 8GB DDR3 memory, 512GB SSD and 1TB HDD storage. The 10-point projected capacitive touchscreen and fanless aluminium chassis target industrial automation, kiosk and 24/7 monitoring deployments. Windows 11 Pro is pre-installed for immediate deployment.

Check 12V DC Power and Mounting Cut-Out

Verify your installation can supply 12V DC from the included 100-240V AC adapter and that the panel cut-out measures 386.5 x 236mm for embedded mounting. Confirm operating temperature limits of 0 to 50°C with SSD or 0 to 40°C with HDD active. Ensure peripheral cables reach the rear-facing I/O cluster.

Fanless Aluminium Build with Rear I/O

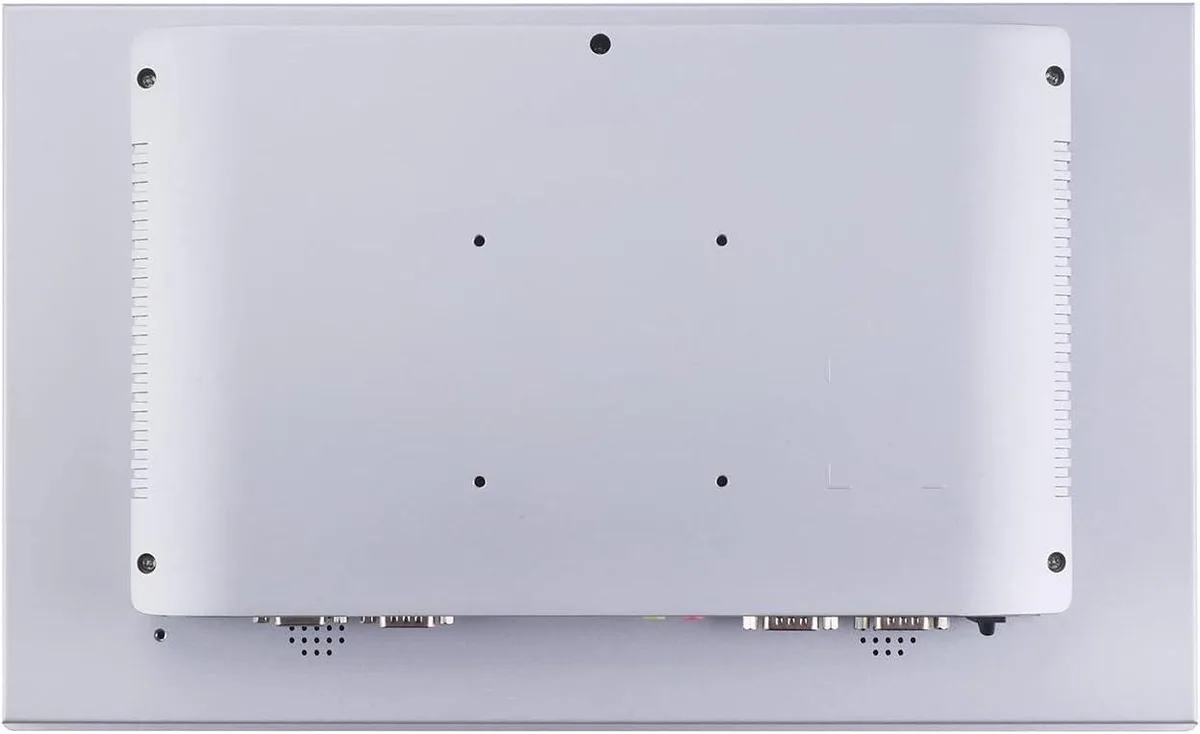

The passive cooling design eliminates moving parts for silent operation and reduced maintenance in dusty environments. Rear-mounted ports include HDMI, VGA, two USB 3.0, two USB 2.0, dual LAN, audio in/out and two COM connectors for legacy serial devices. VESA-compatible brackets support wall, desktop or cantilever mounting orientations.

Přednosti

  • IP65 front panel resists dust and water jets
  • 10-point projected capacitive touch for precise input
  • Fanless aluminium alloy cooling runs silently
  • Intel Core i7-6500U up to 3.10 GHz
  • 512 GB SSD plus 1 TB HDD dual storage

Specifikace

ModelA6-PA-156TPC-CE6A(I76))-8G512G1TB
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 6th Gen
GPU/VGA TypeIntel HD Graphics 520
Memory Capacity8GB DDR3
SSD512GB
HDD1TB
Screen Size15.6"
TouchscreenYes

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

Does the A6 arrive with the i7-6500U, 8 GB DDR3L, 512 GB SSD and 1 TB HDD already installed, or must I add any of them?

The unit ships with the Intel i7-6500U, 8 GB DDR3L-1600, a 512 GB mSATA SSD and a 1 TB 2.5" SATA HDD pre-installed; Windows 11 Pro is also pre-loaded, so no extra parts are required to start working.

The spec sheet lists mSATA, M.2 2280 and 2.5" SATA bays — which one should I use if I want more fast storage later?

For the highest throughput, populate the M.2 2280 slot with an NVMe PCIe x4 or SATA SSD; the mSATA and 2.5" bays remain available for additional capacity.

The panel is rated at 250 cd/m² brightness and 1000:1 contrast — will that be readable in a brightly lit factory hall?

At 250 cd/m² and 1000:1 contrast the 15.6" 1920×1080 screen is designed for indoor industrial lighting; direct sunlight or very high ambient glare may reduce visibility.
