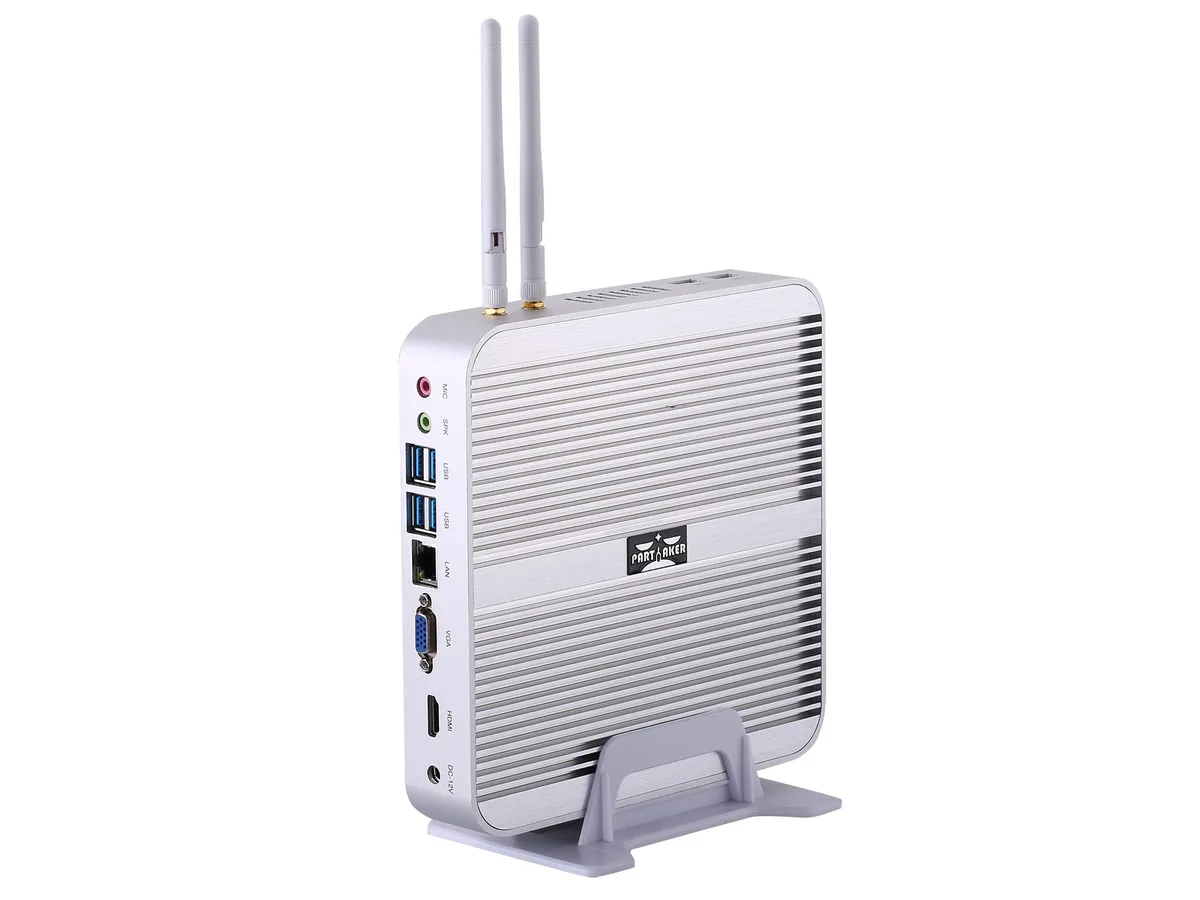

Silver aluminium fanless mini PC, square with vertical stand and Wi-Fi antennas

partaker

partaker B1 barebone mini PC i5-1235U 16GB 256GB

SKU CH-FB93-CDTSQ

Fanless mini desktop with Intel Core i5-1235U, 16 GB DDR4 and 256 GB SSD, dual 4K display support and extensive I/O

  • ColorSilver
  • CPU TypeIntel Core i5 12th Gen

Group 16GB RAM / 256GB SSD

  • Fanless cooling keeps operation silent with 15 W TDP
  • Intel Core i5-1235U delivers up to 4.40 GHz for responsive computing
  • 16 GB DDR4 and 256 GB SSD provide fast memory and storage
  • Dual display via HDMI 1.4 and VGA supports 4096 x 2304 at 24 Hz
  • Compact 197 x 197 x 37 mm aluminium chassis fits any workspace

Compact Fanless Mini PC

The Partaker B1 is a new barebone mini PC built around an Intel Core i5-1235U processor with 16GB of DDR4-2400 memory and a 256GB SSD. It ships with Windows 11 Pro installed and targets users who need a silent, space-saving desktop for office work, digital signage or light industrial use. The 15W TDP and fanless aluminium chassis keep noise at zero while operating between 0°C and 70°C.

Aluminium Build With Versatile I/O

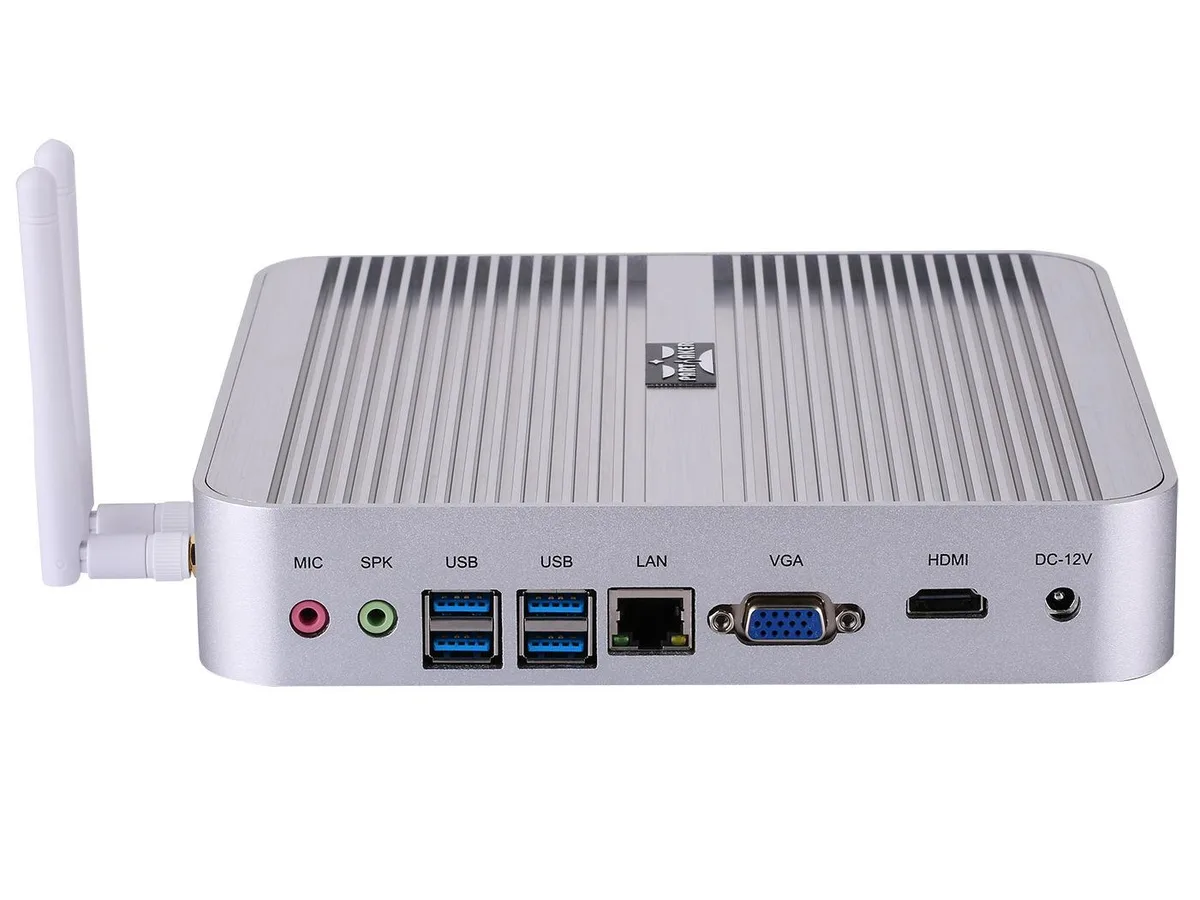

The 197 x 197 x 37mm silver aluminium case weighs 2.5kg and uses passive cooling, so there are no moving parts to fail or collect dust. Connectivity covers VGA, HDMI 1.4 for 4096x2304@24Hz, four USB 3.0 ports, two USB 2.0 ports, Gigabit LAN, speaker and microphone jacks, plus dual-band Wi-Fi antennas. An optional VESA mount lets you attach the unit behind a monitor, and the DC 19V 5A adapter accepts 100-240V AC input.

Check Expansion And Display Needs

Before ordering, verify that the single HDMI 1.4 port and VGA output match your dual-screen requirements, as no DisplayPort or USB-C video is provided. Storage expansion relies on one mSATA slot, one M.2 2280 slot supporting SATA or NVME, and one 2.5-inch SATA bay, so confirm your drive form factors. The 5G module slot with SIM tray is present but the modem itself is not included. Memory maxes out at 64GB across two SODIMM slots.

Přednosti

  • Fanless cooling keeps operation silent with 15 W TDP
  • Intel Core i5-1235U delivers up to 4.40 GHz for responsive computing
  • 16 GB DDR4 and 256 GB SSD provide fast memory and storage
  • Dual display via HDMI 1.4 and VGA supports 4096 x 2304 at 24 Hz
  • Compact 197 x 197 x 37 mm aluminium chassis fits any workspace

Specifikace

ColorSilver
CPU TypeIntel Core i5 12th Gen

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

What resolution does the HDMI 1.4 port support on this mini PC?

The HDMI 1.4 port drives up to 4096 x 2304 at 24 Hz, allowing dual-screen output alongside the VGA port.

What are the exact dimensions and VESA mounting status of the B1 chassis?

The case measures 197 x 197 x 37 mm and weighs 2.5 kg; VESA mounting is optional, not included by default.

How do I install an M.2 2280 drive, and what mistake should I avoid?

Open the chassis, insert the M.2 2280 SATA or NVME SSD into the slot at a slight angle, then secure it with the retaining screw; the common error is forgetting the screw, which leaves the drive unseated.
