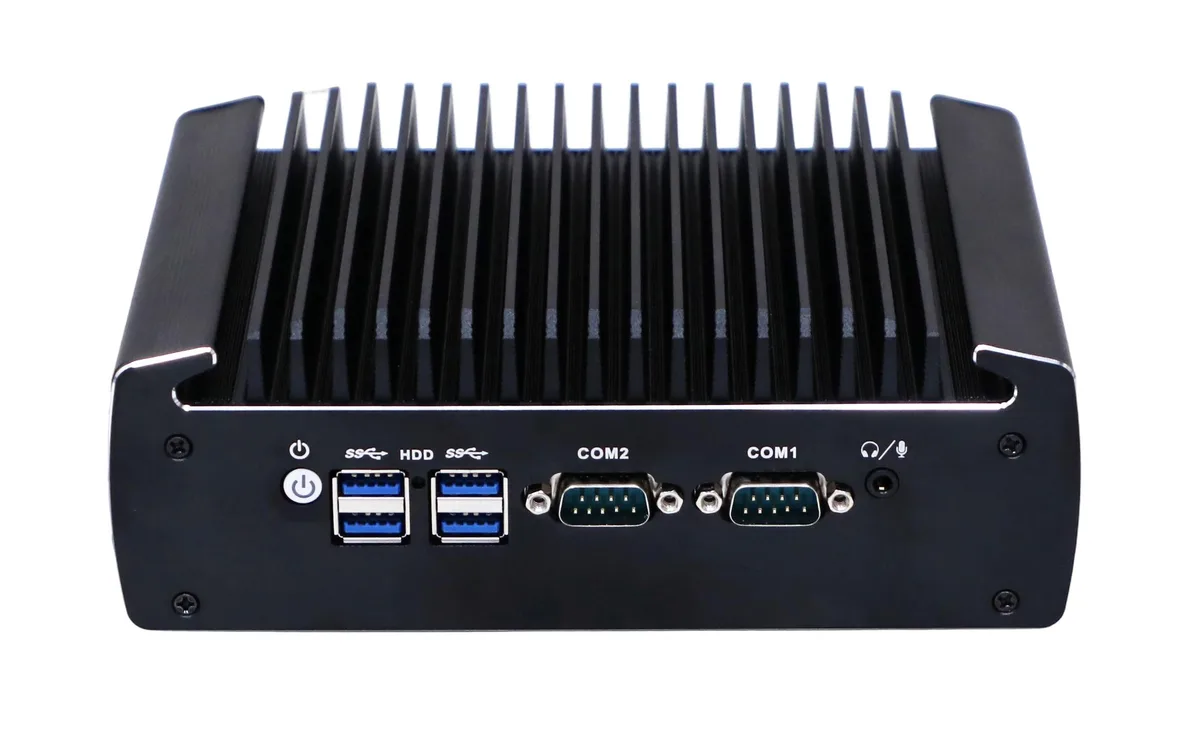

Black fanless aluminium mini PC, compact rectangular shape, front ports and power button visible

partaker

partaker B6 i5-6300U barebone mini PC 8GB 128GB

SKU CH-MCKS-5SN21

Fanless industrial mini PC with an Intel Core i5-6300U, dual Gigabit LAN, VGA and HDMI outputs, six USB ports, two COM ports and 8 GB DDR3L plus 128 GB SSD

  • ColorBlack
  • CPU TypeIntel Core i5 6th Gen

B6 CPU I5 6300U DDR3L 8GB RAM / 128GB SSD

  • Silent fanless aluminium chassis for dusty or industrial sites
  • Dual-core i5-6300U reaches 3.0 GHz turbo for responsive tasks

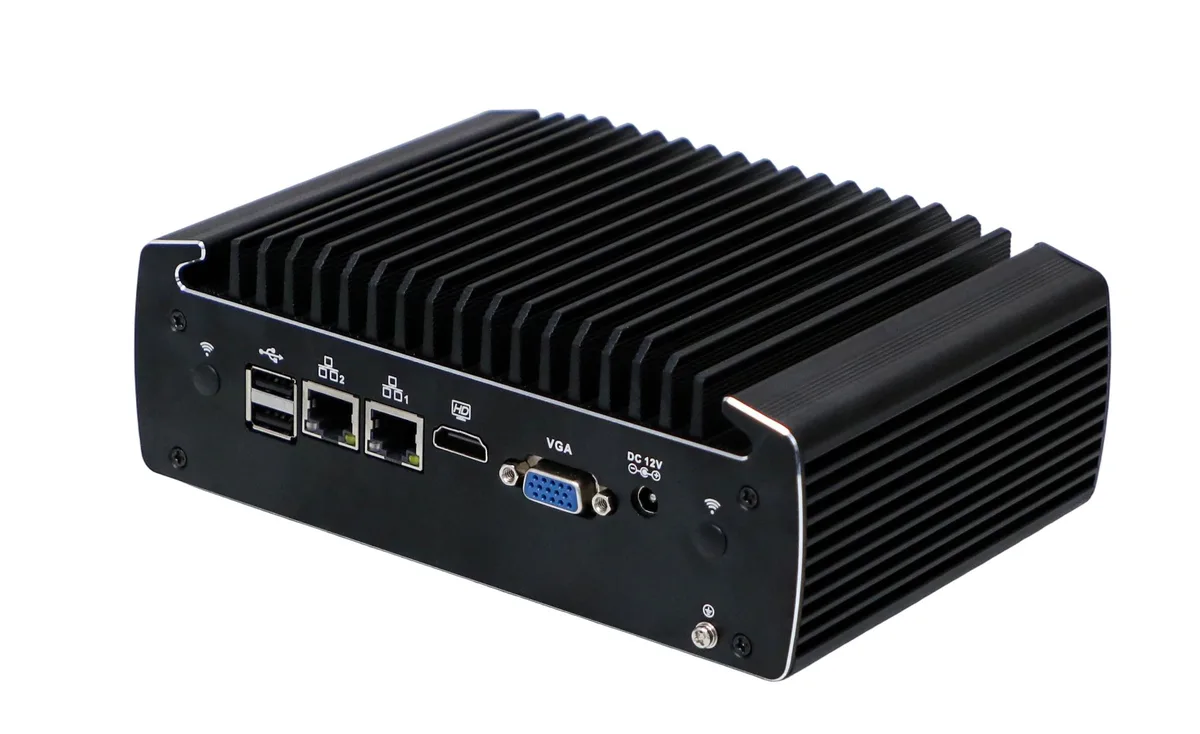

  • Dual 1000M LAN plus six USB ports connect many peripherals
  • VGA and HDMI drive two screens up to 3280x2000@60Hz
  • Compact 186 x 126.6 x 66 mm footprint fits tight spaces

Fanless i5-6300U Mini PC

The partaker B6 is a compact barebone system built around an Intel Core i5-6300U dual-core processor with four threads and a maximum turbo frequency of 3.0 GHz. It ships with 8 GB of DDR3L 1600 MHz memory and a 128 GB M.2 2280 SSD pre-installed. The aluminium chassis operates silently without fans, making it suitable for dust-sensitive or noise-sensitive locations. A 12 V DC power input is required.

Industrial and Embedded Use Cases

This unit suits integrators who need dual Gigabit Ethernet, dual display output via HDMI and VGA, and legacy COM ports for RS232 or RS485 equipment. The operating temperature range extends to 50 °C when an industrial-grade SSD is used, and features such as auto power-on, Wake-on-LAN and PXE boot support unattended deployment. Buyers who require more than 8 GB of memory, additional PCIe expansion slots, or a built-in 2.5-inch drive should consider other platforms.

Memory and Storage Limits

The single DDR3L SO-DIMM slot is factory-populated at the 8 GB maximum, so no further RAM upgrades are possible on this version. Storage can be expanded through the M.2 2280 slot, which accepts both SATA and NVMe drives, and an internal 2.5-inch bay is available for a second drive. A Mini PCIe slot with a SIM holder allows optional wireless modules.

Přednosti

  • Silent fanless aluminium chassis for dusty or industrial sites
  • Dual-core i5-6300U reaches 3.0 GHz turbo for responsive tasks
  • Dual 1000M LAN plus six USB ports connect many peripherals
  • VGA and HDMI drive two screens up to 3280x2000@60Hz
  • Compact 186 x 126.6 x 66 mm footprint fits tight spaces

Specifikace

ColorBlack
CPU TypeIntel Core i5 6th Gen

Další verze tohoto modelu

Dalších 2 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

Does the Partaker B6 i5-6300U barebone include the 8 GB DDR3L memory and 128 GB M.2 SSD, or must they be purchased separately?

The unit ships with 8 GB DDR3L 1600 MHz memory and a 128 GB M.2 2280 SSD already installed.

Should I choose the DDR3L version with 8 GB maximum or the DDR4 version supporting 16 GB for this model?

This listing is the DDR3L version with one slot limited to 8 GB; the DDR4 variant is a separate B6 model that supports up to 16 GB.

What does the 3.0 GHz turbo figure mean when the Intel Core i5-6300U is running inside the fanless chassis?

The processor can boost up to 3.0 GHz for short bursts, but sustained speeds depend on the passive aluminum case dissipating heat without a fan.
