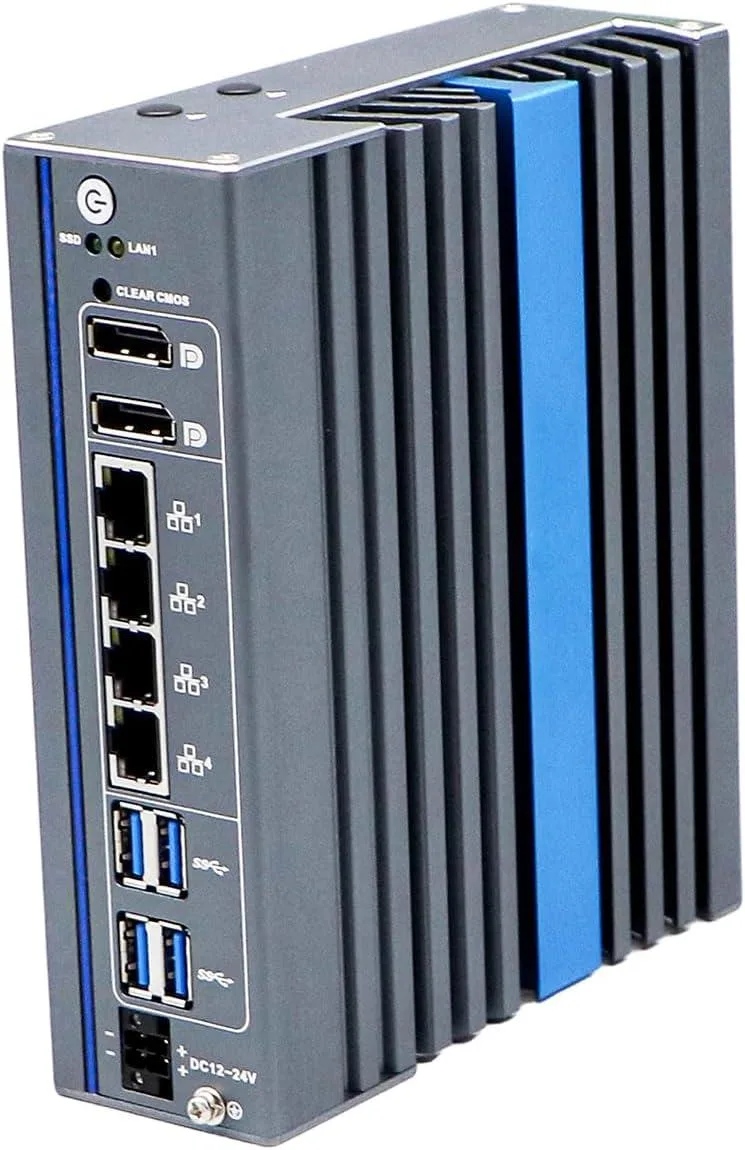

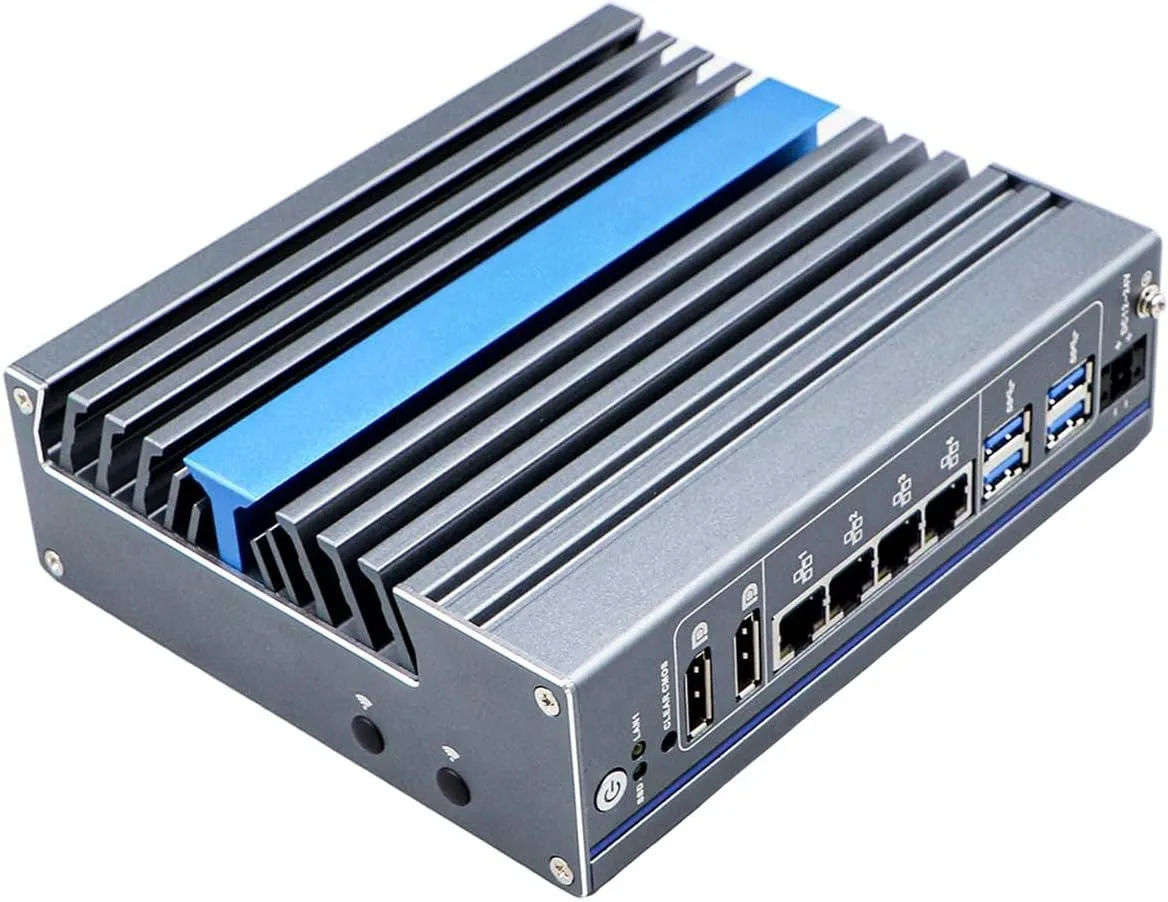

Gray fanless aluminium mini PC, book-style, 205 x 146 x 50 mm

partaker

partaker I19 barebone mini PC i5-1235U 32GB 1TB

SKU CH-3NVC-2ADX3

Fanless industrial mini PC with a 10-core i5-1235U, 32 GB DDR5, 1 TB storage, quad Gigabit LAN, dual 8K DisplayPort outputs and 12–24 V Phoenix power input

  • ColorGray
  • CPU TypeIntel Core i5 12th Gen

I19 CPU I5 1235U 32GB RAM / 1TB SSD

  • Fanless cooling handles -20 °C to +60 °C with an all-aluminium chassis
  • i5-1235U delivers 10 cores and 12 threads up to 4.4 GHz
  • 32 GB DDR5 4800 MT/s installed, expandable to 64 GB
  • Four Gigabit LAN ports, one with vPro remote management
  • Dual DP outputs drive two 8K displays at 7680 x 4320 @60 Hz

Industrial Fanless Barebone

The Partaker I19 is a fanless mini PC built around an Intel Core i5-1235U processor with 10 cores and 12 threads reaching 4.4 GHz. It ships with 32 GB of DDR5 4800 memory and a 1 TB NVMe SSD inside an all-aluminium chassis rated for -20 °C to +60 °C operation. Wide 12-24 V DC input through a 4-pin Phoenix terminal suits industrial power environments.

Suited For Rugged Deployments

This unit fits integrators who need silent, dust-proof computing with four Gigabit LAN ports — one Intel i219-LM with vPro — and dual DisplayPort outputs driving 7680 x 4320 at 60 Hz. Expansion includes a full-length Mini PCIe slot with a Nano-SIM tray for 4G or Wi-Fi modules. Buyers requiring internal 2.5-inch drive bays, additional PCIe slots, or a bundled operating system should consider other form factors.

Deciding Specification

The i5-1235U CPU with a configurable 15-55 W TDP sets the performance ceiling for fanless operation. If your workload demands sustained multi-thread throughput beyond this thermal envelope, a larger actively cooled system will be necessary.

Přednosti

  • Fanless cooling handles -20 °C to +60 °C with an all-aluminium chassis
  • i5-1235U delivers 10 cores and 12 threads up to 4.4 GHz
  • 32 GB DDR5 4800 MT/s installed, expandable to 64 GB
  • Four Gigabit LAN ports, one with vPro remote management
  • Dual DP outputs drive two 8K displays at 7680 x 4320 @60 Hz

Specifikace

ColorGray
CPU TypeIntel Core i5 12th Gen

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

How do I mount the Partaker I19 and connect the 12-24V Phoenix terminal without reversing polarity?

Use the included book-style mount to secure the 205 x 146 x 50 mm chassis, then wire the 4-pin Phoenix terminal observing the printed + and - markings; the unit accepts 12-24V DC and ships with a 100-240V AC to 12V 7.5A adapter.

Which storage slots may need an upgrade later, and what form factors do they take?

The board provides one M.2 2280 M-key slot supporting PCIe x1 NVMe or SATA, plus one full-size mSATA slot; both are user-accessible after removing the bottom cover.

At what point does the fanless thermal design throttle the i5-1235U during sustained load?

The aluminium chassis is rated for continuous operation up to 60 °C ambient; if the internal temperature exceeds the CPU's 15-55 W TDP envelope, the processor will reduce clocks to stay within thermal limits.
