Compact black-grey aluminium mini PC with single-side ports

partaker

partaker I37 i7-1255U 8G 128G barebone mini PC

SKU CH-35PQ-3NJEA

Industrial barebone with i7-1255U, 8 GB DDR5, 128 GB SSD, four Gigabit LAN ports, dual DisplayPort, six USB 3.0, isolated RS485 and GPIO, 12–24 V DC input, and -20 °C to 60 °C operating range

  • ColorBlack gray
  • CPU TypeIntel Core i7 12th Gen

I37 CPU I7 1255U 8GB RAM / 128GB SSD

  • Compact industrial chassis fits tight spaces with 172×136×50 mm footprint
  • 10-core i7-1255U reaches 4.7 GHz for demanding workloads
  • Dual DDR5 4800 SODIMM slots expand to 64 GB
  • Four Gigabit LAN ports plus isolated RS485 and GPIO for field connectivity
  • 12-24 V DC input and -20 to 60 °C range suit 24/7 industrial use

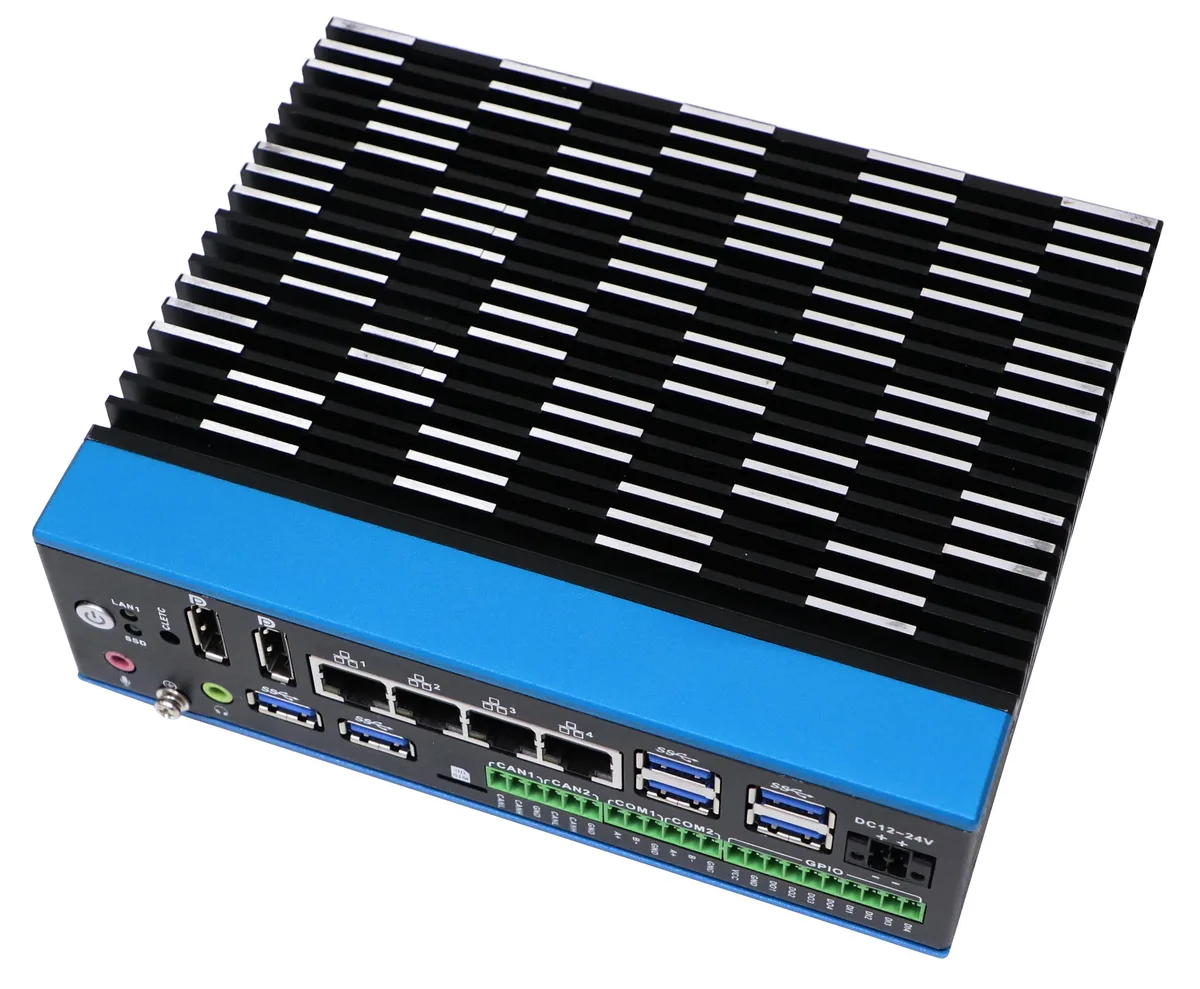

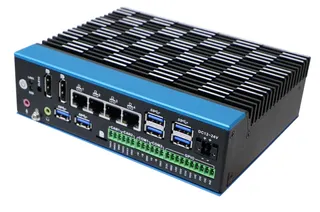

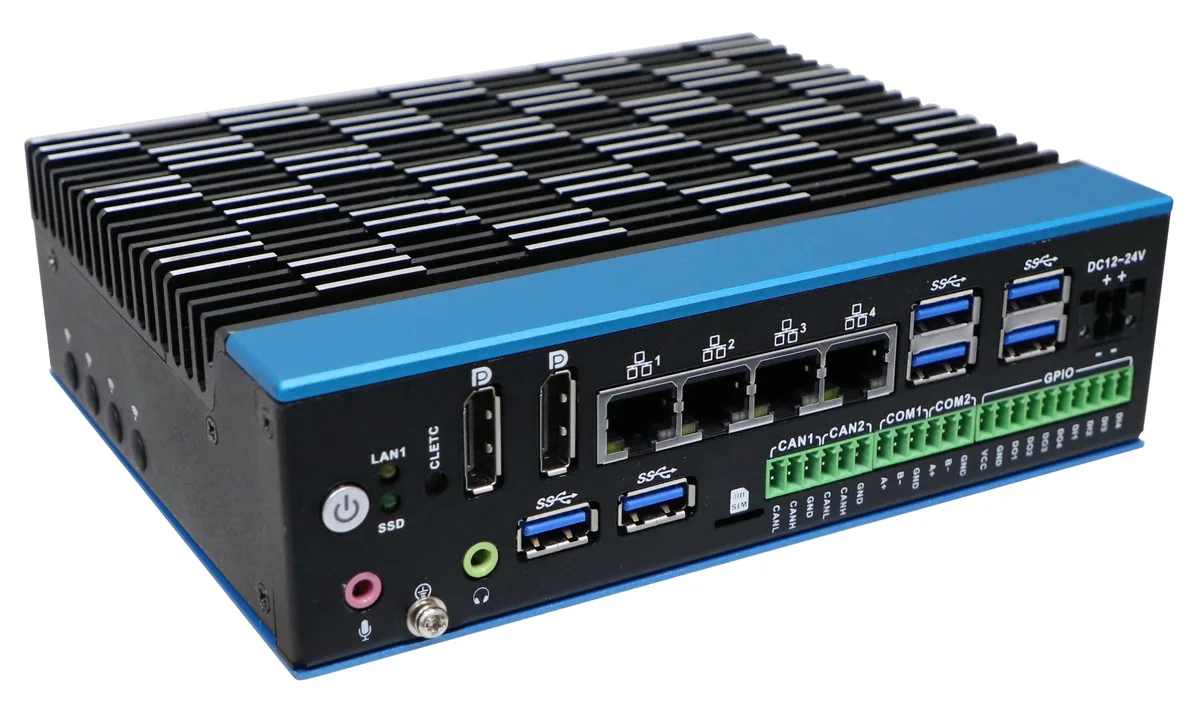

Compact Industrial Mini PC

The Partaker I37 is a book-style barebone built around an Intel Core i7-1255U processor with 10 cores and 12 threads reaching 4.7 GHz. It arrives with 8 GB of DDR5 memory and a 128 GB SSD installed, ready for immediate deployment in space-constrained industrial settings. The all-aluminum chassis measures 172 by 136 by 50 mm and weighs 1.45 kgs, using active cooling to sustain 24/7 operation.

Target Users and Limitations

This unit suits integrators who need four independent Gigabit Ethernet ports, two DisplayPort outputs, six USB 3.0 connections, and dual isolated RS485 plus eight-channel GPIO for factory automation or AGV control. The 12-24 V DC input and -20 to +60 °C range fit vehicle and cabinet installations. Buyers requiring more than 64 GB of RAM, additional M.2 NVMe slots beyond the single 2280 key, or built-in Wi-Fi and 5G without adding modules should look elsewhere.

Decisive Specification

The single 128 GB M.2 2280 SSD is the limiting factor for local data logging and OS imaging in write-heavy workloads. Only one M-key slot supports NVMe or SATA, and the second storage path is an mSATA interface, so capacity expansion relies on Mini PCIe adapters rather than a second native NVMe drive. Verify that the provided capacity meets application demands before purchase.

Přednosti

  • Compact industrial chassis fits tight spaces with 172×136×50 mm footprint
  • 10-core i7-1255U reaches 4.7 GHz for demanding workloads
  • Dual DDR5 4800 SODIMM slots expand to 64 GB
  • Four Gigabit LAN ports plus isolated RS485 and GPIO for field connectivity
  • 12-24 V DC input and -20 to 60 °C range suit 24/7 industrial use

Specifikace

ColorBlack gray
CPU TypeIntel Core i7 12th Gen

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

How much power does the i7-1255U draw when the mini PC runs continuously under load?

The CPU has a maximum turbo frequency of 4.7 GHz with 10 cores and 12 threads; the unit accepts 12-24 V DC input through a 4-pin Phoenix connector for stable 24/7 operation.

Which memory modules and storage drives do I need to add to the barebone chassis?

It provides two DDR5 4800 MHz SODIMM slots supporting up to 64 GB total, one M.2 2280 M-key slot for SATA or NVME SSDs, and one mSATA slot.

Can I keep using my existing RS485 sensors and GPIO wiring with the isolated ports on this unit?

Yes, it includes two optically isolated RS485 ports on 3-pin Phoenix connectors and an 8-channel isolated GPIO rated to 924 V for direct industrial field connectivity.
