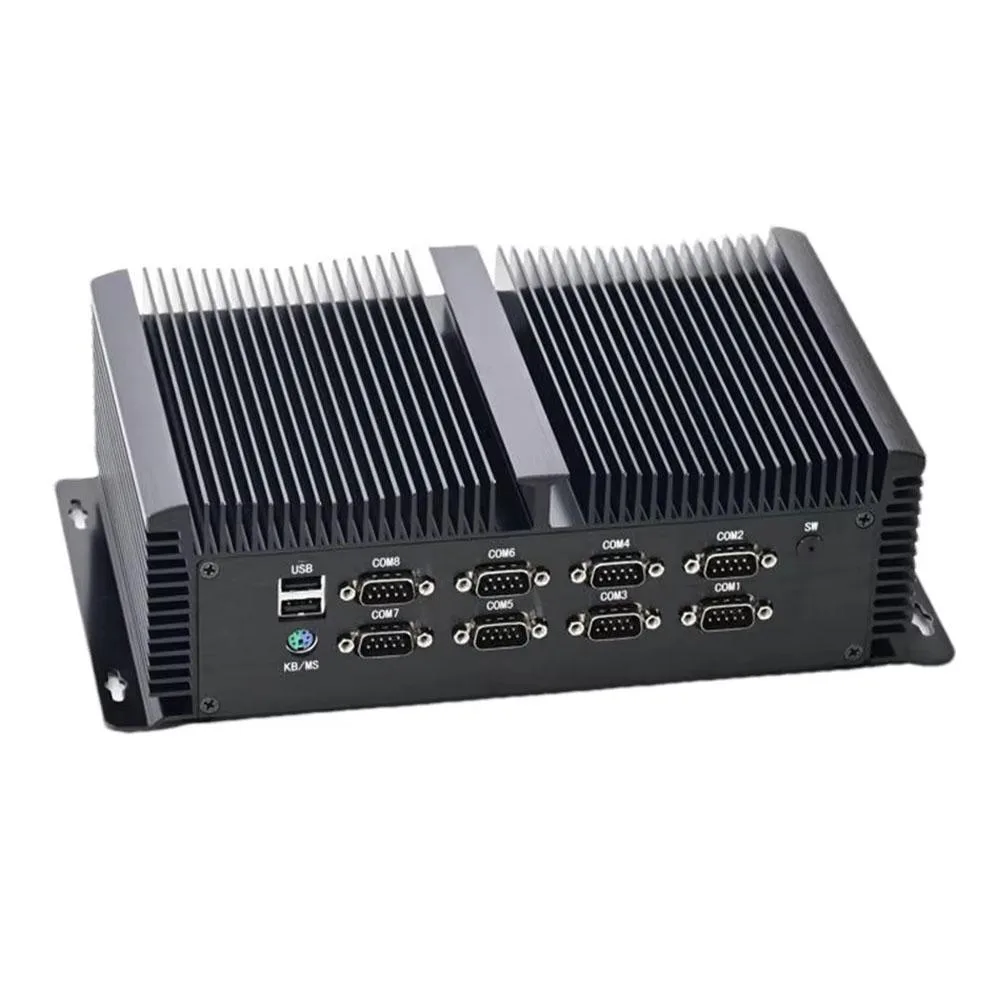

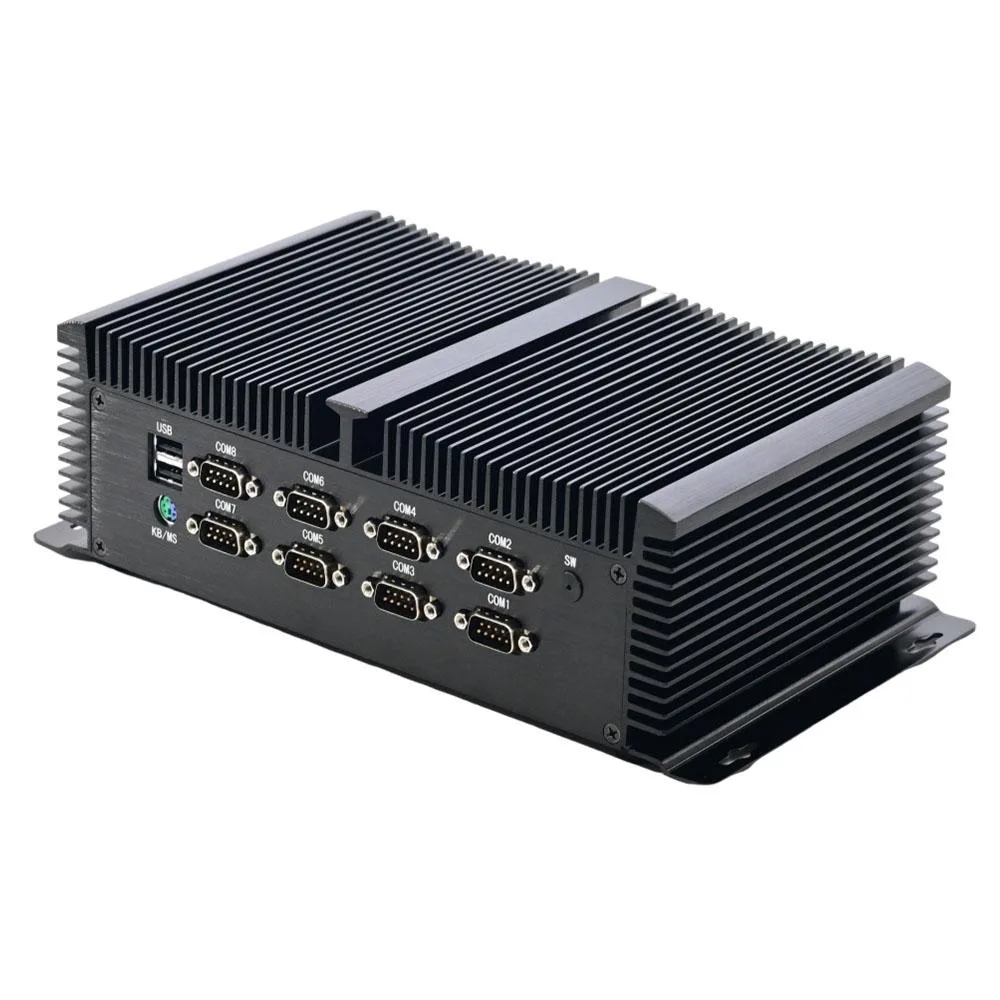

Black fanless aluminium mini PC with mounting ears, 255 x 155 x 80mm

partaker

Partaker I6 barebone mini PC i7-1255U 64GB DDR5 1TB NVME

SKU CH-7ES3-Y7X86

Fanless industrial mini PC with an Intel Core i7-1255U, 64 GB DDR5, 1 TB NVMe, triple 2.5G LAN, eight COM ports and triple-display output

  • ColorBlack
  • CPU TypeIntel Core i7 12th Gen

CPU Type Intel Core i7-1255U

Group 64G RAM / 1T SSD

  • Fanless aluminium chassis enables silent 24/7 operation
  • Intel Core i7-1255U reaches 4.70 GHz for demanding workloads
  • 64 GB DDR5 and 1 TB NVME deliver fast multitasking
  • Three 2.5G LAN ports plus eight COM ports suit industrial networking
  • Triple display via two HDMI 1.4 and one DP 1.4 outputs

Industrial barebone with i7-1255U

The Partaker I6 is a fanless mini PC built around an Intel Core i7-1255U processor and shipped with 64GB of DDR5 memory plus a 1TB NVME drive. Its aluminium chassis and wide temperature rating target integrators who need a compact, silent platform for 24/7 edge or automation workloads. The barebone format lets engineers add further storage or wireless modules before deployment.

Passive cooling at 45W TDP

A full aluminium shell dissipates the 45W processor without any moving parts, so acoustic output stays at zero decibels during normal operation. The DC 19V 5A input accepts 100-240V AC, keeping power draw predictable for cabinet installations. Operating range spans -10°C to 60°C, allowing continuous use in harsh environments without thermal throttling.

Triple 2.5G LAN and eight COM ports

Three Intel i226 2.5G Ethernet controllers and eight RS232 ports, two of which switch to RS485/422 via BIOS, connect directly to PLCs, sensors and legacy machinery. Dual HDMI 2.0 and one DP 1.4 drive three independent displays for signage or monitoring walls. Two mini-PCIe slots and a SIM tray let integrators add Wi-Fi or 3G/4G radios without external dongles.

Přednosti

  • Fanless aluminium chassis enables silent 24/7 operation
  • Intel Core i7-1255U reaches 4.70 GHz for demanding workloads
  • 64 GB DDR5 and 1 TB NVME deliver fast multitasking
  • Three 2.5G LAN ports plus eight COM ports suit industrial networking
  • Triple display via two HDMI 1.4 and one DP 1.4 outputs

Specifikace

ColorBlack
CPU TypeIntel Core i7 12th Gen

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

How do I mount the I6 on a wall and what step is often missed?

Use the four mounting ears on the aluminium chassis with the optional long screws; the step often missed is tightening all four corners evenly so the fanless case makes full contact for heat dissipation.

Which components inside the I6 can I swap later without replacing the whole unit?

The two SO-DIMM DDR5 modules, up to two M.2 2280 NVME drives, one SATA 3.0 drive and the mini PCIe Wi-Fi or 4G modules are all user-replaceable.

At what temperature does the fanless I6 begin to throttle under continuous load?

The aluminium chassis is rated for operation up to 60 °C; sustained loads that push the case beyond this limit will trigger thermal throttling first.
