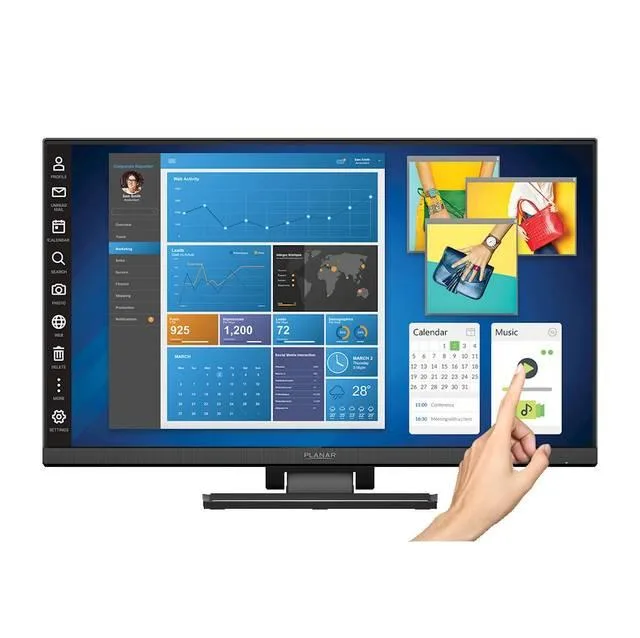

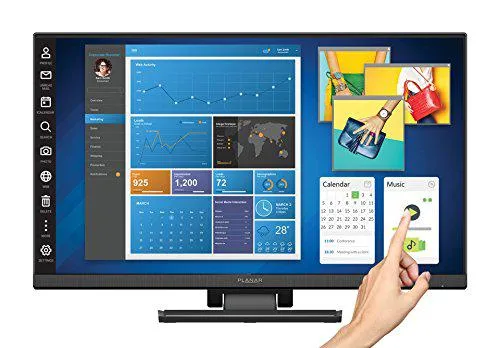

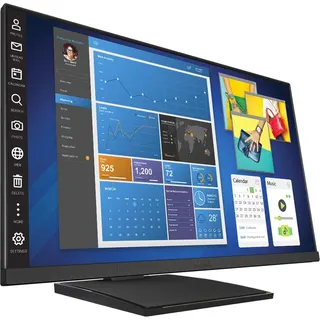

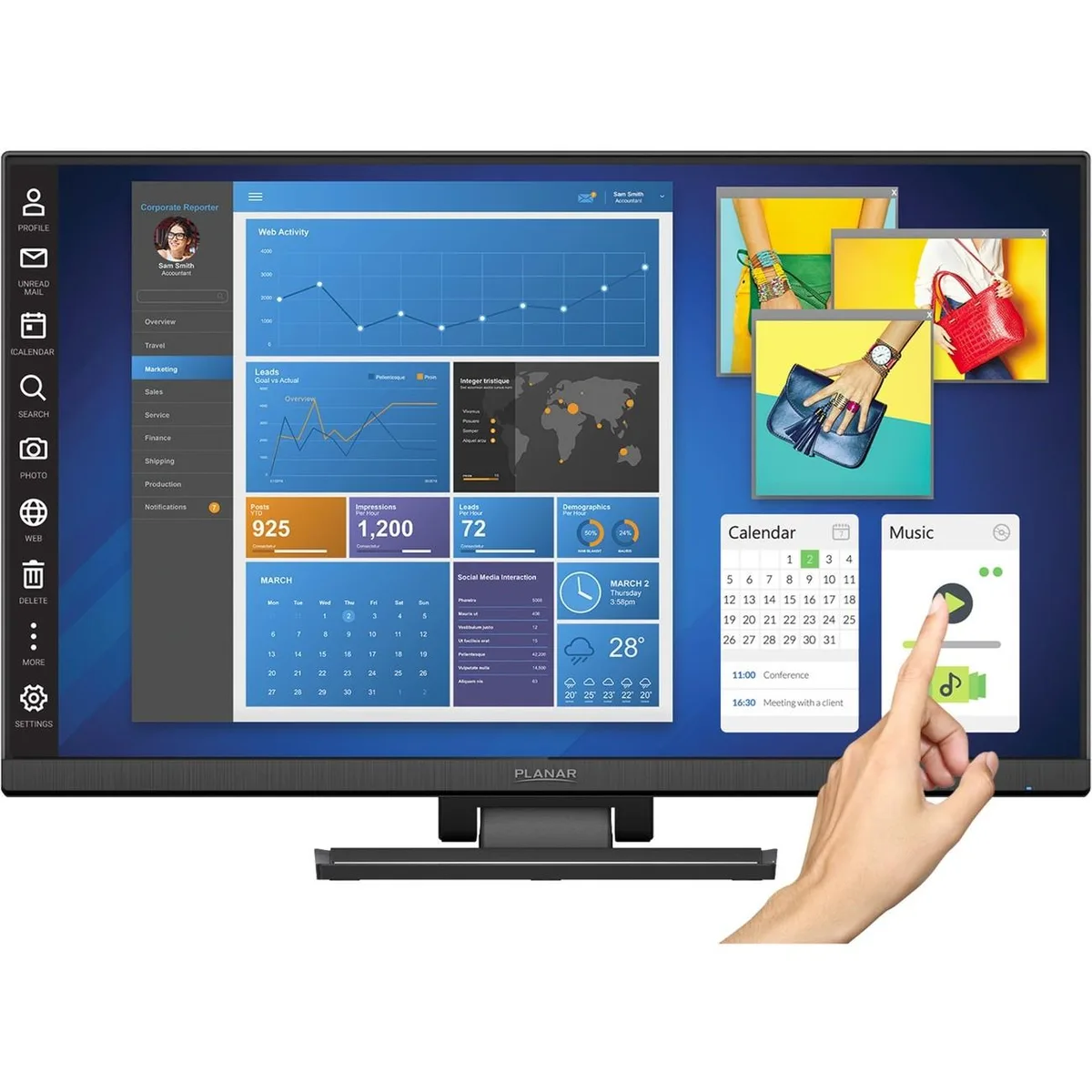

Black 23.8 inch touchscreen monitor with built-in speakers and USB hub

Planar

Planar 997-9363-00 23.8" 1920x1080 portable monitor

SKU CH-71RH-11CZM MPN 997-9363-00

A 23.8 inch Full HD touchscreen monitor with 10-point projected capacitive touch, HDMI, VGA and USB inputs, built-in speakers and a 14 ms response time

  • Monitor TypeTouchscreen Monitor
  • Touchscreen TypeProjected Capacitive
  • Cabinet ColorBlack
  • Screen Size23.8"
  • Display TypeFHD
  • Maximum Resolution1920 x 1080
  • Full HD clarity with 1920 x 1080 resolution
  • Responsive 10-point projected capacitive touchscreen
  • Built-in 2-watt speakers for audio output
  • VGA, HDMI and USB 3.0 connectivity included
  • Flicker-free IPS panel with 250 cd/m² brightness

23.8-inch Full HD touchscreen monitor

The Planar Helium PCT2435 is a 23.8-inch projected capacitive touchscreen monitor with a 1920 x 1080 resolution. It supports 10-point touch input via a USB interface. The display uses an IPS panel with LED backlighting and includes built-in 2 watt speakers. It is suited for interactive kiosks, point-of-sale systems or collaborative workspaces needing touch capability.

Connectivity and interface limits

Video inputs are limited to one VGA and one HDMI port, while touch data travels over a USB 3.0 Type-A to Type-B link. The USB connection also serves a built-in hub for peripheral pass-through. No DisplayPort or USB-C video alternate mode is provided, so newer laptops may require an adapter. The 14ms response time and 60Hz refresh rate are adequate for office tasks but not for fast motion.

Projected capacitive 10-point touch

The defining specification is the projected capacitive layer enabling 10 simultaneous touch points. This technology requires a USB link to the host for touch calibration and data. Buyers needing a non-touch display, a higher refresh rate, USB-C video input or a lighter panel for frequent transport should consider other options.

Přednosti

  • Full HD clarity with 1920 x 1080 resolution
  • Responsive 10-point projected capacitive touchscreen
  • Built-in 2-watt speakers for audio output
  • VGA, HDMI and USB 3.0 connectivity included
  • Flicker-free IPS panel with 250 cd/m² brightness

Specifikace

BrandPLANAR
ModelPCT2435
Monitor TypeTouchscreen Monitor
Touchscreen TypeProjected Capacitive
Cabinet ColorBlack
Screen Size23.8"
Display TypeFHD
Maximum Resolution1920 x 1080
Brightness250 cd/m2
Contrast Ratio1000:1
Response Time14ms
Touchscreen InterfaceUSB
D-Sub1
Power Consumption28 W
Built-in SpeakersYes
FeaturesBuilt-in Devices:Speaker
Built-in Devices:USB Hub
Weight6.70 lbs.
Package ContentsHelium PCT2435 24" Touch Screen Monitor
Power Cord
VGA Cable
HDMI Cable
USB 3.0 Cable (A to B)
Audio-in Cable
User's Guide
Přepravní hmotnost7.03 kg
Rozměry balení615 × 424 × 173 mm

Otázky k tomuto produktu

Which version of the Planar Helium PCT2435 should I choose for a 23.8-inch Full HD touchscreen?

The MPN 997-9363-00 identifies this single 23.8-inch 1920 x 1080 model with 10-point projected capacitive touch and built-in speakers.

What does the 250 cd/m² brightness mean for daily use on this monitor?

At 250 cd/m² the screen is comfortable for indoor office work and general content, while the 1000:1 contrast ratio keeps text readable.

How does the USB touchscreen interface work with the video inputs on this display?

Touch data travels over the included USB 3.0 A-to-B cable, while video uses the separate HDMI or VGA connection.
