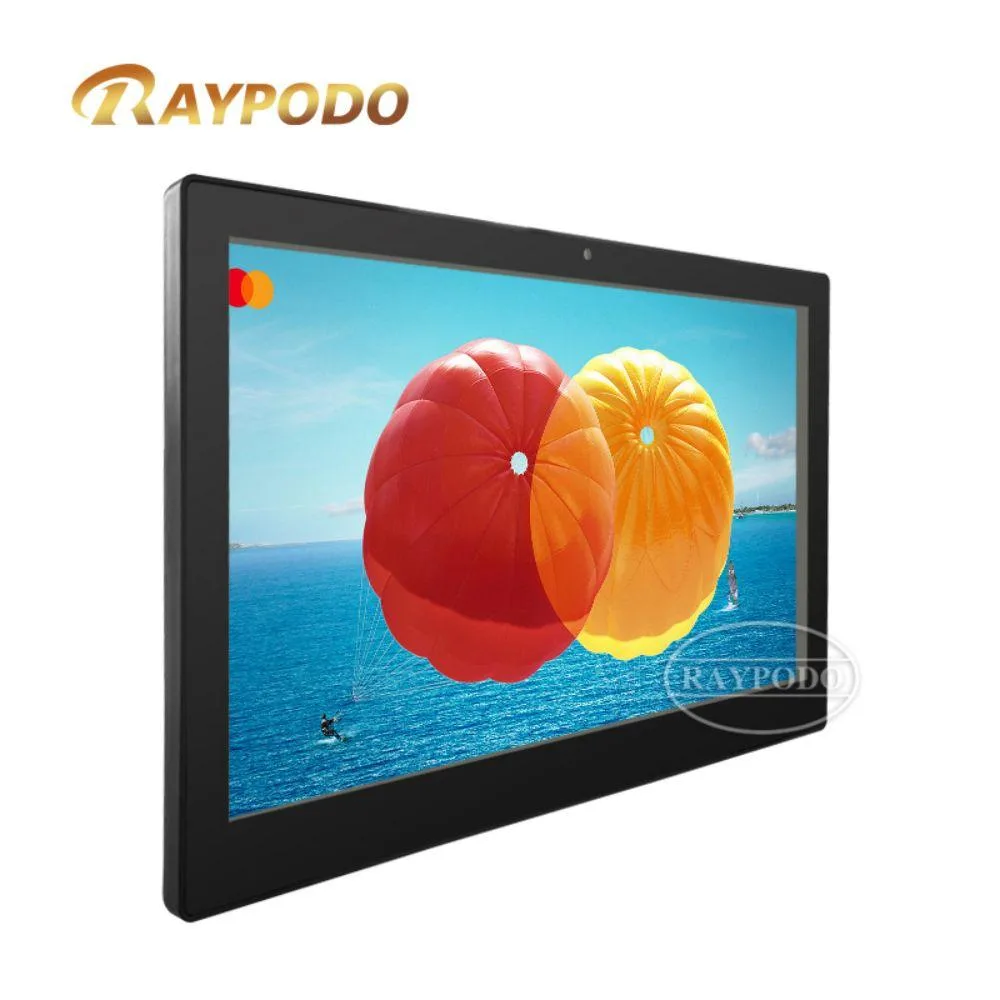

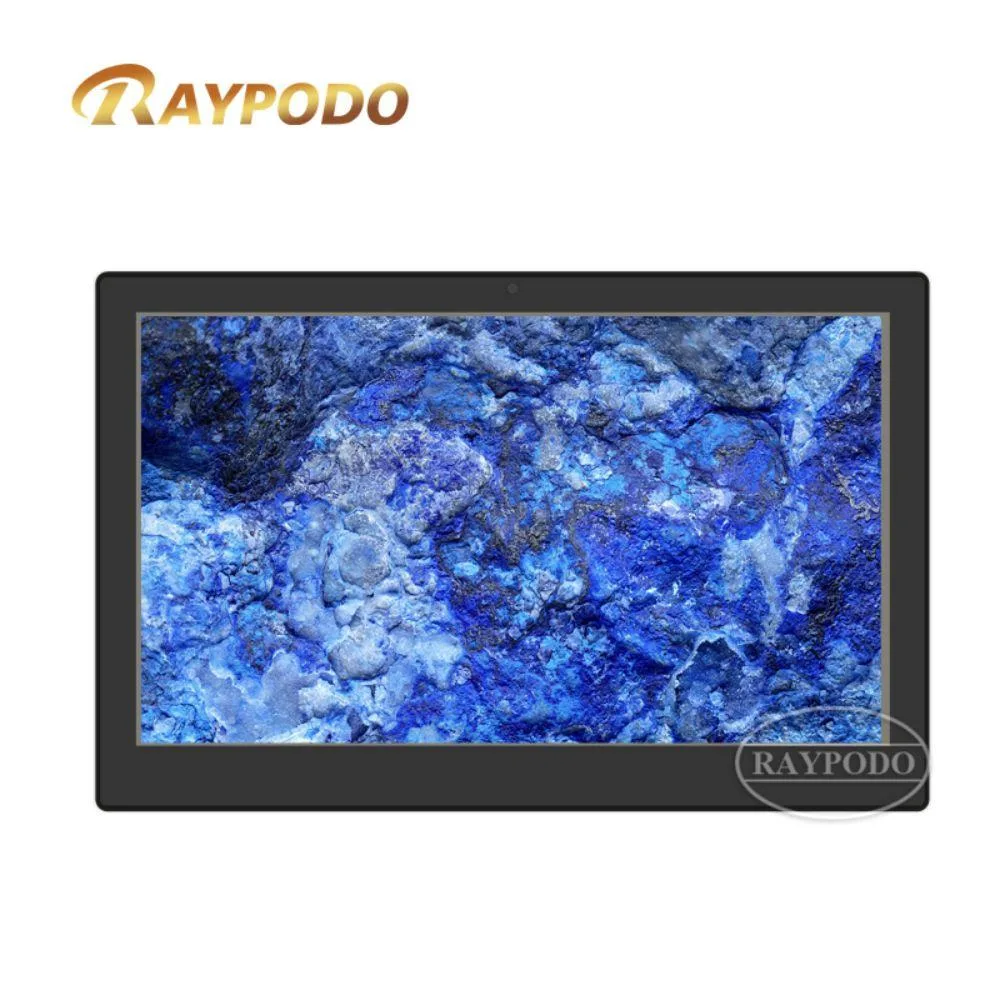

Black 15.6-inch all-in-one Android touchscreen with PoE RJ45 port

RAYPODO

RAYPODO 15.6" RK3568 2GB 16GB Android 11 All-in-One PC

SKU CH-GZDV-TVTQG

A 15.6-inch 1080p all-in-one Android 11 PC with RK3568 quad-core CPU, 2 GB LPDDR4X, 16 GB eMMC, 10-point touch and PoE for 24/7 commercial displays

  • Screen Size15.6"
  • Screen Resolution1920*1080
  • TouchscreenYes
  • Screen Type10-Point capacitive touch, LCD IPS panel
  • Display Feature15.6" 1920*1080 IPS, 10-Point capacitive touch, Normally bla
  • CPU NameRK3568

model RK3568

memory 2GB+16GB

  • Quad-core RK3568 up to 2.0GHz runs Android 11 smoothly 24/7
  • 6" 1920x1080 IPS with 10-point capacitive touch at 250cd/m²
  • HDMI output extends content to larger external displays
  • POE via RJ45 delivers power and data over one cable
  • Commercial-grade, battery-free design built for continuous indoor signage

Commercial All-in-One Display

The RAYPODO 15.6-inch unit combines a quad-core RK3568 processor with Android 11 in a fixed-mount chassis designed for continuous indoor signage. It targets installers who need a self-contained screen for lobbies, directories or kiosks rather than a portable consumer tablet.

PoE Simplifies Installation

A single RJ45 cable delivers both power and data through Power over Ethernet, removing the need for a local mains socket at the display point. The 10-point capacitive touchscreen and HDMI output let the same device serve as an interactive terminal or drive a larger secondary screen.

Fanless 24/7 Operation

With no battery and no moving parts, the LPDDR4X memory and Mali-G52-2EE graphics run silently within a commercial-grade thermal envelope. The 250 cd/m² IPS panel stays readable during round-the-clock use while the efficient Cortex-A55 cores keep power draw low for permanent deployment.

Přednosti

  • Quad-core RK3568 up to 2.0GHz runs Android 11 smoothly 24/7
  • 6" 1920x1080 IPS with 10-point capacitive touch at 250cd/m²
  • HDMI output extends content to larger external displays
  • POE via RJ45 delivers power and data over one cable
  • Commercial-grade, battery-free design built for continuous indoor signage

Specifikace

Screen Size15.6"
Screen Resolution1920*1080
TouchscreenYes
Screen Type10-Point capacitive touch, LCD IPS panel
Display Feature15.6" 1920*1080 IPS, 10-Point capacitive touch, Normally black, 250cd/m2, 16:9
CPU NameRK3568
CPU TypeQuad-core Cortex-A55 up to 2.0GHz
CPU Main FeaturesRK3568 Quad-core Cortex-A55 up to 2.0GHz
Memory Capacity2GB
Form FactorAll-in-One
Memory Spec2GB LPDDR4X/LPDDR4
SSD16GB EMMC
HDD16GB EMMC
Storage Spec2GB+16GB
GPU/VGA TypeMali-G52-2EE
Graphics CardMali-G52-2EE
Graphics InterfaceMali-G52-2EE
Operating SystemAndroid 11
TypeAll in one PC, POE Tablet
UsageElectronic Displays, 24/7 operation
ColorBlack
ProcessorRK3568
Processor Main FeaturesQuad-core Cortex-A55 up to 2.0GHz, Support 1T NPU
Memory2GB LPDDR4X/LPDDR4
Storage16GB EMMC
GraphicsMali-G52-2EE
Ethernet100M/1000M Ethernet, RJ45 with POE
Wireless Card802.11b/g/n WiFi, Bluetooth 5.0
Monitor15.6" LCD IPS panel
Speaker2*8Ω 2W
Software IncludedAndroid 11
Special FeaturesPOE, Touchscreen, Android 11, HD-MI, All in one PC, 24/7 operation
Cosmetic ConditionBlack
WLAN802.11b/g/n
ModemWiFi 802.11b/g/n, Bluetooth 5.0
LAN Speed100M/1000M
BluetoothBluetooth 5.0
BrandRaypodo
ChipsetRK3568
Audio Channels2 channels
Audio FeaturesSupports MP3/WMA/AAC etc. audio format
Front USB2
Card ReaderTF card (Max Support 128GB)
Video PortsHD-MI output
Rear USB2 x USB ports
RJ45RJ45 with POE
PC Card SlotTF card (Max Support 128GB)
WebcamFront Camera 2.0 M/P
Speaker Configuration2*8Ω 2W
Consumer AlertNot include a battery, Not Consumer Tablet

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

What external display resolution does the HDMI output support on this RK3568 unit?

The HDMI output can drive an external display at up to 1920x1080 resolution, matching the built-in 15.6" panel's native 1080p resolution for consistent content across both screens.

What mounting options does the 15.6" all-in-one chassis provide for commercial installation?

The unit is designed for wall-mounted deployment in lobbies, waiting rooms, and retail spaces, with a slim profile that saves space and maintains a neat professional appearance in indoor commercial environments.

How is the device powered and connected for 24/7 operation without a battery?

Connect a single RJ45 cable from a PoE-enabled network switch to the unit's Ethernet port; this delivers both power and data, enabling continuous operation without a battery or separate power adapter.
