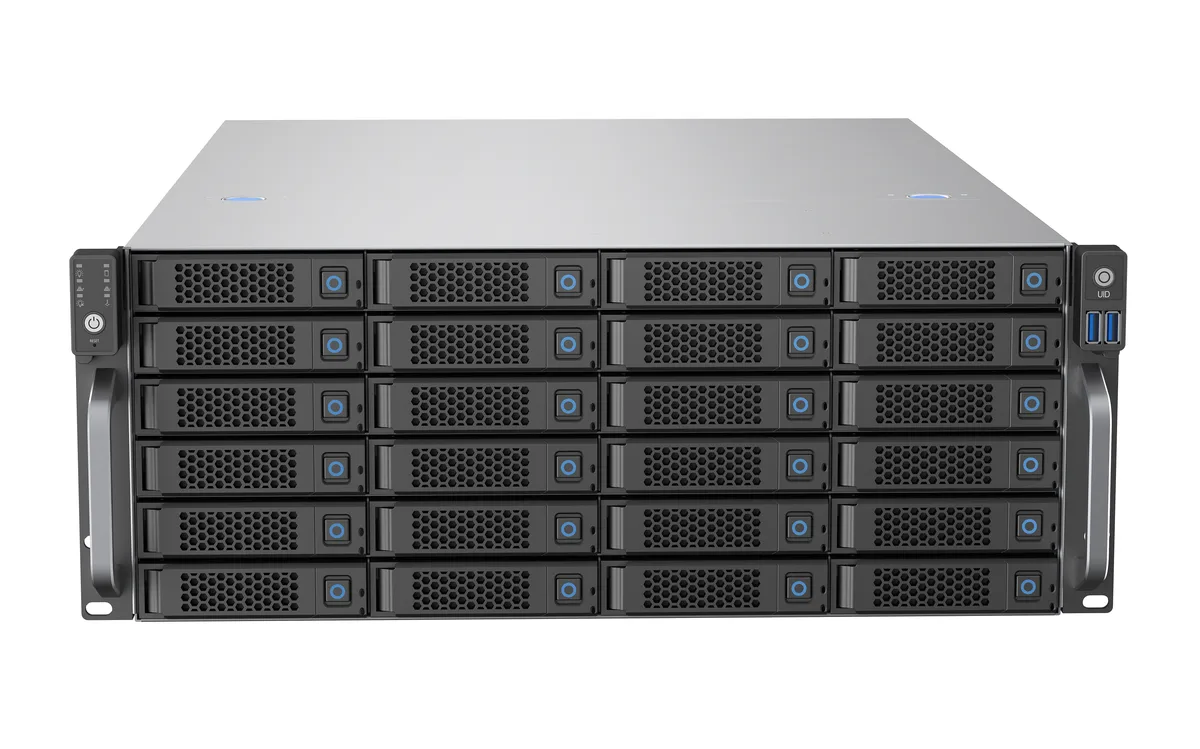

Black and silver 4U rackmount server chassis with twenty-four front 3.5-inch hot-swap drive bays

Rosewill

Rosewill RSV-H424 4U rackmount server chassis 24-bay 3.5

SKU CH-67BX-60RKB MPN RSV-H424

Holds 24 hot-swap 3.5-inch SATA/SAS drives in a 4U rackmount chassis with three hot-swap 120x38mm PWM fans and E-ATX motherboard support

  • Chassis TypeRackmount
  • Form Factor4U
  • ColorBlack / Silver
  • Case MaterialSGCC
  • Motherboard Compatibility12" x 13" E-ATX, 12" x 9.6" ATX, 11.2" x 8.2" Mini-ATX and b
  • Power SupplySupports ATX power supply

Chassis Type 4U · 24 HS Bays · 3 Fans · 25.59" Depth · E-ATX

Přeškrtnuté varianty existují, ale zde nejsou skladem.

  • Maximise rack density with 24 hot-swap 3.5" drive bays in 4U
  • Support large E-ATX boards up to 12" x 13" for maximum cores and memory
  • Three hot-swap 120x38mm PWM fans maintain cooling during maintenance
  • Seven expansion slots allow extensive PCIe add-in card configurations
  • Front-panel dual USB 2.0 ports give quick local access for diagnostics

24-Bay 4U Storage Platform

The Rosewill RSV-H424 is a 4U rackmount chassis built for deployments that demand dense 3.5-inch drive capacity. It suits storage clusters, backup targets and media archives where a single enclosure must hold two dozen hot-swap bays.

SGCC Frame and Serviceable Cooling

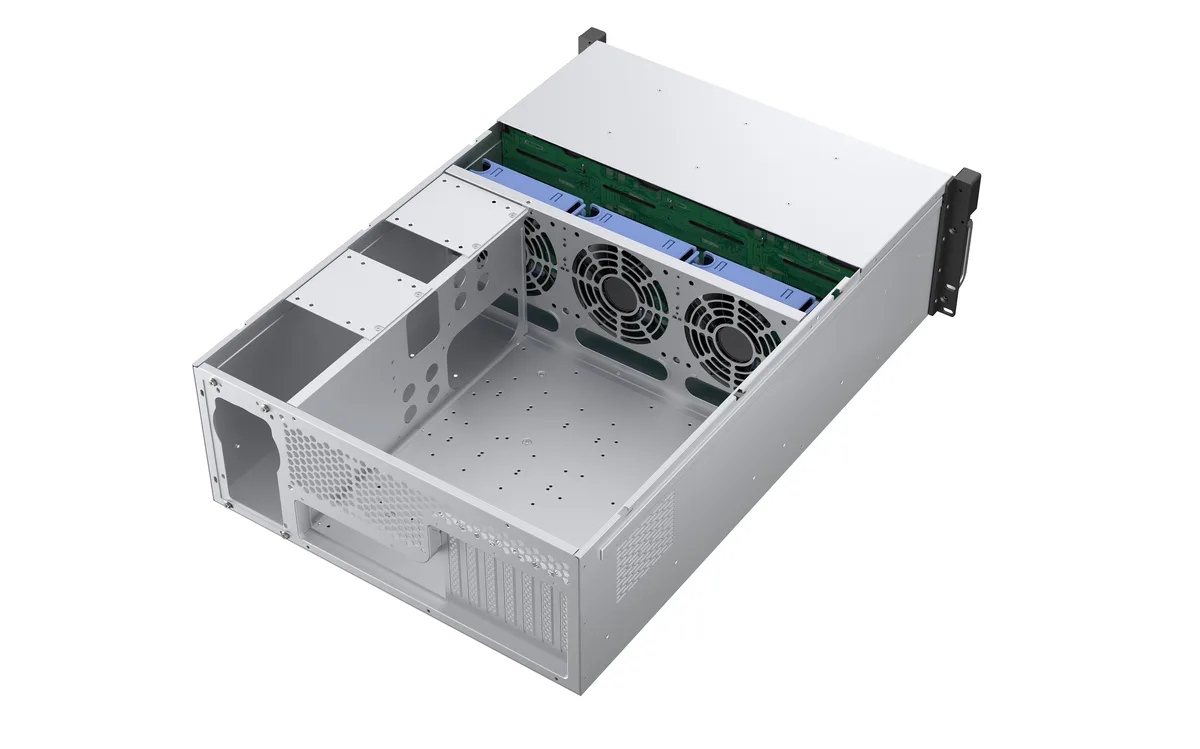

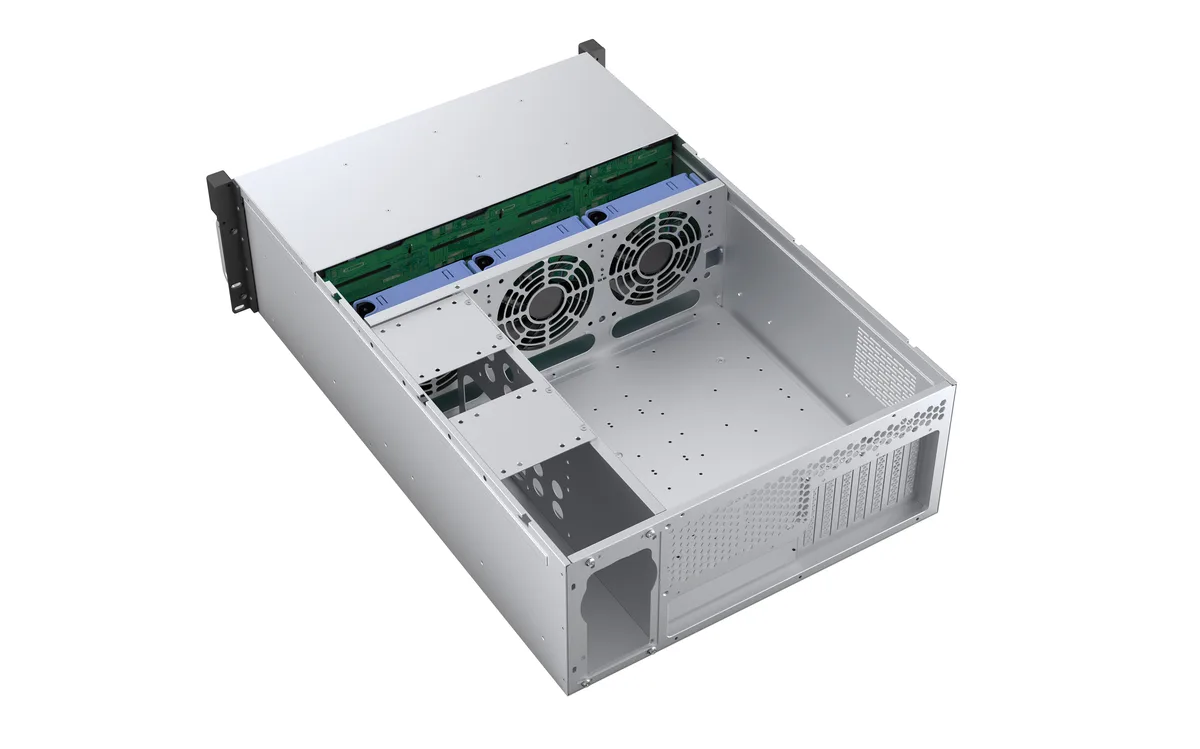

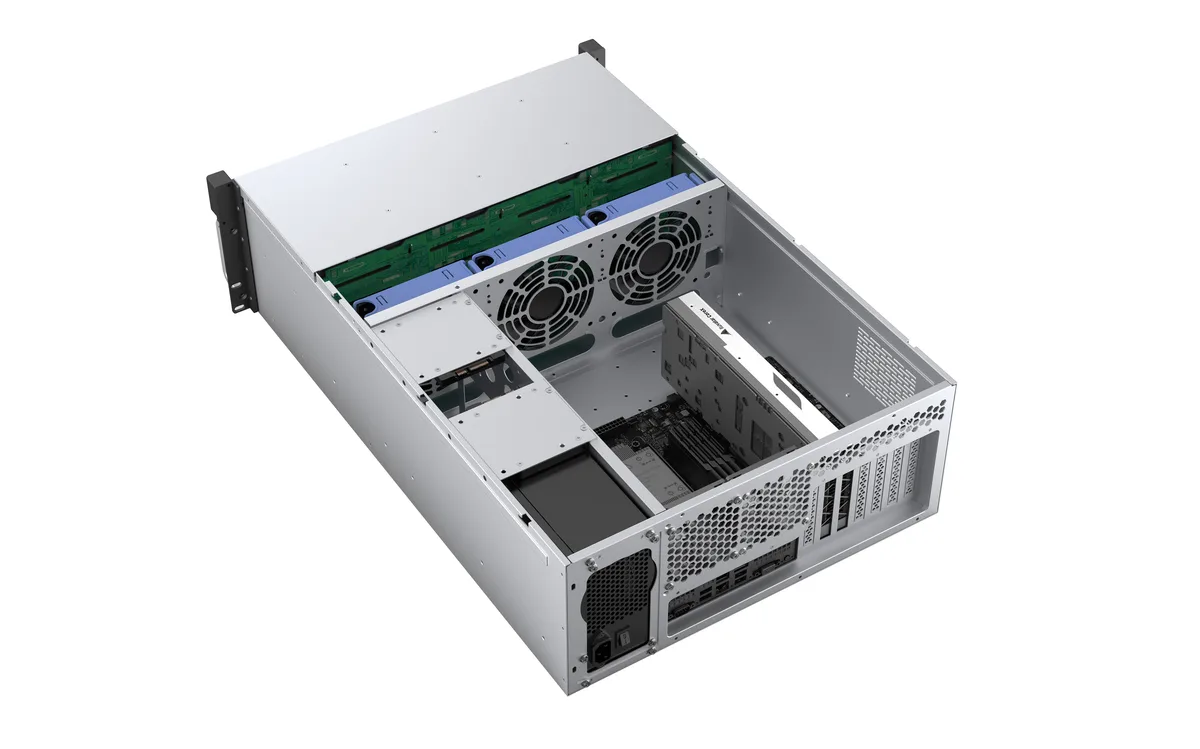

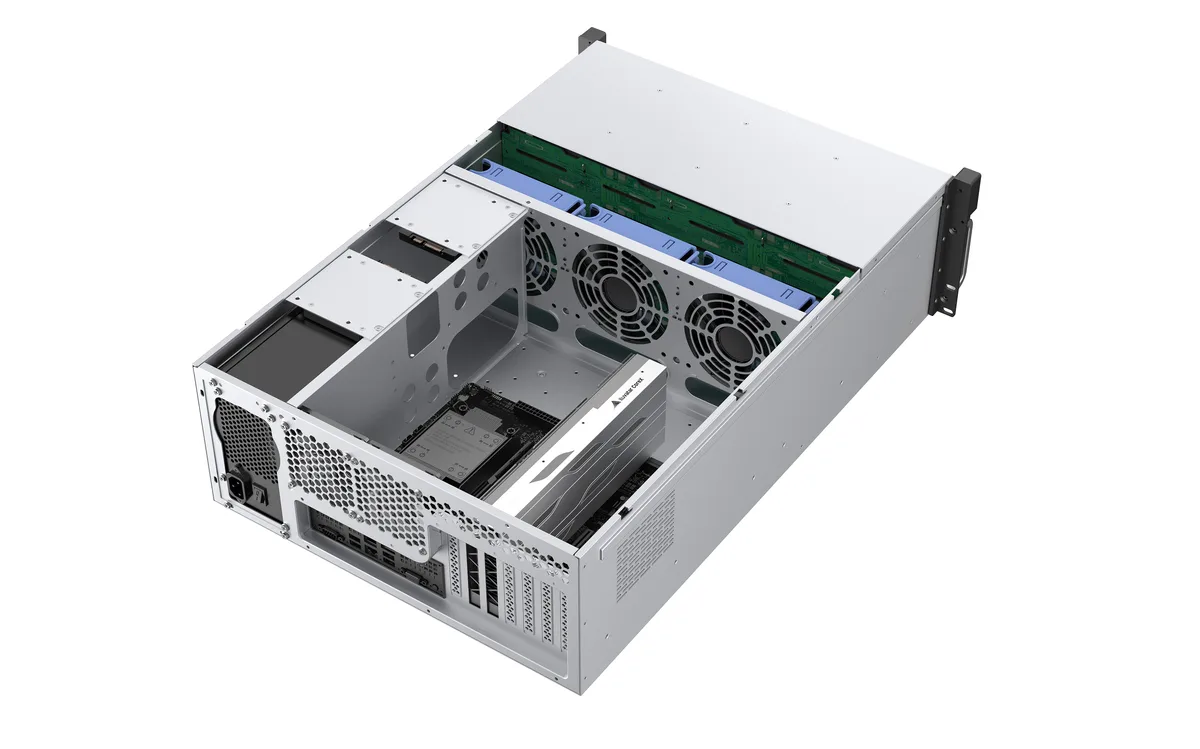

The black and silver SGCC body accepts E-ATX, ATX and Mini-ATX boards up to 12 by 13 inches. Three included 12038 PWM fans sit in a middle hot-swap tray so airflow continues during fan replacement. Front USB 2.0 ports and LEDs for power, drive activity and dual LAN give quick status checks without opening the rack.

Upgrade from Smaller Drive Counts

Moving from a 12-bay or tower chassis removes the need for external JBODs and extra rack units. The jump pays off when a project grows past twelve spindles or when consolidated management through SGPIO and temperature monitoring becomes a daily requirement.

Přednosti

  • Maximise rack density with 24 hot-swap 3.5" drive bays in 4U
  • Support large E-ATX boards up to 12" x 13" for maximum cores and memory
  • Three hot-swap 120x38mm PWM fans maintain cooling during maintenance
  • Seven expansion slots allow extensive PCIe add-in card configurations
  • Front-panel dual USB 2.0 ports give quick local access for diagnostics

Specifikace

BrandRosewill
ModelRSV-H424
Chassis TypeRackmount
Form Factor4U
ColorBlack / Silver
Case MaterialSGCC
Motherboard Compatibility12" x 13" E-ATX, 12" x 9.6" ATX, 11.2" x 8.2" Mini-ATX and below
Power SupplySupports ATX power supply
LED IndicatorsPower status, HDD activity, 2 x Lan activity
Hot-Swap Drive Bays24 (SFF8643 with SGPIO and Temperature Control)
Expansion Slots7
Max CPU Cooler Height158 mm
Max GPU Length330 mm
Max PSU Length180 mm
Front Ports2 x USB 2.0
Fan OptionsMiddle: 3 x 120mm fans (3 x 12038 PWM fan included)
Přepravní hmotnost19.44 kg
Rozměry balení813 × 584 × 279 mm

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

What drive interface standard do the 24 hot-swap bays use, and what throughput does it cap at?

The bays use SFF-8643 connectors with SGPIO and support 12Gbps SATA and SAS drives.

What motherboard form factors fit in the RSV-H424, and what are the maximum CPU cooler and GPU lengths?

It accepts 12" x 13" E-ATX, 12" x 9.6" ATX, and 11.2" x 8.2" Mini-ATX boards. CPU cooler height is limited to 158 mm and GPU length to 330 mm.

How are the three middle 120x38mm PWM fans installed, and what step is often missed?

The fans mount in the middle hot-swap tray; the step often missed is connecting each fan to the PWM header so speed control and monitoring work.
