Silver and black 4U rackmount server chassis with front drive bays and cooling fans

Rosewill

Rosewill RSV-L4000U 4U server chassis

SKU CH-QA0Q-ZYZQ1 MPN RSV-L4000U

A 4U rackmount server chassis holding eight 3.5" drives and three 5.25" devices with seven pre-installed fans and E-ATX support

  • Chassis TypeRackmount
  • Form Factor4U
  • ColorBlack
  • Case MaterialSGCC
  • Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ITX
  • LED IndicatorsPower status, HDD activity, 2 x LAN activity

Chassis Type 4U · 8 Bays · 7 Fans

  • 4U · 9 Bays · 3 Fans
  • 4U · 14 Bays · 4 Fans
  • 4U · 8 Bays · 4 Fans
  • 4U · 8 Bays · 7 Fans
  • 4U · 12 Bays · 4 Fans
  • 4U · 12 Hot Swap Bays · 2 Fans
  • 4U · 15 Bays · 8 Fans
  • 4U · 8 Bays · 4 Fans (2x Sudokoo Fans)
  • 4U · 8 Bays · 7 Fans (5x Sudokoo Fans)
  • 4U · 15 Bays · 8 Fans (6x Sudokoo Fans)
  • 4U · 12 Bays · 3 Fans

Přeškrtnuté varianty existují, ale zde nejsou skladem.

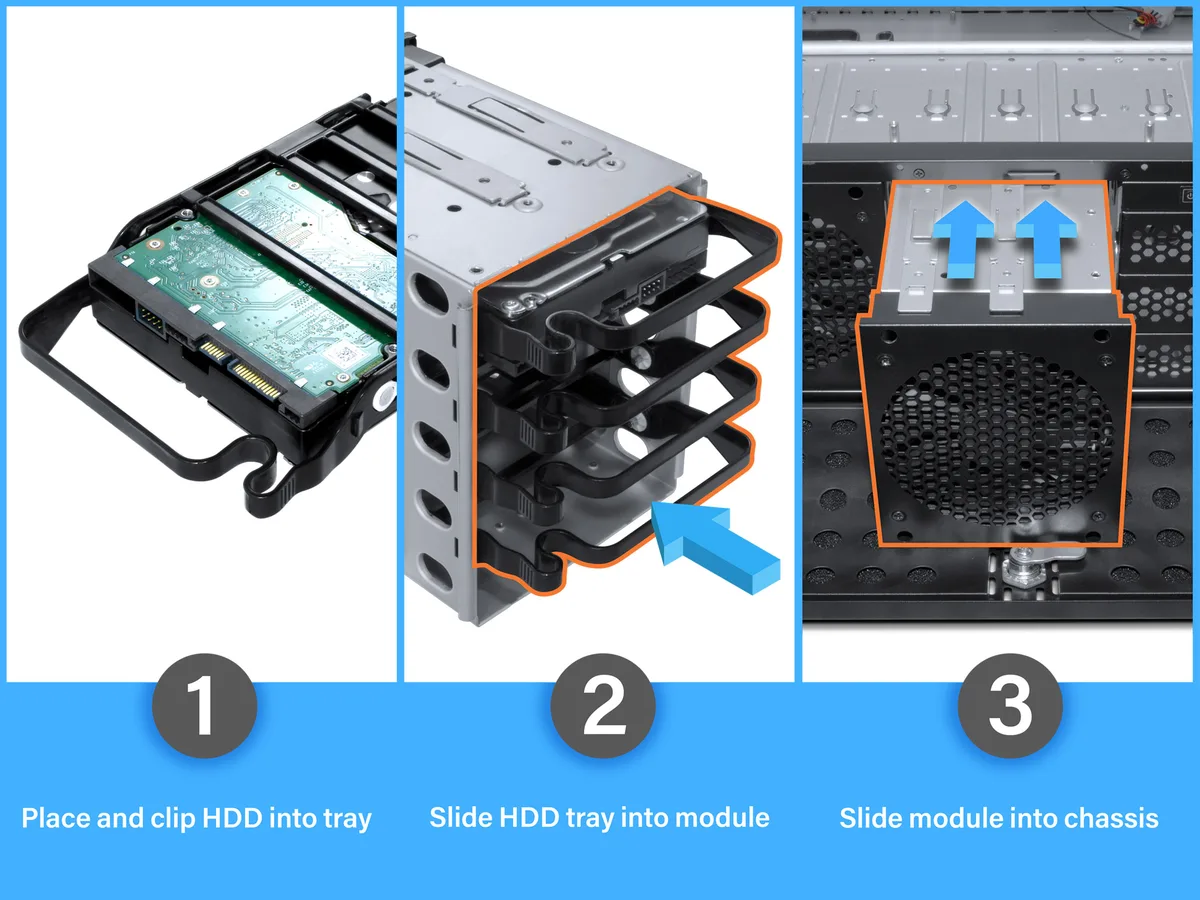

  • Holds 8 internal 3.5" drives plus 3 external 5.25" bays for high storage density

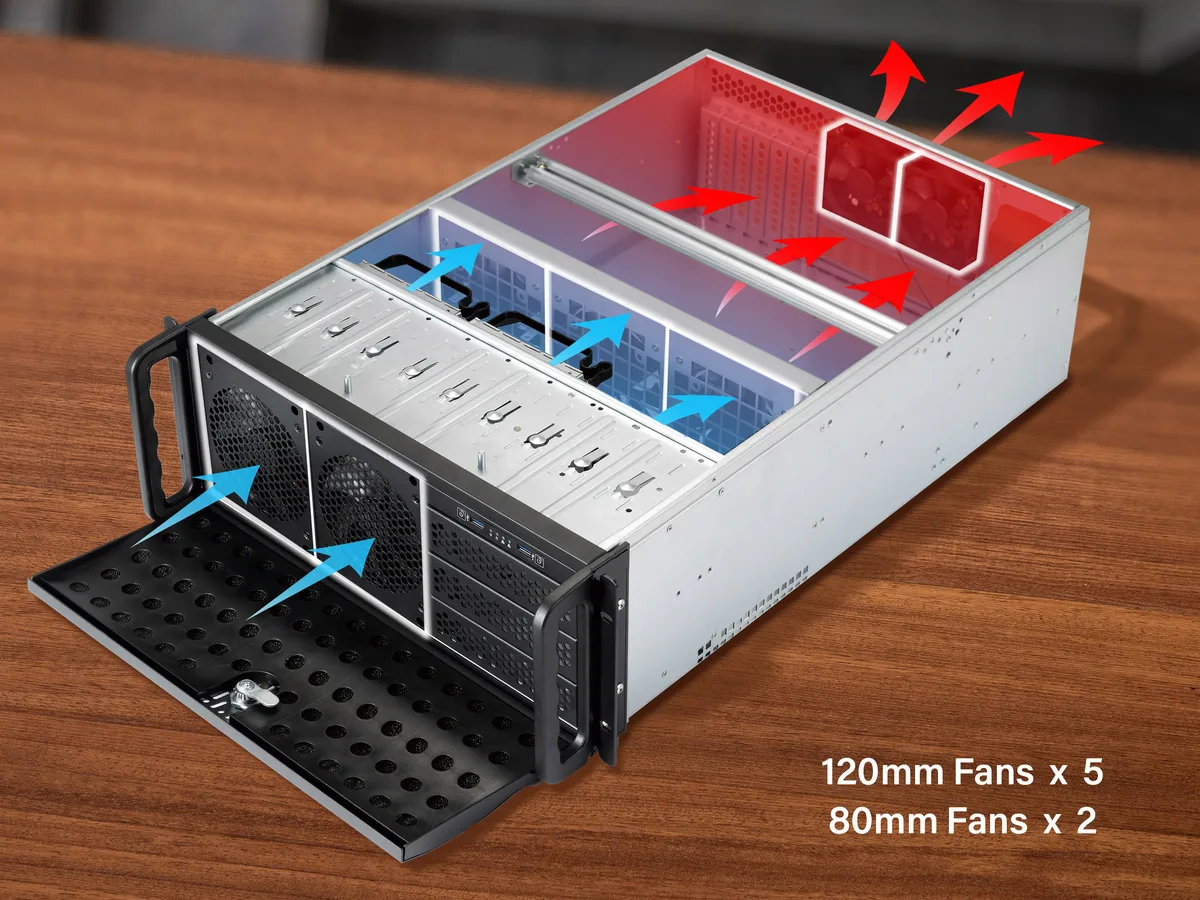

  • 7 pre-installed fans (2×120 mm front, 3×120 mm middle, 2×80 mm rear) deliver strong airflow
  • Supports E-ATX, ATX, Micro-ATX and Mini-ITX motherboards for flexible builds
  • 7 full-height expansion slots allow multiple add-in cards

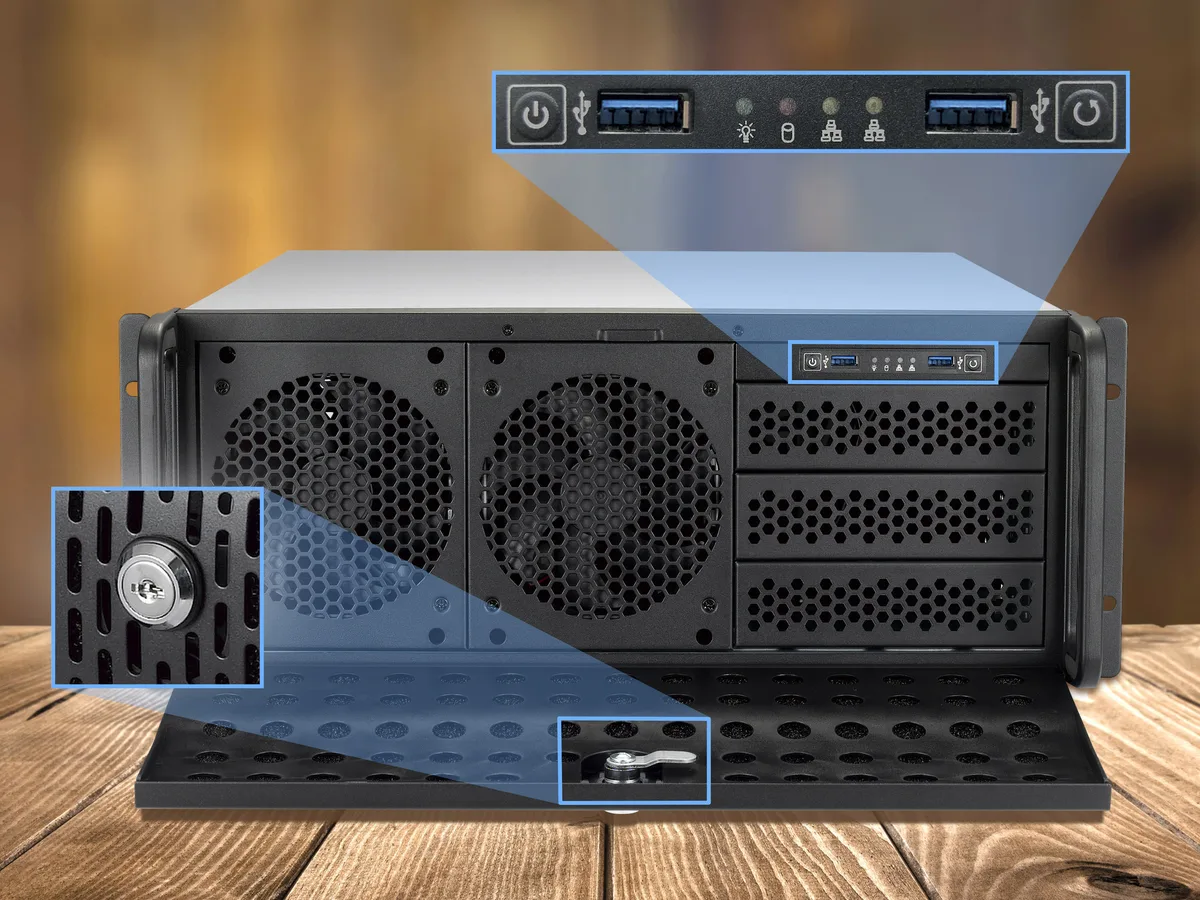

  • Front-panel LEDs show power, drive activity and two LAN links at a glance

4U Rackmount Chassis for High-Density Storage

The Rosewill RSV-L4000U is a 4U rackmount server chassis built for environments that need dense hard-drive capacity. It accepts up to eight internal 3.5-inch drives and three external 5.25-inch devices. Motherboard support covers ATX, E-ATX, Micro ATX and Mini ITX form factors. This makes it suited for home servers, backup appliances or small business storage arrays.

Installation Notes and Common Issues

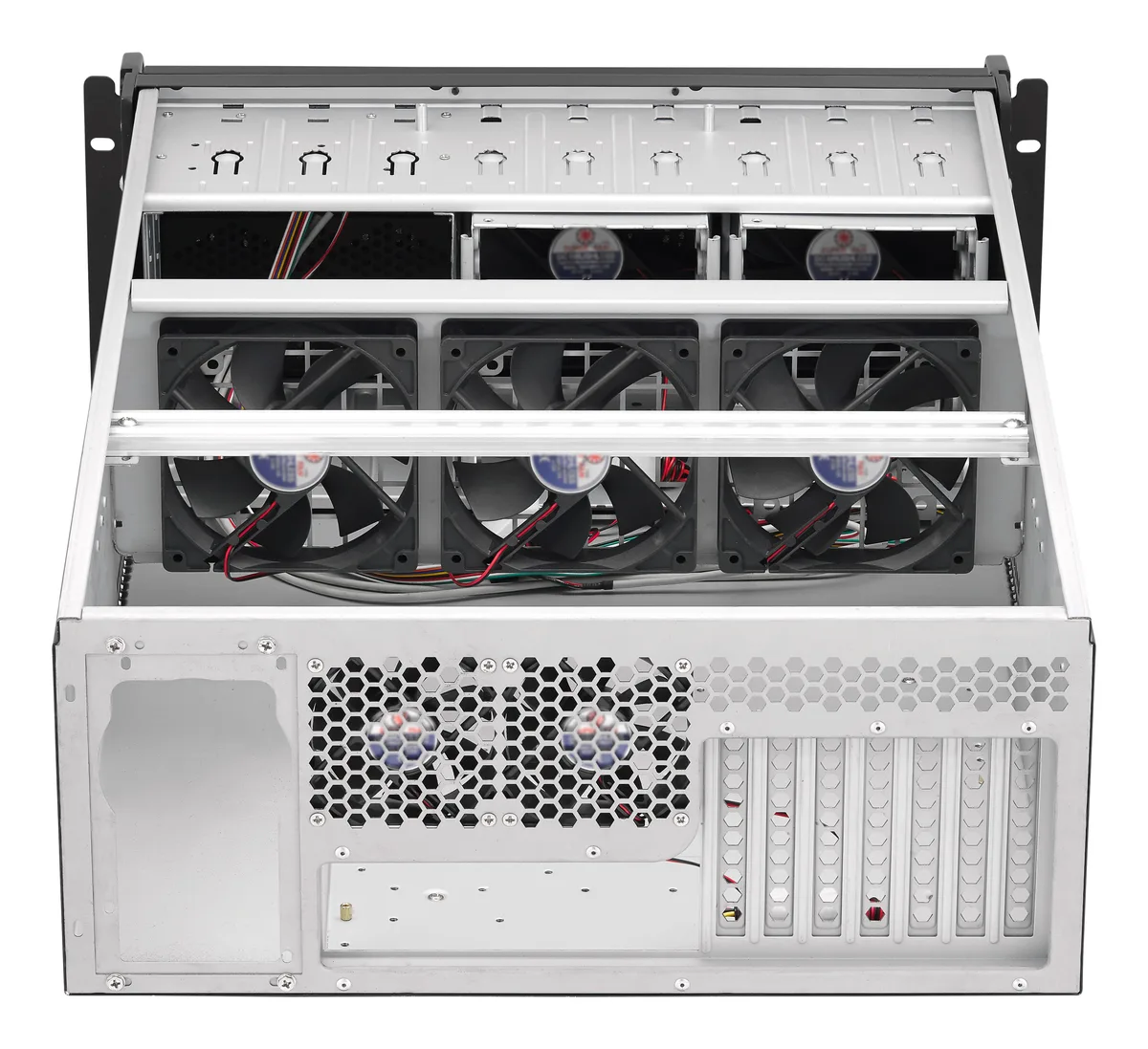

The chassis ships with seven pre-installed fans: two 120mm units at the front, three 120mm units in the middle and two 80mm units at the rear. Middle fans must be removed to fit graphics cards longer than 320mm, with a maximum length of 400mm without them. CPU cooler clearance is 117mm with the GPU holder installed and 152mm without it. The SGCC steel construction weighs 13.80kg, so rack rails rated for the load are required.

Pre-Purchase Compatibility Checks

Verify that your rack provides at least 4U of vertical space and a depth of 635mm for the chassis body. Confirm your power supply does not exceed 220mm in length for standard ATX or mini-redundant units. Ensure the motherboard I/O shield aligns with the seven expansion slots provided. Front-panel connectivity is limited to two USB 3.0 ports and LED indicators for power, drive activity and two LAN links.

Přednosti

  • Holds 8 internal 3.5" drives plus 3 external 5.25" bays for high storage density
  • 7 pre-installed fans (2×120 mm front, 3×120 mm middle, 2×80 mm rear) deliver strong airflow
  • Supports E-ATX, ATX, Micro-ATX and Mini-ITX motherboards for flexible builds
  • 7 full-height expansion slots allow multiple add-in cards
  • Front-panel LEDs show power, drive activity and two LAN links at a glance

Specifikace

BrandRosewill
ModelRSV-L4000U
Chassis TypeRackmount
Form Factor4U
ColorBlack
Case MaterialSGCC
Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ITX
LED IndicatorsPower status, HDD activity, 2 x LAN activity
External 5.25" Drive Bays3
Internal 3.5" Drive Bays8
Expansion Slots7
Max CPU Cooler HeightWith GPU holder: 117mm / Without GPU holder: 152mm
Max GPU LengthWith Middle Fan 320mm/ Without Middle Fan: 400mm
Max PSU Length220 mm PS2 (ATX) , Mini-Redundant
Front Ports2 x USB 3.0
Fan OptionsFront - 2 x 120mm fans (2 x 120mm fan included)
Middle - 3 x 120mm fans (3 x 120mm fan included)
Rear - 2 x 80 mm fans (2 x 80 mm fan included)
FeaturesThe Rosewill RSV-L4000U 4U rackmount server case features 8 internal 3.5" HDD bays plus 3 additional 5.25" devices to boost your home server or server room. 7 pre-installed cooling fans help prevent your server chassis from overheating. 7 PCI expansion slots allow you to customize your case as you wish. The front panel of the rackmount case includes two USB 3.0 ports. Built in lock adds layer of security to your case and server room.
Dimensions427mm x 178 mm x 635mm (16.81" x 7.01" x 25.00")
Weight13.80kg (30.42 lbs)
Package ContentsRSV-L4000 Server Case
Keys
Screws
Other Accessories
Přepravní hmotnost17.30 kg
Rozměry balení787 × 584 × 279 mm

Další verze tohoto modelu

Dalších 1 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

How do I confirm the chassis is operating correctly after installation?

Check the front panel LEDs for power status, hard-drive activity and both LAN activity lights; all should illuminate or blink as expected.

What ships with the RSV-L4000U and what must I purchase separately?

The box contains the 4U server case, keys, mounting screws and other accessories; drives, motherboard, CPU cooler, power supply and expansion cards are not included.

Which motherboard form factor should I select for this 4U rackmount case?

The chassis supports ATX, E-ATX, Micro ATX and Mini ITX boards, so choose the form factor that matches your planned build.
