Silver metal box with four PCI card slots inside

STARTECH

STARTECH PEX2PCI4 PCI Express to 4 Slot PCI Expansion Card

SKU CH-A2NV-79CMY MPN PEX2PCI4

Adds four 32-bit PCI slots at 33 MHz over a single PCIe link with up to 250 MBps bandwidth

  • TypePCI Express to PCI Card
  • FeaturesAdd four external I/O expansion card slots to a desktop or l
  • Weight5.76
  • Add four PCI cards via one PCIe link
  • 32-bit 33 MHz slots deliver 250 MBps bandwidth
  • External chassis keeps host system compact
  • Connect desktop or laptop through ExpressCard
  • 76 kg unit built for mobile or fixed use

What the product is

The StarTech PEX2PCI4 is a PCI Express to PCI expansion chassis that adds four external 32-bit 33 MHz PCI slots to a desktop or laptop through a single PCIe x1 connection. It delivers up to 250 MBps of total bandwidth so the host treats the installed cards as if they were on the motherboard.

Who this suits and who should look elsewhere

This suits technicians who need to connect legacy PCI cards to modern systems without internal slots, or mobile users swapping add-in cards between a laptop and a desktop. It is not for buyers who need more than four slots, higher bus bandwidth, or internal mounting inside the host chassis.

The specification that decides fit

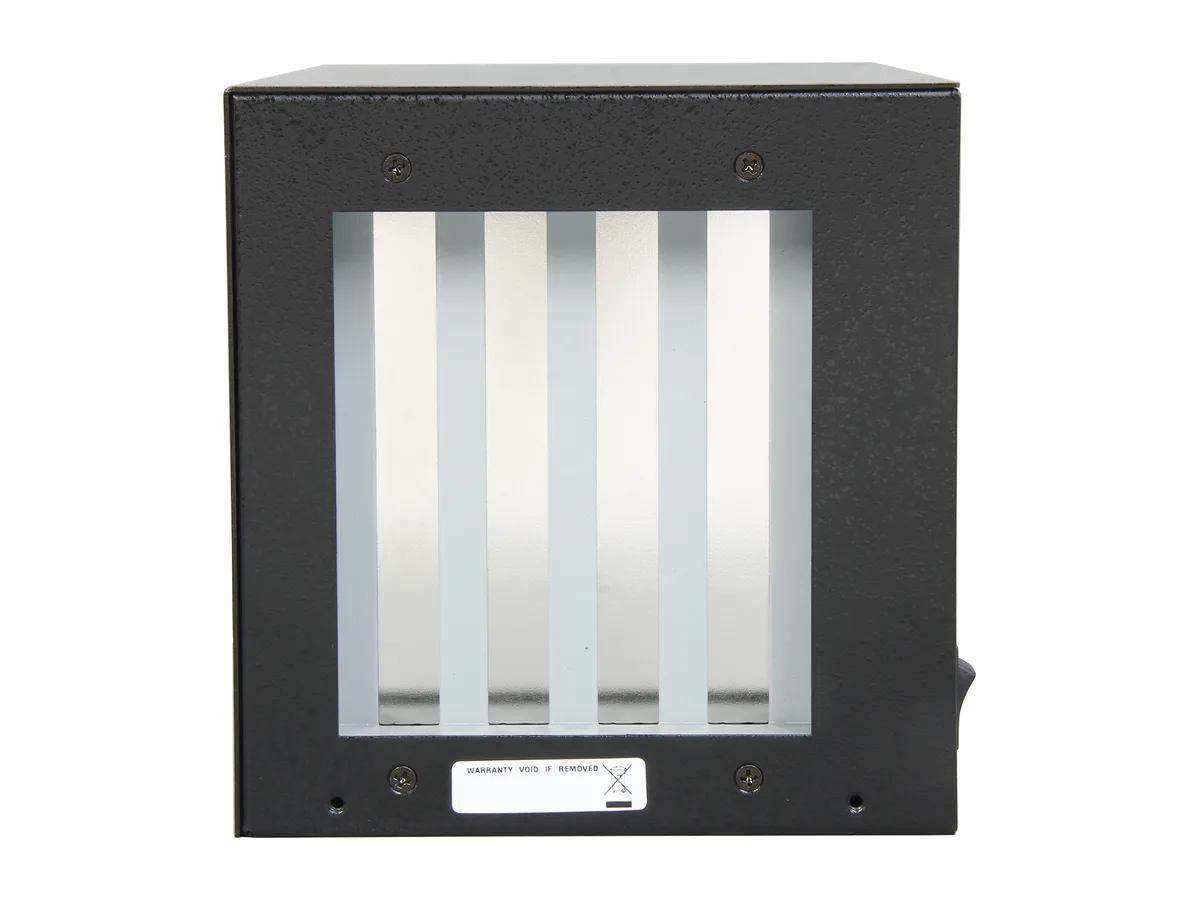

The chassis provides exactly four 32-bit 33 MHz PCI slots fed by a PCIe x1 link with 250 MBps aggregate throughput. If your cards require more bandwidth or a different slot count, this unit will not meet the requirement.

Přednosti

  • Add four PCI cards via one PCIe link
  • 32-bit 33 MHz slots deliver 250 MBps bandwidth
  • External chassis keeps host system compact
  • Connect desktop or laptop through ExpressCard
  • 76 kg unit built for mobile or fixed use

Specifikace

BrandStarTech.com
ModelPEX2PCI4
TypePCI Express to PCI Card
FeaturesAdd four external I/O expansion card slots to a desktop or laptop computer system. StarTech.com''s PCI Express to PCI Expansion Chassis is a quick and simple solution to I/O expandability on almost any PCI Express (PCIe) enabled system. Adding external PCI slots to a server/workstation or laptop, this cost-effective and time-saving method of simply adding additional PCI cards to a server/workstation or providing a platform to be able to swap PCI add-in cards between a mobile and desktop setup is the optimal method of maximizing the I/O capabilities of new or existing systems.
The ext
Weight5.76
Přepravní hmotnost2.63 kg
Rozměry balení251 × 241 × 201 mm

Otázky k tomuto produktu

How many legacy PCI cards can I run at once with the four 32-bit 33 MHz slots?

The chassis provides four 32-bit 33 MHz PCI slots, so up to four legacy cards can be installed and used simultaneously.

What sustained bandwidth should I expect from the x1 PCIe host link when all slots are active?

The x1 PCIe host controller delivers up to 250 MBps total bandwidth shared across the four slots.

Which host interfaces can I connect the expansion chassis to on my computer?

The system connects through a single PCI Express x1 slot on a desktop or an ExpressCard slot on a laptop.
