Green rectangular ATX server motherboard with silver I/O shield, four black DDR4 slots, multiple expansion slots, and gold CPU socket

Supermicro

Supermicro MBD-X11SAE-F-O ATX server motherboard LGA 1151 C236 64GB DDR4

SKU CH-PKR3-645SF MPN MBD-X11SAE-F-O

ATX server board for LGA 1151 Xeon or Core CPUs with C236 chipset, four DDR4 slots up to 64 GB, dual Gigabit LAN, six SATA 6.0 Gb/s ports with RAID, and multiple PCIe plus legacy PCI slots

  • CPU Socket TypeLGA 1151
  • CPU TypeSupports: Intel 6th/7th Generation Core i3 / i5 / i7 Intel X
  • North BridgeIntel C236
  • Number of DDR4 Slots4 x 288-pin
  • DDR4 Standard2133 / 1866 / 1600 MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM
  • Maximum Memory Supported64GB
  • Supports Intel Xeon E3-1200 v5 and 6th Gen Core i3/i5/i7 via LGA 1151 socket
  • Up to 64GB DDR4 ECC memory across four 288-pin DIMM slots at 2133 MHz
  • Dual Gigabit LAN with Intel i210-AT and i219LM controllers for redundant connectivity
  • Six SATA 6.0 Gb/s ports with RAID 0/1/5/10 for flexible storage arrays
  • Seven expansion slots including two PCIe 3.0 x16, two PCIe 3.0 x1 and two 5 V PCI 32-bit

Server foundation

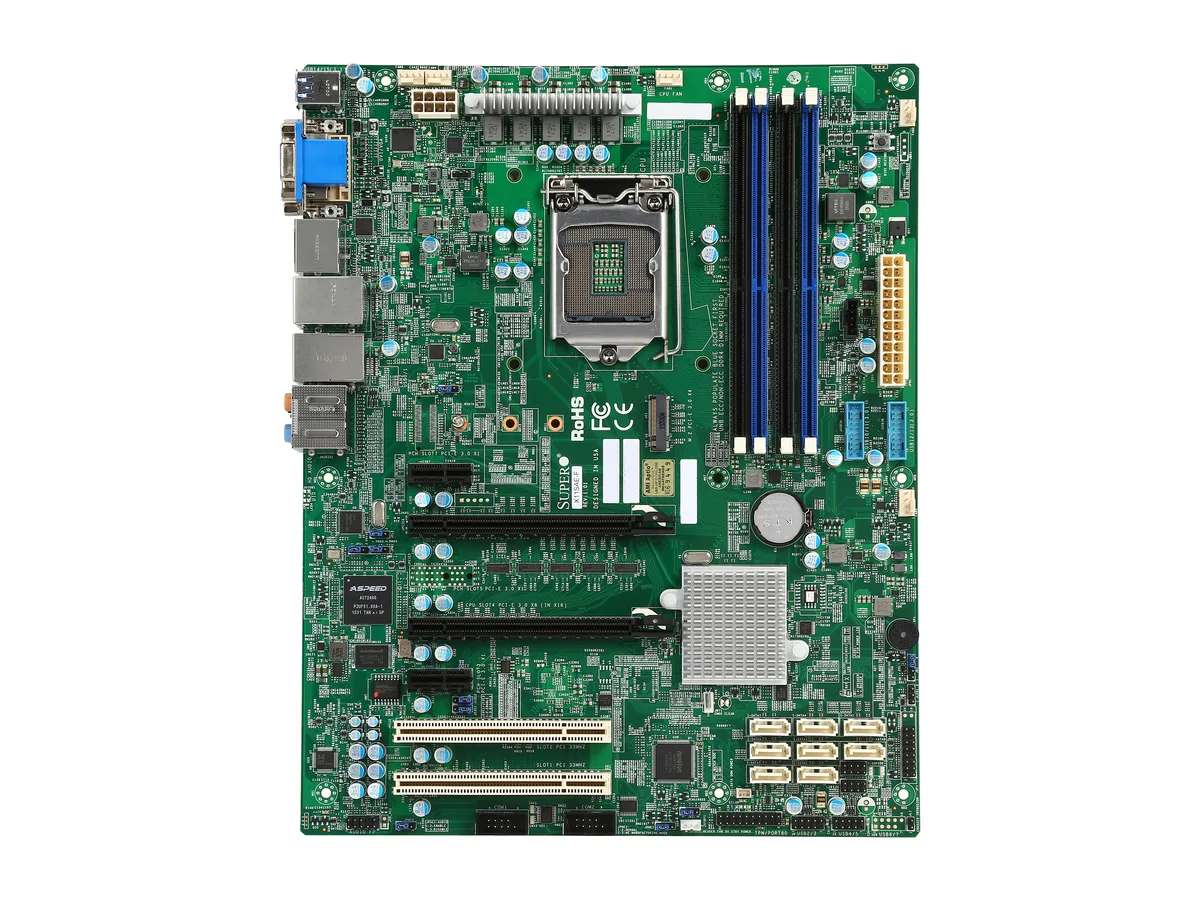

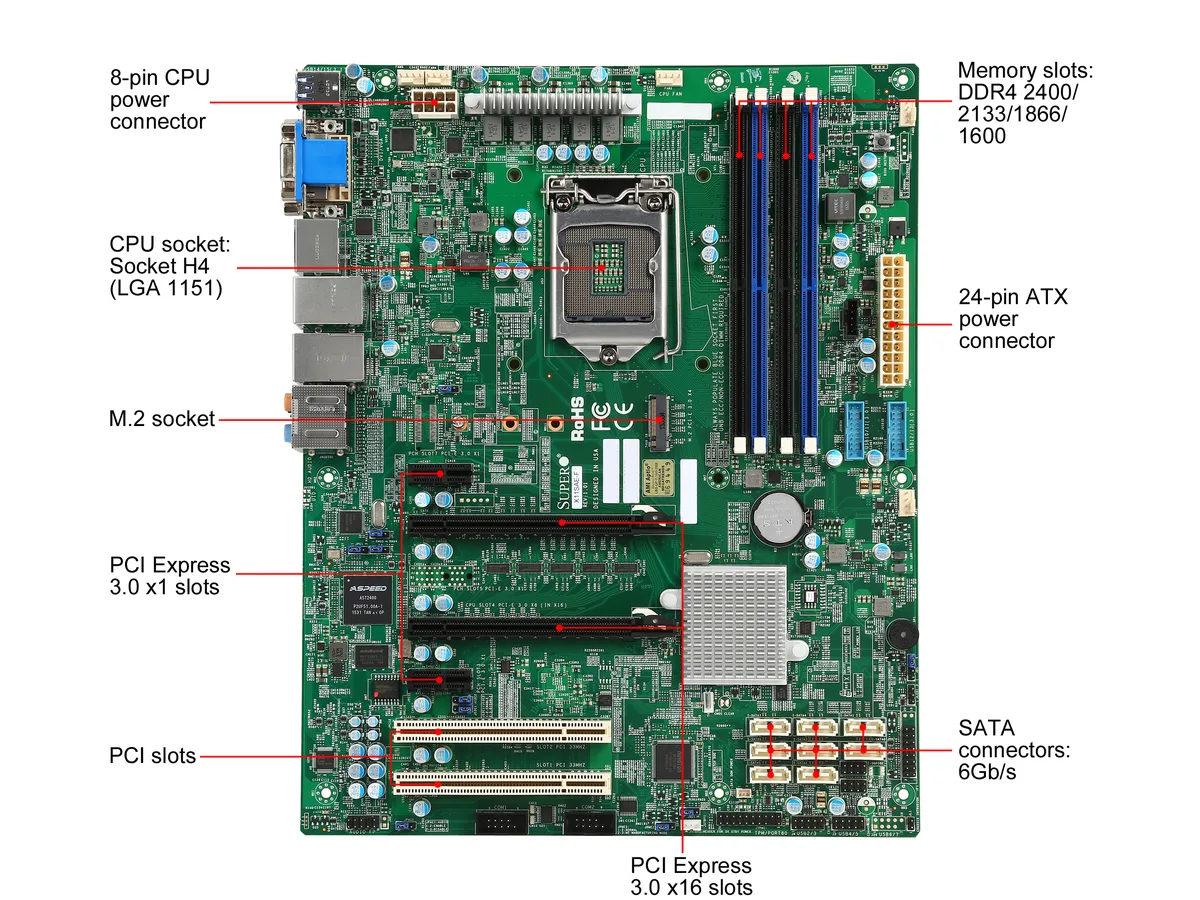

The Supermicro MBD-X11SAE-F-O is an ATX server motherboard built around the Intel C236 chipset and LGA 1151 socket. It accepts Intel Xeon E3-1200 v5 processors and 6th or 7th Generation Core i3, i5 or i7 CPUs. Four 288-pin DDR4 slots support up to 64GB of ECC or non-ECC unbuffered memory at 2133, 1866 or 1600 MHz. The board measures 12.0 by 9.6 inches.

Expansion focus

Builders who need multiple PCI Express slots will find two PCI-E 3.0 x16 slots that operate at x16 and NA or x8 and x8, plus two PCI-E 3.0 x1 slots and two 5V PCI 32-bit slots. Six SATA 6.0Gb/s ports provide RAID 0, 1, 5 and 10 capability. Dual Gigabit LAN uses Intel I210-AT and i219LM controllers, with the I210-AT shared for IPMI. This board is not for buyers who want more storage interfaces than six SATA ports or who require a second CPU socket.

Steady operation

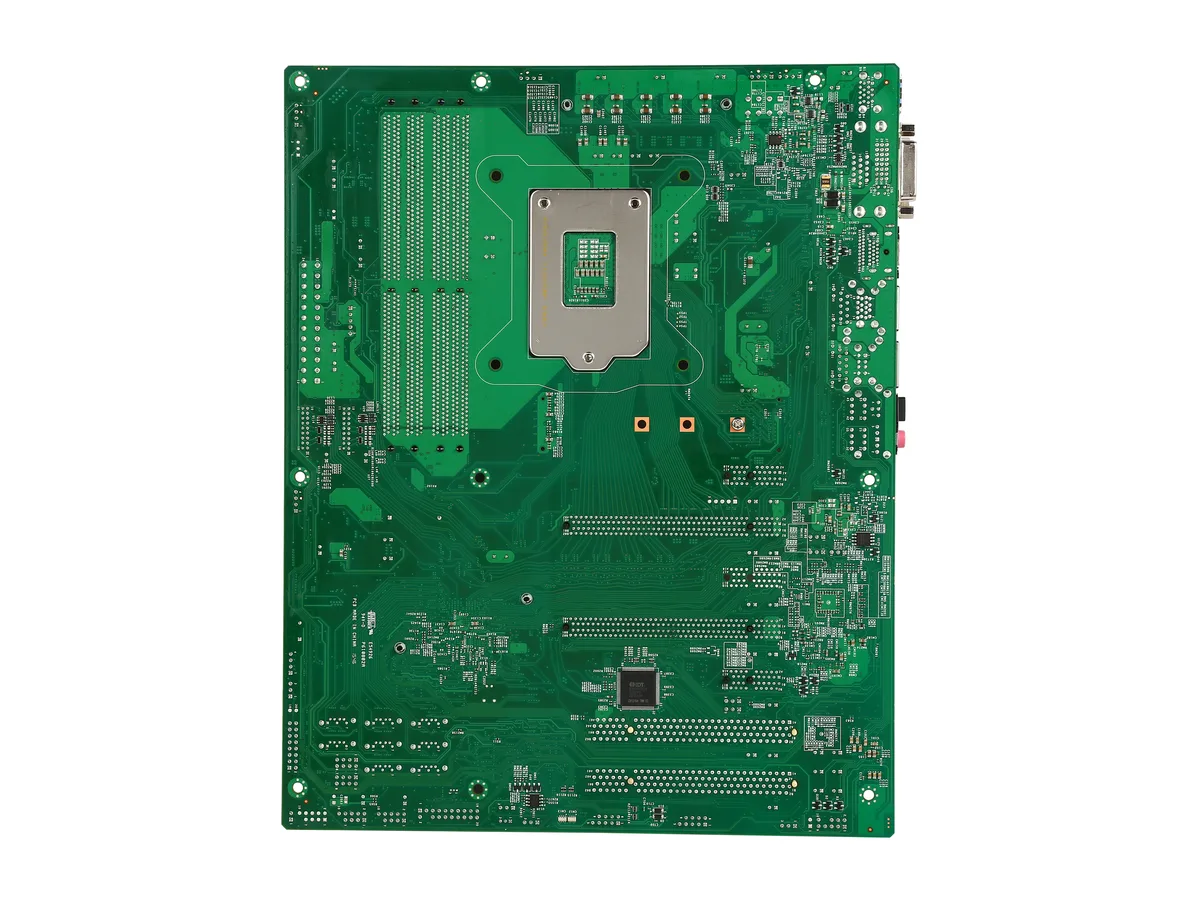

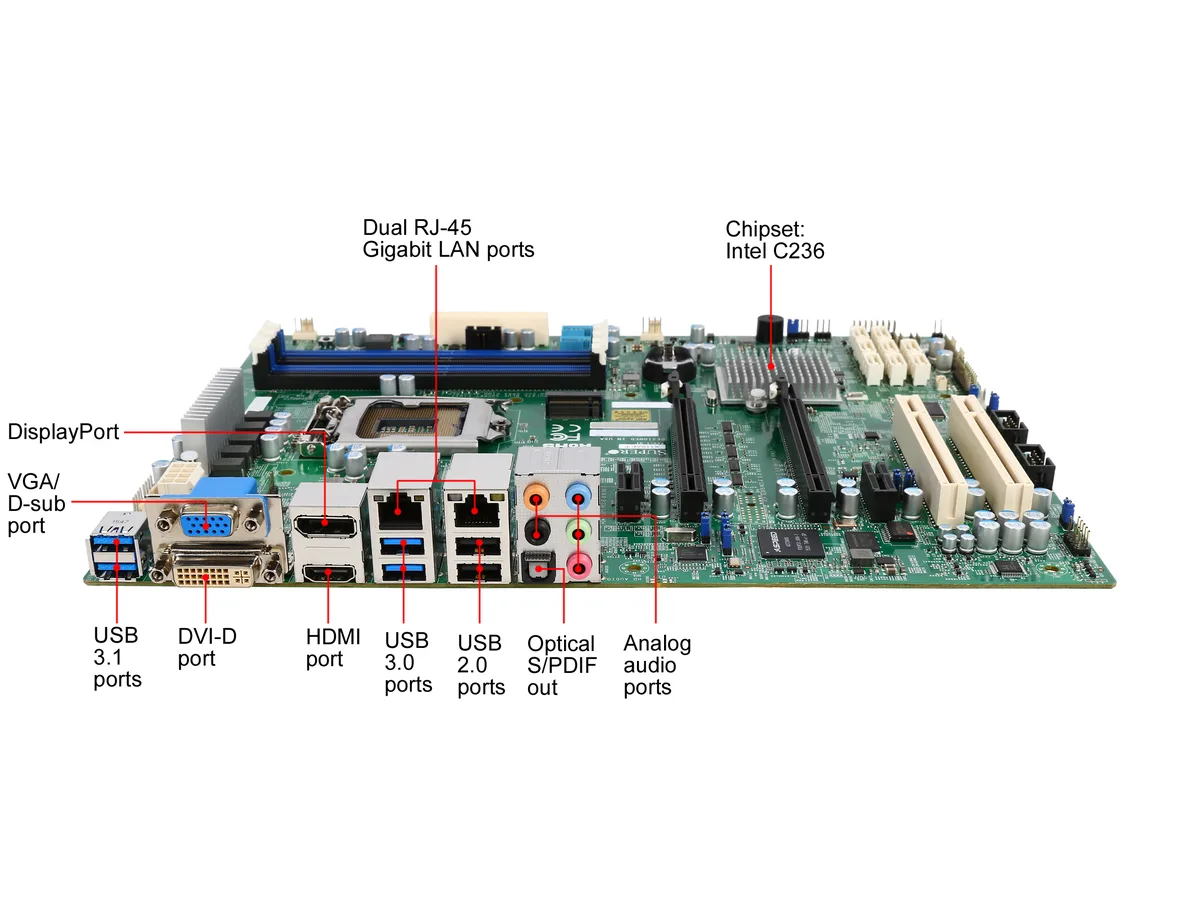

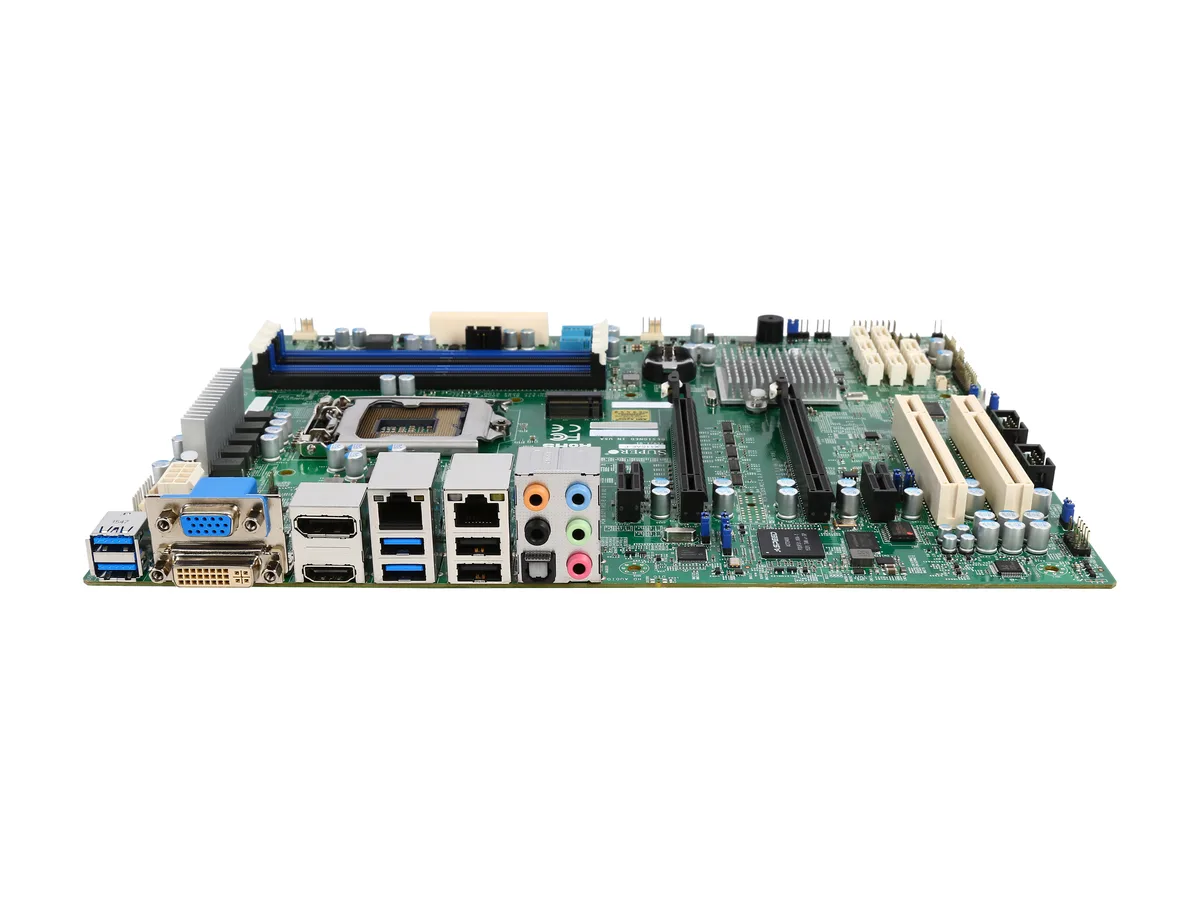

The ASPEED AST2400 BMC handles remote management while the CPU TDP limit of 80W keeps thermal output predictable under sustained load. Unbuffered ECC DDR4 maintains data integrity during long compute runs. Rear I/O supplies two USB 3.1 10Gbps ports, two USB 3.0 ports, two USB 2.0 ports, VGA and two COM headers. Internal headers add four USB 3.0 and six USB 2.0 connections plus two SuperDOM power headers.

Přednosti

  • Supports Intel Xeon E3-1200 v5 and 6th Gen Core i3/i5/i7 via LGA 1151 socket
  • Up to 64GB DDR4 ECC memory across four 288-pin DIMM slots at 2133 MHz
  • Dual Gigabit LAN with Intel i210-AT and i219LM controllers for redundant connectivity
  • Six SATA 6.0 Gb/s ports with RAID 0/1/5/10 for flexible storage arrays
  • Seven expansion slots including two PCIe 3.0 x16, two PCIe 3.0 x1 and two 5 V PCI 32-bit

Specifikace

BrandSUPERMICRO
ModelMBD-X11SAE-F-O
CPU Socket TypeLGA 1151
CPU TypeSupports:
Intel 6th/7th Generation Core i3 / i5 / i7
Intel Xeon processor E3-1200 v6/v5
North BridgeIntel C236
Number of DDR4 Slots4 x 288-pin
DDR4 Standard2133 / 1866 / 1600 MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
Maximum Memory Supported64GB
Other Slots2x PCI-E 3.0 x16 slots (run at 16 / NA or 8 / 8)
2x PCI-E 3.0 x1 slots
2x 5V PCI 32-bit slots
SATA6 x SATA 6.0Gb/s
SATA RAID0/1/5/10
Onboard Video ChipsetASPEED AST2400 BMC
LAN ChipsetIntel I210-AT (share with IPMI) + Intel PHY i219LM Ethernet Controllers
LAN Speed10/100/1000Mbps
USB 1.1/2.02 x USB 2.0
USB 3.02 x USB 3.0
FeaturesSingle socket H4 (LGA 1151) supports Intel Xeon processor E3-1200 v5, Intel 6th Gen. Core i7 / i5 / i3 series
Intel C236 chipset
Up to 64GB Unbuffered ECC / non-ECC, UDIMM DDR4 2133 MHz; 4 x DIMM slots
2x PCI-E 3.0 x16 (run at 16 / NA or 8 / 8), 2x PCI-E 3.0 x1, and 2x 5V PCI 32-bit slots
Single GbE LAN with Intel i210-AT (Share with IPMI); single GbE LAN with Intel i219LM
8 x SATA3 (6 Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCIe M.2 (PCIe x4, 2242 / 2260 / 2280)
I/O: 1 x VGA, 2 x COM, TPM 1.2 header
2 x SuperDOM with built-in power
6 x USB 3.0 (2 rear + 4 via header), 6 x USB 2.0 (2 re
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Přepravní hmotnost1.09 kg
Rozměry balení338 × 262 × 71 mm

Otázky k tomuto produktu

Do I need an LGA 1151 Xeon or Core processor and DDR4 ECC UDIMMs to use this board?

Yes, the LGA 1151 socket accepts Intel Xeon E3-1200 v5 or 6th/7th Gen Core i3/i5/i7 CPUs up to 80 W TDP, and the four 288-pin slots take unbuffered DDR4 ECC or non-ECC UDIMMs at 2133/1866/1600 MHz for a maximum of 64 GB.

Can I keep my PCI 32-bit expansion cards when moving to this motherboard?

The board provides two 5 V PCI 32-bit slots alongside two PCIe 3.0 x16 slots (running at x16/x0 or x8/x8) and two PCIe 3.0 x1 slots, so legacy PCI cards will still fit.

How do I confirm the ASPEED AST2400 BMC and both Intel Gigabit LAN ports are active after assembly?

Connect a monitor to the onboard VGA port to see the BMC firmware screen, then use the dedicated IPMI LAN port (shared with the i210-AT controller) and the second i219LM port; both should show link lights at 10/100/1000 Mbps in the OS network settings.
