Supermicro
Supermicro MBD-X11SCA-F-O server motherboard LGA 1151 C246 DDR4 128GB ATX
Supports Xeon E and 8th/9th Gen Core CPUs with 128 GB DDR4 ECC, dual 1 GbE LAN and eight SATA 6.0 Gb/s ports
- CPU Socket TypeLGA 1151
- CPU TypeSupports: Intel Xeon E-2100 Processor Intel Xeon E-2200 Proc
- North BridgeIntel C246
- DDR4 Standard2666 / 2400 / 2133 / 1866 / 1600 MHz ECC / Non-ECC DDR4 SDRA
- Maximum Memory SupportedUp to 128GB Unbuffered ECC / non-ECC UDIMM, DDR4-2666MHz, in
- PCI Express x162 x PCI-E x16 slots are running at NA/16, or 8/8
- Supports Intel Xeon E and 8th/9th Gen Core processors with LGA 1151 socket
- Up to 128GB DDR4 ECC memory across four 288-pin UDIMM slots
- Eight SATA 6.0Gb/s ports with RAID 0, 1, 5, 10 support
- Dual 1GbE LAN using Intel I210-AT and I219-LM controllers
- IPMI remote management via Aspeed AST2500 BMC
Server motherboard for Xeon E and Core processors

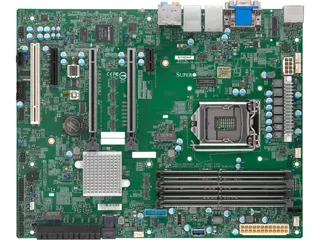

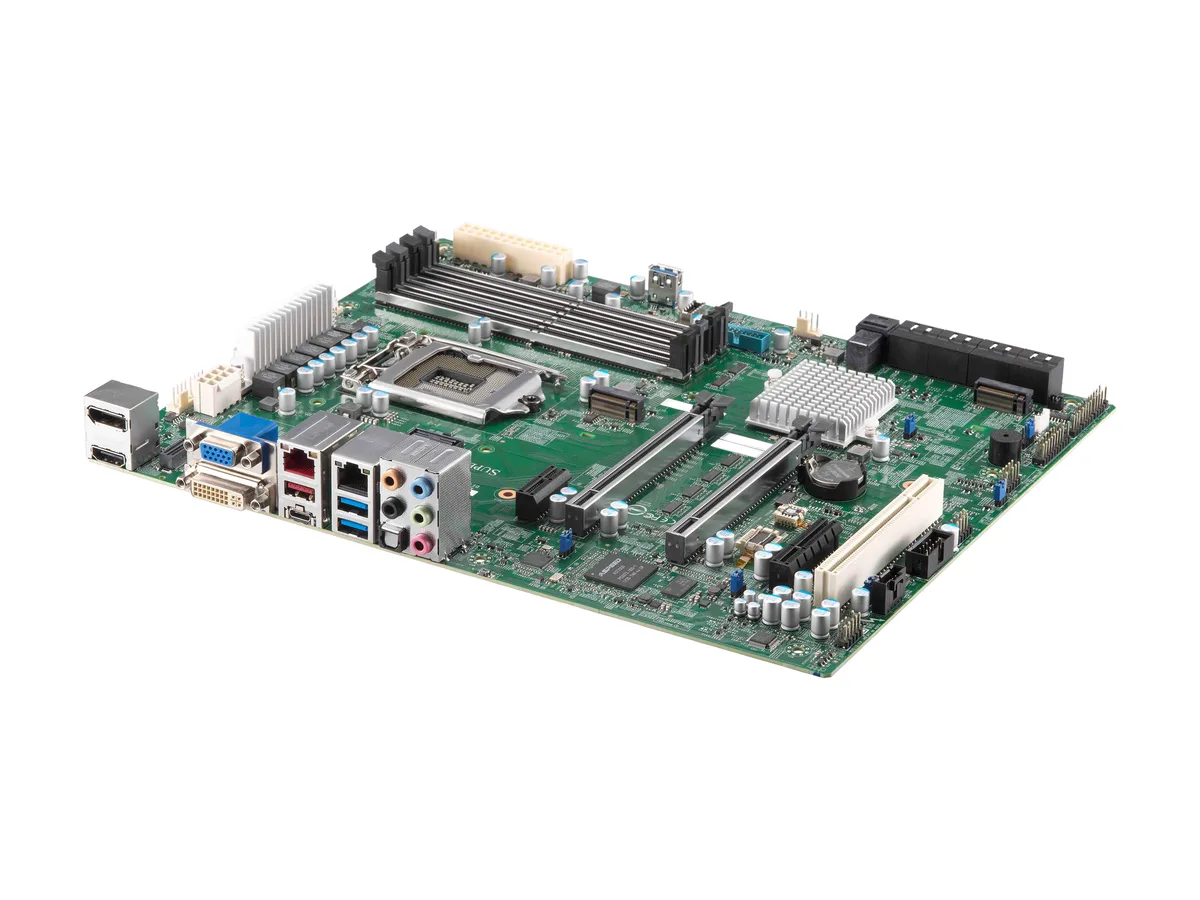

The Supermicro MBD-X11SCA-F-O is an ATX server motherboard built around the Intel C246 chipset and LGA 1151 socket. It accepts Intel Xeon E-2100 and E-2200 series processors alongside 8th and 9th Generation Core i9, i7, i5, i3, Pentium and Celeron CPUs up to 95W TDP. The board targets workstation and entry-server builds that need ECC memory support and dual gigabit LAN in a standard form factor.
128GB DDR4 across four UDIMM slots
Memory capacity tops out at 128GB of unbuffered ECC or non-ECC DDR4-2666MHz installed in four 288-pin UDIMM slots. The board runs DDR4 at 2666, 2400, 2133, 1866 or 1600MHz. Builders who need more storage bandwidth than eight SATA 6.0Gb/s ports provide, or who require registered DIMM support, should look elsewhere.
Dual gigabit LAN and Aspeed BMC under load
Sustained operation is managed by dual Intel I210-AT and I219-LM controllers delivering 2 x 1Gbps throughput, while the Aspeed AST2500 BMC handles remote monitoring independent of the host CPU. The two PCI-E x16 slots operate at x16/x0 or x8/x8, with one PCI-E 3.0 x4 and one PCI-E 3.0 x1 slot available for add-in cards. Eight SATA ports support RAID 0, 1, 5 and 10 for redundant storage arrays.
Přednosti
- Supports Intel Xeon E and 8th/9th Gen Core processors with LGA 1151 socket
- Up to 128GB DDR4 ECC memory across four 288-pin UDIMM slots
- Eight SATA 6.0Gb/s ports with RAID 0, 1, 5, 10 support
- Dual 1GbE LAN using Intel I210-AT and I219-LM controllers
- IPMI remote management via Aspeed AST2500 BMC
Specifikace
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X11SCA-F-O |
| CPU Socket Type | LGA 1151 |
| CPU Type | Supports: Intel Xeon E-2100 Processor Intel Xeon E-2200 Processor 8th/9th Generation Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron Processor |
| North Bridge | Intel C246 |
| DDR4 Standard | 2666 / 2400 / 2133 / 1866 / 1600 MHz ECC / Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM |
| Maximum Memory Supported | Up to 128GB Unbuffered ECC / non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slot |
| PCI Express x16 | 2 x PCI-E x16 slots are running at NA/16, or 8/8 |
| PCI Express x4 | 1 x PCI-E 3.0 x4 |
| PCI Express x1 | 1 x PCI-E 3.0 x1 |
| SATA | 8 x SATA 6.0Gb/s |
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset | Aspeed AST2500 BMC Intel UHD P630 graphic(For CPU Xeon E-21XXG series only) |
| LAN Chipset | Intel I210-AT |
| Second LAN Chipset | Intel I219-LM |
| Max LAN Speed | 2 x 1Gbps |
| RJ45 | 2 x 1 GbE LAN ports |
| USB 3.1 | 2 x USB 3.1 Gen1 ports (2 Rears Type A) 2 x USB 3.1 Gen2 ports (1 Rear Type A + 1 Rear Type C) |
| Features | 8th Generation Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron Processor, Intel Celeron, Intel Pentium, Intel Xeon E processor (Coffee Lake-S) Server, Intel Xeon E processor (Coffee Lake-S) Workstation, Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP Intel C246 Up to 64GB Unbuffered ECC / non-ECC UDIMM, DDR4-2666 MHz, in 4 DIMM slots 1 x PCI-E 3.0 x4 1 x PCI-E 3.0 x1 2 x PCI-Ex16 slots are running at NA / 16, or 8 / 8 1 - 5V PCI 32bit M.2 Interface: 2 x PCI-E 3.0 x4, RAID 0 & 1 M.2 Form Factor: 2242/2260/2280/22110 M.2 Key: M-Key M.2#1~2 are shared with PCI-Ex4 |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0" x 9.6" |
| Přepravní hmotnost | 1.19 kg |
| Rozměry balení | 335 × 269 × 71 mm |
Otázky k tomuto produktu
What does the 128 GB maximum memory mean when the board is populated?
You can install up to 128 GB of unbuffered ECC or non-ECC DDR4-2666 UDIMM across the four 288-pin slots.
How does the Intel C246 chipset limit the SATA ports in practice?
The C246 provides eight SATA 6.0 Gb/s ports with RAID 0, 1, 5 and 10 support.
What clearance and power connectors does the ATX form factor require in the chassis?
The board follows ATX dimensions and needs standard 24-pin ATX plus 8-pin EPS power connectors.
