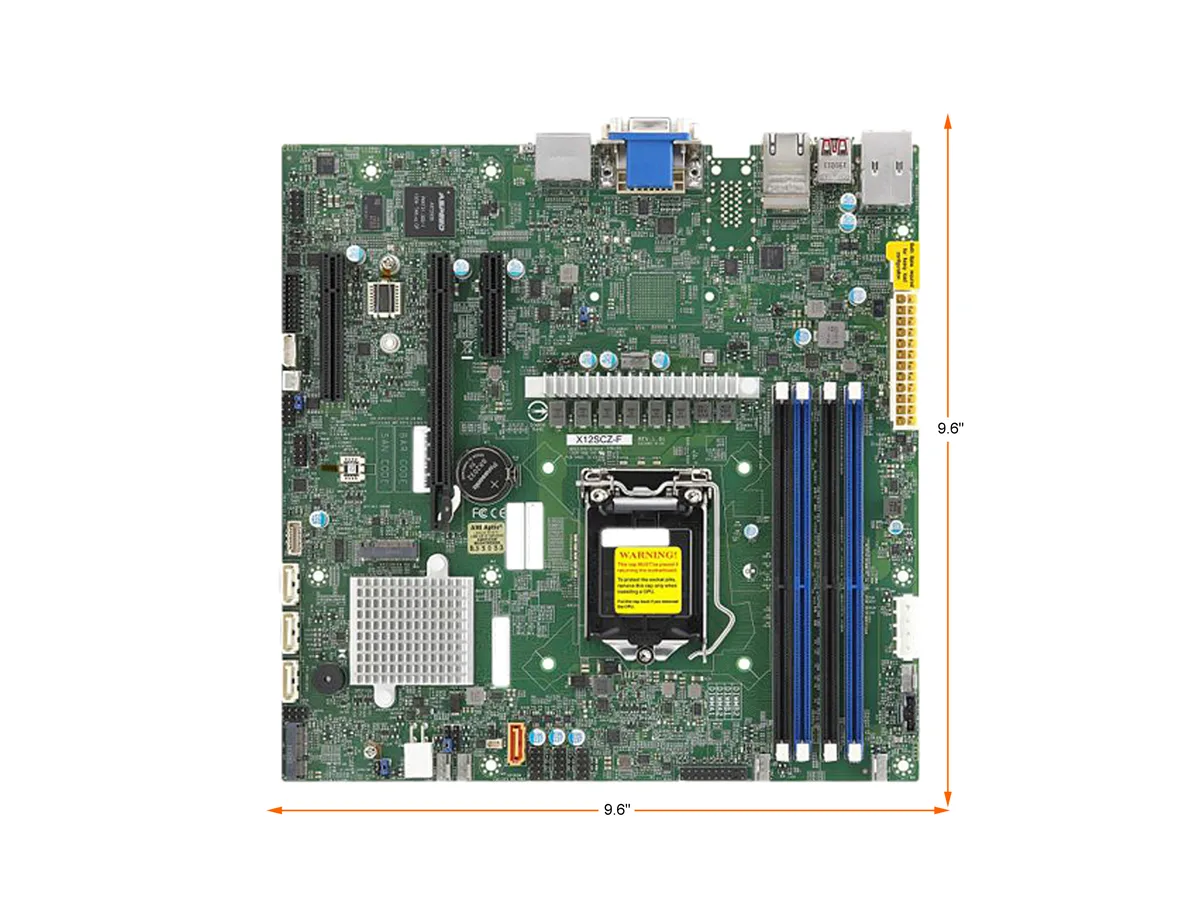

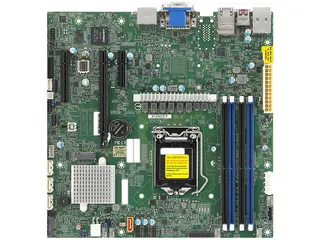

Supermicro MBD-X12SCZ-F--O server motherboard LGA 1200 DDR4 2933 128GB
ATX server board for 10th-gen Intel Core and Xeon W-1200 CPUs, four DDR4-2933 slots up to 128 GB ECC, dual gigabit LAN, IPMI video, and M.2 plus SATA RAID
- CPU Socket TypeLGA 1200
- CPU TypeSupports 10th Generation Intel Core i9/Core i7/Corei5/Corei3
- North BridgeIntel W480
- Number of DDR4 Slots4 x 288-pin
- DDR4 StandardDDR4 2933
- Maximum Memory SupportedUp to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4
- Supports 10th Gen Intel Core and Xeon W-1200 CPUs for versatile performance
- Four DDR4 slots accept up to 128GB ECC or non-ECC memory at 2933MHz
- Dual Intel Gigabit LAN controllers provide redundant network connectivity
- M.2 M-Key and E-Key slots enable fast storage and wireless add-in cards
- Micro-ATX form factor fits compact server chassis while retaining expansion slots
Server board for Xeon W-1200 and 10th-gen Core
The Supermicro MBD-X12SCZ-F--O is a Micro ATX server motherboard built around the Intel W480 chipset and LGA 1200 socket. It supports Xeon W-1200 processors and 10th-generation Intel Core i9, i7, i5, i3, Pentium and Celeron CPUs up to 125W TDP. The board targets small business servers, workstations and edge deployments that need ECC memory support and dual gigabit LAN in a compact form factor.
Installation notes and common issues
The board fits standard Micro ATX mounting points and uses a 24-pin ATX plus 8-pin EPS power connector layout. Four 288-pin DDR4 slots accept unbuffered ECC or non-ECC UDIMMs at 2933 MHz for a maximum of 128GB. Builders sometimes forget to enable ECC in the BIOS after populating all four slots, and the single PCIe 3.0 x16 slot shares bandwidth with the M.2 M-key slot when both are populated.
Compatibility checklist before ordering
Verify that your chassis accepts Micro ATX dimensions and provides adequate airflow for a 125W CPU cooler. Confirm the power supply delivers an 8-pin EPS connector for the CPU. Ensure any M.2 storage uses the M-key 2280 or 22110 form factor for the primary slot or E-key 2230 for the CNVi slot. The rear I/O includes two DisplayPort++, one DVI-D and one VGA driven by the Aspeed AST2500 controller, so no discrete GPU is required for basic display output.
Přednosti
- Supports 10th Gen Intel Core and Xeon W-1200 CPUs for versatile performance
- Four DDR4 slots accept up to 128GB ECC or non-ECC memory at 2933MHz
- Dual Intel Gigabit LAN controllers provide redundant network connectivity
- M.2 M-Key and E-Key slots enable fast storage and wireless add-in cards
- Micro-ATX form factor fits compact server chassis while retaining expansion slots
Specifikace
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X12SCZ-F--O |
| CPU Socket Type | LGA 1200 |
| CPU Type | Supports 10th Generation Intel Core i9/Core i7/Corei5/Corei3/Pentium/Celeron Processor, Intel Xeon W-1200 Processors |
| North Bridge | Intel W480 |
| Number of DDR4 Slots | 4 x 288-pin |
| DDR4 Standard | DDR4 2933 |
| Maximum Memory Supported | Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots |
| PCI Express 3.0 x16 | 1 |
| PCI Express x4 | 1 x PCI Express 3.0 x4 (in x8 slot), 1 x PCI Express 3.0 x4 |
| SATA | 4 x SATA 6.0Gb/s |
| SATA RAID | 0/1/5/10 |
| M.2 | 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110 1 M.2 E-Key CNVi/PCI-E 3.0 x1, 2230 |
| Onboard Video Chipset | Aspeed AST2500 |
| LAN Chipset | Intel I219-LM |
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel I210-AT |
| Second LAN Speed | 10/100/1000Mbps |
| Back I/O Ports | 2 x RJ45 Gigabit Ethernet LAN ports 6 x USB 2.0 ports (6 via headers) 6 x USB 3.2 Gen2 ports (4 Rear Type A, 2 via headers) 1 x VGA D-Sub Connector port, 2 x DP++(Dual-Mode DisplayPort) ports, 1 x DVI - D port 2 x COM Port (1 header) 1 x TPM Header & Chip both |
| Form Factor | Micro ATX |
| Dimensions (W x L) | 9.6" x 9.6" |
| Přepravní hmotnost | 0.84 kg |
| Rozměry balení | 287 × 275 × 56 mm |
