Green rectangular buck module with screw terminals and components on a circuit board

The Perfect Part

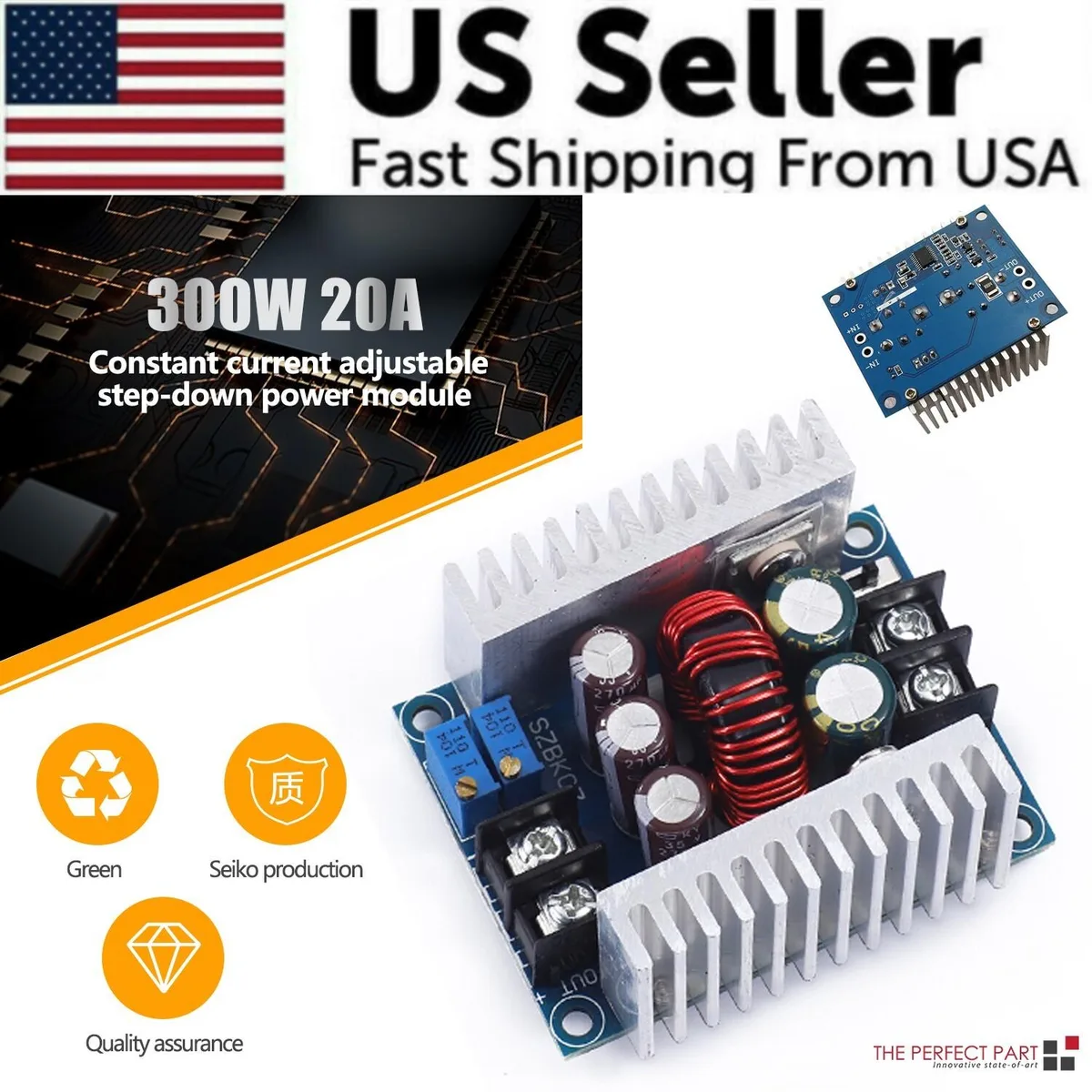

The Perfect Part 20A 300W Synchronous Buck Module 6-40V In 1.2-36V Out

SKU CH-6SC3-M3CGW

Synchronous buck module steps 6-40 V input down to 1.2-36 V at up to 20 A with 95 % efficiency

  • TypeDC Power Supplies
  • Engine BrandThe Perfect Part
  • Circuit BreakerNo
  • Engine Size60 x 53 x 27mm / 2.36 x 2.08 x 1.06"
  • Starter TypeRecoil
  • Size/Dimensions60 x 53 x 27mm / 2.36 x 2.08 x 1.06"
  • Delivers up to 20A output current for high-power loads
  • Wide 6V to 40V input range suits varied DC sources
  • Adjustable 1.2V to 36V output covers common 5V 12V 24V rails
  • 95% efficiency at 24V to 12V 20A reduces heat loss
  • Compact 60 x 53 x 27mm footprint fits tight enclosures

20A 300W Synchronous Buck Module

This synchronous buck module steps down DC input from 6V to 40V to a regulated 1.2V to 36V output. It delivers up to 20A continuous current with a suggested operating limit of 15A. The compact board measures 60 x 53 x 27mm and suits industrial power supply applications.

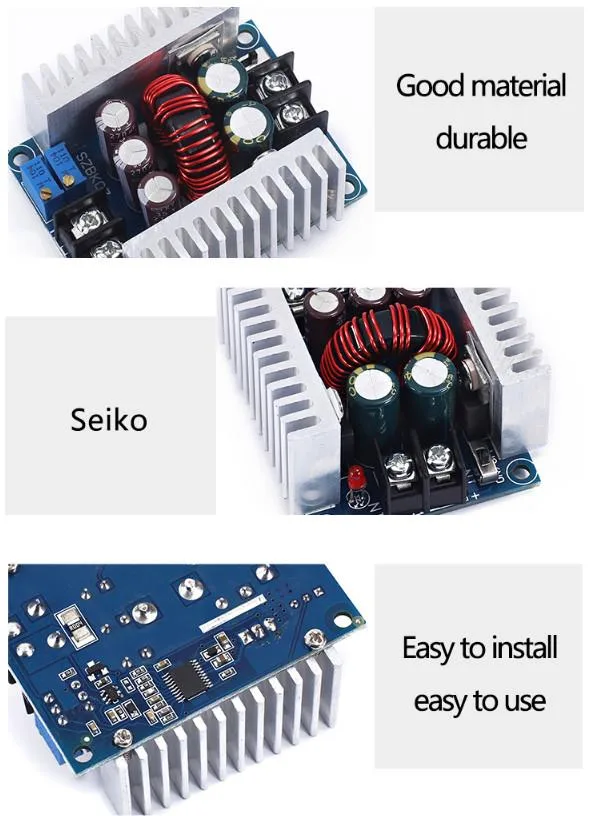

Terminal wiring and efficiency

Terminal connections simplify integration into custom panels or enclosures. The converter achieves 95% efficiency when converting 24V to 12V at 20A load. Output ripple is specified at 50mV, supporting stable voltage for sensitive downstream electronics.

For engineers needing adjustable high-current

This module fits projects requiring a wide input range and configurable output up to 36V. Builders who need isolated topologies, higher input voltage ratings, or integrated circuit-breaker protection should evaluate alternative power supply designs.

Přednosti

  • Delivers up to 20A output current for high-power loads
  • Wide 6V to 40V input range suits varied DC sources
  • Adjustable 1.2V to 36V output covers common 5V 12V 24V rails
  • 95% efficiency at 24V to 12V 20A reduces heat loss
  • Compact 60 x 53 x 27mm footprint fits tight enclosures

Specifikace

TypeDC Power Supplies
Engine BrandThe Perfect Part
Circuit BreakerNo
Engine Size60 x 53 x 27mm / 2.36 x 2.08 x 1.06"
Starter TypeRecoil
Size/Dimensions60 x 53 x 27mm / 2.36 x 2.08 x 1.06"
Input Voltage6V to 40V DC(10V to 40V is suggested)
Output Voltage1.2V to 36V DC
Primary Openings1
Secondary Openings1
Wire TypeAI
FeaturesStep Down (Buck) Voltage Regulator; Input Voltage: 6V to 40V DC(10V to 40V is suggested); Output Voltage: 1.2V to 36V DC; Output Current: 20A(max.), 15A(suggested)

Otázky k tomuto produktu

Does the 20A synchronous buck module need periodic replacement of any internal components?

The module is a solid-state DC-DC converter with no moving parts or user-serviceable components, so no scheduled maintenance or part replacement is required.

At sustained load which limit appears first — the 20A maximum or the 15A suggested continuous rating?

The 15A suggested continuous rating is the practical limit for all-day operation; the 20A figure is a short-term maximum.

How much heat and noise does the 60 x 53 x 27mm unit produce when running at 15A all day?

At 95% efficiency the unit runs silently with no fan; warmth will be noticeable on the aluminium case but stays within the module's thermal design.
