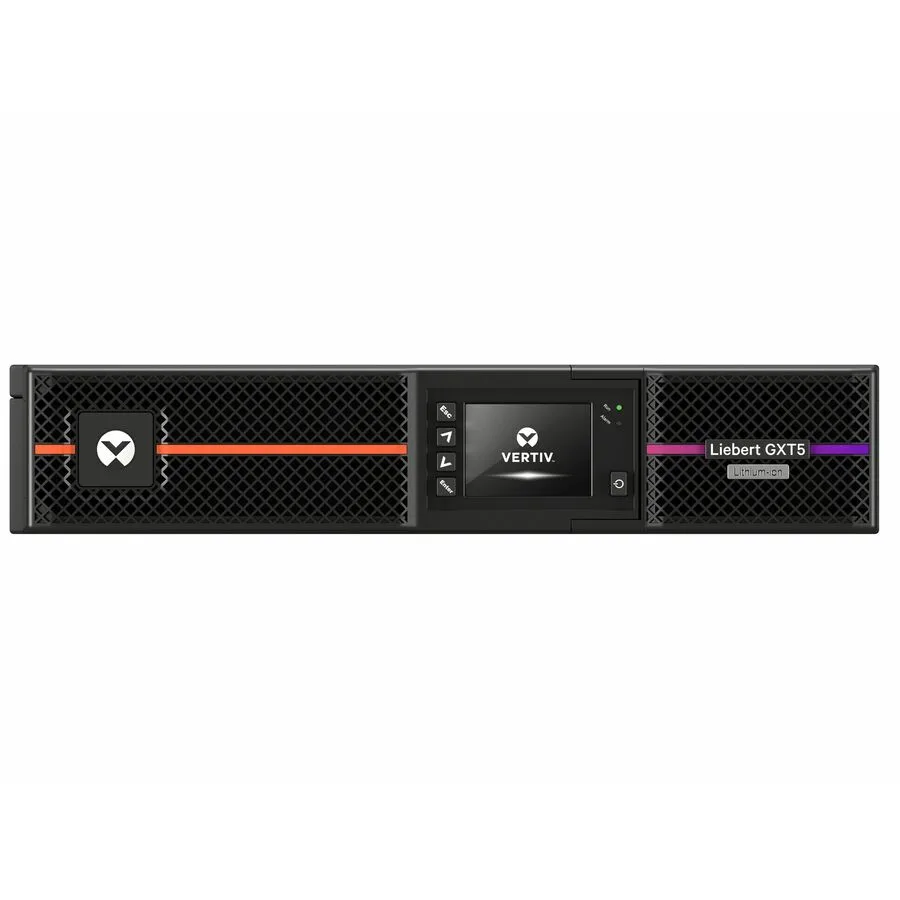

Rectangular black metal 2U rack tower unit with front LCD display

Vertiv

Vertiv GXT5LI-2000LVRT2UXLN 2000VA 1800W 120V UPS

SKU CH-9RRS-D4BQ6 MPN GXT5LI-2000LVRT2UXLN

Lithium-ion UPS delivers 2000VA/1800W with 10.5-minute full-load runtime and sub-two-hour recharge in a 2U rack/tower form factor

  • International Version120V
  • Input Voltage Range60-150 VAC
  • Input ConnectionNEMA L5-20P
  • VA Rating2000VA
  • Watts1800W
  • Output Voltage120V; 100/110/115/120V/125VAC (User-Configurable)

Option GXT5LI-2000LVRT2UXLN

  • Lithium-ion battery recharges to 90% in under 2 hours
  • 9 output power factor delivers 1800W from 2000VA capacity
  • 2U rack/tower form factor fits standard enclosures
  • Seven mixed NEMA outlets support diverse equipment
  • Network card included enables remote monitoring

Product Identity

The Vertiv GXT5LI-2000LVRT2UXLN is a 2000VA/1800W online double-conversion UPS using lithium-ion batteries. It delivers pure sine-wave output at a user-configurable 100/110/115/120/125VAC with a 0.9 output power factor. The unit suits network closets, edge sites and critical workstations that need extended battery life and a compact 2U rack or tower form factor.

Build Integration

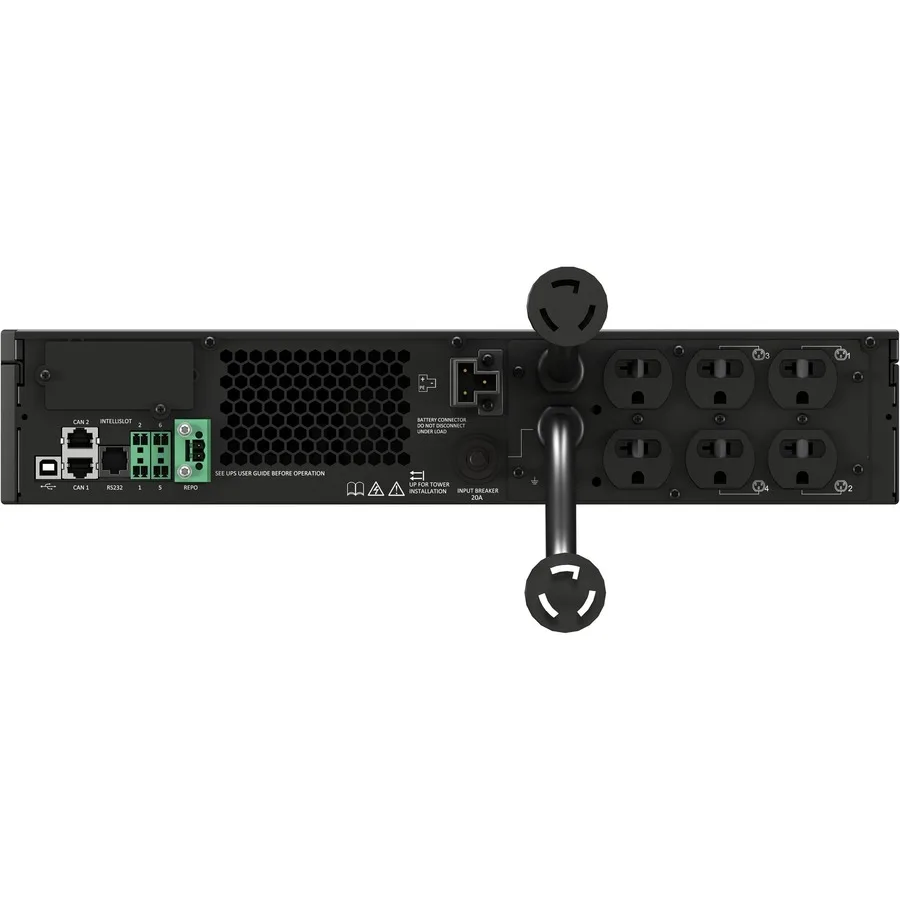

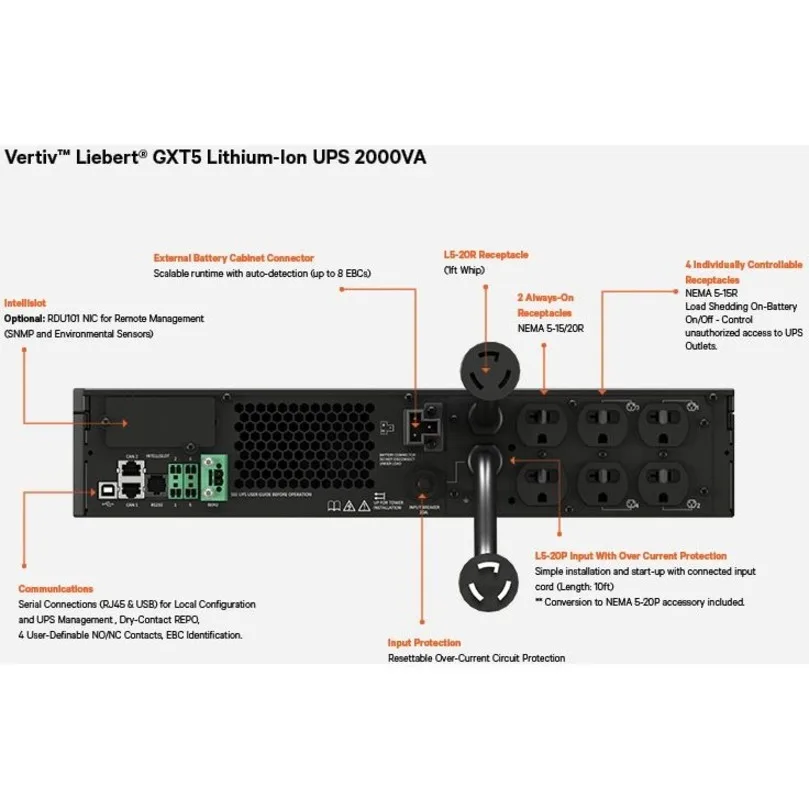

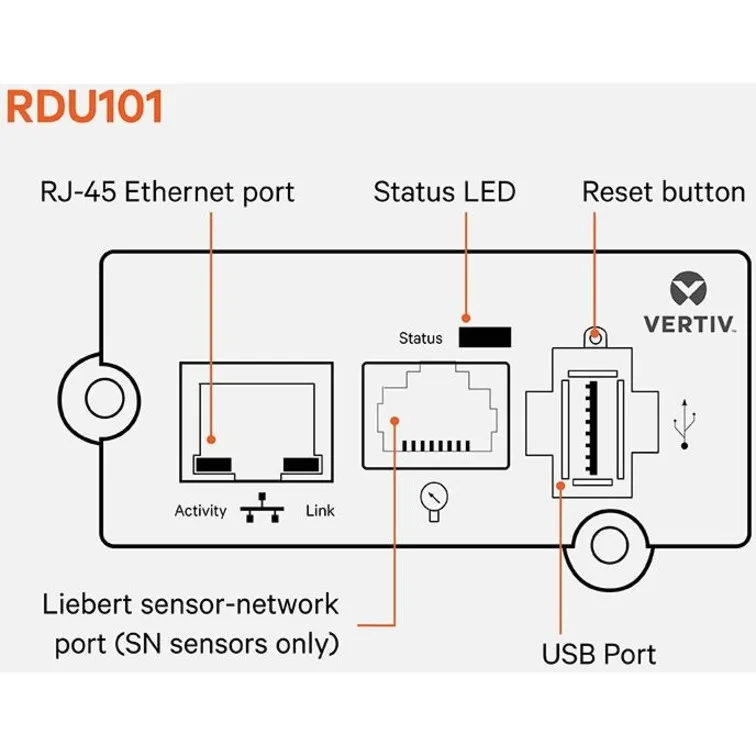

The UPS accepts 60-150 VAC input through a NEMA L5-20P plug and provides seven outlets: one L5-20R, two 5-20R and four 5-15/20R receptacles. An included RDU101 network card enables remote monitoring via SNMP or web browser. Hot-swappable battery modules allow replacement without powering down connected loads. The 3.4 x 16.9 x 18.5 inch chassis fits standard 2U rack rails or stands upright as a tower.

Sustained Load Behaviour

At full 1800W load the lithium-ion pack provides 10.5 minutes of runtime; at half load runtime extends to 22.5 minutes. The battery recharges to 90 percent capacity in under two hours. Operating temperature spans 32°F to 104°F with a 10 percent derating at 50°C, while storage tolerates -4°F to 140°F. Surge protection meets ANSI C62.41 Category B for repeated transient events.

Přednosti

  • Lithium-ion battery recharges to 90% in under 2 hours
  • 9 output power factor delivers 1800W from 2000VA capacity
  • 2U rack/tower form factor fits standard enclosures
  • Seven mixed NEMA outlets support diverse equipment
  • Network card included enables remote monitoring

Specifikace

BrandVertiv
ModelGXT5LI-2000LVRT2UXLN
International Version120V
Input Voltage Range60-150 VAC
Input ConnectionNEMA L5-20P
VA Rating2000VA
Watts1800W
Output Voltage120V; 100/110/115/120V/125VAC (User-Configurable)
Output Frequency40~70Hz
Outlets7
Outlet Type1 x NEMA L5-20R, 2 x NEMA 5-20R, 4 x NEMA 5-15/20R
Battery TypeLithium Ion
Battery Run TimeFull-Load Runtime 10.5 min
Half-Load Runtime 22.5 min
Battery Recharge Time< 2hrs to 90%
ApprovalsUL 1642 (Li-Ion Battery Cells), UL 1973 (Li-Ion Battery Pack w/UPS), UL 1778, CSA 22.2 No. 107.3
Rackmountable2U Rack/Tower
Surge ProtectionANSI C62.41, Category B
TemperatureOperating Temperature: 32°F to 104°F (0°C to 40°C) (10% Derating at 50°C)
Storage Temperature: -4° to 140° (-20° to 60°)
Humidity0% - 95%, non-condensing
Dimensions3.4" x 16.9" x 18.5"
Weight39.7 lbs.
Package Contentsw/RDU101 Network Card Included
Přepravní hmotnost24.49 kg
Rozměry balení762 × 508 × 508 mm

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

How long will the lithium-ion battery run at the full 1800W load before shutting down?

The UPS provides 10.5 minutes of runtime at full 1800W load and 22.5 minutes at half load, with the battery recharging to 90 percent in under two hours.

What are the typical operating temperature limits and does the unit derate above 40°C?

It operates from 0°C to 40°C without derating; at 50°C the output is derated by 10 percent, and storage range is -20°C to 60°C with 0-95 percent non-condensing humidity.

Which input plug and output receptacles are built in so I can match my existing PDU and devices?

The input uses a NEMA L5-20P plug; outputs are one L5-20R, two 5-20R and four 5-15/20R receptacles, all on a 120V single-phase system.
