Green single-port PCIe network card with low-profile bracket

Vszerda

Vszerda 10Gb RJ45 PCI-E Network Card Intel X550-AT Single Port PCIe 3.0 x4 Low Profile Bracket

SKU CH-VE7H-YQEAD

Adds a single 10 GbE RJ45 port via PCIe 3.0 x4 with Intel X550-AT controller, low-profile bracket included, supports Windows, Linux and VMware ESXi

  • StandardsGigabit Ethernet
  • Speed100 megabits_per_second
  • ConnectorsGigabit Ethernet
  • FeaturesDesktop
  • Dimensions8.8 in x 1.2 in x 5.7 in
  • 10 GbE single RJ45 port for high-speed copper networking
  • PCIe 3.0 x4 host interface fits x4, x8 or x16 slots
  • Low-profile and full-height brackets included for any chassis
  • Intel X550-AT controller with QoS, VLAN tagging and jumbo frames
  • Broad OS support across Windows, Linux, VMware ESXi and BSD

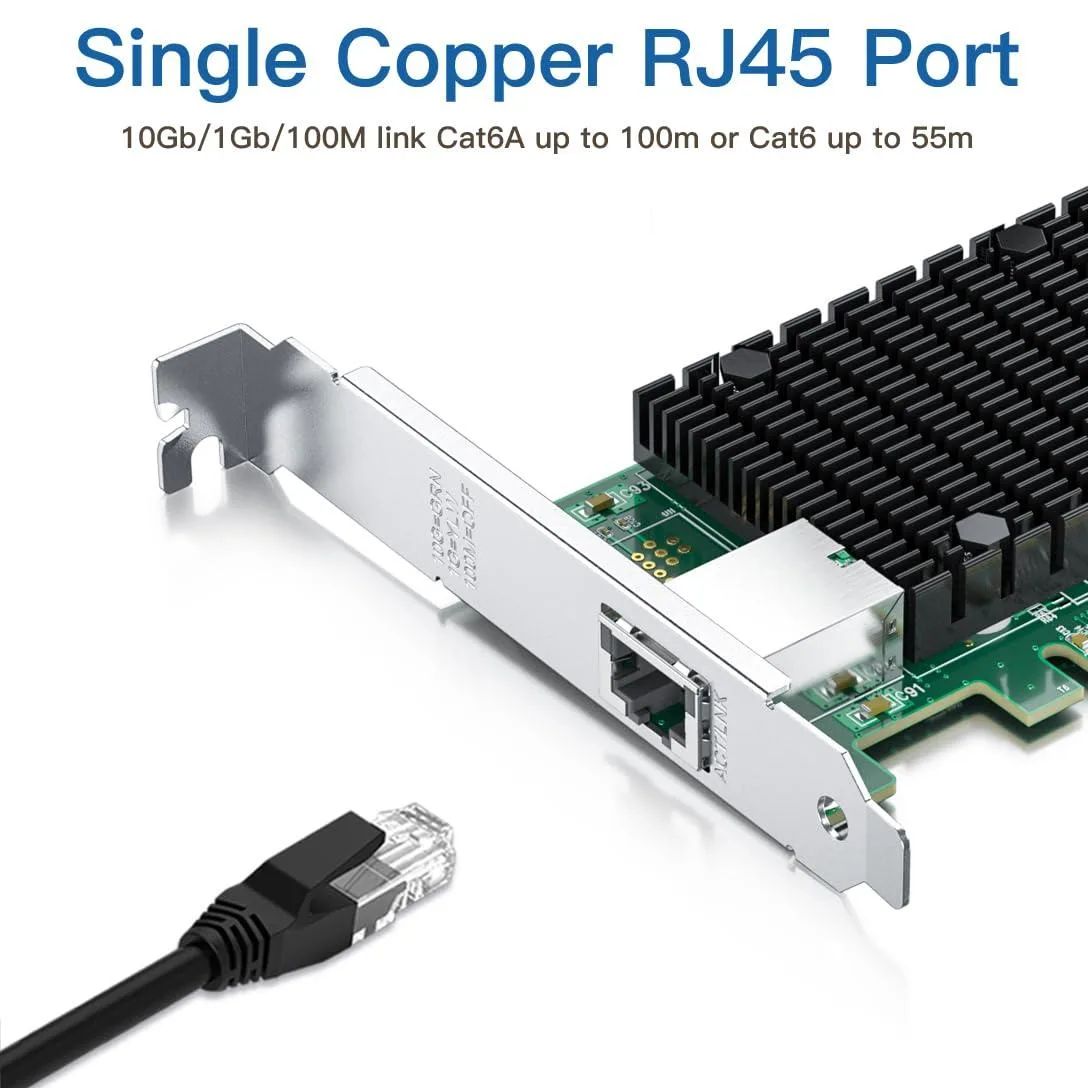

10 GbE RJ45 single-port NIC

The Vszerda 10 GbE network card adds a single RJ45 port to a desktop or server through a PCIe 3.0 x4 slot. It uses the Intel X550-AT controller and supports 10 GbE, 1 GbE and 100 Mb/s data rates over Cat6a cabling. The dual-profile bracket kit fits both standard and low-profile chassis.

13.4 W TDP and 0–55 °C range

The adapter draws 13.4 W and is rated for an operating temperature range of 0 °C to 55 °C (32 °F to 131 °F). No active cooling is mentioned in the specifications, so thermal performance depends on chassis airflow. Power consumption stays within the PCIe slot budget for typical server or workstation loads.

Dual brackets and broad OS support

Both a full-height and a low-profile bracket are included, letting the card install in a wider range of systems without extra parts. Drivers are available for Windows client and server releases, Linux distributions, FreeBSD and VMware ESXi, covering most common deployment scenarios.

Přednosti

  • 10 GbE single RJ45 port for high-speed copper networking
  • PCIe 3.0 x4 host interface fits x4, x8 or x16 slots
  • Low-profile and full-height brackets included for any chassis
  • Intel X550-AT controller with QoS, VLAN tagging and jumbo frames
  • Broad OS support across Windows, Linux, VMware ESXi and BSD

Specifikace

BrandH!Fiber.com
ModelX550-T1-HF(EU)
Part NumberX550-T1-HF(EU)
StandardsGigabit Ethernet
Speed100 megabits_per_second
ConnectorsGigabit Ethernet
FeaturesDesktop
Dimensions8.8 in x 1.2 in x 5.7 in

Otázky k tomuto produktu

How do I fit the Vszerda 10Gb RJ45 PCI-E card into a slim server chassis?

The card ships with both a full-height and a low-profile bracket. Remove the full-height bracket, attach the low-profile one using the supplied screws, then insert the card into any PCIe 3.0 x4, x8 or x16 slot. The step most people miss is swapping the bracket before mounting the card.

What component on the Intel X550-AT controller will need attention after prolonged operation?

The on-board PHY and controller are solid-state with no moving parts, so no scheduled replacement is required. Keep the slot area dust-free and verify the 13.4 W TDP stays within your chassis airflow limits; the only long-term action is a driver update from Intel when a new OS kernel is released.

At what temperature does the card hit its thermal limit during continuous 10 GbE throughput?

The specified operating range tops out at 55 °C (131 °F). Under sustained 10 GbE load the X550-AT draws its full 13.4 W, so case airflow must keep the local ambient at or below 55 °C to avoid throttling or shutdown.
