Green circuit board with silver PCIe edge connector and one silver Oculink SFF-8612 port

LetLinkSo

LetLinkSo PCIe 4.0 x4 to Oculink SFF-8612 Adapter Card

SKU CH-TJMS-V5T3F

Adds a PCIe 4.0 x4 Oculink SFF-8612 port for NVMe SSDs or eGPU docks at 64 Gbps

  • TypePCIe to Oculink Adapter
  • StandardPCIe 4.0
  • Data Transfer Rate16GT/s (per lane)
  • Operating Systems SupportedWindows,Windows Server and Linux
  • CompatibilityPCIe 4.0
  • SpecificationsPCIe x4 to 1-port Oculink

Adapter Type PCIe x4 to 1-Port Oculink / External

De overstregede versioner findes, men er ikke på lager her.

  • Add an Oculink SFF-8612 x4 port for NVMe SSDs or eGPUs
  • PCIe 4.0 x4 at 16 GT/s per lane delivers 64 Gbps total bandwidth
  • Welded connector housing secures the SFF-8612 port against flex and repeated insertion
  • Supports booting from an attached NVMe drive for flexible system startup
  • Works with Windows, Windows Server and Linux without extra drivers

PCIe 4.0 x4 Oculink Adapter

This add-on card adds a single Oculink SFF-8612 x4 port to any system with a free PCIe slot. It targets builders who want to attach NVMe storage or an eGPU dock without opening the chassis for internal drives.

16 GT/s per lane headroom

Running at the PCIe 4.0 standard the adapter delivers 16 GT/s on each of four lanes for a 64 Gbps aggregate link. That bandwidth handles high-throughput NVMe workloads and external GPU traffic, while the x4 electrical width caps maximum throughput at that ceiling.

Welded connector and boot support

The SFF-8612 housing is welded to the PCB for a more secure plug-unplug cycle. The card also enables bootable NVMe devices and works plug-and-play under Windows, Windows Server and Linux with no extra drivers required.

Fordele

  • Add an Oculink SFF-8612 x4 port for NVMe SSDs or eGPUs
  • PCIe 4.0 x4 at 16 GT/s per lane delivers 64 Gbps total bandwidth
  • Welded connector housing secures the SFF-8612 port against flex and repeated insertion
  • Supports booting from an attached NVMe drive for flexible system startup
  • Works with Windows, Windows Server and Linux without extra drivers

Specifikationer

BrandLetLinkSo
SeriesPCIe to Oculink Card
ModelLLS-CD-1PC1OC-02
TypePCIe to Oculink Adapter
StandardPCIe 4.0
Data Transfer Rate16GT/s (per lane)
Operating Systems SupportedWindows,Windows Server and Linux
CompatibilityPCIe 4.0
SpecificationsPCIe x4 to 1-port Oculink
FeaturesEXPANDED CONNECTIVITY
Weight1 lbs

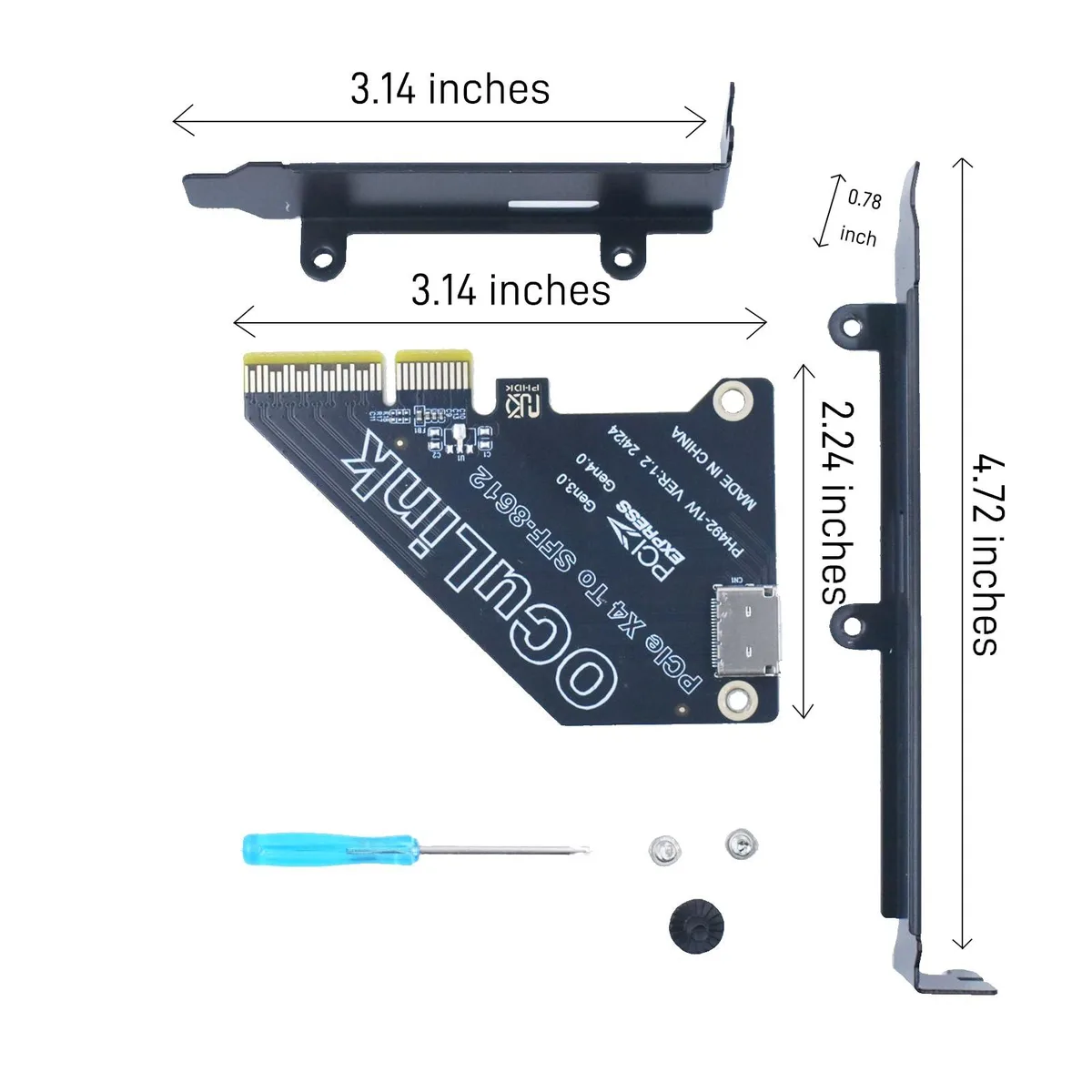

Package Contents1 x PCIe x4 to 1-port Oculink Adapter

Andre versioner af denne model

3 flere i samme serie

Samme familie, men med anden hukommelse, køler eller clockfrekvens — sammenlign, før du bestemmer dig.

Spørgsmål om denne vare

Will the PCIe 4.0 x4 adapter work in my older motherboard that only has PCIe 3.0 slots?

The card is built to the PCIe 4.0 standard and will run at PCIe 3.0 speeds when installed in a 3.0 slot, giving you 4 lanes of bandwidth for your Oculink device.

How can I verify the 16 GT/s per lane link is active after I install the card?

Check the link width and speed in your OS device manager or with a tool like lspci on Linux; it should show x4 at 16 GT/s when a compatible Oculink SFF-8612 cable and device are connected.

Does the package include the SFF-8611 cable needed to reach an eGPU dock, or do I buy that separately?

The box contains only the PCIe x4 to 1-port Oculink SFF-8612 adapter; the SFF-8611 cable for connecting NVMe SSDs or eGPUs must be purchased separately.
