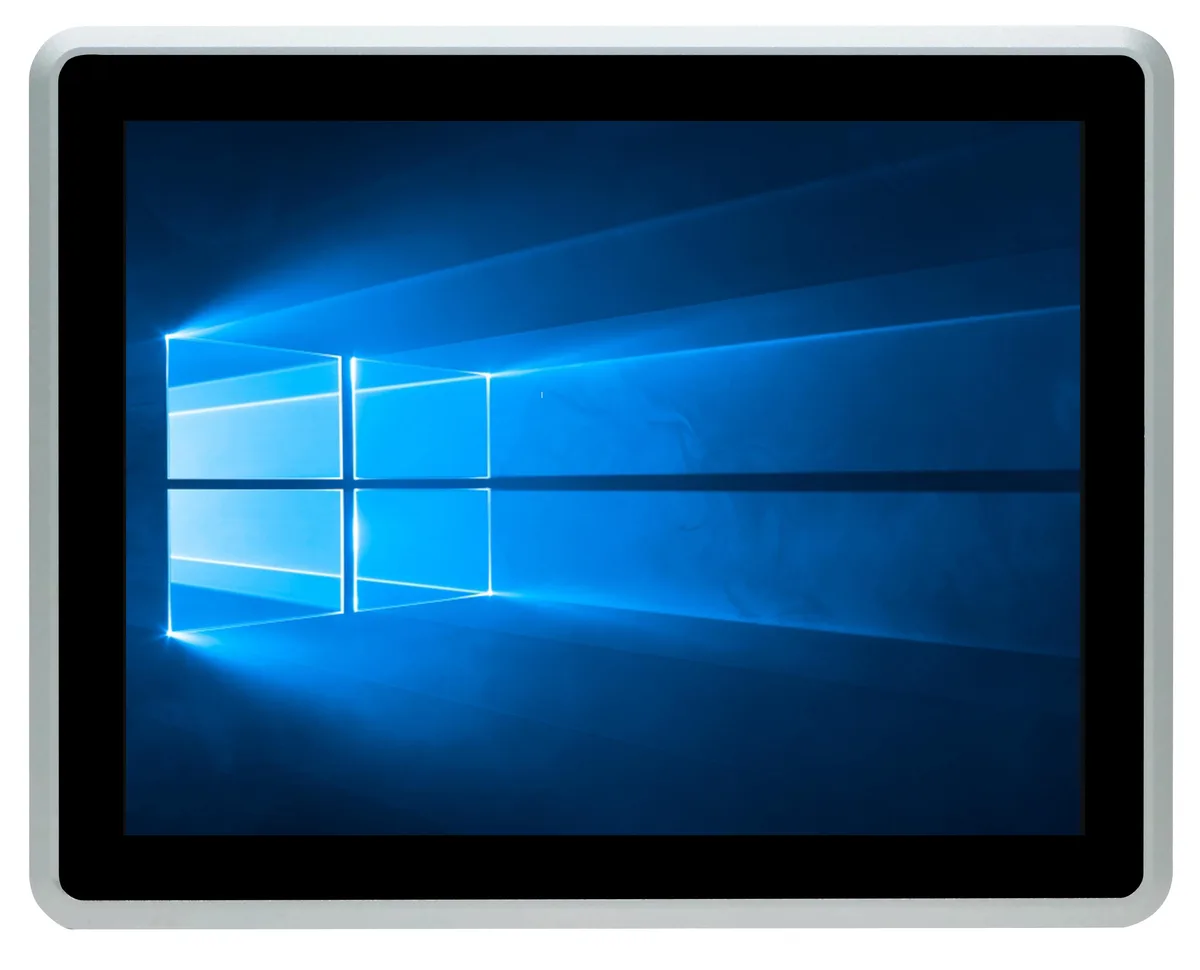

Gray 15 inch industrial all-in-one panel PC with IP65 front

partaker

partaker A27 15" IP65 all-in-one PC J1900 8GB 512GB

SKU CH-6MQT-ZE1NA

A 15-inch industrial all-in-one with an IP65-rated capacitive touchscreen, fanless aluminium chassis, quad-core Celeron J1900, 8 GB DDR3 and 512 GB mSATA storage

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeCeleron
  • CPU NameIntel Celeron J1900

A27 15 Inch Capacitive J1900 8GB RAM / 512GB SSD

  • IP65 front panel resists dust and water ingress
  • Silent fanless aluminium chassis runs from -20 to +60 °C
  • Capacitive multi-touch 15" 1024×768 display for gloved operation
  • Dual Gigabit LAN plus 2 COM and 4 USB ports
  • Windows 10 Pro on J1900 with 8 GB DDR3 and 512 GB mSATA

Industrial panel PC for embedded automation

The Partaker A27 is a 15 inch all-in-one computer with an IP65-rated front panel and capacitive multi-touchscreen. It runs Windows 10 Pro on an Intel Celeron J1900 quad-core processor with 8GB DDR3 memory and a 512GB mSATA drive. The aluminum alloy chassis uses passive cooling for silent operation in dusty or wet environments. It is built for machine vision, logistics, medical and factory automation installations.

Sustained load on a passively cooled quad-core

The J1900 runs at a low TDP without fans, so clock speeds stay steady during long shifts instead of throttling in short bursts. Dual mini PCIe slots allow adding Wi-Fi, Bluetooth or 4G modules without increasing thermal load. Dual Gigabit Ethernet ports and up to six configurable COM ports handle continuous data streams from PLCs and cameras. The system supports watchdog timers and PXE boot for unattended recovery.

Silent thermals and wide-range DC power

Passive cooling eliminates fan noise and moving-part failures across a -20 to +60 Celsius operating range. The front panel meets IP65 against dust and water jets while the aluminum shell dissipates heat from the processor and 512GB SSD. Standard input is 12V DC with an optional 9 to 36V wide-range option for unstable supplies. Dual 8W speakers provide audible alerts in noisy plants.

Fordele

  • IP65 front panel resists dust and water ingress
  • Silent fanless aluminium chassis runs from -20 to +60 °C
  • Capacitive multi-touch 15" 1024×768 display for gloved operation
  • Dual Gigabit LAN plus 2 COM and 4 USB ports
  • Windows 10 Pro on J1900 with 8 GB DDR3 and 512 GB mSATA

Specifikationer

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeCeleron
CPU NameIntel Celeron J1900
Screen Size15"
Screen TypeMulti-Touch Screen

Andre versioner af denne model

5 flere i samme serie

Samme familie, men med anden hukommelse, køler eller clockfrekvens — sammenlign, før du bestemmer dig.

Spørgsmål om denne vare

How quiet and cool does the fanless J1900 run during continuous 24-hour operation?

The aluminum alloy chassis uses passive cooling, so the system runs silently with no moving parts while staying within its -20 to +60 °C operating range.

Which cables and peripherals must I already have to get this panel PC working out of the box?

You need a 12 V DC power supply, a network cable for the dual Gigabit ports, and any USB or serial devices you plan to connect; the touchscreen, 8 GB DDR3 memory and 512 GB mSATA storage are already installed.

Will the dual RS232/485 COM ports and HDMI output work with my existing PLCs and legacy monitors?

Yes, the two configurable COM ports support RS232/485 for older industrial equipment, and the HDMI port drives a second display in synchronous or asynchronous mode alongside the built-in 1024×768 panel.
