Ubiquiti Networks

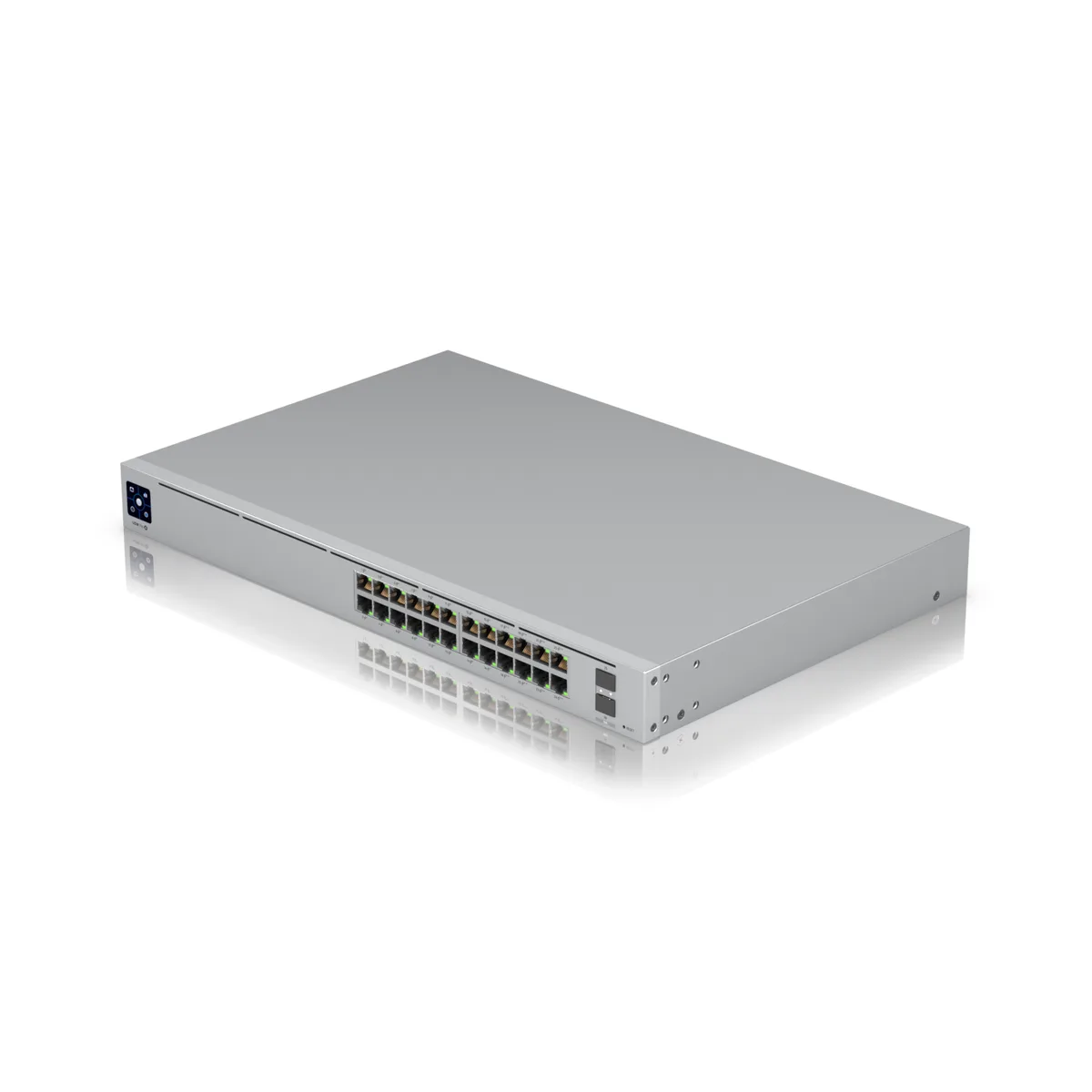

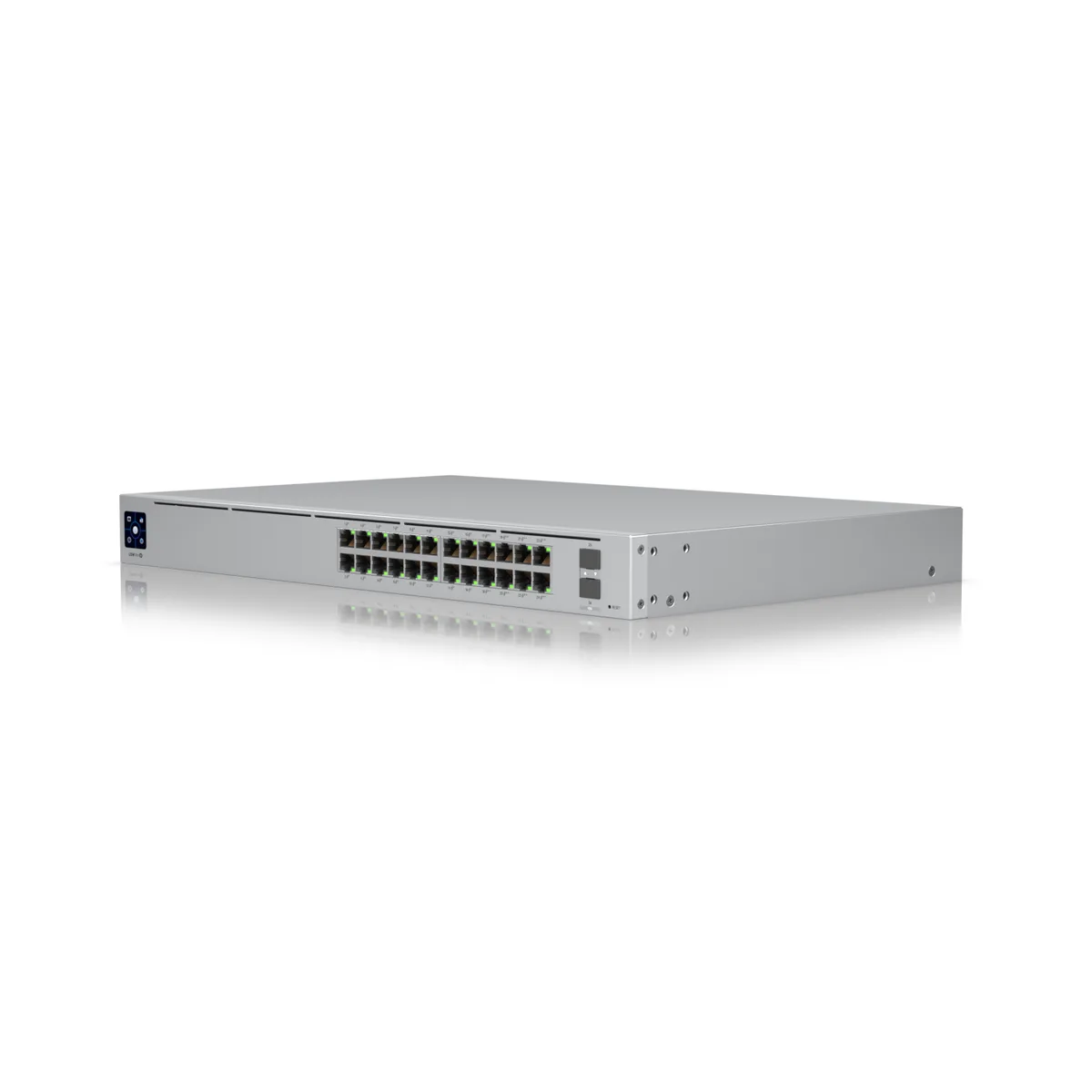

Ubiquiti Networks USW-Pro-24-POE (400W) 24-port Layer 3 network switch
A 24-port managed Layer 3 switch with 16 PoE+ and 8 PoE++ ports, two 10G SFP+ uplinks, 400W PoE budget, 88 Gbps switching capacity and near-silent cooling
- FormatRackmount
- Network Management TypeManaged
- Primary Ports24 x RJ45 + 2 x SFP+
- Primary Port SpeedTotal non-blocking throughput 44 Gbps Switching capacity 88
- Primary Port Type(24) GbE RJ45 ports (2) 1/10G SFP+ ports
- Management InterfaceEthernet In-Band
Model Pro 24 PoE
- Pro 48 PoE
- Pro 24 PoE
- Pro 48
- Pro 24
- Pro 8 PoE
De overstregede versioner findes, men er ikke på lager her.
- 24 ports with 44 Gbps non-blocking throughput for high-density connectivity
- 16 PoE+ and 8 PoE++ ports delivering 400W total power for diverse devices
- 2 SFP+ uplinks at 10 Gbps enabling fast backbone links
- Layer 3 routing with static routes and DHCP relay simplifies network design
- Near-silent cooling in a 1U rackmount chassis suits quiet environments
24-port Layer 3 PoE++ Switch
The Ubiquiti USW-Pro-24-POE (400W) is a managed rackmount switch delivering Layer 3 routing and high-power PoE across 24 Gigabit RJ45 ports and two 10G SFP+ uplinks. It provides 400W total PoE budget with 16 PoE+ and 8 PoE++ ports, plus near-silent cooling for quiet deployment.
Suited for PoE-heavy networks.
This switch fits medium-sized networks needing advanced Layer 3 features such as static routing, DHCP relay and ACLs alongside dense PoE++ for access points, cameras or VoIP phones. Buyers who require more than 24 copper ports or who need a purely fibre uplink configuration should consider other models.
400W PoE budget with 8 PoE++ ports
The single specification that decides fit is the 400W total PoE availability split across 16 PoE+ and 8 PoE++ RJ45 ports, which determines how many high-power devices can be powered simultaneously without an external injector.
Fordele
- 24 ports with 44 Gbps non-blocking throughput for high-density connectivity
- 16 PoE+ and 8 PoE++ ports delivering 400W total power for diverse devices
- 2 SFP+ uplinks at 10 Gbps enabling fast backbone links
- Layer 3 routing with static routes and DHCP relay simplifies network design
- Near-silent cooling in a 1U rackmount chassis suits quiet environments
Specifikationer
| Brand | Ubiquiti Networks |
|---|---|
| Series | Network Switch |
| Model | Pro 24 PoE |
| Part Number | USW-Pro-24-POE (400W) |
| Format | Rackmount |
| Network Management Type | Managed |
| Primary Ports | 24 x RJ45 + 2 x SFP+ |
| Primary Port Speed | Total non-blocking throughput 44 Gbps Switching capacity 88 Gbps Forwarding rate 65.472 Mpps |
| Primary Port Type | (24) GbE RJ45 ports (2) 1/10G SFP+ ports |
| Management Interface | Ethernet In-Band |
| Switching Method | Store and Forward |
| VLAN Support | Yes |
| Jumbo Frames | Yes |
| PoE | Yes |
| Layer | 3 |
| Layer 2 Features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
| Layer 3 Features | DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs |
| Port Mirroring | Yes |
| LEDs | System Status Ethernet PoE Speed/link/activity SFP+ Link/activity RPS Status |
| Button | Factory reset |
| PoE Ports | (16) PoE/PoE+ (Pins 1, 2+; 3, 6-) (8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Power | (1) Universal input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input, 52V DC, 7.69A; 11.5V DC, 2.61A |
| Dimensions | 442 x 285 x 44 mm (17.4 x 11.2 x 1.7") |
| Weight | Without mounting brackets: 4.3 kg (9.5 lb) With mounting brackets: 4.4 kg (9.7 lb) |
| Certification | CE, FCC, IC |
| Temperature | -5 to 40° C (23 to 104° F) |
| Humidity | 10 to 90% noncondensing |
| Forsendelsesvægt | 5.72 kg |
| Pakkestørrelse | 521 × 394 × 127 mm |
Andre versioner af denne model
1 flere i samme serie
Samme familie, men med anden hukommelse, køler eller clockfrekvens — sammenlign, før du bestemmer dig.
Spørgsmål om denne vare
Will the USW-Pro-24-POE (400W) power my existing PoE+ cameras and PoE++ access points at the same time?
Yes. It provides 16 GbE PoE+ ports and 8 GbE PoE++ ports with a 400 W total PoE budget, so both device types can run together within that limit.
How can I confirm the switch is forwarding at its rated 65.472 Mpps after installation?
The front-panel LEDs show system status, per-port speed/link/activity for RJ45 and SFP+ ports, and RPS status; managed dashboard counters also display real-time throughput and packet rates.
Do I need to buy SFP+ transceivers or a rack kit separately?
The box includes the switch and mounting accessories; SFP+ modules for the two 10 Gbps uplinks are not included and must be purchased separately.
