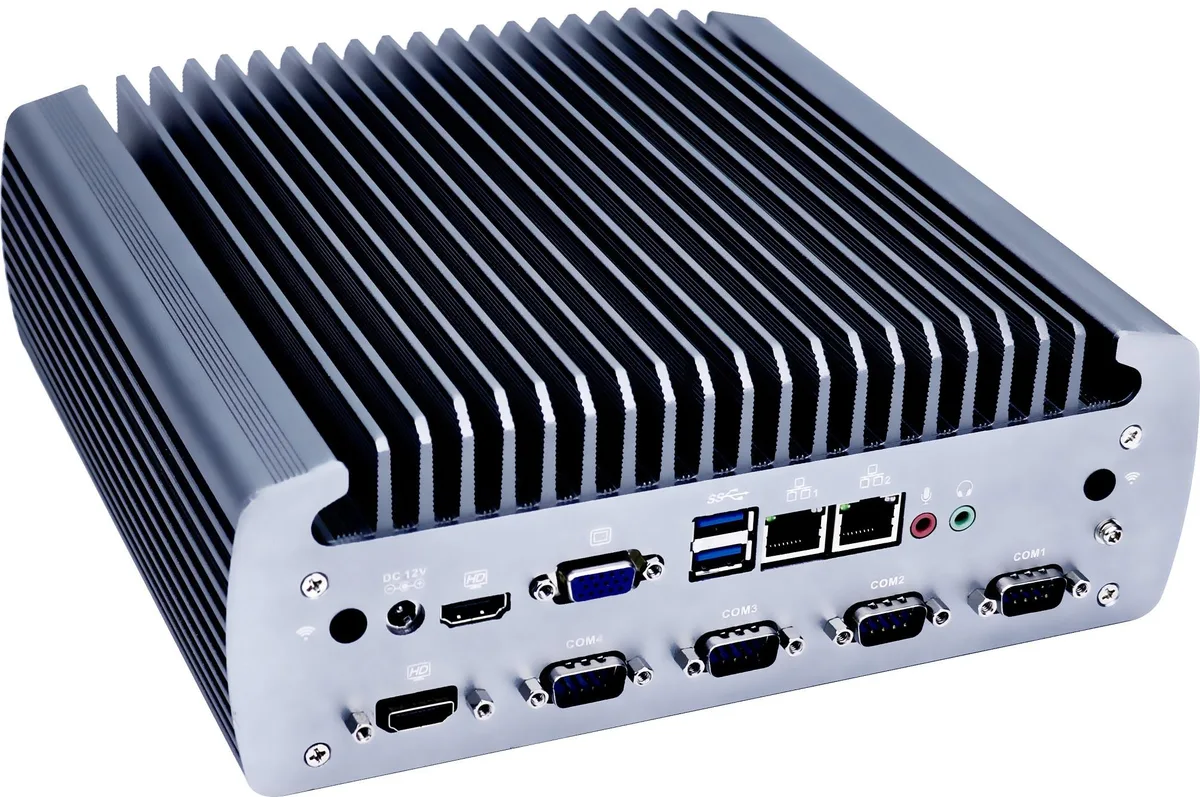

Titanium-grey aluminium fanless mini PC, compact rectangular block

partaker

Partaker I21 barebone mini PC i7-8700T 16GB 512GB

SKU CH-9ZC9-QHJQ0

Fanless aluminium mini PC with an Intel Core i7-8700T, 16 GB DDR4, 512 GB M.2 SSD, dual LAN, triple display outputs and six COM ports for industrial use

  • ColorGray
  • CPU TypeIntel Core i7 8th Gen

CPU Type Intel Core i7

Group 16GB RAM / 512GB SSD

  • Silent operation from fanless aluminium construction
  • 6-core i7-8700T at 2.4 GHz base clock
  • 16 GB DDR4 installed, expandable to 32 GB
  • 512 GB SSD plus M.2 and 2.5-inch bays
  • Dual gigabit LAN, 6 COM ports, GPIO for industrial use

Fanless industrial mini PC

The Partaker I21 is a fanless barebone mini PC built around an onboard Intel Core i7 8700T processor with six cores and twelve threads running at a base frequency of 2.4 GHz and a maximum turbo of 4.0 GHz. It ships with 16 GB of DDR4 memory and a 512 GB SSD installed. The aluminium chassis acts as a heatsink for silent operation in noise-sensitive or dust-prone environments.

Dual LAN and legacy I/O expansion

Two RTL8111E Gigabit LAN ports provide redundant or segmented network connectivity for industrial or kiosk deployments. Six COM ports, including four on the rear with optional RS232/RS422/RS485 support, plus two front USB 2.0 and two rear USB 3.0 ports, allow direct attachment of serial instruments, barcode scanners and legacy peripherals without adapters. An onboard GPIO header adds four inputs and four outputs for simple control tasks.

Memory and storage headroom

The system supports up to 32 GB of DDR4 SODIMM memory across two slots, leaving one slot free for a straightforward upgrade from the supplied 16 GB. One M.2 2280 slot accepts both PCIe and SATA drives, and an optional 2.5 inch bay can host a second hard drive or SSD. Builders needing more than two display outputs or discrete graphics will need a different platform.

Kohokohdat

  • Silent operation from fanless aluminium construction
  • 6-core i7-8700T at 2.4 GHz base clock
  • 16 GB DDR4 installed, expandable to 32 GB
  • 512 GB SSD plus M.2 and 2.5-inch bays
  • Dual gigabit LAN, 6 COM ports, GPIO for industrial use

Tekniset tiedot

ColorGray
CPU TypeIntel Core i7 8th Gen

Tämän mallin muut versiot

5 lisää samasta mallistosta

Sama tuoteperhe, eri muisti, jäähdytin tai kellotaajuus — vertaile ennen päätöstä.

Kysymyksiä tästä tuotteesta

Will the 16 GB DDR4 memory need to be replaced to reach the 32 GB maximum?

The board has two SODIMM slots supporting up to 32 GB total, so the installed 16 GB can stay and a second module can be added later.

What thermal limit appears first when the i7-8700T runs at 4.0 GHz continuously in a fanless chassis?

The aluminium case is rated for 0 to 50 °C surface temperature with commercial drives, so sustained turbo will be limited by that passive envelope.

How much heat and noise does the fanless design produce during all-day operation?

No moving parts means silent running; the anodised aluminium shell dissipates heat passively within the 0 to 50 °C commercial range.
