Titanium-grey aluminium fanless mini PC, compact rectangular block

partaker

partaker I21 barebone mini PC i7-8700T 32G RAM 1TB SSD

SKU CH-QWAW-CTW49

Fanless aluminium mini PC with an Intel Core i7-8700T processor, 32 GB DDR4 memory and a 1 TB SSD, plus dual LAN, six COM ports and wide 12–19 V DC input

  • ColorGray
  • CPU TypeIntel Core i7 8th Gen

CPU Type Intel Core i7

Group 32G RAM / 1T SSD

  • Silent operation from fanless aluminium chassis
  • High performance with i7-8700T six-core processor
  • Smooth multitasking using 32 GB DDR4 memory
  • Triple display via VGA and dual HDMI ports
  • Flexible storage with M.2 and 2.5-inch drive support

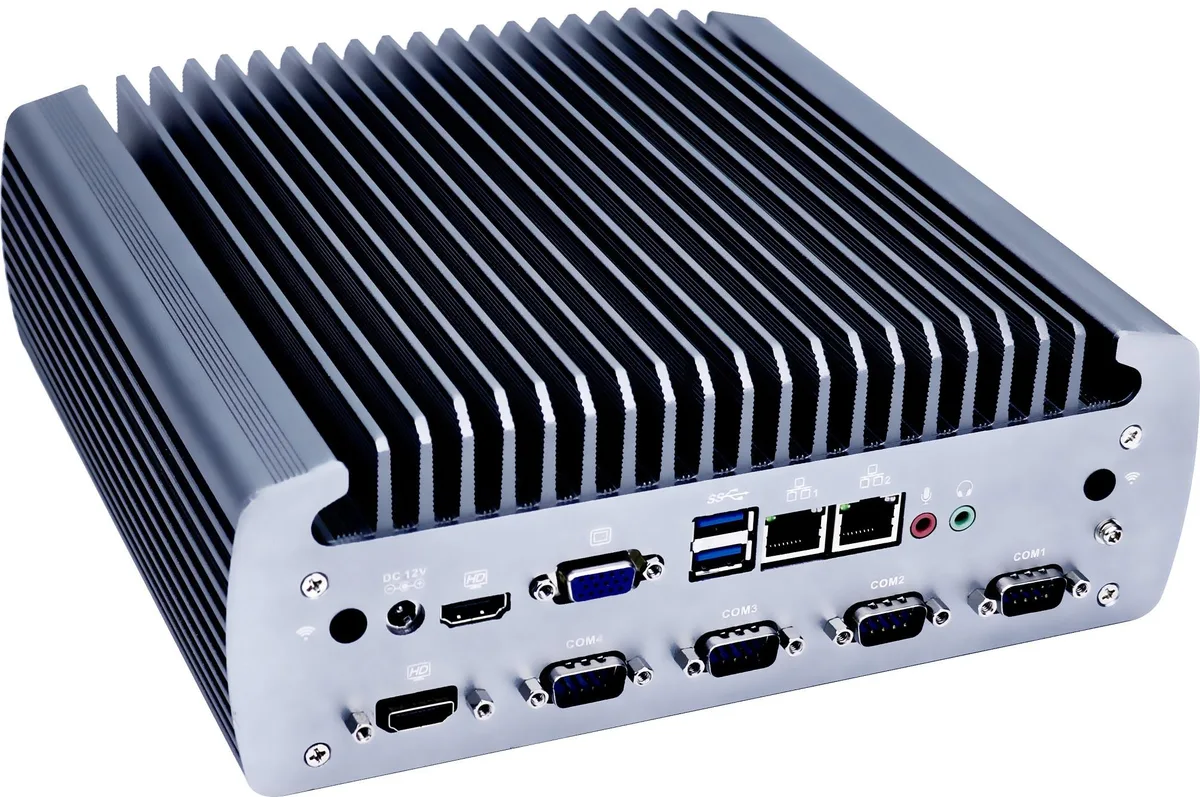

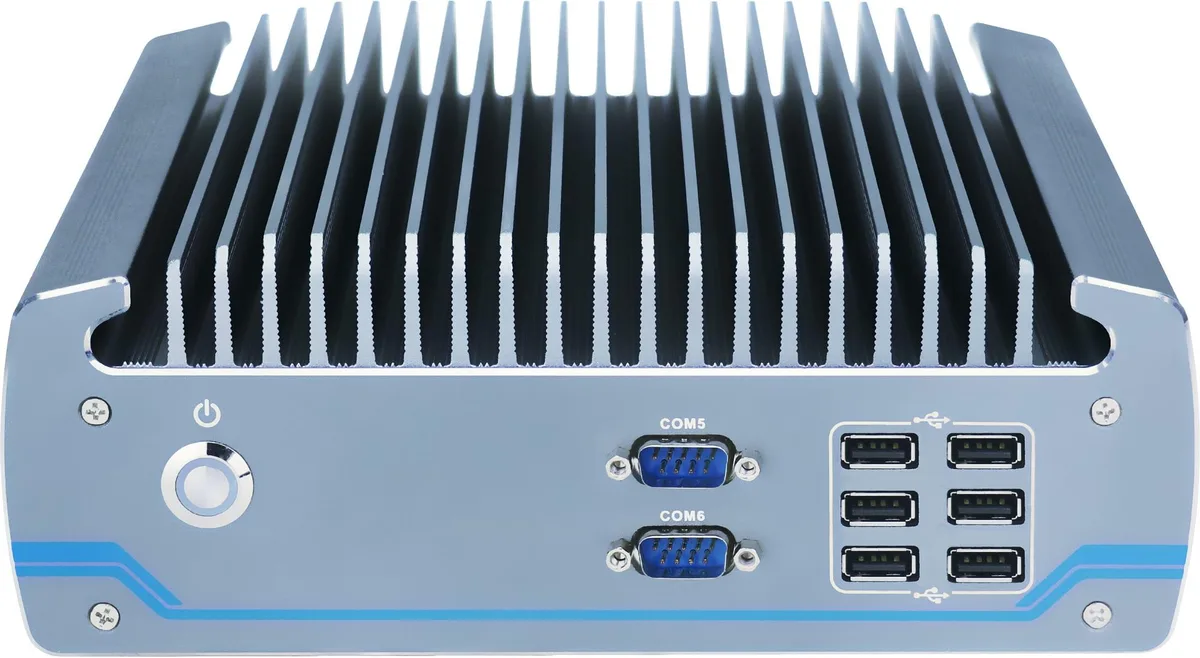

Fanless Mini PC for Industrial Use

The Partaker I21 is a fanless barebone mini PC built around an onboard Intel Core i7-8700T processor with six cores and twelve threads running at 2.4 GHz up to 4.0 GHz. It ships with 32 GB of DDR4 memory and a 1 TB SSD installed in the M.2 2280 slot. The aluminium chassis acts as a heatsink for silent operation in commercial environments from 0 to 50 °C or industrial settings from -20 to 60 °C.

Suits Automation and Signage; Not for GPU Workloads

This system targets integrators who need multiple serial ports, dual LAN and triple-display output for machine control, kiosks or digital signage. Six COM ports with RS232, RS422 and RS485 options plus GPIO give direct device connectivity. Buyers who require a discrete graphics card, internal PCIe expansion or active cooling for sustained heavy compute should look elsewhere.

M.2 2280 Slot Accepts SATA or PCIe Drives

Storage flexibility hinges on the single M.2 2280 slot that supports both SATA and PCIe signalling, alongside an optional 2.5-inch bay for a second drive. The installed 1 TB SSD occupies the M.2 slot, so adding a different drive means replacing or supplementing it. Verify your drive’s protocol matches the slot before purchase.

Kohokohdat

  • Silent operation from fanless aluminium chassis
  • High performance with i7-8700T six-core processor
  • Smooth multitasking using 32 GB DDR4 memory
  • Triple display via VGA and dual HDMI ports
  • Flexible storage with M.2 and 2.5-inch drive support

Tekniset tiedot

ColorGray
CPU TypeIntel Core i7 8th Gen

Tämän mallin muut versiot

5 lisää samasta mallistosta

Sama tuoteperhe, eri muisti, jäähdytin tai kellotaajuus — vertaile ennen päätöstä.

Kysymyksiä tästä tuotteesta

How do I mount the I21 barebone and which step is often missed?

Use the four M4 holes on the chassis bottom for wall or VESA brackets; the step often missed is tightening all four screws evenly so the aluminum case makes full contact for passive cooling.

Which parts will need replacement first during long-term use?

The 2.5-inch SATA drive (if installed) and the CMOS battery on the H310 board are the only moving or aging parts; the fanless CPU and DDR4 SODIMMs have no wear items.

What thermal limit appears first when the i7-8700T runs sustained loads?

The chassis surface temperature reaches the 60 °C industrial ceiling before the CPU hits its 100 °C junction max, so the case becomes the limiting factor under continuous load.
