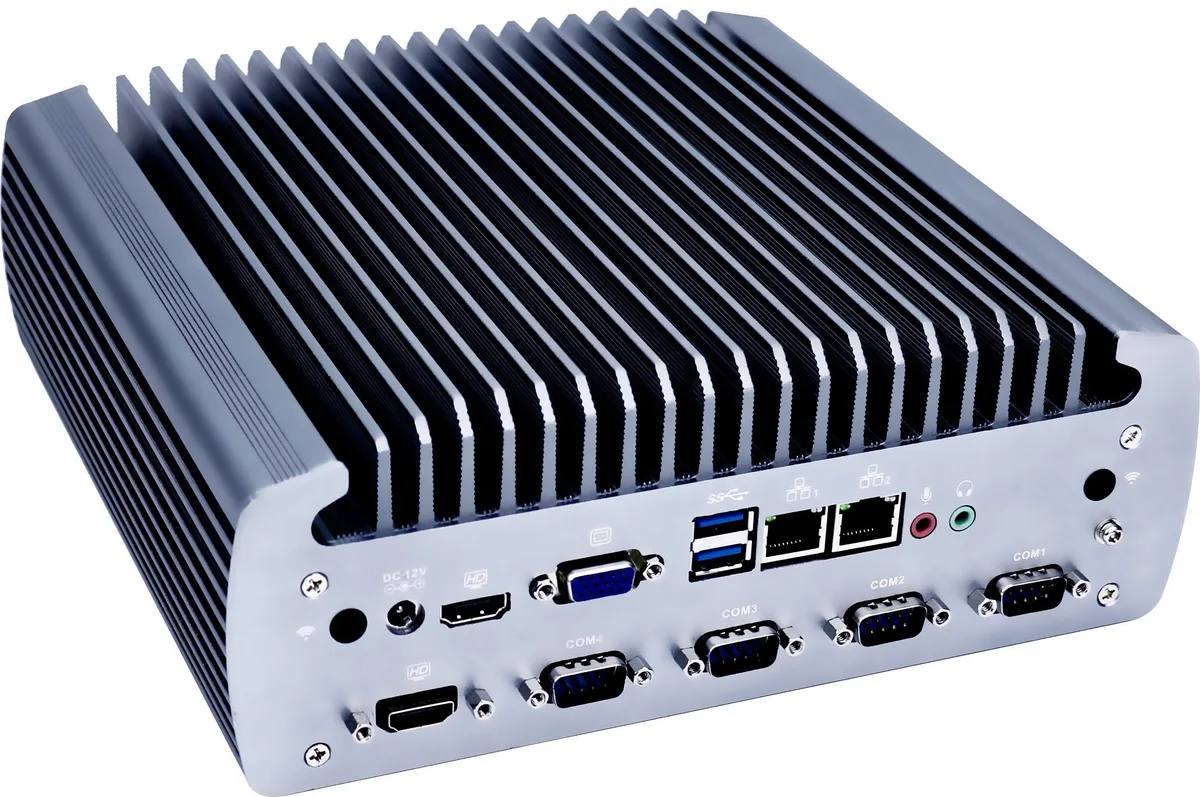

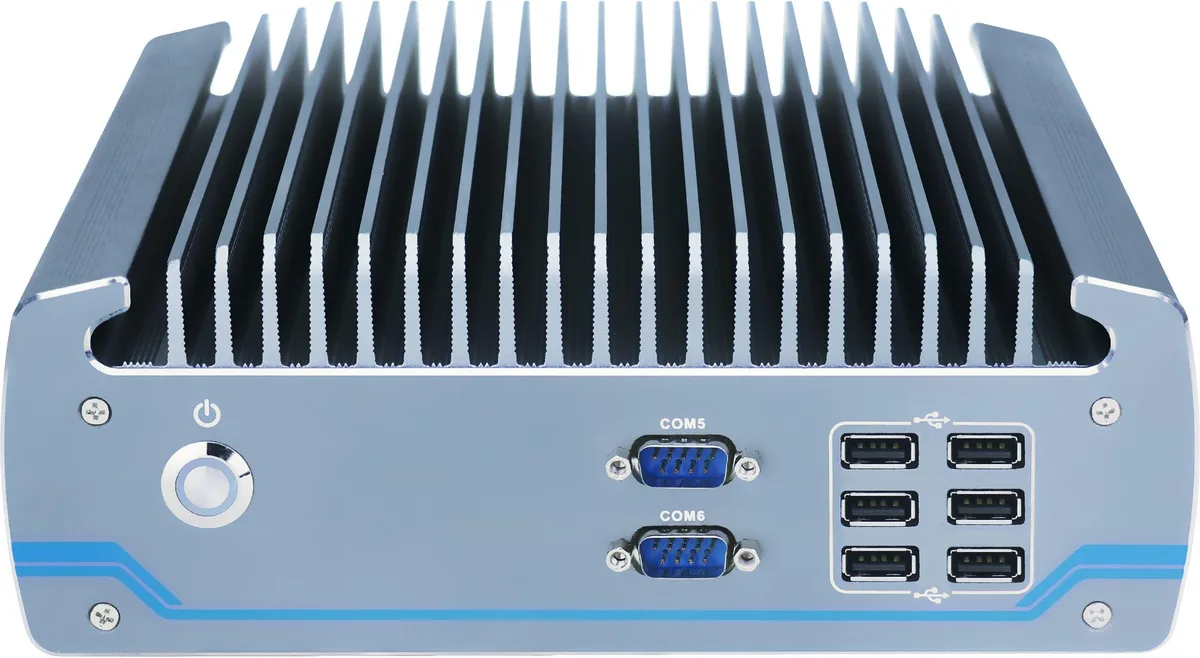

Titanium-grey aluminium fanless mini PC, compact box shape

partaker

partaker I21 barebone mini PC i7 8700T 8G 256G

SKU CH-P90B-NYFDE

Fanless embedded mini PC with an Intel Core i7-8700T, 8 GB DDR4 RAM, 256 GB SSD, dual HDMI and VGA outputs, six COM ports and dual Gigabit LAN

  • ColorGray
  • CPU TypeIntel Core i7 8th Gen

CPU Type Intel Core i7

Group 8GB / 256GB SSD

  • Fanless aluminium chassis runs silently in noise-sensitive spaces
  • Intel Core i7 8700T 6 core 12 thread CPU handles heavy workloads
  • Dual DDR4 SODIMM slots support up to 32 GB memory for smooth multitasking
  • Two Intel Gigabit LAN ports plus six COM ports suit industrial networking
  • Triple display output via VGA and two HDMI ports drives multiple screens

Industrial fanless mini PC

The Partaker I21 is a compact barebone system built around an onboard Intel Core i7-8700T processor with six cores and twelve threads running at a 2.4 GHz base and 4.0 GHz maximum turbo. It ships with 8 GB of DDR4 memory and a 256 GB SSD installed, ready for embedded, industrial or commercial deployments that demand silent, maintenance-free operation. The all-aluminium chassis acts as a heatsink, supporting an operating range from -20 °C to 60 °C with an industrial SSD.

Dual gigabit LAN and legacy I/O

Network connectivity relies on two RTL8111E controllers providing 10/100/1000M Ethernet links, limiting throughput to one gigabit per port without aggregation or faster PHY options. Six COM ports are available, four of which support RS232/RS422/RS485 selectable modes for serial device integration. Display output is restricted to one VGA and two HDMI ports, with no native DisplayPort or USB-C video. Expansion is confined to one M.2 2280 slot compatible with PCIe and SATA drives, plus a mini-PCIe slot for optional wireless modules.

32 GB memory ceiling and storage options

The two SODIMM slots accept DDR4 2133/2400 modules up to a total of 32 GB, giving headroom for memory-intensive edge workloads beyond the factory 8 GB. Storage can be expanded via the M.2 2280 slot and an optional 2.5-inch bay, though the second 2.5-inch drive position is not populated by default. Power input accepts DC 12-19 V with an optional 9-36 V wide-range module, so installations without a regulated 12 V source must verify the wider-range variant is fitted.

Kohokohdat

  • Fanless aluminium chassis runs silently in noise-sensitive spaces
  • Intel Core i7 8700T 6 core 12 thread CPU handles heavy workloads
  • Dual DDR4 SODIMM slots support up to 32 GB memory for smooth multitasking
  • Two Intel Gigabit LAN ports plus six COM ports suit industrial networking
  • Triple display output via VGA and two HDMI ports drives multiple screens

Tekniset tiedot

ColorGray
CPU TypeIntel Core i7 8th Gen

Tämän mallin muut versiot

5 lisää samasta mallistosta

Sama tuoteperhe, eri muisti, jäähdytin tai kellotaajuus — vertaile ennen päätöstä.

Kysymyksiä tästä tuotteesta

Should I pick the 8 GB RAM and 256 GB SSD configuration or add more memory and storage?

The system ships with 8 GB DDR4 and a 256 GB M.2 drive. It supports up to 32 GB across two SODIMM slots and adds one optional 2.5" bay, so you can upgrade later if workloads grow.

What does the i7-8700T's 2.4 GHz base and 4.0 GHz boost mean for daily workloads?

Six cores and twelve threads at those clocks handle multi-threaded tasks such as compilation, virtualization or edge analytics smoothly, while the low-power design keeps the fanless chassis within its 0–50 °C commercial range.

How do the two RTL8111E Gigabit LAN ports and the M.2 2280 slot limit real-world throughput?

Each LAN port caps at 1000 Mbit/s, and the M.2 2280 slot accepts both PCIe and SATA drives, so storage speed depends on the drive type you install.
