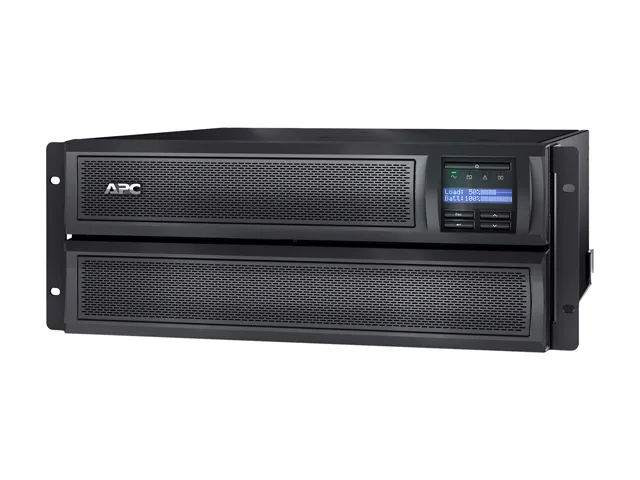

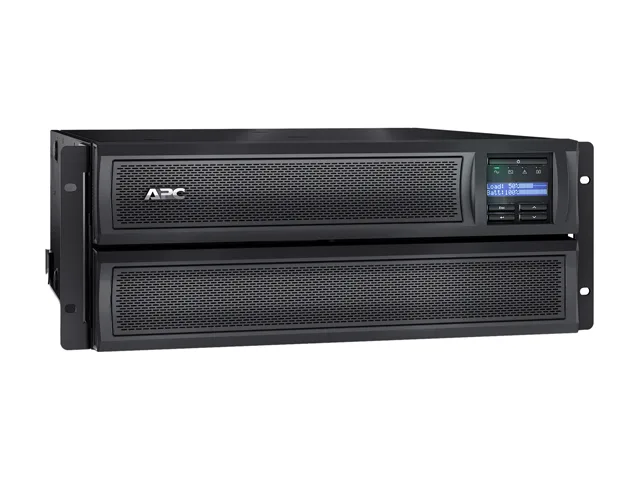

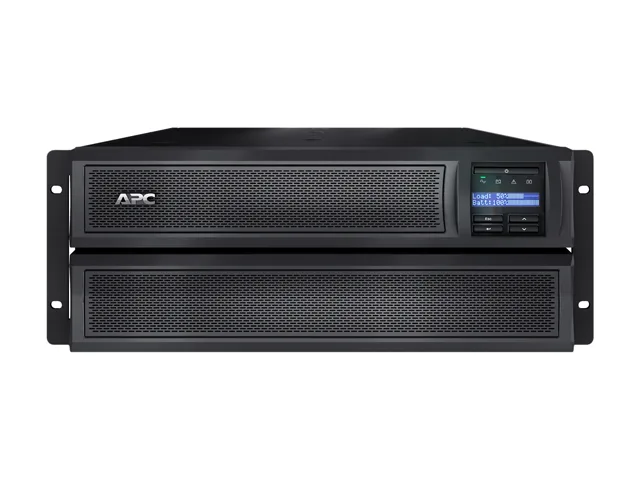

Black rectangular 4U rackmount UPS with front LCD display and multiple NEMA outlets

APC

APC Smart-UPS SMX2000LV 2000VA 1800W 120V UPS

SKU CH-8K0H-A1BWM MPN SMX2000LV

Line-interactive UPS delivers 1800 W pure sine-wave power with extended-run capability via external battery packs

  • International Version120V
  • Input Voltage Range70 V AC to 153 V AC Mains Operation 75 V AC to 154 V AC Adju
  • Input Frequency50/60 Hz +/- 3 Hz (auto sensing)
  • Input ConnectionNEMA 5-20P
  • VA Rating1920 VA
  • Watts1800 Watts

Options SMX2000LV

הצג 7 תצורות נוספות

גרסאות עם קו חוצה קיימות, אך אינן במלאי כאן.

  • Pure sine wave output protects sensitive equipment with 1800W continuous power
  • Extended run capability accepts external battery packs for longer outage runtime
  • Ten mixed NEMA outlets (L5-20R, 5-20R, 5-15R) connect diverse devices
  • Tower or 4U rackmount form factor fits rack or floor deployment
  • SmartSlot plus USB and serial management ports enable remote monitoring

Pure Sine Wave UPS for Critical Loads

The APC Smart-UPS SMX2000LV delivers 1920 VA and 1800 W of pure sine wave power from a line-interactive topology. It accepts 120 V input through a NEMA 5-20P plug and provides ten outlets: one NEMA L5-20R, three NEMA 5-20R and six NEMA 5-15R. The unit operates as a tower or converts to a 4U rackmount with optional rails.

Suited for 120 V Server and Network Racks

This UPS fits administrators protecting servers, storage arrays or security gear that require sine wave output and extended runtime capability. The Smart-Slot and included USB and RS-232 ports support network management cards and monitoring software. Sites without a 20 A branch circuit or with supply voltages outside the 70 V to 154 V adjustable range cannot use this model without electrical changes.

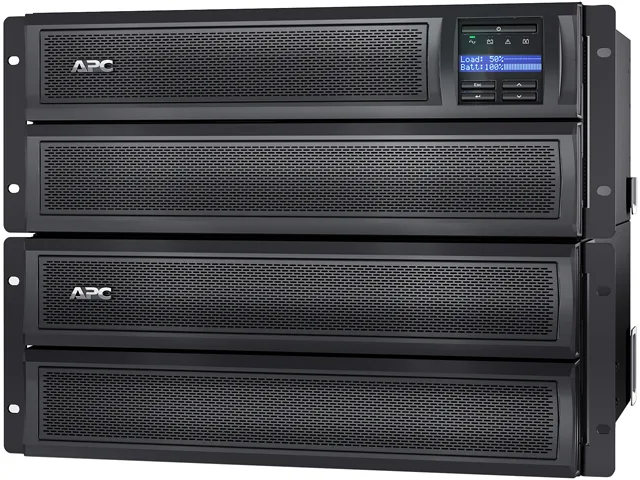

Extended Runtime via External Battery Packs

The extended run design accepts SMX120BP external battery packs to lengthen backup time during prolonged outages. Internal sealed lead acid batteries recharge in three hours and are user-replaceable using part APCRBC143. This single feature determines whether the unit can sustain critical loads for the duration your environment demands.

נקודות עיקריות

  • Pure sine wave output protects sensitive equipment with 1800W continuous power
  • Extended run capability accepts external battery packs for longer outage runtime
  • Ten mixed NEMA outlets (L5-20R, 5-20R, 5-15R) connect diverse devices
  • Tower or 4U rackmount form factor fits rack or floor deployment
  • SmartSlot plus USB and serial management ports enable remote monitoring

מפרט טכני

BrandAPC
SeriesSmart-UPS
ModelSMX2000LV
International Version120V
Input Voltage Range70 V AC to 153 V AC Mains Operation
75 V AC to 154 V AC Adjustable Mains Operation
Input Frequency50/60 Hz +/- 3 Hz (auto sensing)
Input ConnectionNEMA 5-20P
VA Rating1920 VA
Watts1800 Watts
Output Voltage120V
Output Frequency50/60Hz +/- 3 Hz
Outlets10
Outlet Type1 x NEMA L5-20R
3 x NEMA 5-20R
6 x NEMA 5-15R
Battery TypeSealed Lead Acid
Battery Recharge Time3 hour(s)
Battery ReplaceableAPCRBC143
AlarmsAlarm when on battery : distinctive low battery alarm : configurable delays
Interface PortSmart-Slot
Management SoftwareYES
ApprovalsBSMI, CSA, EN 50091-2, EN 55022 Class A, ENERGY STAR (USA), FCC Part 15 Class A, NOM, TUV, UL 1778, VCCI Class A
Rackmountable4U
Surge Energy Rating540 Joules
FeaturesPC Smart-UPS,1800 Watts / 1920 VA,Input 120V / Output 120V, Interface Port SmartSlot, Extended runtime model, Rack Height 4U
Dimensions7.00" x 19.00" x 17.00
Weight85.00 lbs.
Package ContentsAPC Smart-UPS X 2000 VA Rack/Tower LCD 100 - 127V, CD with software, Documentation CD, Installation guide, Rack Mounting brackets, Rack mounting hardware, Rack Mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, USB cable
משקל משלוח47.63 kg
מידות האריזה633 × 586 × 330 mm

גרסאות נוספות של דגם זה

5 נוספים באותה הסדרה

אותה משפחה, זיכרון, קירור או תדר שונים — השווה לפני שתחליט.

שאלות על הפריט הזה

Should I pick the 1920 VA or the 2000 VA rating when sizing this UPS?

The unit delivers 1920 VA apparent power and 1800 watts real power; size your load to the 1800 W figure so the inverter is not overloaded.

What does the 1800 watt rating mean for my connected servers?

You can draw up to 1800 watts continuously from the outlets; if the total load exceeds that the UPS will transfer to bypass or shut down to protect itself.

What management interfaces does the Smart-Slot provide and what can it control?

The Smart-Slot accepts an optional network management card; the built-in RS-232 and USB ports support local monitoring, graceful shutdown and firmware updates.
