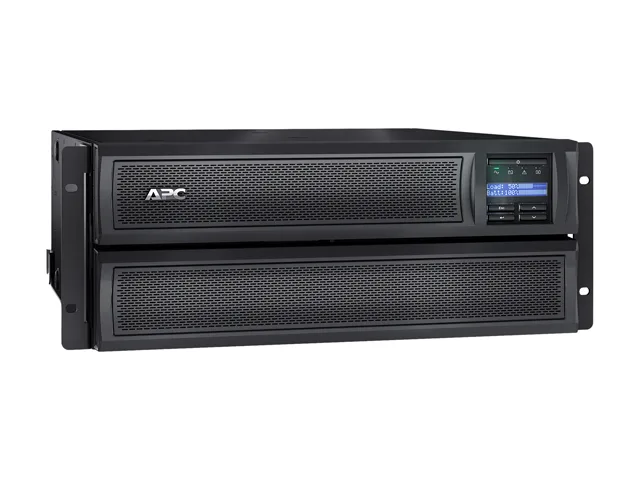

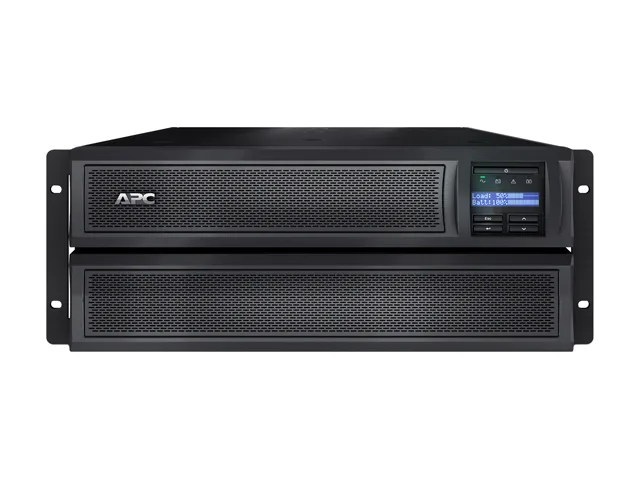

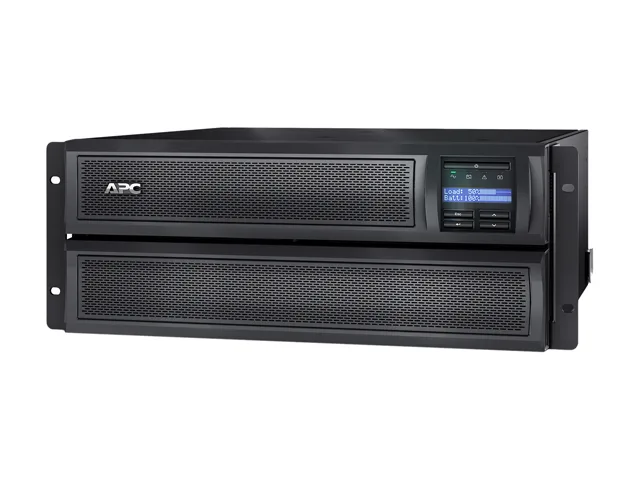

Rectangular grey metal chassis, 4U rack height, front LCD display and vented sides

APC

APC SMX2000LVNC Smart-UPS 1920VA 1800W 120V UPS

SKU CH-AWNY-ZYEJG MPN SMX2000LVNC

Pure sine-wave battery backup delivers 1920 VA and 1800 W through ten NEMA outlets with a pre-installed network management card and extended-run capability

  • International Version120V
  • Input Frequency50/60 Hz +/- 3 Hz (auto sensing)
  • Input ConnectionNEMA 5-20P
  • VA Rating1920 VA
  • Watts1800 Watts
  • Output Voltage120V

Options SMX2000LVNC

הצג 7 תצורות נוספות

גרסאות עם קו חוצה קיימות, אך אינן במלאי כאן.

  • 1920 VA / 1800 W pure sine wave output protects sensitive servers
  • Pre-installed AP9631 network card enables remote monitoring and environmental alerts

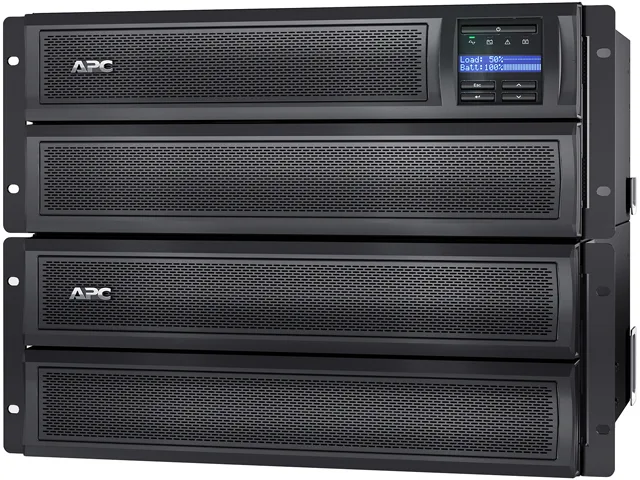

  • Extended-run design accepts SMX120BP battery packs for longer outage runtime

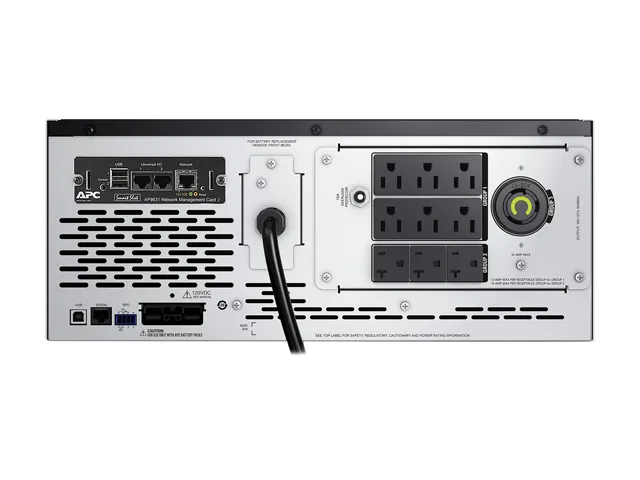

  • Ten mixed NEMA outlets (L5-20R, 5-20R, 5-15R) power diverse rack equipment
  • Tower or 4U rackmount form factor fits data-centre or office deployment

Purpose-Built Power Protection

The APC SMX2000LVNC is a 1920VA 1800W line-interactive UPS that delivers pure sine-wave output at 120V. It ships with a pre-installed Network Management Card for remote monitoring and environmental alerts. The unit fits a tower footprint or a 4U rack space with optional rails.

Ideal For Dense Rack Deployments

This model suits server rooms and network closets that need extended runtime capability through external battery packs and a compact 17-inch depth. It is not suited for sites that require 100-127V output outside the 120V nominal setting or for installations that cannot accommodate a NEMA 5-20P input connection.

Deciding Specification

The single figure that determines fit is the 1920VA 1800W rating combined with the NEMA 5-20P input plug; if your circuit and load calculations fall within this capacity the unit will support the attached equipment.

נקודות עיקריות

  • 1920 VA / 1800 W pure sine wave output protects sensitive servers
  • Pre-installed AP9631 network card enables remote monitoring and environmental alerts
  • Extended-run design accepts SMX120BP battery packs for longer outage runtime
  • Ten mixed NEMA outlets (L5-20R, 5-20R, 5-15R) power diverse rack equipment
  • Tower or 4U rackmount form factor fits data-centre or office deployment

מפרט טכני

BrandAPC
SeriesSmart-UPS
ModelSMX2000LVNC
International Version120V
Input Frequency50/60 Hz +/- 3 Hz (auto sensing)
Input ConnectionNEMA 5-20P
VA Rating1920 VA
Watts1800 Watts
Output Voltage120V
Output Frequency50/60 Hz +/- 3 Hz
Outlets10
Outlet Type1 x NEMA L5-20R
3 x NEMA 5-20R
6 x NEMA 5-15R
Battery TypeSealed Lead Acid
Battery Recharge Time3 hour(s)
Battery ReplaceableAPCRBC143
AlarmsAlarm when on battery : distinctive low battery alarm : configurable delays
Interface PortRJ-45 Serial, USB
Management SoftwareYES
ApprovalsBSMI, CSA, EN 50091-2, EN 55022 Class A, ENERGY STAR (USA), FCC Part 15 Class A, NOM, TUV, UL 1778, VCCI Class A
Rackmountable4U
Surge Energy Rating540 Joules
FeaturesAPC Smart-UPS, 1800 Watts /1920 VA, Input 120V / Output 120V, Interface Port RJ-45 Serial, USB, Extended runtime model, Rack Height 4 U
Dimensions7.00" x 19.00" x 17.00"
Weight85.00 lbs.
Package ContentsAPC Smart-UPS X 2000VA Rack/Tower LCD 100-127V with Network Card, CD with software, Documentation CD, Installation guide, Network Management Card, Rack Mounting brackets, Rack mounting hardware, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable
משקל משלוח47.63 kg
מידות האריזה633 × 586 × 330 mm

גרסאות נוספות של דגם זה

5 נוספים באותה הסדרה

אותה משפחה, זיכרון, קירור או תדר שונים — השווה לפני שתחליט.

שאלות על הפריט הזה

Which battery cartridge replaces the sealed lead-acid cells in the SMX2000LVNC?

The replaceable cartridge is the APCRBC143 sealed lead-acid pack, which the unit recharges in about three hours after a full discharge.

At what load does the 1800-watt output ceiling become the first constraint during continuous operation?

The 1800-watt rating is the hard limit; any connected equipment drawing more than that will overload the inverter even if the 1920 VA apparent-power headroom remains.

How much heat does the UPS add to a rack when it runs all day at full load?

At full load the unit dissipates the difference between input and output power as heat; the 540-joule surge rating and ENERGY STAR certification indicate efficient operation, but exact thermal output varies with load and ambient temperature.
