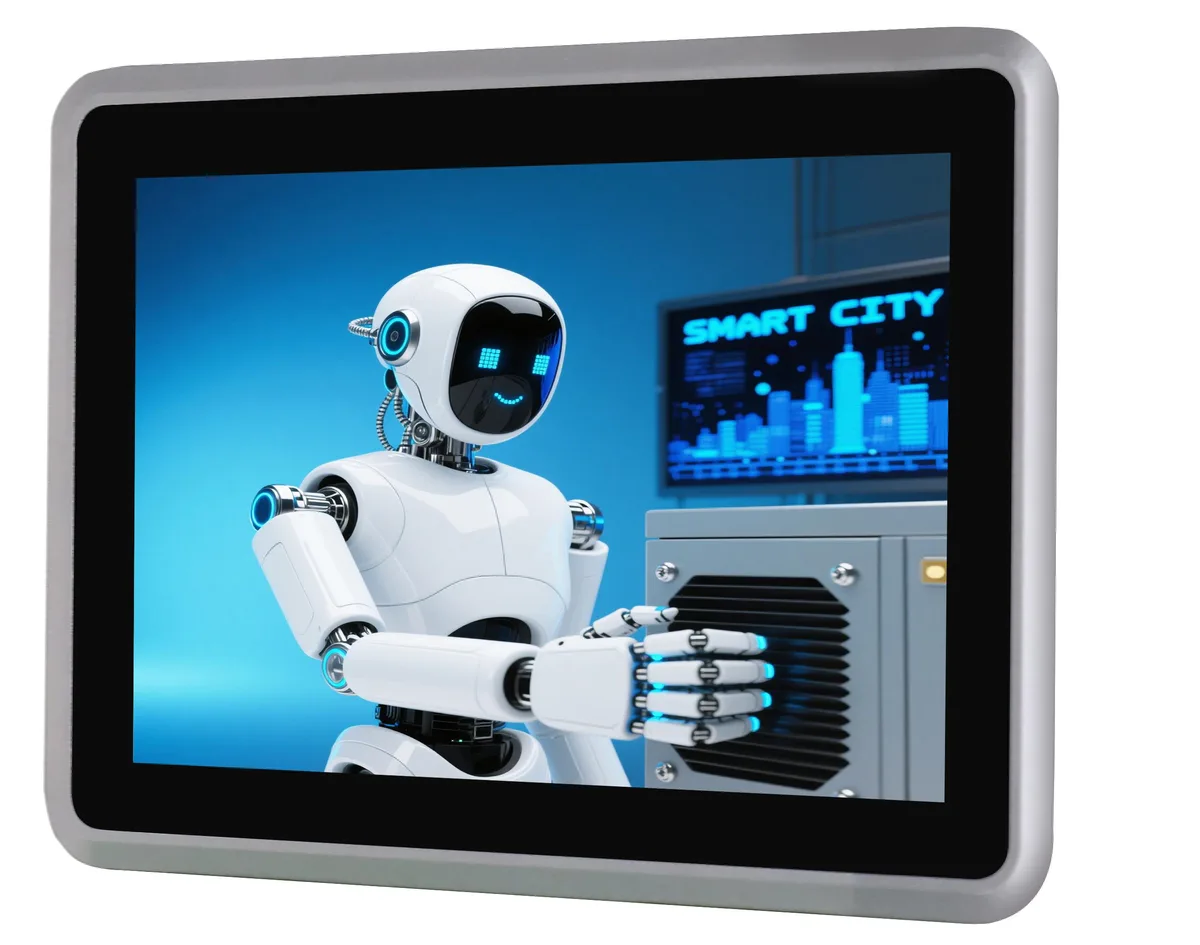

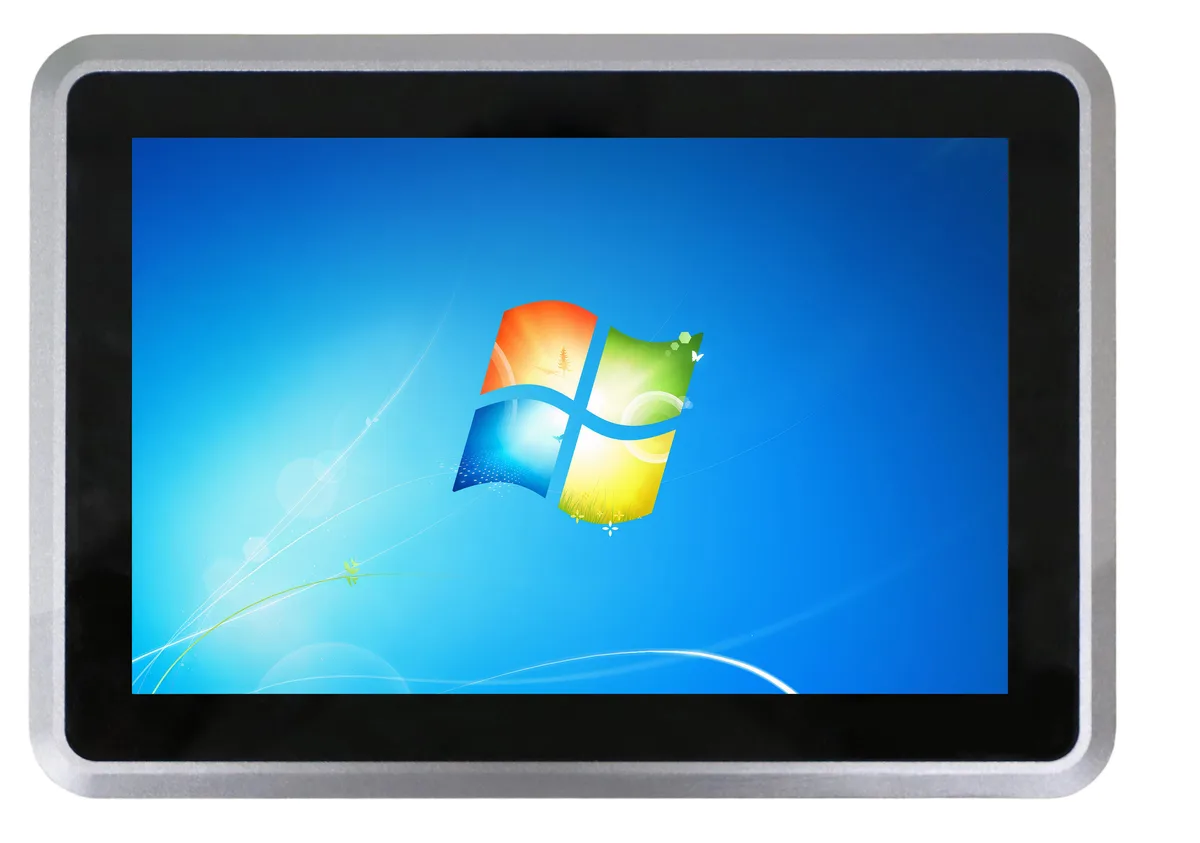

Gray 10.1 inch all-in-one industrial panel PC with IP65 front

partaker

Partaker A25 10.1" All-in-One PC i5-6200U 16GB 256GB

SKU CH-KAWX-Y0QJG

A 10.1-inch IP65-rated all-in-one PC with an Intel Core i5-6200U processor, 16GB DDR4 memory, 256GB storage and a multi-touch IPS display for industrial environments

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 6th Gen
  • CPU NameIntel Core i5-6200U

Option 16GB RAM / 256GB SSD

  • IP65 front panel resists dust and water in harsh conditions
  • Fanless aluminium chassis runs silently without moving parts
  • 1" capacitive multi-touch screen removes need for external keyboard
  • Dual Gigabit LAN plus two serial ports connect industrial equipment
  • Intel Core i5-6200U with 16 GB DDR4 and 256 GB storage handles multitasking

10.1" IP65 Industrial Panel PC

The Partaker A25 is a compact all-in-one computer built around a 10.1-inch multi-touch display with IP65 front-panel protection. It runs Windows 10 Pro on an Intel Core i5-6200U processor paired with 16GB of DDR4 memory and a 256GB mSATA SSD. The fanless aluminium chassis enables silent operation across a wide temperature range.

Suited for embedded control and harsh environments

This unit fits machinery interfaces, kiosks and automation panels that demand dust-tight, water-resistant front surfaces and versatile mounting via VESA or embedded cut-outs. Dual Gigabit Ethernet and two RS232/485 serial ports support industrial networking and legacy equipment. Buyers who need more than 32GB of RAM or a larger display area should evaluate alternative platforms.

10.1-inch 1280×800 capacitive touchscreen

The 1280×800 IPS panel delivers 430 cd/m² brightness with full viewing angles and a rated touch life exceeding 50 million cycles. Capacitive multi-touch removes the requirement for external keyboards or mice in space-constrained installations. This screen specification is the primary factor when confirming fit for a specific enclosure or visual-task requirement.

נקודות עיקריות

  • IP65 front panel resists dust and water in harsh conditions
  • Fanless aluminium chassis runs silently without moving parts
  • 1" capacitive multi-touch screen removes need for external keyboard
  • Dual Gigabit LAN plus two serial ports connect industrial equipment
  • Intel Core i5-6200U with 16 GB DDR4 and 256 GB storage handles multitasking

מפרט טכני

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 6th Gen
CPU NameIntel Core i5-6200U
Screen Size10.1"
Screen TypeMulti-Touch Screen

גרסאות נוספות של דגם זה

5 נוספים באותה הסדרה

אותה משפחה, זיכרון, קירור או תדר שונים — השווה לפני שתחליט.

שאלות על הפריט הזה

How do I install this 10.1-inch IP65 panel PC into a control cabinet, and what step is often missed?

Cut the panel opening to the exact VESA or embedded dimensions, then secure the unit with the supplied brackets; the step often missed is applying even torque to all mounting screws so the front gasket seals uniformly against the cabinet face.

What maintenance will the 16GB DDR4 memory and 256GB mSATA storage need over time?

The memory is soldered and not user-replaceable; the mSATA drive can be swapped by removing the rear cover, but only after powering off and disconnecting the DC 12V supply.

At what temperature does the fanless aluminum chassis throttle the i5-6200U during sustained loads?

The CPU will begin thermal throttling once the internal temperature approaches the 60 °C upper operating limit, since the passive heatsink relies on ambient air staying below that figure.
