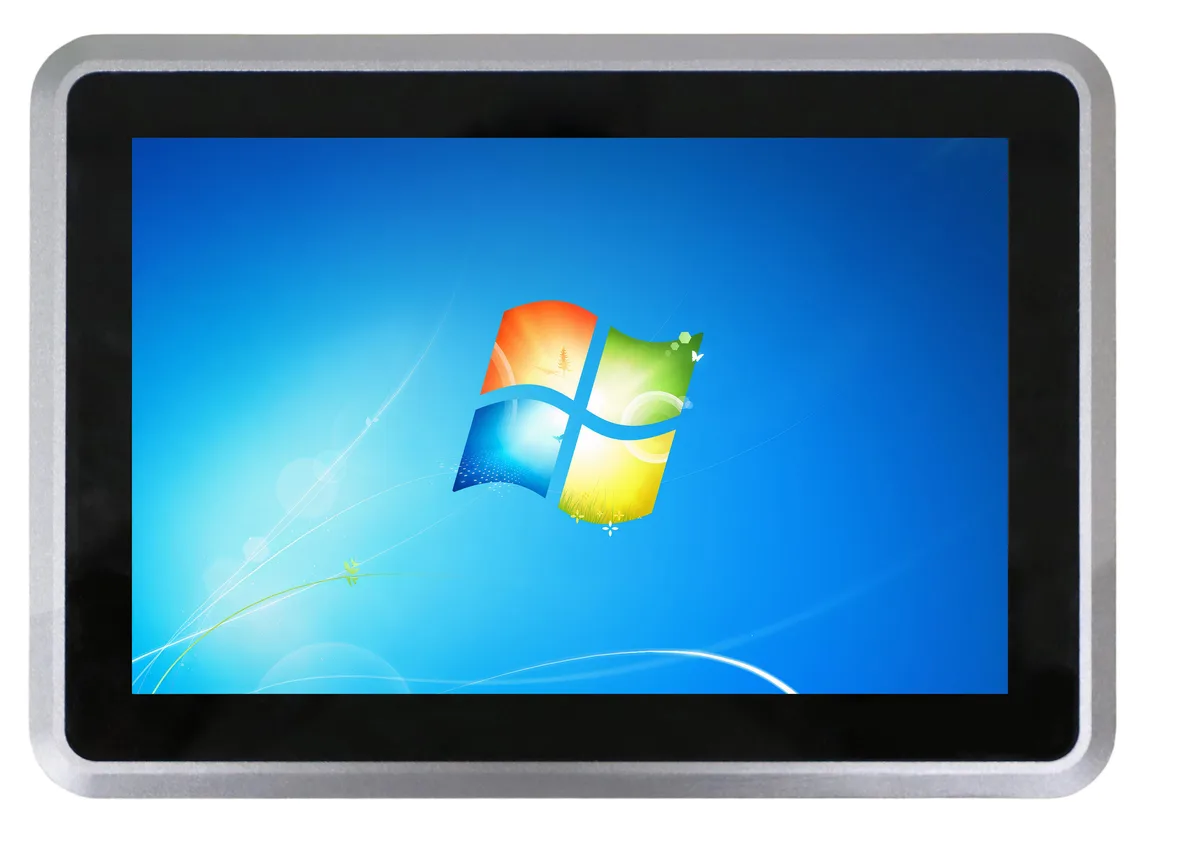

Compact gray aluminum all-in-one with 10.1 inch multi-touch display

partaker

Partaker A25 10.1" all-in-one PC i5-7200U 8GB 128GB

SKU CH-7ZWK-3Z1BY

10.1" IP65-rated all-in-one PC with Intel Core i5-7200U, 8 GB DDR4, 128 GB mSATA and capacitive multi-touch display

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 7th Gen
  • CPU NameIntel Core i5-7200U

Option 8GB RAM / 128GB SSD

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminium chassis runs silently with no moving parts
  • 1 inch multi-touch IPS display enables direct control without peripherals
  • Dual Gigabit Ethernet plus two serial ports connect industrial equipment
  • Core i5-7200U with 8 GB DDR4 and 128 GB storage handles multitasking

Industrial All-in-One with IP65 Front Panel

The Partaker A25 is a 10.1-inch industrial panel PC built around an Intel Core i5-7200U processor. Its fanless aluminum chassis and IP65-rated front panel are designed for continuous operation in harsh environments such as factory floors or outdoor kiosks. The integrated capacitive touchscreen removes the need for external keyboards or mice. It ships with Windows 10 Pro for immediate deployment in control and monitoring roles.

8 GB DDR4 Memory and 128 GB mSATA Storage

The system arrives with 8 GB of DDR4 memory installed and supports expansion up to 32 GB across two slots. Storage is provided by a 128 GB mSATA SSD, with one Mini PCIe slot available for additional wireless modules. This configuration handles typical HMI, data-logging, and light edge-computing workloads, but memory-intensive databases or large local media libraries will exceed the available headroom.

Dual Gigabit Ethernet and Dual Serial Ports

Two Realtek Gigabit LAN ports and two RS232/485 COM ports provide the deterministic networking and legacy device connectivity required by industrial automation equipment. An HDMI output allows a second display for supervisory overview. Buyers needing more than two serial interfaces, isolated I/O, or fieldbus protocols such as PROFINET will require a different platform.

נקודות עיקריות

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminium chassis runs silently with no moving parts
  • 1 inch multi-touch IPS display enables direct control without peripherals
  • Dual Gigabit Ethernet plus two serial ports connect industrial equipment
  • Core i5-7200U with 8 GB DDR4 and 128 GB storage handles multitasking

מפרט טכני

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 7th Gen
CPU NameIntel Core i5-7200U
Screen Size10.1"
Screen TypeMulti-Touch Screen

גרסאות נוספות של דגם זה

5 נוספים באותה הסדרה

אותה משפחה, זיכרון, קירור או תדר שונים — השווה לפני שתחליט.

שאלות על הפריט הזה

Will the 10.1" IP65 panel mount directly into the VESA holes I already have on my enclosure?

The unit supports VESA-standard mounts for embedded or panel installation, letting you secure the aluminum alloy housing to existing brackets without modification.

How can I verify the i5-7200U is running at its 3.10 GHz turbo after I power it on?

Open Task Manager in Windows 10 Pro and watch the CPU frequency climb to 3.10 GHz under load; the fanless aluminum chassis keeps it silent while sustaining that speed.

Does the box include the 12 V DC adapter and mounting brackets, or do I order them separately?

Standard shipment provides the panel PC with 8 GB DDR4 and 128 GB mSATA installed; the DC 12 V power supply and any VESA brackets are separate purchases.
