Silver 3U rackmount server chassis with six 3.5-inch drive bays, two front 80mm fans and two USB 3.0 ports

Rosewill

Rosewill RSV-Z3100U 3U server chassis 6×3.5" bays ATX 2×80mm fans 2×USB 3.0

SKU CH-ZR3V-QQBQP MPN RSV-Z3100U

A 3U rackmount server chassis holding six 3.5-inch drives with two pre-installed 80mm fans and front USB 3.0 ports

  • Chassis TypeRackmount
  • Form Factor3U
  • ColorSilver
  • Case Material1.0mm SGCC
  • Motherboard CompatibilityATX / E-ATX / Mini ITX

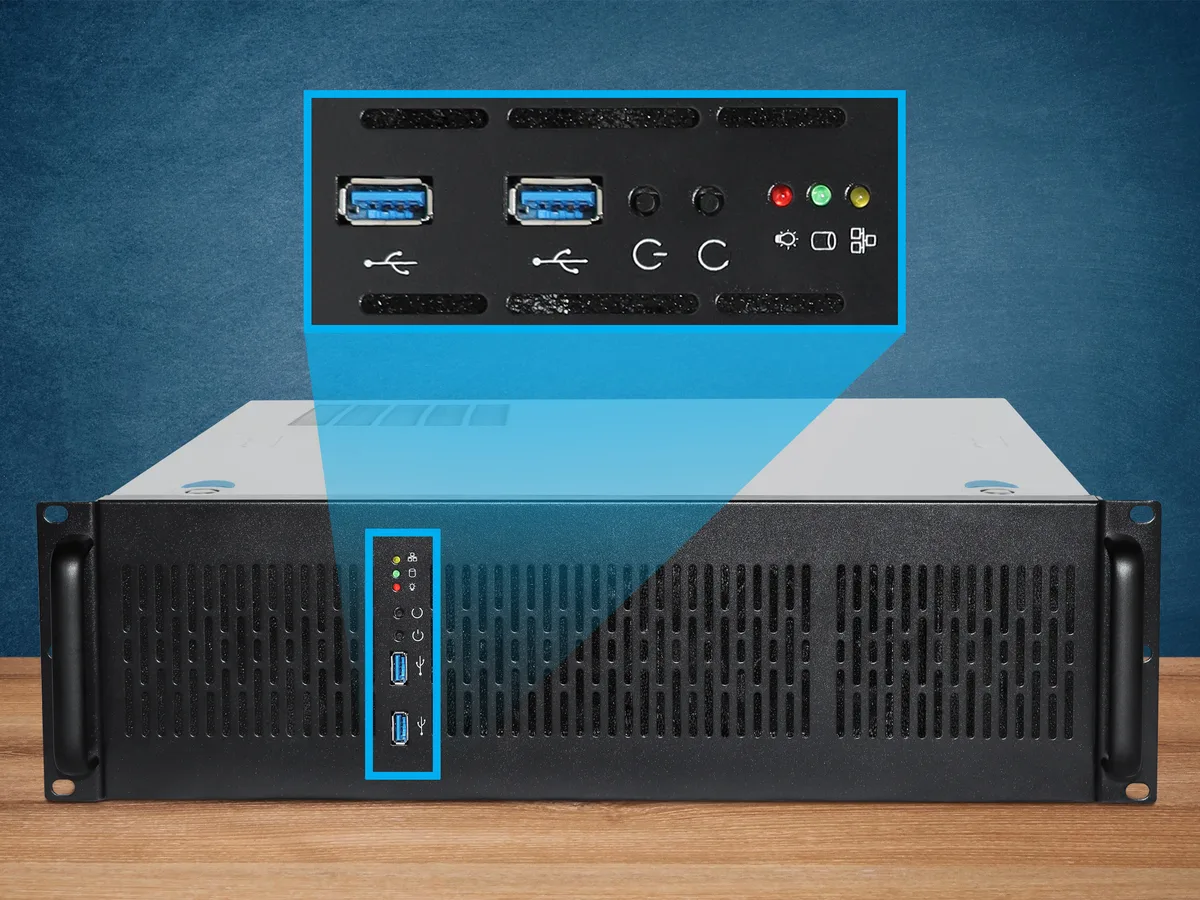

  • LED IndicatorsPower status, HDD activity, LAN activity

Chassis Type 3U · 6 Bays · 15.0" Depth · ATX

  • Roomy 3U rackmount chassis holds six 3.5" drives
  • Two pre-installed 80mm front fans deliver quiet cooling
  • ATX and E-ATX motherboard support for flexible builds
  • Four PCI expansion slots add connectivity options
  • Front-panel LEDs show power, HDD and LAN status

3U rackmount chassis with six 3.5-inch bays

The Rosewill RSV-Z3100U is a 3U server chassis built for ATX, E-ATX and Mini ITX motherboards. It provides six internal 3.5-inch drive bays and four expansion slots in a 1.0mm SGCC frame. Front-panel LEDs show power, HDD activity and LAN status, while two USB 3.0 ports give quick external access.

Storage capacity and expansion limits

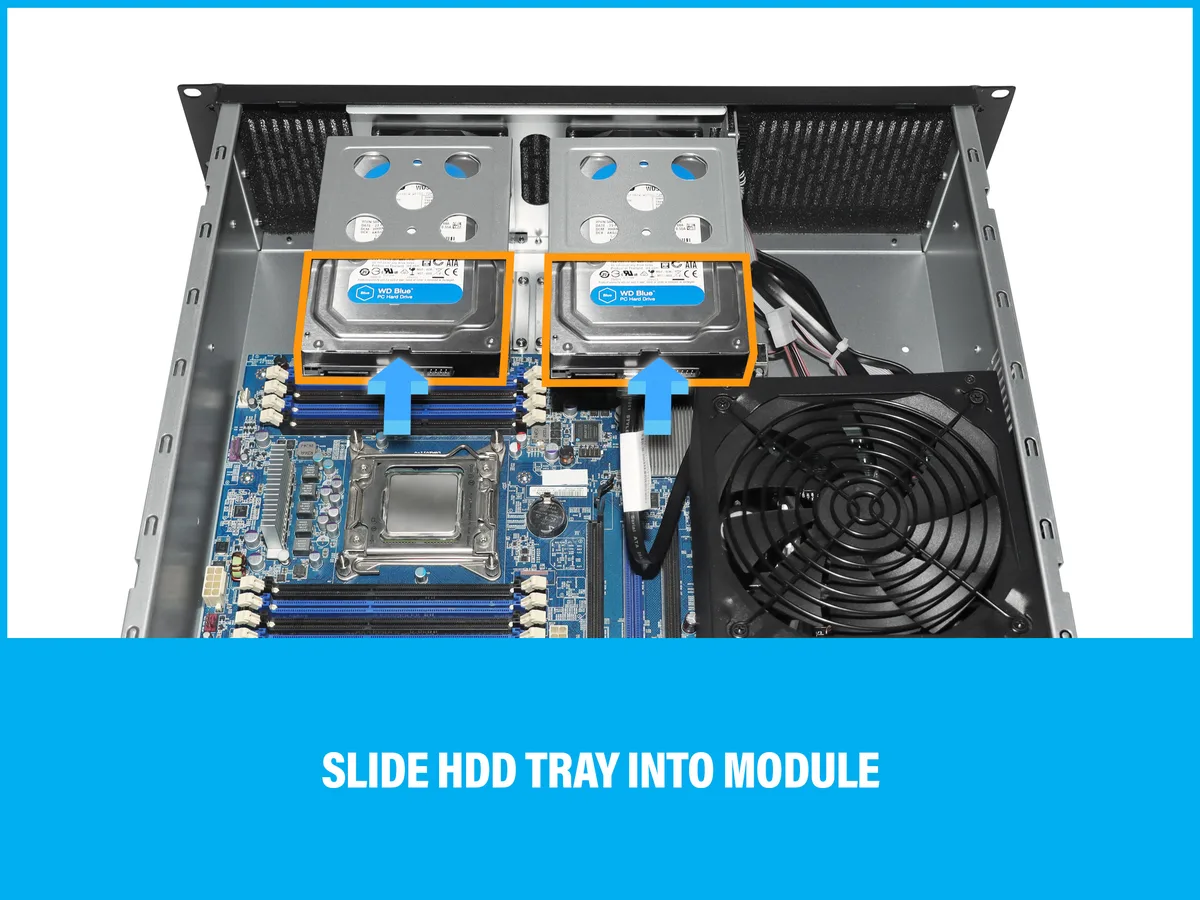

Six 3.5-inch bays support a dense array of hard drives for bulk storage or RAID arrays. Four low-profile expansion slots accept cards up to 150 mm long, and the PS2 power supply cavity is limited to 150 mm depth. CPU cooler clearance tops out at 110 mm, so taller tower coolers will not fit.

Cooling, noise and power profile

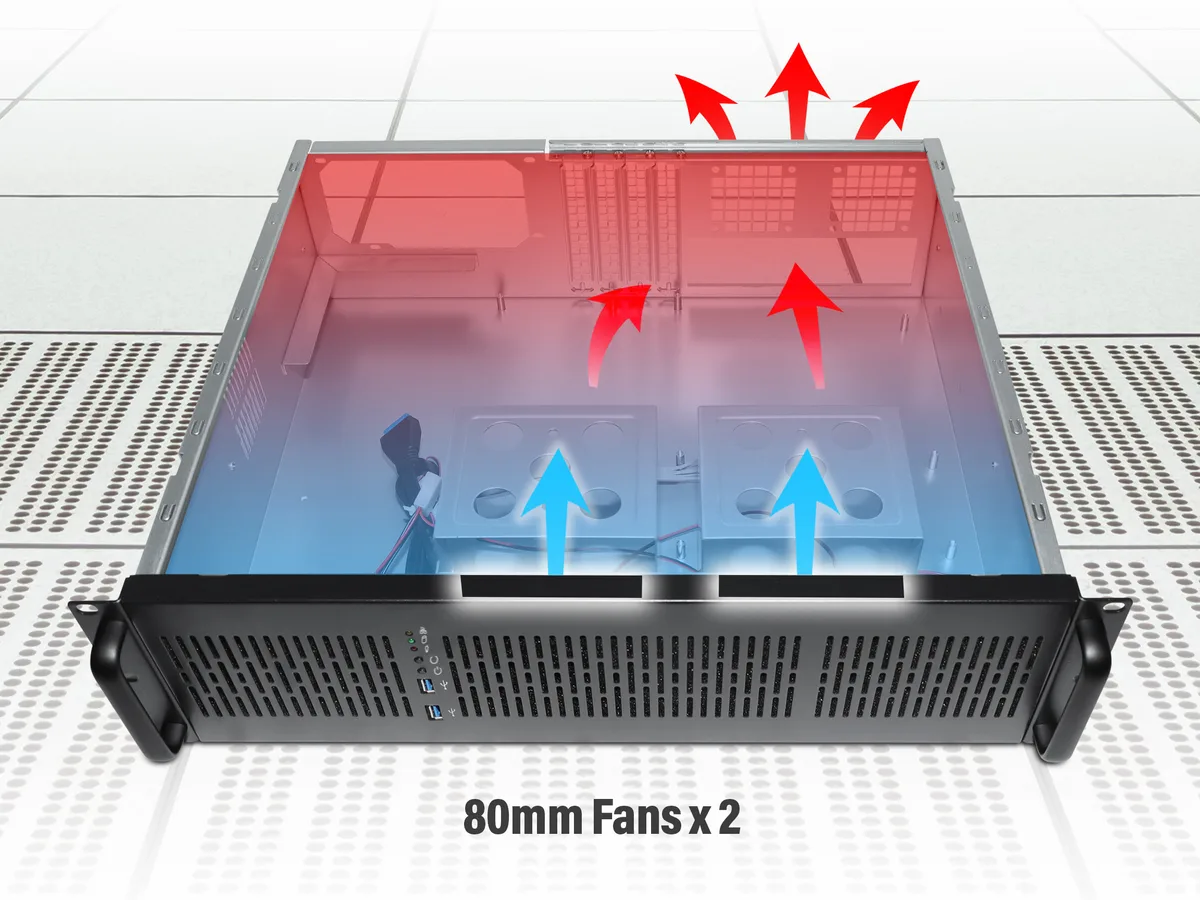

Two pre-installed 80 mm front fans push air across the drive bays and motherboard in a front-to-rear flow. The fan size and fixed mounting keep acoustic output modest under typical server loads. Power draw is dictated by the installed PS2 supply and components; the chassis itself adds no active circuitry beyond the fan and LED headers.

נקודות עיקריות

  • Roomy 3U rackmount chassis holds six 3.5" drives
  • Two pre-installed 80mm front fans deliver quiet cooling
  • ATX and E-ATX motherboard support for flexible builds
  • Four PCI expansion slots add connectivity options
  • Front-panel LEDs show power, HDD and LAN status

מפרט טכני

BrandRosewill
ModelRSV-Z3100U
Chassis TypeRackmount
Form Factor3U
ColorSilver
Case Material1.0mm SGCC
Motherboard CompatibilityATX / E-ATX / Mini ITX
LED IndicatorsPower status, HDD activity, LAN activity
Internal 3.5" Drive Bays6
Expansion Slots4
Max CPU Cooler Height110 mm
Max GPU LengthLow-Profile 150 mm
Max PSU Length150 mm PS2 (ATX)
Front Ports2 x USB 3.0
Fan OptionsFront - 2 x 80mm fans (2 x 80mm fan included)
FeaturesSupports PS2 Power Supply form factor

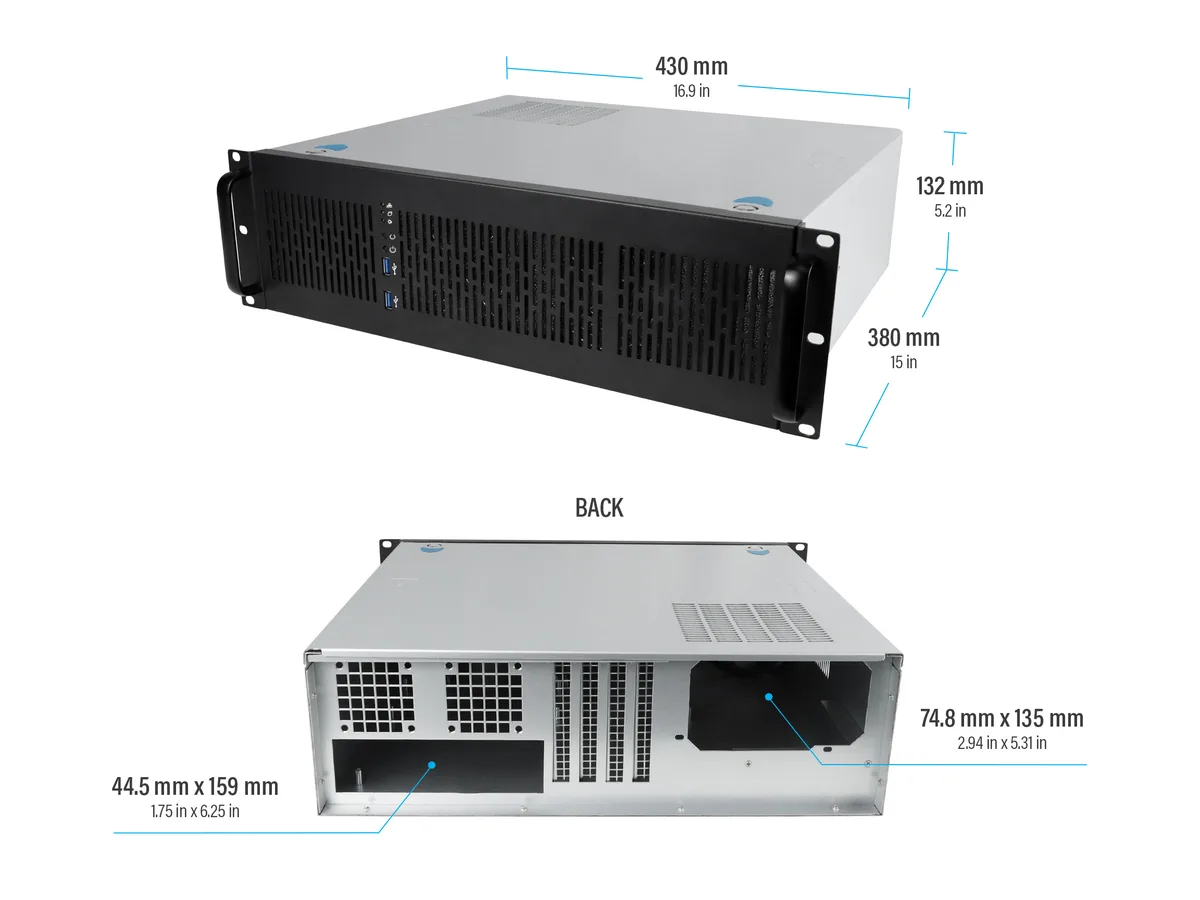

Dimensions430mm x 132mm x 380mm (16.93" x 5.2" x 14.96")
Weight5.32kg (11.73lbs)
Package ContentsRSV-Z3100U Server Case
Screws
QIG
משקל משלוח6.62 kg
מידות האריזה520 × 475 × 220 mm

גרסאות נוספות של דגם זה

5 נוספים באותה הסדרה

אותה משפחה, זיכרון, קירור או תדר שונים — השווה לפני שתחליט.

שאלות על הפריט הזה

Will my existing ATX motherboard and standard-height CPU cooler fit inside the 110 mm cooler clearance of this 3U chassis?

The chassis accepts ATX and E-ATX boards and allows a maximum CPU cooler height of 110 mm, so most standard tower coolers will not fit; choose a low-profile cooler instead.

Which front-panel LEDs confirm that the 2×80 mm fans and drives are operating after power-on?

The front panel provides three LEDs — power status, HDD activity, and LAN activity — so you can verify the system is running, drives are accessed, and network link is up.

Does the box include mounting rails or a PS2 power supply, or must I purchase them separately?

The package contains the server case, screws, and a quick-install guide only; rack rails and a PS2-form-factor power supply are not included and must be bought separately.
