Seven-inch IPS touchscreen monitor with two detachable stands and four corner mounting holes

WaveShare

WaveShare 7" 1024x600 IPS Touch Portable Monitor

SKU CH-1667-YJE2D

A 7-inch IPS touchscreen with 1024×600 resolution, 178° viewing angles, HDMI video, micro-USB power and touch, plus Pi-mounting holes and two stands

  • CPU TypeOther
  • Capacitive touch responds instantly to fingertip input

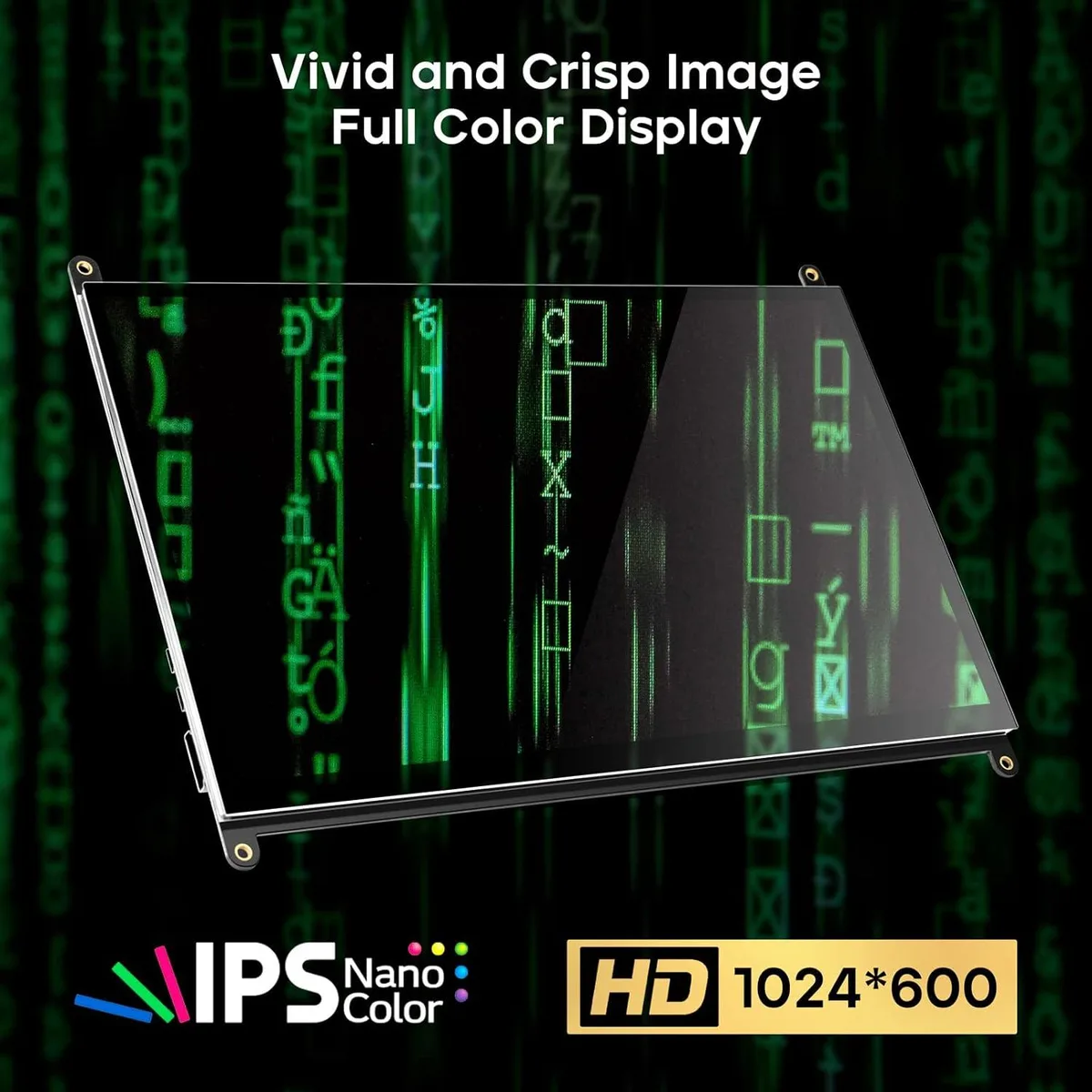

  • 1024 × 600 IPS panel shows vivid colour at 178° viewing angles
  • HDMI signal plus micro-USB power enables driver-free operation
  • Compatible with Raspberry Pi, Windows, macOS and game consoles
  • Four corner holes and two stands simplify DIY mounting

Raspberry Pi 7-inch Touch Display

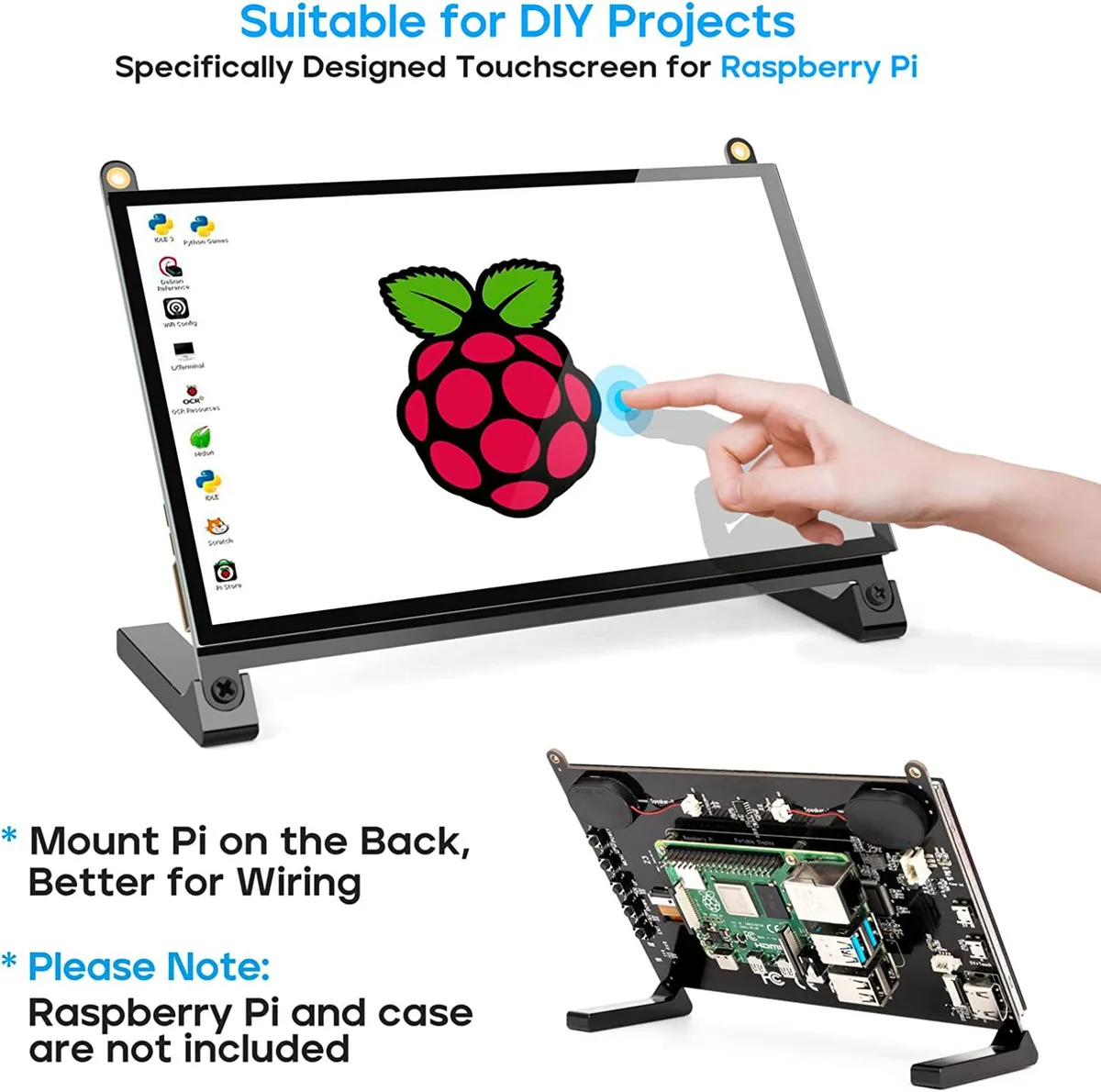

This 7 inch portable monitor pairs a 1024x600 IPS panel with capacitive touch and dual speakers. It mounts directly to a Raspberry Pi board using the four corner holes and includes two detachable stands for bench use. The driver-free design works with Windows, macOS, Linux, consoles and single-board computers.

HDMI Signal with Micro-USB Power and Touch

Connect video through the HDMI port and supply both power and touch data via a single micro-USB cable. No software installation is required on supported systems. The package notes that Raspberry Pi 4 models need an additional HDMI adapter for the physical connection. Remove the factory screen protector before first use to restore full colour clarity.

Check Your Source Has HDMI and a Spare USB Port

Verify that your host device provides a standard HDMI video output and can deliver 5 V power over a micro-USB connection. The panel accepts input resolutions up to 1920x1080 but displays at its native 1024x600 resolution. Buyers who need a higher native pixel count or an integrated battery should look at other form factors.

נקודות עיקריות

  • Capacitive touch responds instantly to fingertip input
  • 1024 × 600 IPS panel shows vivid colour at 178° viewing angles
  • HDMI signal plus micro-USB power enables driver-free operation
  • Compatible with Raspberry Pi, Windows, macOS and game consoles
  • Four corner holes and two stands simplify DIY mounting

מפרט טכני

CPU TypeOther

שאלות על הפריט הזה

How do I verify the IPS panel is showing the full 178-degree viewing angle after setup?

View the screen from extreme side angles; colours and contrast should remain consistent up to 178 degrees horizontally and vertically.

Which cables and accessories are included versus what I must buy separately for a Raspberry Pi 4?

The box contains the 7-inch monitor, two detachable stands and a screen protector; you must supply an HDMI cable, a micro-USB power-and-touch cable and an HDMI adapter for Pi 4.

Should I choose the native 1024x600 resolution or the supported 1920x1080 input for my project?

Use 1024x600 for pixel-perfect touch mapping; 1920x1080 input is accepted but will be downscaled to the panel's native grid.
