1ST PC CORP.
1ST PC CORP. EFC0812DB-PWM 80mm case fan 3800 RPM 48.8 CFM 41 dBA 4-pin PWM
An 80mm dual-ball-bearing case fan delivers 48.8 CFM at 3800 RPM with PWM speed control and 41 dBA maximum noise
- TypeCase Fan
- CompatibilityCase
- Fan Size80mm
- Bearing TypeDual Ball
- RPM3800 RPM
- Air Flow48.8 CFM
- High airflow of 48.8 CFM cools cases effectively
- 3800 RPM top speed delivers strong static pressure of 4.35 mmH2O
- Dual ball bearing rated for 70000 hours at 40 °C
- 4-pin PWM adjusts speed automatically between 7 and 12.6 VDC
- Low 15 mm profile fits tight spaces while moving 1.382 m³/min
80 mm PWM case fan
The 1ST PC CORP. EFC0812DB-PWM is an 80 mm case fan built around a dual ball bearing and a 4-pin PWM connector. It spins up to 3800 RPM while delivering 48.8 CFM of airflow at 41 dBA. Rated voltage is 12 VDC with an operating range of 7 to 12.6 VDC. The low-profile frame measures 80 x 80 x 15 mm.
Who it suits and who should look elsewhere
This fan suits builders who need a thin 80 mm cooler with PWM speed control for tight chassis spaces. It is not for buyers who require a larger frame size, higher static pressure for dense radiators, or a quieter acoustic profile below 41 dBA at full speed.
Deciding specification: 80 x 80 x 15 mm frame
The 15 mm thickness determines whether the fan fits in slim enclosures or between closely spaced components. Verify the available clearance in your case before purchasing.
Punti di forza
- High airflow of 48.8 CFM cools cases effectively
- 3800 RPM top speed delivers strong static pressure of 4.35 mmH2O
- Dual ball bearing rated for 70000 hours at 40 °C
- 4-pin PWM adjusts speed automatically between 7 and 12.6 VDC
- Low 15 mm profile fits tight spaces while moving 1.382 m³/min
Caratteristiche tecniche
| Brand | Delta |
|---|---|
| Model | EFC0812DB-PWM |
| Type | Case Fan |
| Compatibility | Case |
| Fan Size | 80mm |
| Bearing Type | Dual Ball |
| RPM | 3800 RPM |
| Air Flow | 48.8 CFM |
| Noise Level | 41 dBA |
| Power Connector | 4-pin PWM |
| Features | Rated Voltage: 12 VDC Operating Voltage Range: 7 - 12.6 VDC Input Current: 0.33 Amp (Maximum 0.5A) Input Power: 3.96W (Maximum 6W) Maximum Air Pressure: 4.35 mmH2O or 0.171 inchH2O The Delta EFC0812DB PWM is a medium high speed, low profile cooling fan at 80 x 80 x 15mm. Its PWM output can give you the best balance between quietness and cooling when you need it. Its low profile means that itt can be placed into tighter spaces where air cooling is needed. Air flow is a very healthy 48.8 CFM at a relatively quiet 41 dBA at maximum, or 1.382 cubic meter per minute. However, when CPU is |
| Dimensions | 80.00 x 80.00 x 15.00mm |
| Peso di spedizione | 0.08 kg |
| Dimensioni del pacco | 114 × 94 × 38 mm |
Domande su questo articolo
Does the 80mm fan include mounting screws or do I need to buy them separately?
The 80 x 80 x 15mm unit is supplied as the fan only; standard M3 case-fan screws are not included and must be purchased separately.
Should I choose the 3800 RPM version or a lower-speed model for a noise-sensitive build?
At 3800 RPM the fan delivers 48.8 CFM and 41 dBA; PWM control lets it drop well below those figures when the CPU is lightly loaded, so the same model covers both performance and quiet operation.
What does the 48.8 CFM rating mean once the fan is installed in a real case?
It moves 1.382 cubic metres of air per minute at 4.35 mmH2O static pressure, giving strong airflow through meshed panels or heatsink fins while running at 12 VDC and 0.33 A typical.
Anche in questo reparto
Anche i clienti hanno confrontato questi
Stesso reparto, stessa cassa — otto monete e un cambio bloccato per 30 minuti.
CyberPower
CyberPower PDU33105 PDU 3-Phase 120-208V 30A 44 Outlets NEMA L21-30P 0U LCD
1.062,99 USD
0.01357638BTC
Disponibile
BUCIER

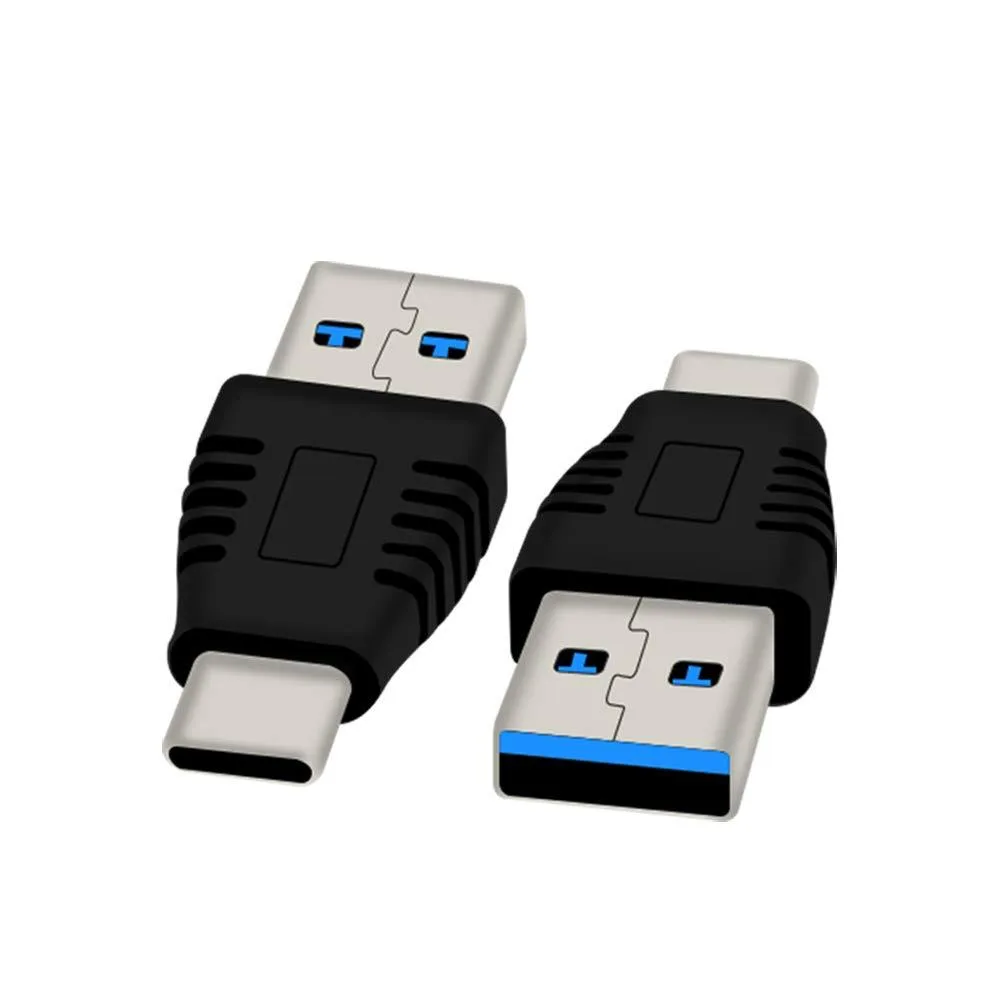

BUCIER USB 3.1 Type-C Male to USB-A Male Adapter 2-Pack 5Gbps
