ADATA
ADATA AEC700GU32G2-CGY Black M.2 M+B Key USB 3.2 Gen 2 Type-C 10Gbps drive enclosure
Turns M.2 SATA SSDs into a 10 Gbps USB-C external drive with included cables and thermal pad
- ColorBlack
- TypeEnclosure
- Internal InterfaceM.2 M key /M+B Key
- External InterfaceUSB 3.2 Gen 2 Type-C 10Gbps (USB 10Gbps) (backward compatibl
- FeaturesWindows 8 / 8.1 / 10 Mac OS X 10.6 or later (reformatting re
- Dimensions112 x 45 x 12.24mm / 4.4 x 1.77 x 0.48inch
- Turns an internal M.2 SSD into fast external storage
- USB 3.2 Gen 2 Type‑C delivers up to 10 Gbps transfer speed
- Works with M.2 2280, 2242 and 2230 form factors
- Includes both Type‑C and Type‑A cables for broad compatibility
- Thermal pad helps keep the drive cool during heavy use

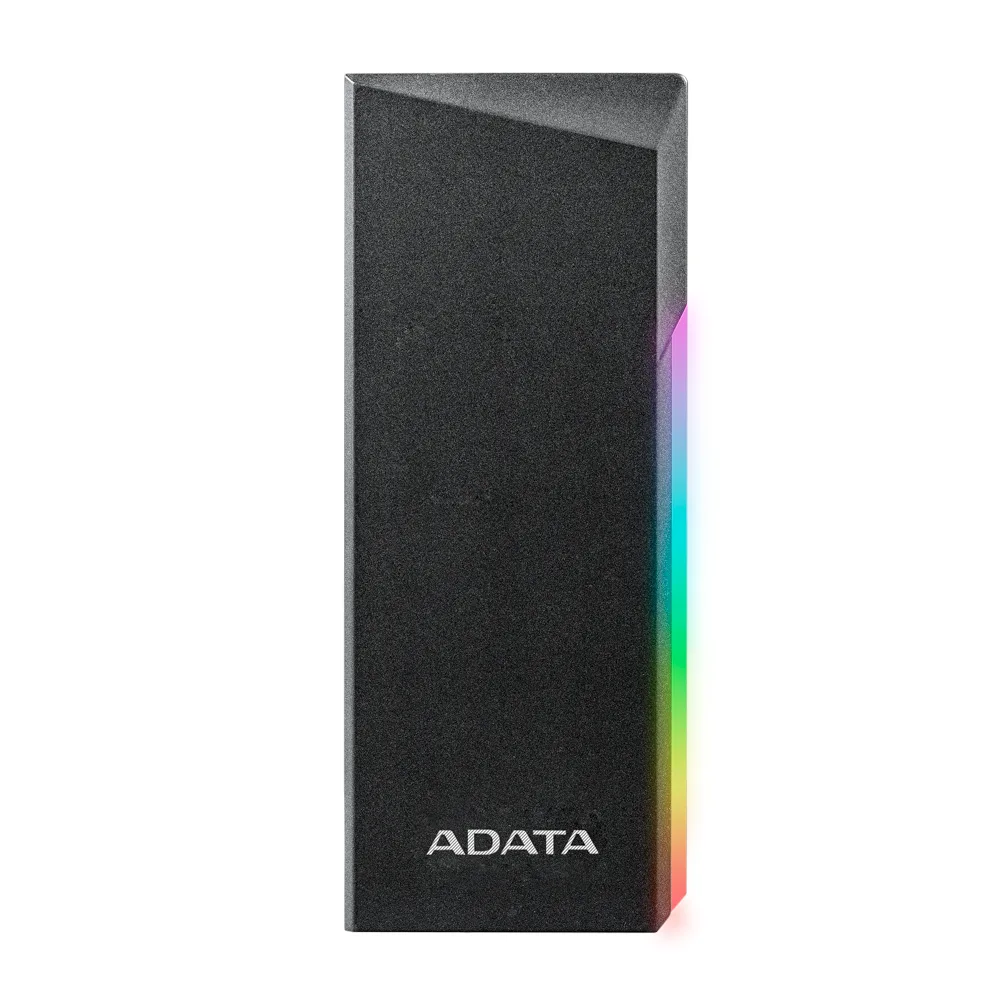

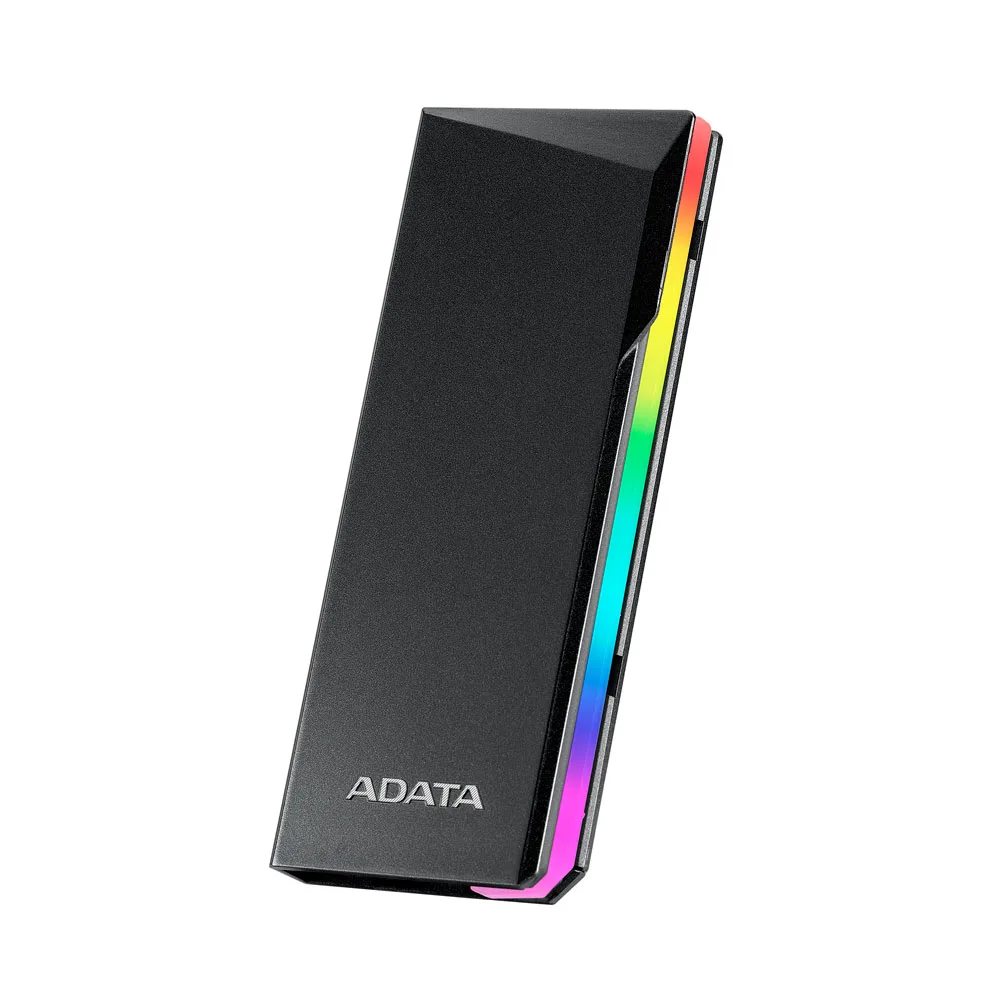

M.2 M+B Key Enclosure
The ADATA EC700G enclosure converts an internal M.2 PCIe or SATA SSD into an external USB-C drive. It accepts 2280, 2242 and 2230 form factors and delivers up to 10 Gbps bandwidth via USB 3.2 Gen 2. Compatible with Windows, macOS, Linux and Android devices.
Tool-free installation
Installation follows a simple three-step process: open the case, insert the M.2 drive and secure it with the included thermal pad, then close the cover. Both USB-C to C and USB-C to A cables are supplied for broad host compatibility. No drivers are required on supported operating systems.
10 Gbps headroom
With a PCIe or SATA SSD installed, the enclosure can reach sequential speeds up to 1000 MB/s, roughly 12.5 times faster than ordinary external hard drives. A 10 GB file transfers in about 20 seconds. Performance is limited by the drive's own maximum throughput and the host port's generation.
Punti di forza
- Turns an internal M.2 SSD into fast external storage
- USB 3.2 Gen 2 Type‑C delivers up to 10 Gbps transfer speed
- Works with M.2 2280, 2242 and 2230 form factors
- Includes both Type‑C and Type‑A cables for broad compatibility
- Thermal pad helps keep the drive cool during heavy use
Caratteristiche tecniche
| Brand | A-DATA |
|---|---|
| Model | AEC700GU32G2-CGY |
| Part Number | AEC700GU32G2-CGY |
| Color | Black |
| Type | Enclosure |
| Internal Interface | M.2 M key /M+B Key |
| External Interface | USB 3.2 Gen 2 Type-C 10Gbps (USB 10Gbps) (backward compatible with USB 2.0) |
| Features | Windows 8 / 8.1 / 10 Mac OS X 10.6 or later (reformatting required for use) Linux Kernel 2.6 or later Android 5.0 or later with no device driver needed USB 3.2 Type-C to C cable USB 3.2 Type-C to A cable Thermal Pad Quick Installation Guide |
| Dimensions | 112 x 45 x 12.24mm / 4.4 x 1.77 x 0.48inch |
| Weight | 90g / 3.2oz |
Domande su questo articolo
How can I confirm the ADATA AEC700GU32G2-CGY enclosure is working correctly after installing an M.2 2280 SSD?
Connect it via the USB 3.2 Type-C to C cable, verify the drive appears in your OS file manager, then transfer a test file and confirm speeds approach the 1000 MB/s spec.
What accessories are included with the ADATA AEC700GU32G2-CGY and what must I supply myself?
The box contains the enclosure, a USB 3.2 Type-C to C cable, a USB 3.2 Type-C to A cable, a thermal pad and a quick installation guide; you must provide your own M.2 SSD.
Which M.2 form factors does the ADATA AEC700GU32G2-CGY support so I can pick the right drive?
The enclosure accepts M.2 2230, 2242 and 2280 modules with either M key or M+B key interfaces.
