Black full-copper radiator 522 x 124 x 60mm with six G1/4 ports

Alphacool

Alphacool NexXxos UT60 Full Copper Radiator 480 60mm 14175

SKU CH-2AHX-ASGCX

Full-copper 480 mm radiator with six G1/4 ports for quad 120 mm fan cooling

  • TypeRadiator

Size 480mm

  • Full copper construction boosts thermal transfer
  • Six G1/4 ports simplify loop plumbing
  • 522 × 124 × 60 mm footprint fits 480 mm fan mounts
  • Four 120 mm fan positions maximise airflow capacity
  • 2 446 g mass reflects dense copper core

480 mm Full Copper Radiator

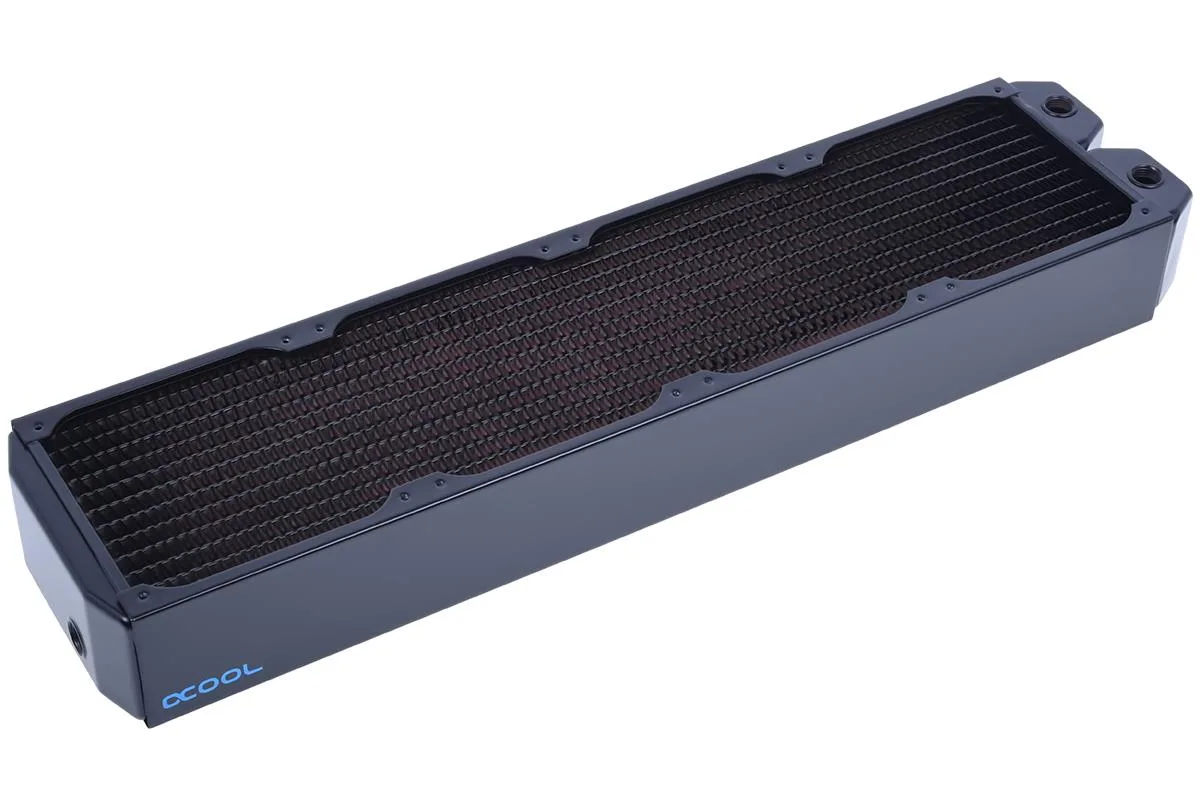

The Alphacool NexXxos UT60 is a 480 mm radiator built for custom water-cooling loops. It uses copper chambers, fins and channels with brass threads and steel side panels. Six G1/4 ports provide flexible routing for complex builds. The unit weighs 2,446 g and measures 522 x 124 x 60 mm.

Six G1/4 Ports and Quad 120 mm Fan Mounts

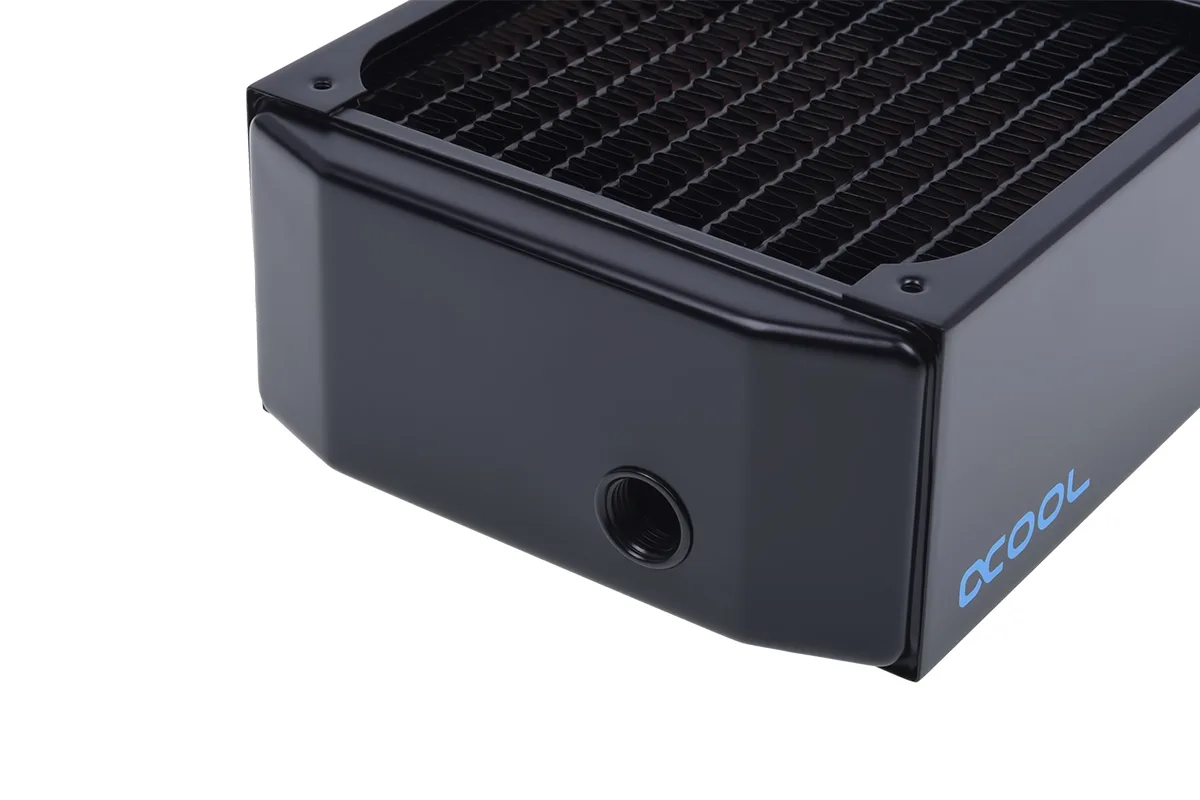

Six G1/4 threaded ports allow multiple inlet and outlet configurations without adapters. The 480 mm length accepts four 120 mm fans in push, pull or push-pull arrangements. The 60 mm thickness increases fin density, which raises airflow resistance and requires fans with sufficient static pressure.

Heavy Copper Construction Demands Secure Mounting

At 2,446 g the radiator is heavy and must be fastened to the case with all four mounting points to avoid stress on fittings. The 522 mm overall length may not fit cases designed for shorter 480 mm units. Brass threads are softer than steel; overtightening fittings can strip them.

Punti di forza

  • Full copper construction boosts thermal transfer
  • Six G1/4 ports simplify loop plumbing
  • 522 × 124 × 60 mm footprint fits 480 mm fan mounts
  • Four 120 mm fan positions maximise airflow capacity
  • 2 446 g mass reflects dense copper core

Caratteristiche tecniche

TypeRadiator

Altre versioni di questo modello

altri 4 nella stessa gamma

Stessa famiglia, con memoria, dissipatore o frequenza diversi — confronti prima di decidere.

Domande su questo articolo

Should I pick the 480 mm version with four 120 mm fan mounts or a shorter length?

The 480 mm model spans 522 mm overall and fits four 120 mm fans, giving the largest surface area in the range for maximum heat dissipation.

How does the full-copper construction change real-world cooling?

Copper chambers, fins and channels transfer heat from coolant to air faster than mixed-metal designs, so loop temperatures drop further under the same fan speeds.

What does the G1/4 thread limit in my loop?

Six G1/4 ports accept any standard G1/4 fitting, so tube or hose diameter is the only restriction, not the radiator threads.
