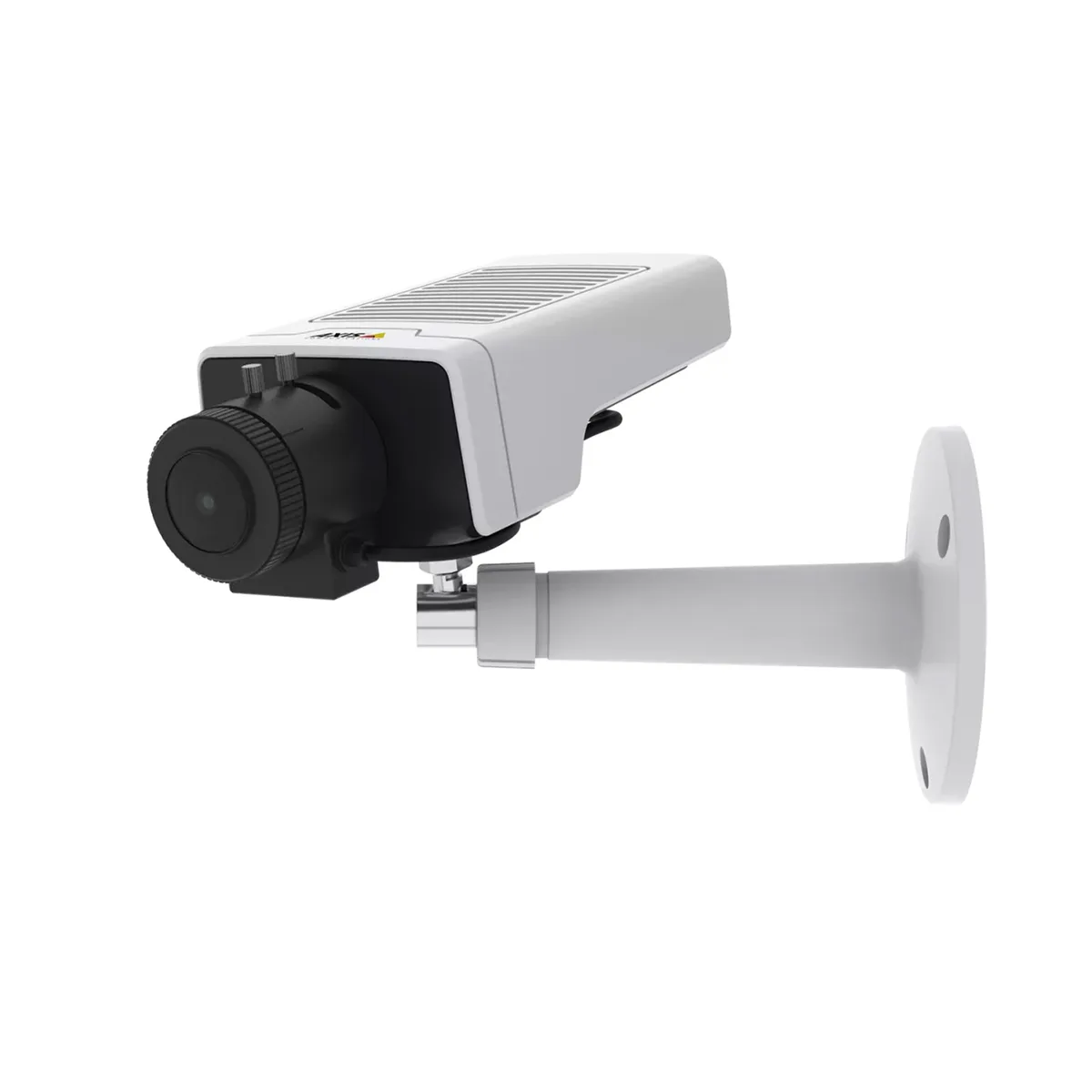

White rectangular box camera with varifocal lens and CS mount

Axis Communications

Axis Communications M1135 Mk II 02483-001 network camera

SKU CH-FFXJ-RZ5P7 MPN 02483-001

Compact box camera with 2 MP resolution, varifocal i-CS lens, PoE power and built-in microphone

  • TypeBox Camera
  • ColorWhite
  • Mounting LocationYes
  • Networking ProtocolIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS, TLS, Q
  • ONVIFYes
  • Pan/TiltYes
  • Compact box design fits tight spaces at 47 x 70 x 147 mm
  • Lightfinder and Forensic WDR capture clear video in low light
  • Built-in microphone records audio alongside 1920x1080 footage
  • AXIS Object Analytics detects people and vehicles on the edge
  • i-CS lens enables remote zoom and focus from 3.5–10 mm

Compact box camera for IP surveillance

The Axis Communications M1135 Mk II is a new box-style network camera built for indoor or outdoor mounting. It delivers up to 1920x1080 resolution with Lightfinder and Forensic WDR for clear images in challenging light. A built-in microphone supports simplex audio streaming and two-way edge-to-edge audio. Power over Ethernet IEEE 802.3af/at simplifies cabling.

Varifocal CS-mount lens with remote zoom and focus

The camera uses a varifocal IR-corrected CS-mount lens covering 3–10.5 mm with DC-iris control. An i-CS variant offers 3.5–10 mm with P-iris and remote zoom and focus adjustment. Horizontal field of view ranges from 90° to 33° on the standard lens and 101° to 33° on the i-CS version. Minimum focus distance is 0.8 m.

Suits installers needing flexible lens choice

Buyers who require a ready-to-mount bullet or dome form factor should look elsewhere. The box design demands separate housing and bracket selection. Users wanting integrated IR illumination or a fixed-focal lens will not find those features here. Systems requiring resolutions above 1080p are not supported.

Punti di forza

  • Compact box design fits tight spaces at 47 x 70 x 147 mm
  • Lightfinder and Forensic WDR capture clear video in low light
  • Built-in microphone records audio alongside 1920x1080 footage
  • AXIS Object Analytics detects people and vehicles on the edge
  • i-CS lens enables remote zoom and focus from 3.5–10 mm

Caratteristiche tecniche

BrandAXIS
ModelM1135 Mk II
Part Number02483-001
TypeBox Camera
ColorWhite
Mounting LocationYes
Networking ProtocolIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
ONVIFYes
Pan/TiltYes
Pan/Tilt/ZoomDigital Zoom
MAX Resolution1920x1080 to 160x90
Lens TypeVarifocal, IR corrected, CS-mount, DC-iris, 3–10.5 mm
Horizontal field of view: 90°–33°
Vertical field of view: 49°–19°
Minimum focus distance: 0.8 m (2.6 ft)
i-CS
Varifocal, IR corrected i-CS lens, remote zoom and focus, P-iris
control, 3.5–10 mm
Horizontal field of view: 101°–33°
Vertical field of view: 53°–18°
Minimum focus distance: 0.8 m (2.6 ft)
SecurityIEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509
Certificate PKI, host-based firewall
Night VisionYes
AudioAudio streaming:
Audio in, simplex, two-way audio via edge-to-edge technology
Audio encoding:
24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726
ADPCM 8 kHz, Opus 8/16/48 kHz
Configurable bit rate
Audio input/output:
External microphone input or line input, built-in microphone (can be disabled), automatic gain control, network speaker pairing
Power over EthernetYes
PowerPower over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, max 7.2 W, typical 4.5 W
10-28 V DC, max 6.6 W, typical 4.4 W
Dimension47 x 70 x 147 mm (1.8 x 2.8 x 5.8 in)
i-CS
63 x 70 x 149 mm (2.5 x 2.8 x 5.9 in)
WeightWithout optics: 165 g (0.36 lb)
With optics: 250 g (0.55 lb)
With i-CS optics: 240 g (0.52 lb)
Peso di spedizione1.36 kg
Dimensioni del pacco152 × 152 × 102 mm

Domande su questo articolo

What does the 1920x1080 resolution deliver on this camera?

It captures 2 megapixel video at up to full HD with Lightfinder and Forensic WDR for detail in low light and high contrast scenes.

How does the ONVIF support and PoE class affect installation?

ONVIF ensures interoperability with compliant NVRs and VMS platforms, while PoE Class 3 delivers up to 7.2 W over the network cable for power and data.

What physical space and mount does the i-CS lens version need?

The i-CS variant measures 63 x 70 x 149 mm and weighs 240 g, fitting a standard CS-mount bracket for wall or ceiling mounting.
