Green circuit board with four red SATA ports, silver heatsink, and gold PCIe connector

ESTONE

ESTONE PCIE24SATA 4-port SATA expansion card

SKU CH-HJT6-ZNZ21

Adds four SATA 3.0 ports via a PCIe x1 slot with Marvell 88SE9215 chipset, low-profile bracket and four cables included

  • TypePCI to SATA Card
  • External USB Ports4x SATA III
  • StandardUSB 3.2
  • Data Transfer RateUp to 6 Gbps
  • Operating Systems SupportedWindows XP /2003 / 7 / 8 / 10 / 11 / MAC / NAS / Linux OS.
  • CompatibilityConnect 4 large capacity storage devices at the same time. C
  • Add four SATA 3.0 drives at once

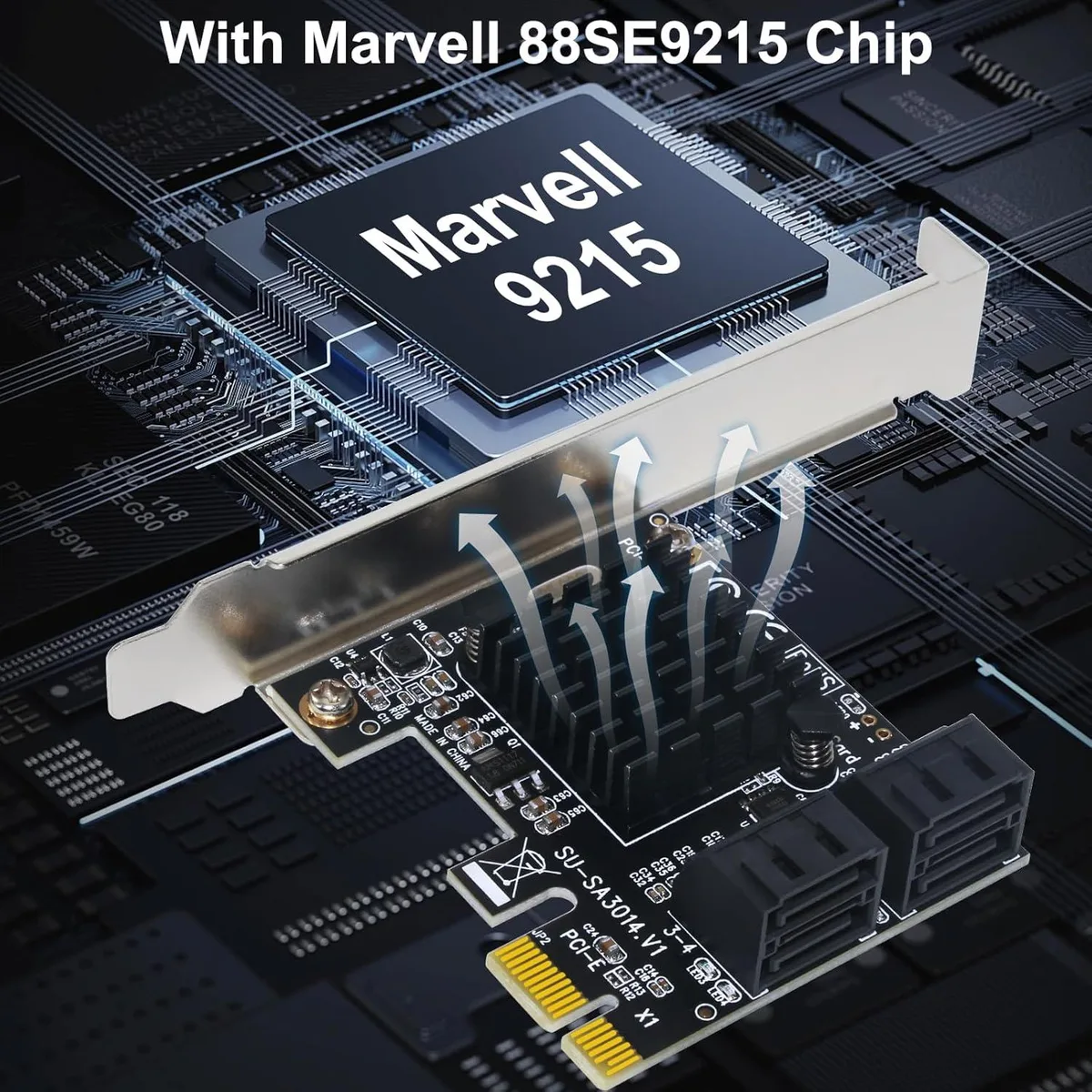

  • Marvell 88SE9215 chipset keeps operation stable
  • Heatsink disperses heat for reliable performance
  • Fits PCIe x1, x4, x8 or x16 slots
  • Includes four SATA cables and low-profile bracket

Four SATA 3.0 ports on a PCIe x1 card

This ESTONE expansion card adds four SATA 3.0 connectors to a desktop system through a single PCIe x1 slot. It uses the Marvell 88SE9215 controller and includes four SATA cables, a low-profile bracket and mounting hardware. The card suits builders who need extra internal drive connections without occupying a larger slot.

Sustained transfer limited by PCIe 2.0 x1 bandwidth

Under continuous load the Marvell 88SE9215 chipset delivers stable operation thanks to an integrated heatsink, but the PCIe 2.0 x1 host link caps aggregate throughput below the combined peak of four 6 Gbps ports. The card is not suited for workloads that require full simultaneous bandwidth across all four drives.

PCIe 2.0 x1 and SATA 3.0 set the practical ceiling

The controller complies with PCIe 2.0 and SATA 3.0 specifications while remaining backward compatible with earlier revisions. Actual performance depends on the host slot generation and the attached drives; the interface standards define the maximum achievable rates.

Punti di forza

  • Add four SATA 3.0 drives at once
  • Marvell 88SE9215 chipset keeps operation stable
  • Heatsink disperses heat for reliable performance
  • Fits PCIe x1, x4, x8 or x16 slots
  • Includes four SATA cables and low-profile bracket

Caratteristiche tecniche

BrandESTONE
SeriesPCIE24SATA
ModelPCIE24SATA
TypePCI to SATA Card
External USB Ports4x SATA III
StandardUSB 3.2
Data Transfer RateUp to 6 Gbps
Operating Systems SupportedWindows XP /2003 / 7 / 8 / 10 / 11 / MAC / NAS / Linux OS.
CompatibilityConnect 4 large capacity storage devices at the same time. Compatible with Windows XP /2003 / 7 / 8 / 10 / 11 / MAC / NAS / Linux OS. SATA controller PCI-E X1 interface compatible with 1X/4X/8X/16 slots
SpecificationsChipset: Marvell 88SE9215
Support 4 SATA 3.0 6Gbps devices
Compliant with PCI-Express Specification v2.0 ,v3.0, backwards compatible with PCIe1.0
Compliant with Serial ATA Specification 3.0, backwards compliant with Serial ATA2.0,Serial ATA1.0
Supports Communication Speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
Supports Port Multiplier FIS-based and Command-based switching
Plug and play, supports Hot Plug and Hot Swa
Features4 PORTS SATA CARD - This PCIE SATA card allows you to add 4 SATA 3.0 6Gbps devices to your computer. You could make the system to boot from this SATA controller but non RAID. If your motherboard has RAID function, you could make a RAID with this SATA card.
POWERFUL CHIPSET - SATA controller with using Marvell 88SE9215 chip,more stable and compatible.Port Multiplier FIS-based and Command-based switching supported. enhances heat dissipation, long-lasting high temperature resistance and more stable operation.
WORKS WITH ALL COMPUTERS - 4 Ports SATA Card with a low profile Bracket and 4
Weight3.2 ounces
Package ContentsKit includes: 1 X 4-port SATA expansion card, 4 X SATA cable(40cm/15.8in), 1 X low-profile bracket, 1 X screwdriver, 2 X screw kit, 1 X anti-static bag.

Domande su questo articolo

Does the Marvell 88SE9215 chipset generate noticeable heat when four SATA drives run continuously?

The card includes a heatsink that disperses heat from the Marvell 88SE9215 chipset, keeping the controller stable during all-day operation with four SATA devices.

What must my motherboard provide for the PCIe x1 slot to power and signal this card?

Any PCIe x1, x4, x8 or x16 slot compliant with PCIe 1.0, 2.0 or 3.0 will supply the lane and power the card needs.

Will my older SATA 2.0 hard drives work at full speed when plugged into this card?

The card is backwards compatible with SATA 2.0 and 1.0 drives, so older drives function normally at their own rated speeds.
