Green circuit board with four red SATA ports and silver bracket

ESTONE

ESTONE PCIE24SATA 4-port SATA expansion card with low-profile bracket

SKU CH-AF7X-HAHFN

Adds four SATA 6 Gbps ports via a PCIe x1 slot, includes a low-profile bracket and four cables for broad chassis fit

  • TypePCI to SATA Card
  • External USB Ports4x SATA III
  • StandardUSB 3.2
  • Data Transfer RateUp to 6 Gbps
  • Operating Systems SupportedWindows XP /2003 / 7 / 8 / 10 / 11 / MAC / NAS / Linux OS.
  • CompatibilityConnect 4 large capacity storage devices at the same time. C
  • Add four SATA drives at 6 Gbps via PCIe x1
  • Boot the OS from the card without RAID

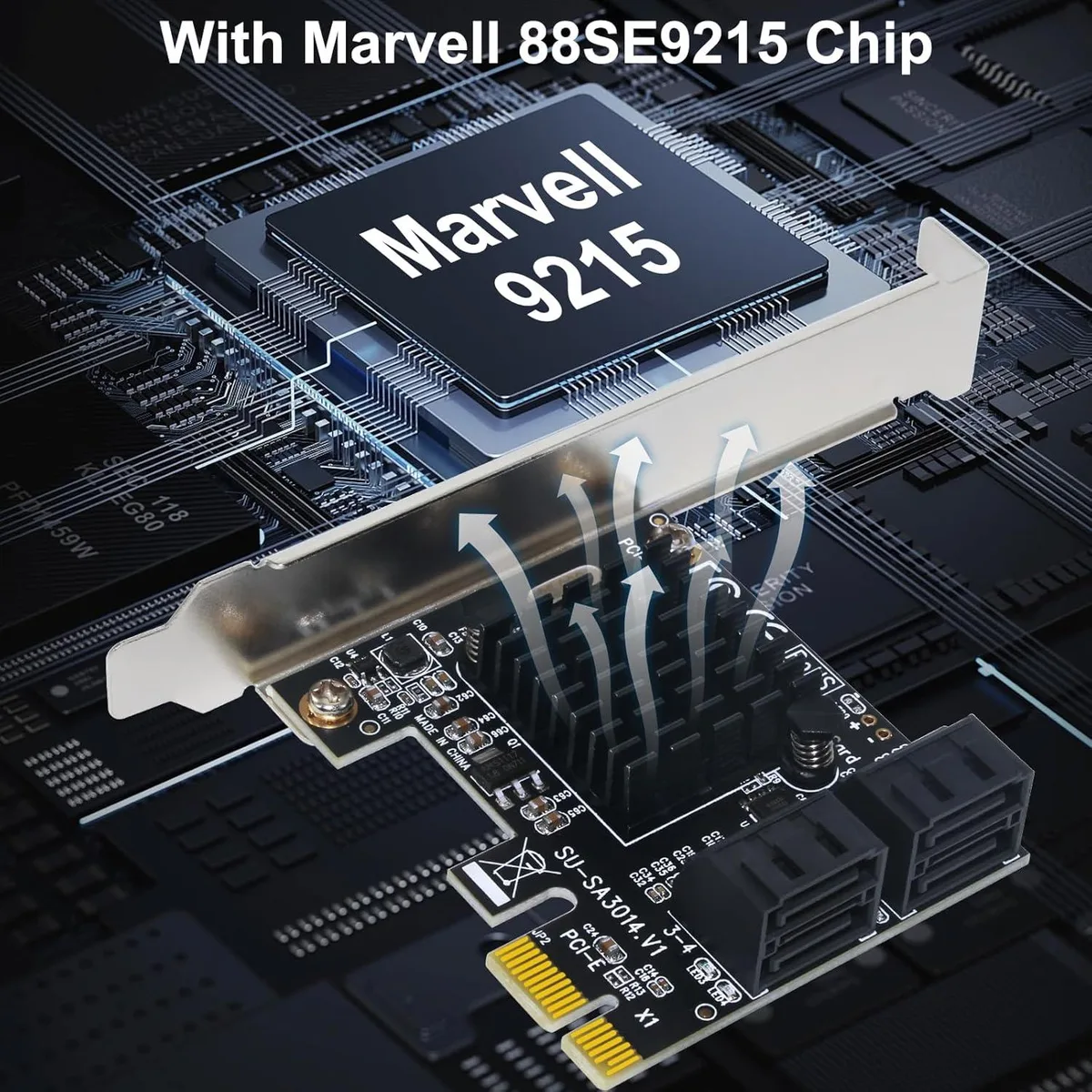

  • Marvell 88SE9215 chipset for stable operation
  • Low-profile bracket fits 99 % of chassis
  • Works with Windows XP through 11, macOS, Linux and NAS

4-port SATA III expansion card

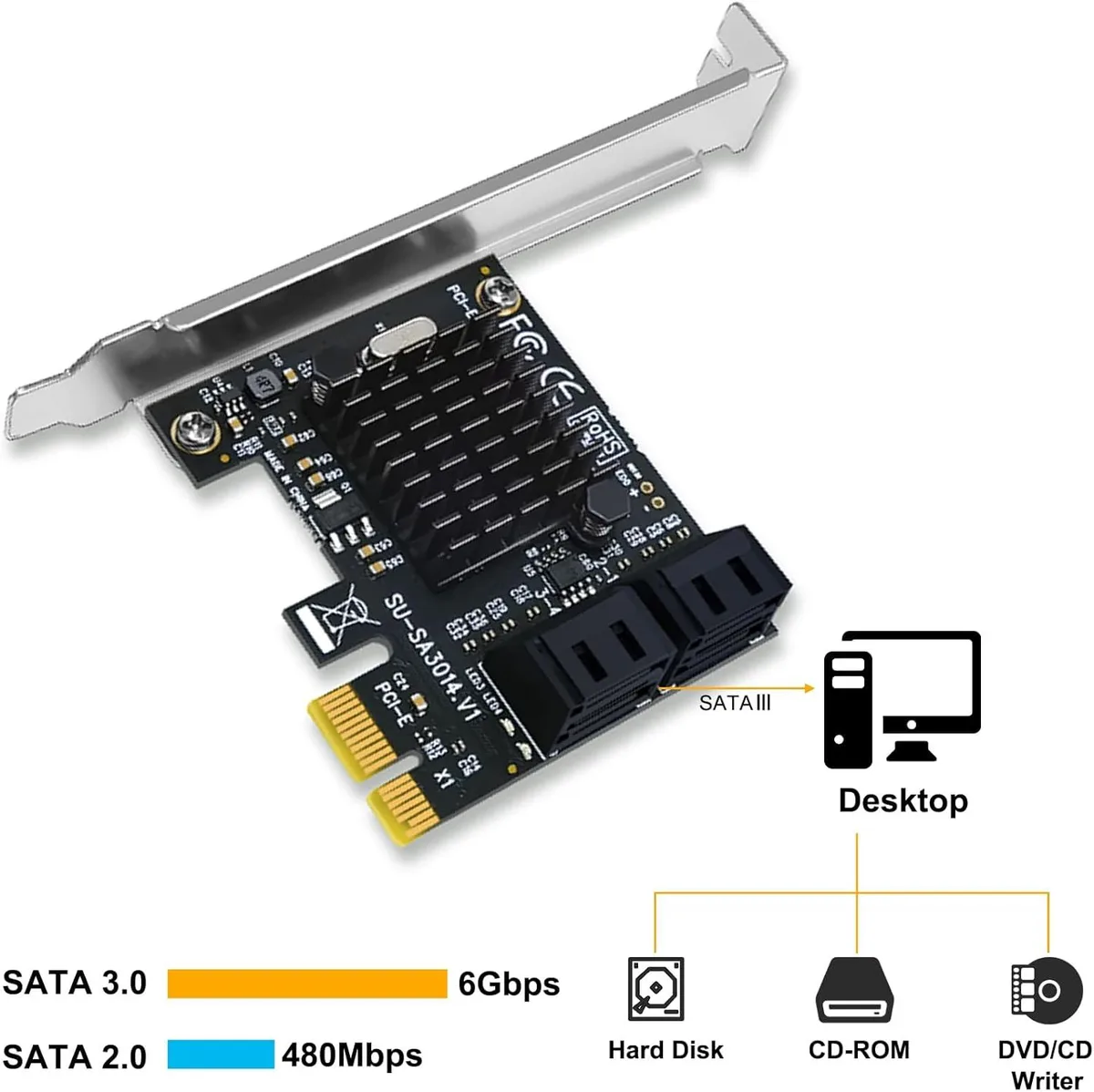

This PCIe x1 card adds four SATA 3.0 ports running at up to 6 Gbps using a Marvell 88SE9215 controller. It fits a standard PCIe 2.0 or 3.0 slot and works in x1, x4, x8 or x16 sockets. The kit includes four 40 cm SATA cables, a low-profile bracket, screws and a screwdriver.

For adding internal drives to a desktop

Suits builders who need extra SATA ports for hard drives or SSDs and want the option to boot from the controller without hardware RAID. Not for systems that lack a free PCIe slot, nor for users who require on-board RAID functionality from this card.

PCIe x1 host interface

The card plugs into any PCIe x1, x4, x8 or x16 slot compliant with PCIe 2.0 or 3.0. This single interface choice determines whether the card will physically fit and operate in a given motherboard.

Punti di forza

  • Add four SATA drives at 6 Gbps via PCIe x1
  • Boot the OS from the card without RAID
  • Marvell 88SE9215 chipset for stable operation
  • Low-profile bracket fits 99 % of chassis
  • Works with Windows XP through 11, macOS, Linux and NAS

Caratteristiche tecniche

BrandESTONE
SeriesPCIE24SATA
ModelPCIE24SATA
TypePCI to SATA Card
External USB Ports4x SATA III
StandardUSB 3.2
Data Transfer RateUp to 6 Gbps
Operating Systems SupportedWindows XP /2003 / 7 / 8 / 10 / 11 / MAC / NAS / Linux OS.
CompatibilityConnect 4 large capacity storage devices at the same time. Compatible with Windows XP /2003 / 7 / 8 / 10 / 11 / MAC / NAS / Linux OS. SATA controller PCI-E X1 interface compatible with 1X/4X/8X/16 slots
SpecificationsChipset: Marvell 88SE9215
Support 4 SATA 3.0 6Gbps devices
Compliant with PCI-Express Specification v2.0 ,v3.0, backwards compatible with PCIe1.0
Compliant with Serial ATA Specification 3.0, backwards compliant with Serial ATA2.0,Serial ATA1.0
Supports Communication Speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
Supports Port Multiplier FIS-based and Command-based switching
Plug and play, supports Hot Plug and Hot Swa
Features4 PORTS SATA CARD - This PCIE SATA card allows you to add 4 SATA 3.0 6Gbps devices to your computer. You could make the system to boot from this SATA controller but non RAID. If your motherboard has RAID function, you could make a RAID with this SATA card.
POWERFUL CHIPSET - SATA controller with using Marvell 88SE9215 chip,more stable and compatible.Port Multiplier FIS-based and Command-based switching supported. enhances heat dissipation, long-lasting high temperature resistance and more stable operation.
WORKS WITH ALL COMPUTERS - 4 Ports SATA Card with a low profile Bracket and 4
Weight3.2 ounces

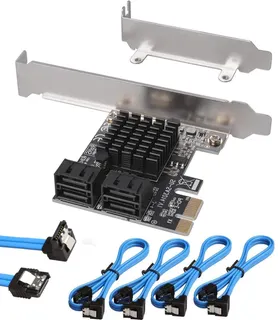

Package ContentsKit includes: 1 X 4-port SATA expansion card, 4 X SATA cable(40cm/15.8in), 1 X low-profile bracket, 1 X screwdriver, 2 X screw kit, 1 X anti-static bag.

Domande su questo articolo

Does the PCIe 2.0 x1 link cap the four SATA 3.0 ports below their 6 Gbps rating?

The card uses a PCIe 2.0 x1 connection which delivers up to 5 Gbps, so simultaneous full-speed operation on all four SATA 3.0 ports can be limited by that bus bandwidth.

Will the included low-profile bracket let the card fit in a slim 1U chassis?

The kit supplies a low-profile bracket and 40 cm cables designed for 99 % of chassis sizes, making it suitable for most slim or 1U enclosures.

Which driver step is often missed when setting the card as a boot disk without RAID?

Install the Marvell 88SE9215 driver before configuring the BIOS boot order, otherwise the OS installer may not detect the drives.
