Black metal cage with six 2.5-inch hot-swap drive bays in a single 5.25-inch bay, dual 40mm fans, SATA and SAS connectors visible

ICY DOCK

ICY DOCK MB326SP-B 6 Bay 2.5" SATA Hot Swap Cage 5.25" Bay

SKU CH-8W46-N4WVM MPN MB326SP-B

Holds six 2.5" SATA or SAS drives in one 5.25" bay with hot-swap trays, dual 40mm fans and three-speed fan control

  • ColorBlack
  • Conversion Tray6 x 2.5" SATA 6Gbps/SAS HDD/SSD Mobile Rack / Cage in 1 x 5.
  • Mobile Rack Drives Support1 x 5.25" Drive to 6 x 2.5" Bay
  • Mobile Rack InterfaceSATA I/II/III/SAS
  • Protection CaseMultiple Drives
  • Compatible Products2.5"

Model 1 Pack

Option Express Cages 6Bay

  • Fits six 2.5″ drives in one 5.25″ bay
  • Hot-swappable bays let you change drives without powering down
  • Dual 40 mm fans with high low auto speed control cool all drives
  • Two 15-pin SATA power connectors supply every installed drive
  • Supports 5 mm 7 mm and 9.5 mm drive heights for wide compatibility

Six-bay 2.5" SATA cage for 5.25" bay

The ICY DOCK MB326SP-B fits six 2.5-inch SATA or SAS hard drives or SSDs into one external 5.25-inch bay. It targets power users and system builders who need hot-swap access and high-density storage without sacrificing a larger drive slot.

Check your case and power before ordering

Verify that your chassis has a free external 5.25-inch bay with enough internal depth for the cage length. You will need six free SATA data ports on the host controller and two 15-pin SATA power connectors from the PSU to run all six drives simultaneously.

Steel frame with dual 40mm fans and direct-insert

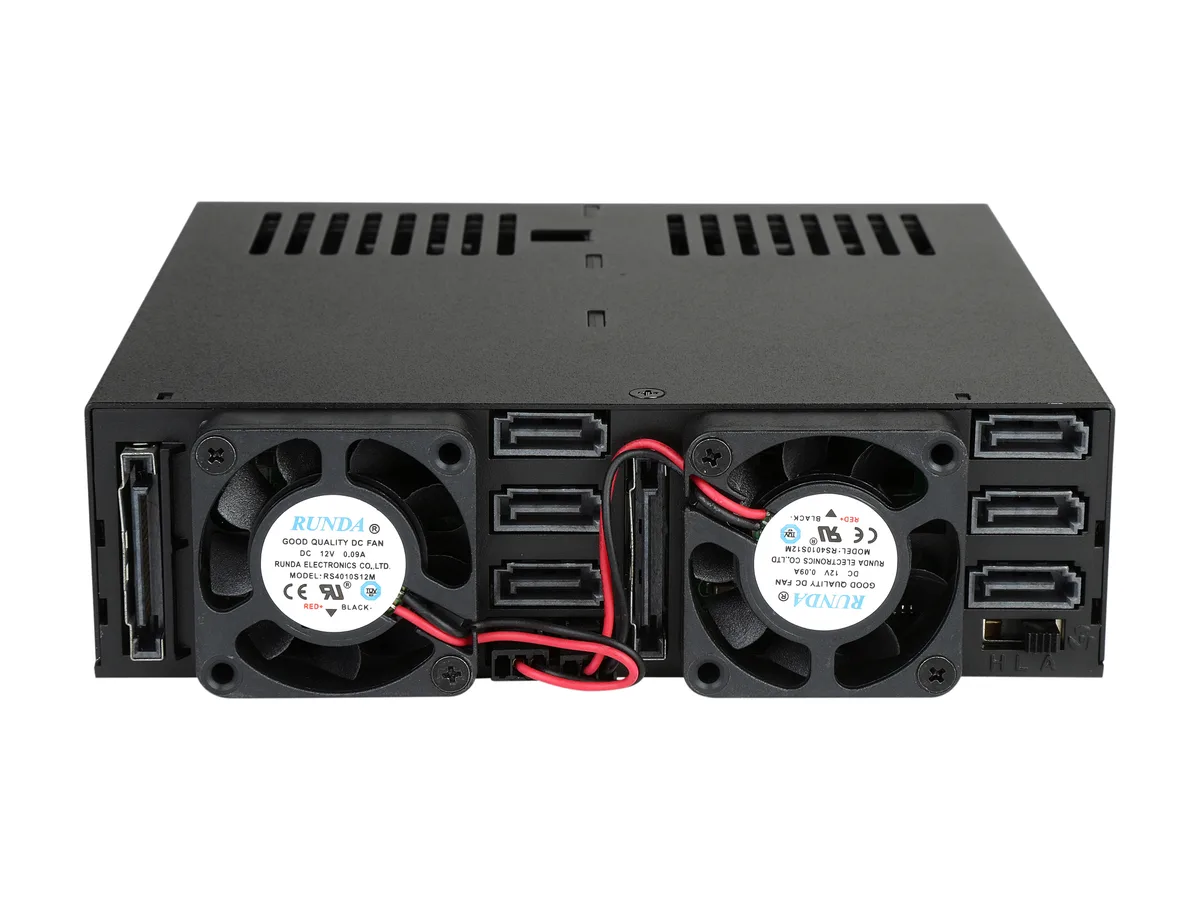

The black metal enclosure uses direct SAS/SATA backplane connectors so drives slide in without cables. Dual 40-millimetre fans offer high, low and automatic speed modes to match thermal load. Drive trays accept 5-millimetre, 7-millimetre and 9.5-millimetre heights and lock securely for vibration-free operation.

Punti di forza

  • Fits six 2.5″ drives in one 5.25″ bay
  • Hot-swappable bays let you change drives without powering down
  • Dual 40 mm fans with high low auto speed control cool all drives
  • Two 15-pin SATA power connectors supply every installed drive
  • Supports 5 mm 7 mm and 9.5 mm drive heights for wide compatibility

Caratteristiche tecniche

BrandICY DOCK
ModelMB326SP-B
ColorBlack
Conversion Tray6 x 2.5" SATA 6Gbps/SAS HDD/SSD Mobile Rack / Cage in 1 x 5.25" bay
Mobile Rack Drives Support1 x 5.25" Drive to 6 x 2.5" Bay
Mobile Rack InterfaceSATA I/II/III/SAS
Protection CaseMultiple Drives
Compatible Products2.5"
SpecificationsHost Interface: 6 x 7pin SATA
Compatible Drive Heights: 5mm, 7mm & 9.5mm
Transfer Rate: Up to 6 Gb/sec. (depending on hard drive speed)
Power Input: 2 x 15pin SATA power port
Insert& Extract connection Via: Direct SAS/ SATA hard drive connection
Structure: Plastic and metal
Drive Cooling: 2 x 40mm rear cooling fan
Fan Speed Control: High / Low / Auto Switch
Power Indicator: Solid blue LED
HDD Access Indicator: Blinking blue LED
Dimension: 5.77" x 1.63" x 5.74"
Weight : 0.97 lb.
Peso di spedizione0.53 kg
Dimensioni del pacco165 × 155 × 56 mm

Altre versioni di questo modello

altri 4 nella stessa gamma

Stessa famiglia, con memoria, dissipatore o frequenza diversi — confronti prima di decidere.

Domande su questo articolo

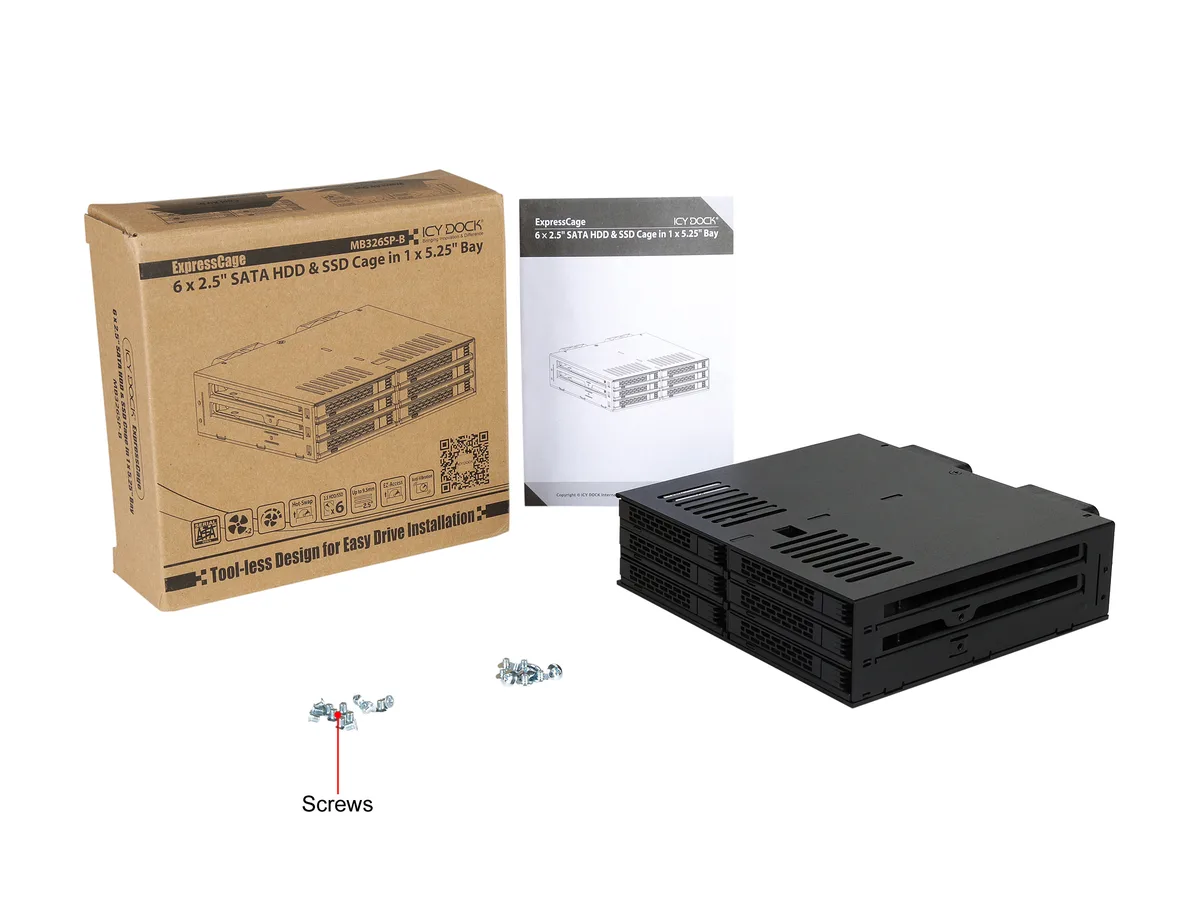

Does the ICY DOCK MB326SP-B ship with mounting screws or drive trays, or do I need to buy them separately?

The unit includes six mobile-rack trays that slide into the 5.25" bay; each tray accepts 2.5" SATA or SAS drives of 5mm, 7mm and 9.5mm height. Standard case screws for the 5.25" opening are not supplied.

I see only one model listed — are there different capacity or fan-speed versions of the MB326SP-B I should choose between?

The MB326SP-B is a single SKU; it holds six drives, provides dual 40mm fans with HIGH, LOW and AUTO speed settings, and uses two 15-pin SATA power connectors. No alternative capacity or cooling variants exist for this model number.

The specs say "up to 6 Gb/sec" — what throughput will I actually see once six SSDs are installed in my system?

Each bay connects through its own 7-pin SATA III link, so every drive can run at the full 6 Gb/s interface rate simultaneously; real-world speed depends on the individual SSD or HDD you install.
