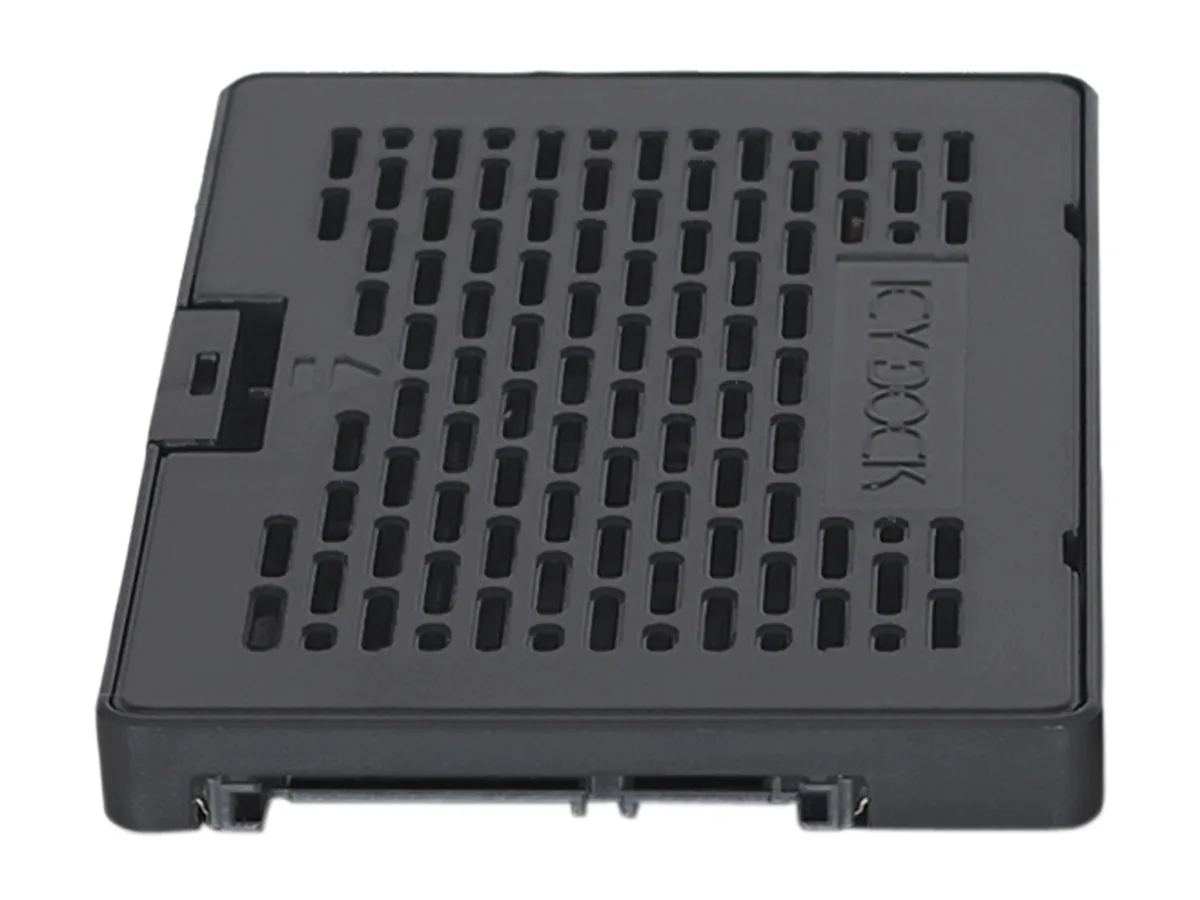

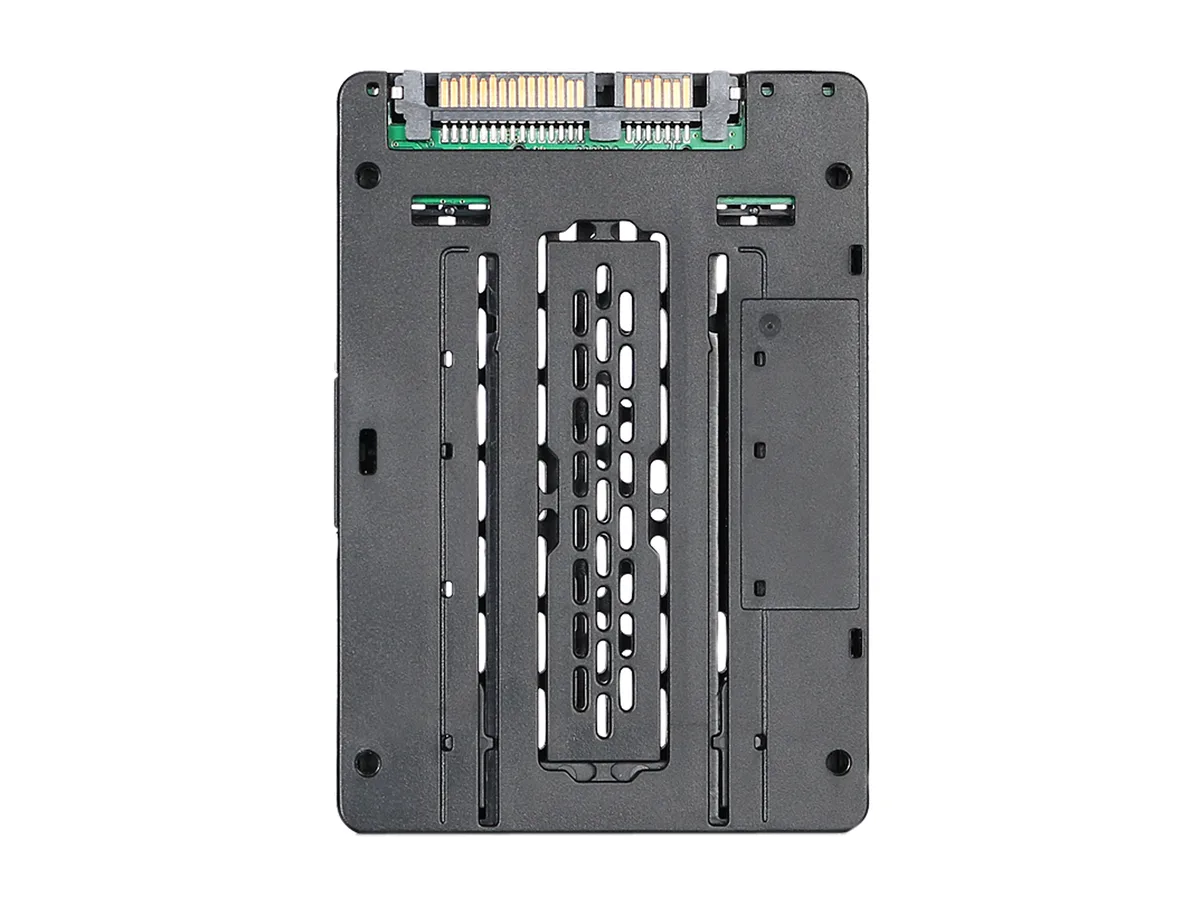

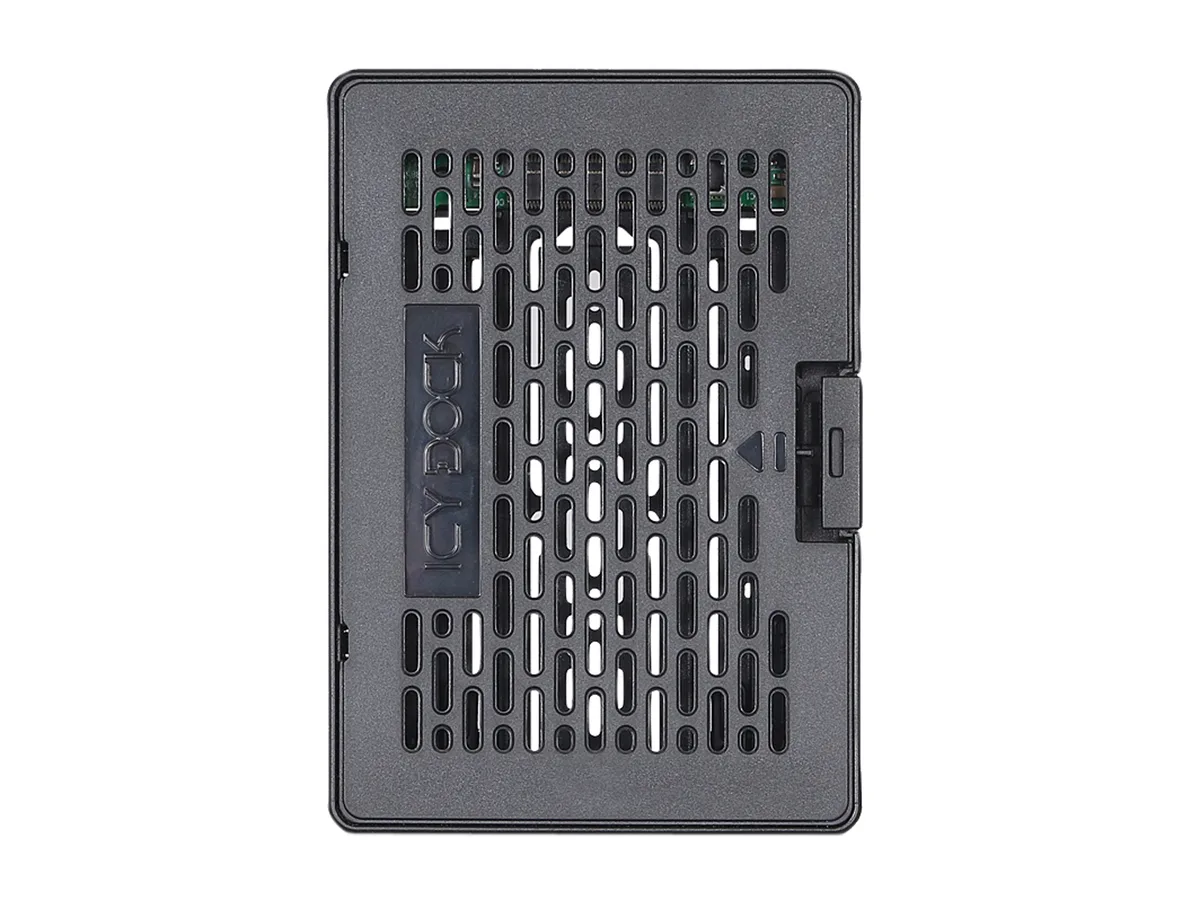

Black plastic adapter board with M.2 SATA slot and 2.5 inch SATA connectors

ICY DOCK

ICY DOCK MB703M2P-B M.2 SATA to 2.5" SATA SSD Accessory

SKU CH-NRTV-TTQQS MPN MB703M2P-B

Converts a B- or B+M-key M.2 SATA SSD into a 2.5-inch SATA drive with 9.5 mm height

  • ColorBlack
  • Conversion TraymSATA Drive to 2.5" Drive
  • Mobile Rack Drives SupportM.2 SATA SSD to 2.5" SATA SSD Converter Adapter
  • Mobile Rack InterfaceSATA I/II/III
  • Protection CaseSingle Drive
  • Compatible Products1 x B / B + M key M.2 SATA SSD 2230/2242/2260/2280
  • Converts M.2 SATA SSD to 2.5" form factor
  • Fits B-key and B+M-key M.2 SATA SSDs 2230 to 2280
  • Matches 2.5" drive dimensions at 9.5mm height
  • Supports SATA I, II and III interfaces
  • Accepts M.2 SATA SSD lengths from 30mm to 80mm

M.2 SATA to 2.5" Converter Adapter

The ICY DOCK MB703M2P-B converts a single B-key or B+M-key M.2 SATA SSD into a standard 2.5-inch SATA drive. It supports module lengths from 30mm to 80mm, covering 2230, 2242, 2260 and 2280 form factors. The adapter matches the exact dimensions, port locations and screw holes of a 9.5mm 2.5-inch drive. It connects via a SATA 7-pin host interface and SATA power.

Suits upgrades needing 2.5-inch form factor

This accessory suits users who want to install an M.2 SATA SSD into a laptop, desktop or enclosure that only accepts 2.5-inch SATA drives. It works with SATA I, II and III interfaces. Builders whose M.2 modules use a different keying or length outside the 30mm to 80mm range cannot use this converter. It also does not fit drive bays requiring a 15mm height.

Single M.2 SATA slot with 30-80mm support

The decisive specification is the single M.2 slot that accepts only B-key or B+M-key SATA SSDs between 30mm and 80mm long. The adapter presents a standard 2.5-inch SATA interface to the host system. No other drive types or interfaces are supported by this unit.

Punti di forza

  • Converts M.2 SATA SSD to 2.5" form factor
  • Fits B-key and B+M-key M.2 SATA SSDs 2230 to 2280
  • Matches 2.5" drive dimensions at 9.5mm height
  • Supports SATA I, II and III interfaces
  • Accepts M.2 SATA SSD lengths from 30mm to 80mm

Caratteristiche tecniche

BrandICY DOCK
ModelMB703M2P-B
ColorBlack
Conversion TraymSATA Drive to 2.5" Drive
Mobile Rack Drives SupportM.2 SATA SSD to 2.5" SATA SSD Converter Adapter
Mobile Rack InterfaceSATA I/II/III
Protection CaseSingle Drive
Compatible Products1 x B / B + M key M.2 SATA SSD 2230/2242/2260/2280
SpecificationsSupport Drive Size: 1 x B / B + M key M.2 SATA SSD 2230/2242/2260/2280
Compatible Drive Type: SATA
Number of M.2: 1
Drive Bay: 1 x 2.5" SATA drive bay (9.5mm - 15mm)
Host Interface: 1 x SATA 7pin
Power Input: 1 x SATA 15pin power connector
Transfer Rate: Up to 6Gbps (Depending on hard drive speed)
Support HDD Capacity: No Limitation
Structure / Material: Plastic
FeaturesConvert your M.2 SATA SSD to a 2.5" SSD/HDD form factor, 9.5mm in height
Exact same dimensions, port locations, and screw locations as a 2.5" HDD or SSD (9.5mm height)
Accepts any M.2 SATA SSD from 30mm to 80mm in length (2230 / 2242 / 2260 / 2280)
Enables hot-swap functionality for any M.2 SATA SSD
Supports full SATA III bandwidth specification of 6Gbps

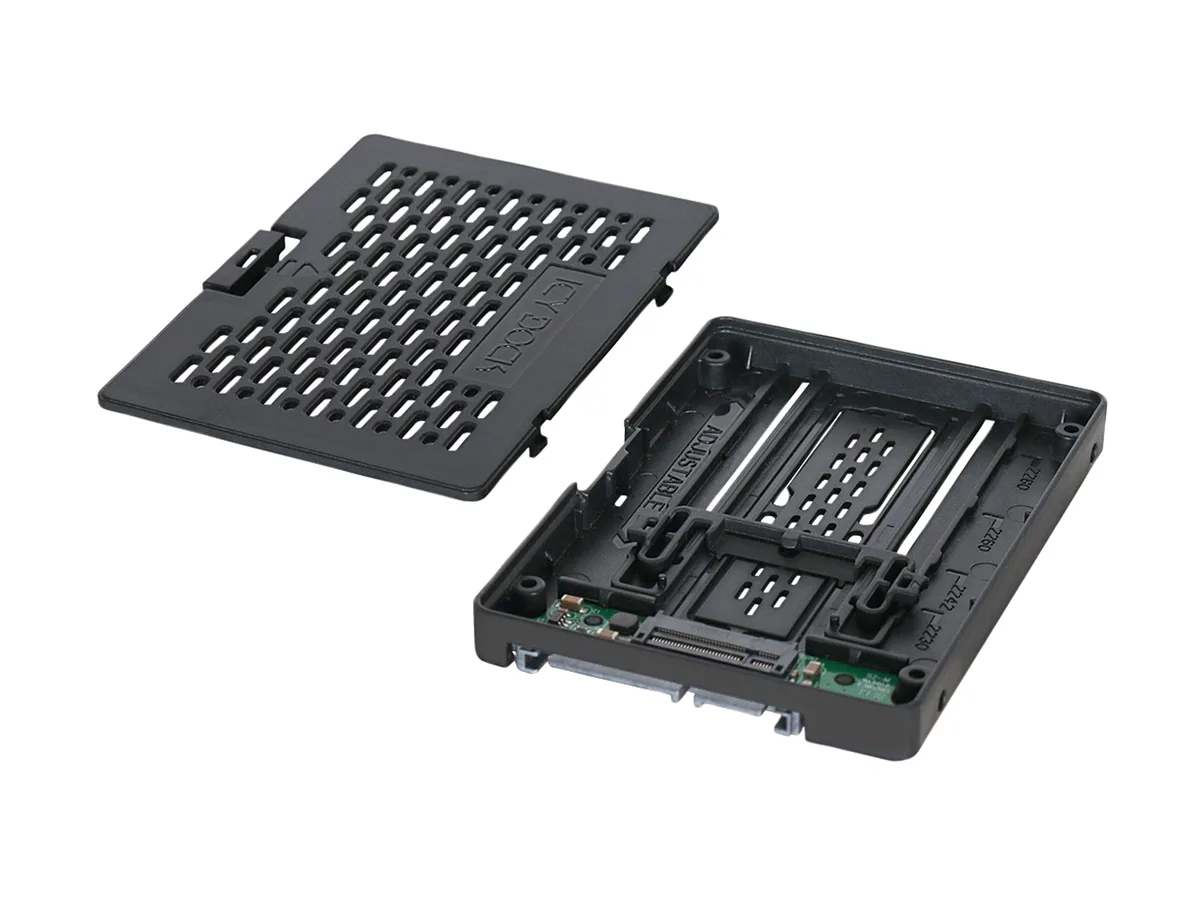

100% tool-less and screw-less M.2 drive installation
Can be installed into any 2.5" backplane, hot-swap bay, or USB drive adapter.
Sturdy ABS plastic construction
Body and lid each use strong one-piece construction.
Supports SATA dat
Peso di spedizione0.05 kg
Dimensioni del pacco142 × 91 × 28 mm

Domande su questo articolo

Does the adapter require any maintenance or replacement parts after installation?

The MB703M2P-B is a passive mechanical adapter with no moving parts, so it does not need maintenance or replacement components.

What limits the maximum drive length that can be installed in the converter?

The tray accepts M.2 SATA SSDs from 30 mm up to 80 mm long, covering 2230, 2242, 2260 and 2280 sizes.

Does the adapter generate extra heat or noise when the SSD runs continuously?

It adds no active cooling or power draw of its own, so heat and noise come only from the installed M.2 SATA SSD itself.
