Black 1U metal server chassis 11 inch depth front USB ports two 40mm fans

iStarUSA Inc.

iStarUSA Inc. D-118V2-ITX-DT 1U server chassis 11" depth

SKU CH-VB1M-0T5XK MPN D-118V2-ITX-DT

A 1U industrial chassis with 11-inch depth that holds a mini-ITX board and one 3.5-inch or two 2.5-inch drives

  • Form Factor1U
  • ColorBlack
  • Case MaterialMetal / Aluminum
  • Motherboard Compatibility6.7 x 6.7 (mini-ITX)
  • Internal 3.5" Drive Bays1
  • Expansion Slots1

Model D-118V2-ITX-DT

  • Compact 1U server chassis fits 11" deep racks
  • Mini-ITX motherboard support up to 6.7" square
  • Single 3.5" or dual 2.5" internal drive bays
  • Front 40mm intake fans provide active cooling
  • 1U flex power supply compatibility for standard power

Compact 1U chassis for mini-ITX builds

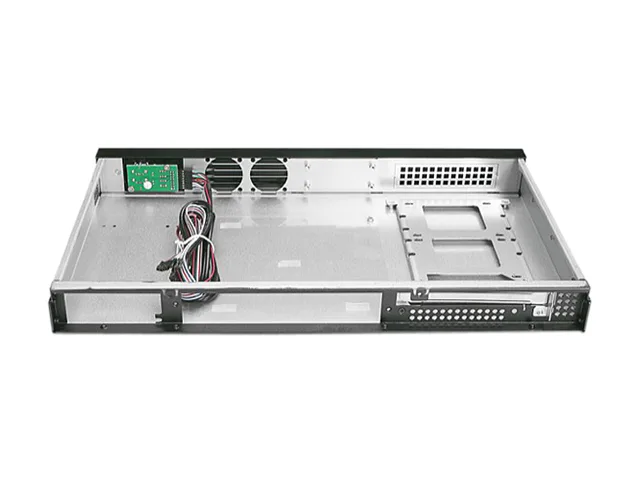

The iStarUSA D-118V2-ITX-DT is a 1U-high industrial server chassis with 11 inch depth. It accepts a 6.7 inch square mini-ITX motherboard and a 1U flex power supply. The metal and aluminium enclosure comes in black.

Check motherboard size and power supply type

Verify that your board matches the 6.7 x 6.7 inch form factor before ordering. Ensure you have a 1U flex power supply, as standard ATX units will not fit. The single expansion slot accommodates only a low-profile card.

Replaces deeper 1U cases or tower servers

This chassis replaces larger 1U enclosures when rack depth is limited to 11 inches. It also upgrades from tower systems that waste vertical space. The jump is worth it when you need a shallow rack-mount footprint with front USB 2.0 ports and dual 40mm intake fans.

Punti di forza

  • Compact 1U server chassis fits 11" deep racks
  • Mini-ITX motherboard support up to 6.7" square
  • Single 3.5" or dual 2.5" internal drive bays
  • Front 40mm intake fans provide active cooling
  • 1U flex power supply compatibility for standard power

Caratteristiche tecniche

BrandiStarUSA
ModelD-118V2-ITX-DT
Form Factor1U
ColorBlack
Case MaterialMetal / Aluminum
Motherboard Compatibility6.7 x 6.7 (mini-ITX)
Internal 3.5" Drive Bays1
Expansion Slots1
Front Ports2 x USB 2.0
FeaturesStandard Drive Bays: 3.5" Drive (internal): 1 or 2 x 2.5"
Indicators: Power, HDD
Switches: Power, Reset
Industrial Chassis with 11" in Depth
Supports 1U Flex Power Supply
RoHS Compliance Version: Yes
Notes: 3.5" HDD cannot be placed when expansion slot is used. Standard I/O shield will NOT fit the unit.
Dimensions19.00" x 1.75" x 11.00"
Peso di spedizione3.58 kg
Dimensioni del pacco582 × 401 × 130 mm

Altre versioni di questo modello

altri 3 nella stessa gamma

Stessa famiglia, con memoria, dissipatore o frequenza diversi — confronti prima di decidere.

Domande su questo articolo

What comes with the D-118V2-ITX-DT chassis and what must I source separately?

The chassis includes two front 40 mm intake fans, front-panel USB 2.0 ports, power and reset switches, and power/HDD LEDs. You must supply a mini-ITX motherboard, CPU, memory, a 1U flex power supply, and either one 3.5" drive or up to two 2.5" drives.

Should I plan for a 3.5" drive or two 2.5" drives in the single internal bay?

The bay accepts either one 3.5" hard drive or two 2.5" drives; choose 3.5" for maximum capacity or dual 2.5" for redundancy or separate OS/data volumes.

Will a standard ATX power supply fit the 1U flex PSU slot?

No, the chassis only accepts a 1U flex form-factor power supply; a standard ATX unit will not fit.
