Green circuit board with silver connectors and black chips, includes antenna wire and silver heatsink

KEHIPI

KEHIPI CM5108032 Package A Development Board 8GB 32GB

SKU CH-B8NB-KJNRD

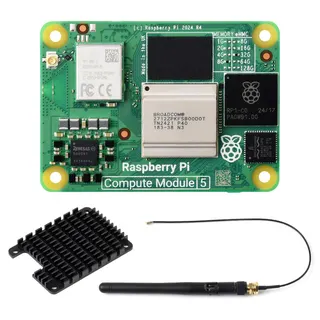

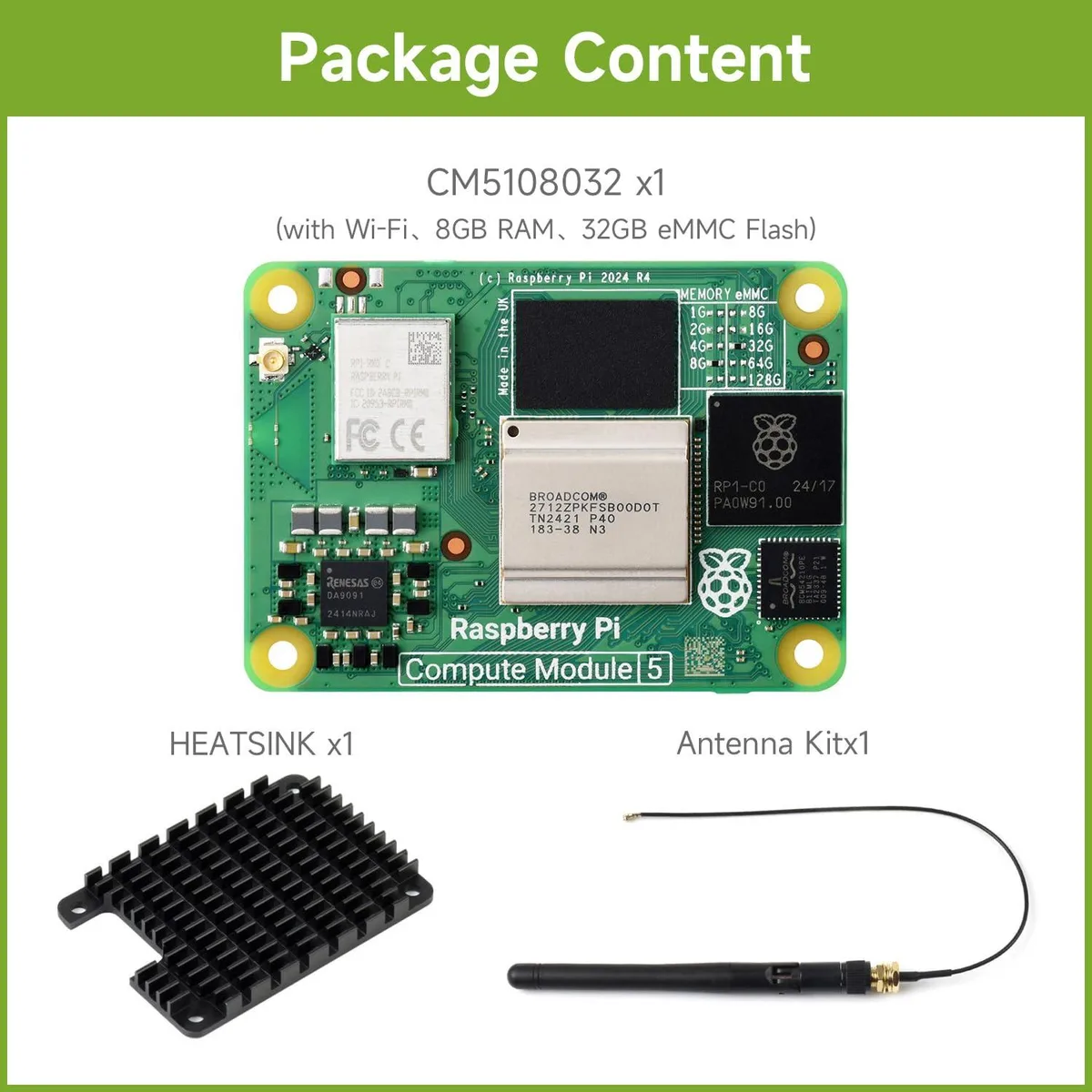

Includes a Raspberry Pi Compute Module 5 with 8 GB RAM, 32 GB eMMC, wireless, plus an antenna kit and heatsink

  • 8GB RAM and 32GB eMMC give ample space for edge workloads
  • Quad-core Cortex-A76 processor delivers Raspberry Pi 5 performance in a compact module
  • Onboard Gigabit Ethernet PHY with IEEE1588 support suits precise network timing
  • PCIe Gen 2 x1 interface allows attachment of additional modules
  • Official Wiki resources provide documentation for faster development

Raspberry Pi Compute Module 5 8GB 32GB Package A

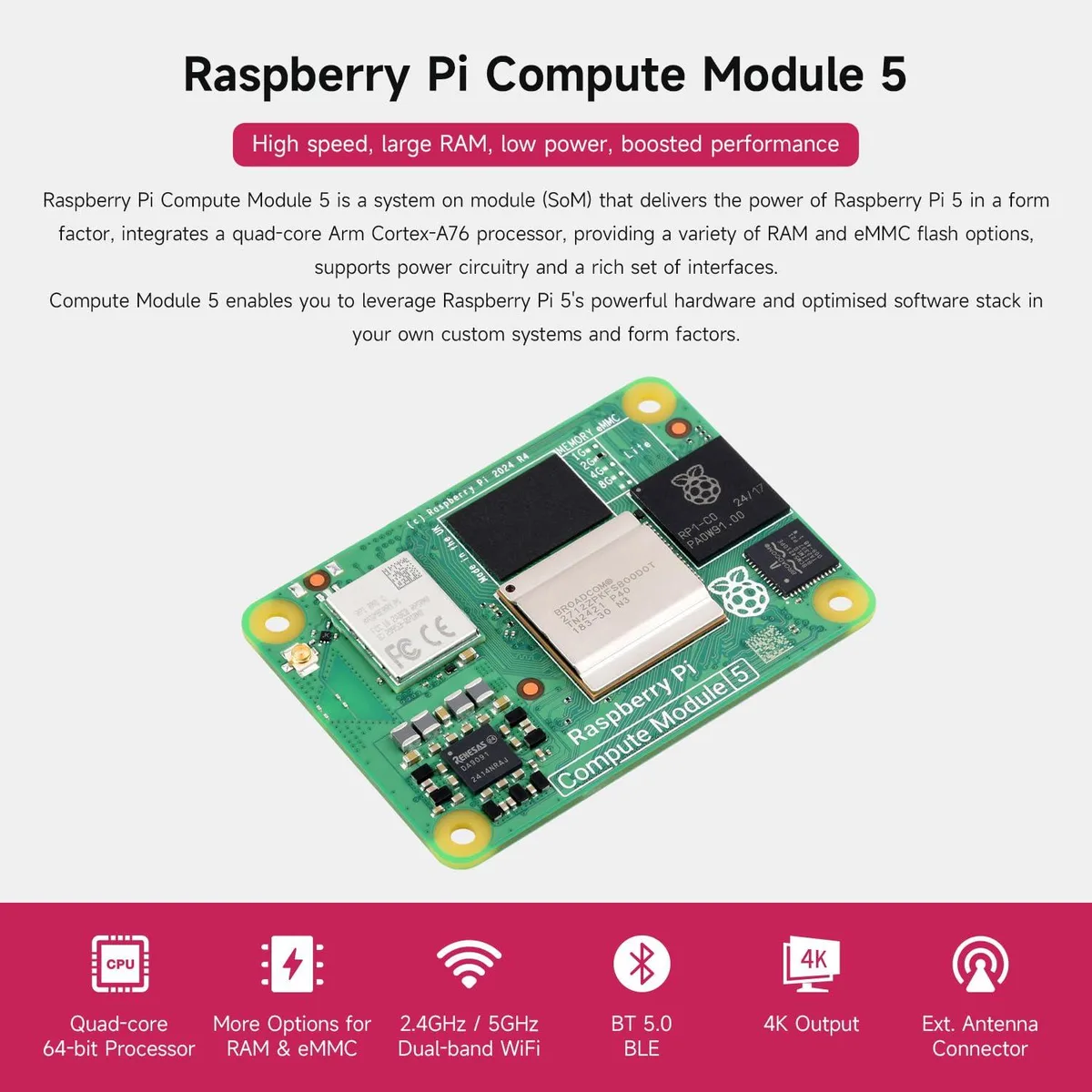

This package delivers the Raspberry Pi Compute Module 5 with 8GB RAM and 32GB eMMC flash plus wireless connectivity. It includes an official antenna kit and a heatsink for thermal management. The module uses the BCM2712 quad-core Cortex-A76 processor for embedded applications. Developers gain a compact system-on-module with the Raspberry Pi 5 software stack.

Suited for custom embedded systems

Engineers building custom carrier boards or space-constrained devices will benefit from the SODIMM form factor and PCIe Gen 2 x1 interface. The onboard Gigabit Ethernet PHY with IEEE1588 support fits precision timing needs. Buyers who need more than 32GB of onboard storage or require a different RAM capacity should select another variant.

8GB RAM and 32GB eMMC provide headroom for Linux

The faster eMMC interface reaches up to 200 Mbps data rate for responsive storage access. Wireless connectivity is enabled by the included certified radio module and antenna kit. Projects demanding larger eMMC capacities such as 64GB or higher RAM configurations will exceed this module's onboard resources.

Punti di forza

  • 8GB RAM and 32GB eMMC give ample space for edge workloads
  • Quad-core Cortex-A76 processor delivers Raspberry Pi 5 performance in a compact module
  • Onboard Gigabit Ethernet PHY with IEEE1588 support suits precise network timing
  • PCIe Gen 2 x1 interface allows attachment of additional modules
  • Official Wiki resources provide documentation for faster development

Caratteristiche tecniche

Brandwaveshare
ModelCM5108032 Package A
Part NumberCM5108032 Package A

Domande su questo articolo

Does this board need a separate carrier board to expose the PCIe Gen 2 x1 and Gigabit Ethernet interfaces?

Yes, the Compute Module 5 uses B-to-B connectors and requires a compatible carrier board to break out the PCIe Gen 2 x1 lane and the onboard Gigabit Ethernet PHY supporting IEEE 1588.

Will a carrier board designed for the Compute Module 4 fit this Compute Module 5?

The module adopts B-to-B connectors described as most compatible with Compute Module 4, but mechanical and electrical differences may require a revised carrier board design.

How can I verify the wireless antenna kit is functioning after assembly?

Attach the supplied antenna kit to the module's external antenna connector, boot the system, and confirm a wireless interface appears with active signal strength in the OS network tools.
