Lite-On

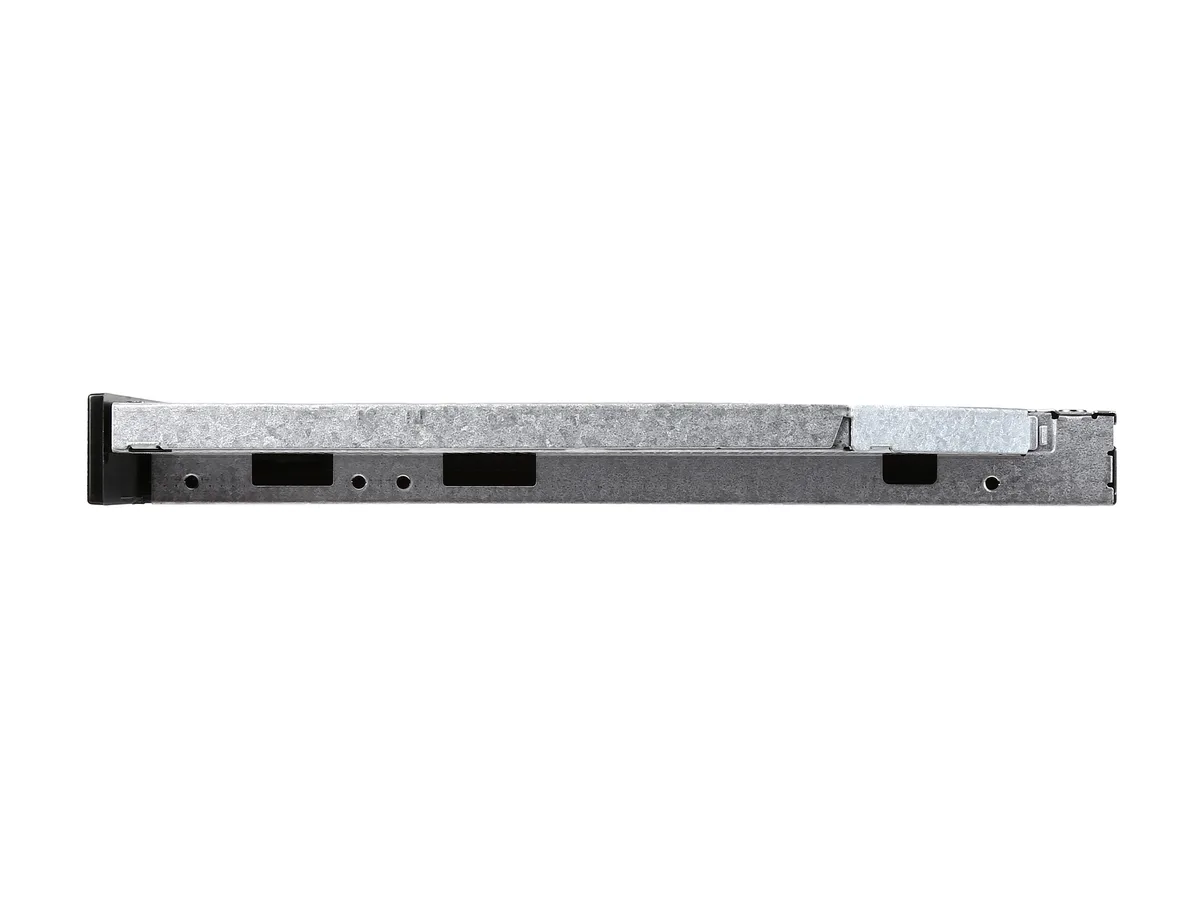

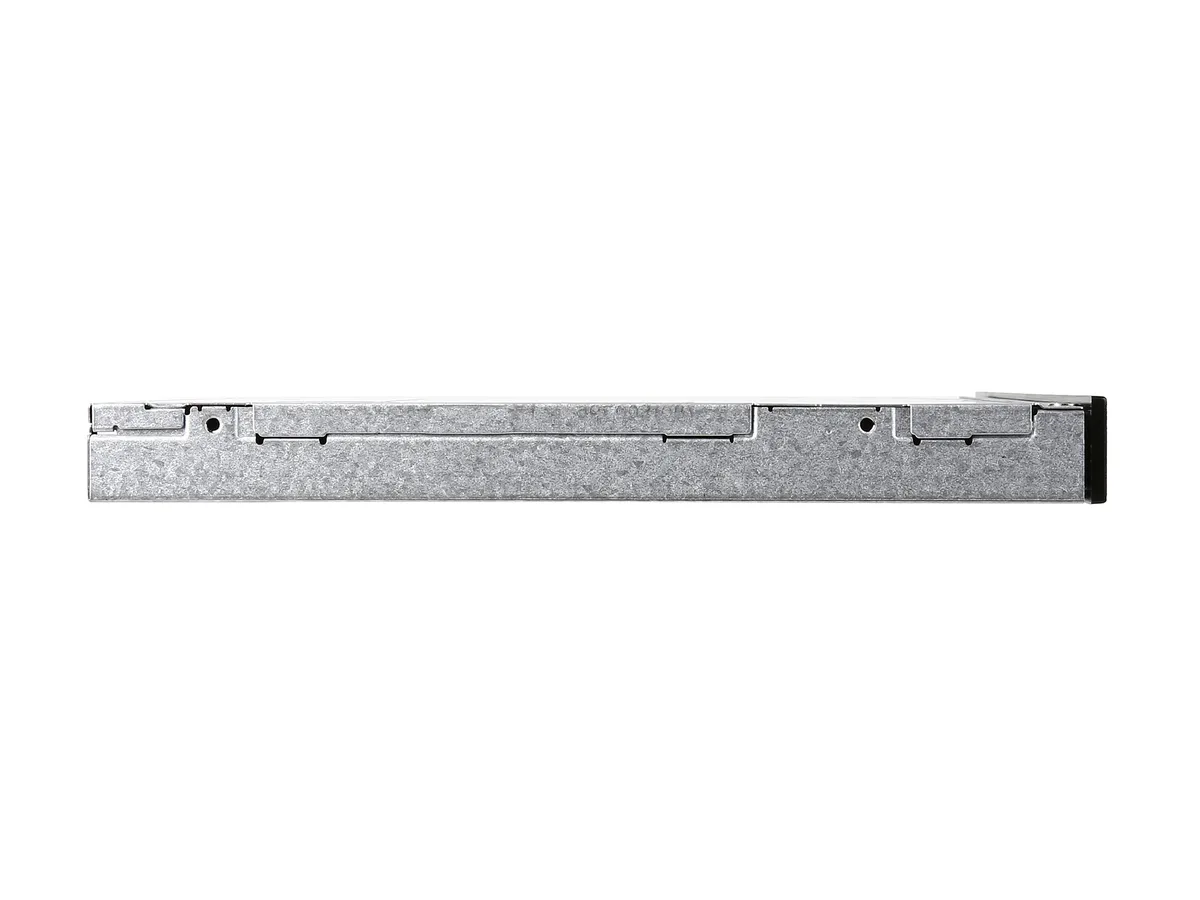

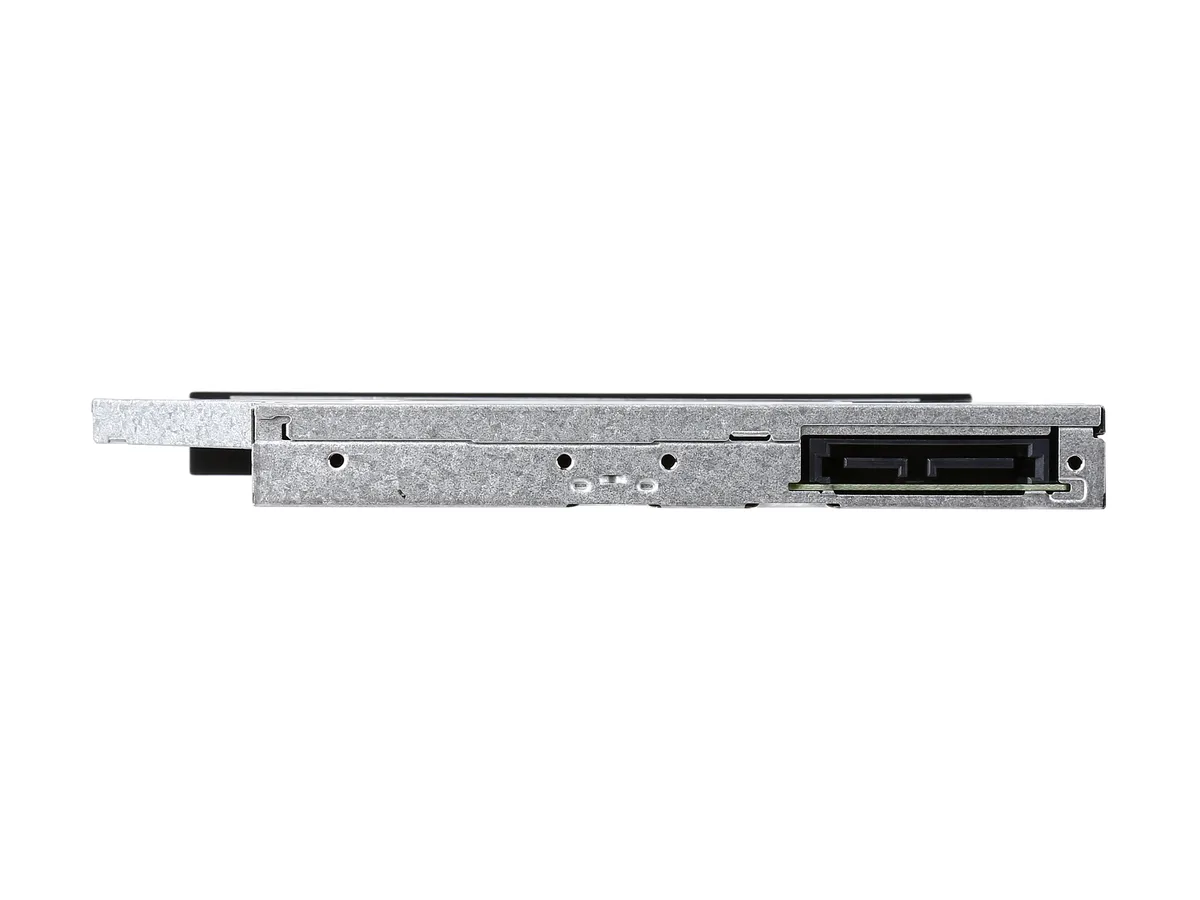

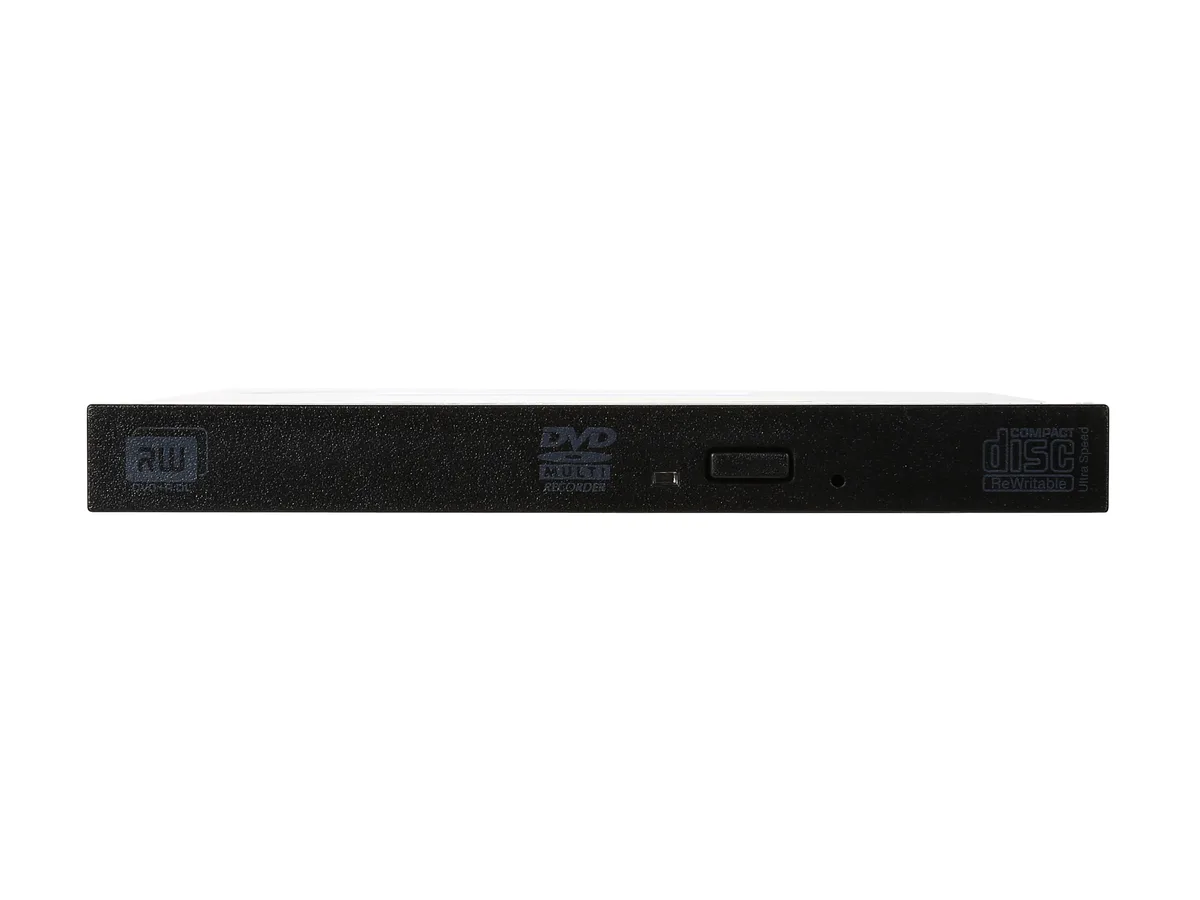

Lite-On DS-8ACSH-01 12.7mm SATA DVD burner
A 12.7mm SATA DVD burner writing DVDs at up to 8× and CDs at 24× for notebook upgrades
- TypeDVD Burner
- DVD-ROM Access Time350ms
- CD-ROM Access Time330ms
- DVD+R8X
- DVD+RW8X
- DVD-R8X
- 8X DVD write speed burns discs quickly
- 24X CD write speed records audio or data fast
- 7mm slim height fits notebook bays
- SATA interface connects to modern laptops
- SMART-BURN prevents buffer underrun errors
Slimline SATA DVD Burner
The Lite-On DS-8ACSH-01 is a 12.7mm height SATA DVD burner designed for notebook computers and compact systems. It reads all CD and DVD media formats and writes to write-once and rewritable discs. Intelligent features such as SMART-BURN and SMART-X optimise burning quality and reading speed. The drive includes a 500KB buffer and supports vertical mounting.
Suits notebook upgrades and external enclosures
This unit fits laptops or small-form-factor PCs that accept a 12.7mm SATA optical drive. It also works in an external enclosure when a portable optical drive is required. Buyers needing Blu-ray read or write capability should look elsewhere. Systems without a SATA connection or a 12.7mm drive bay cannot use this model.
8X DVD and 24X CD performance
Maximum write speeds reach 8X for DVD+R, DVD+RW and DVD-R, 6X for DVD-RW and dual-layer DVD media, and 24X for CD-R and CD-RW. Read speeds top out at 8X DVD-ROM and 24X CD-ROM with access times of 350ms and 330ms respectively. The drive handles standard DVD±R DL discs at 6X but offers no support for higher-capacity or Blu-ray formats.
Punti di forza
- 8X DVD write speed burns discs quickly
- 24X CD write speed records audio or data fast
- 7mm slim height fits notebook bays
- SATA interface connects to modern laptops
- SMART-BURN prevents buffer underrun errors
Caratteristiche tecniche
| Brand | LITE-ON |
|---|---|
| Model | DS-8ACSH |
| Type | DVD Burner |
| DVD-ROM Access Time | 350ms |
| CD-ROM Access Time | 330ms |
| DVD+R | 8X |
| DVD+RW | 8X |
| DVD-R | 8X |
| DVD-RW | 6X |
| CD-R | 24X |
| CD-RW | 24X |
| DVD+R DL | 6X |
| DVD-R DL | 6X |
| DVD-ROM | 8X |
| CD-ROM | 24X |
| Panel Color | Black |
| Load Type | Tray |
| Interface | SATA |
| Operating Systems Supported | DOS 6.xx, XP / 2003 / Vista / Win7 / Win8 / Win8.1 / Linux OS |
| Dimensions (H x W x D) | 0.50" x 4.96" x 5.04" |
| Features | SATA interface, 12.7 mm height and high efficient power saving modes for notebook computer use DVD+R / DVD+RW / DVD-R / DVD-RW / DVD+R DL / DVD-R DL / DVD-RAM / CD-R / CD-RW writer Support Double Layer DVD+/-R Recording Function SMART-BURN* avoiding Buffer Under Run error, Automatically adjusting writing strategy & running OPC to provide the best burning quality SMART-X** function adjusts CD-DA / VCD / DVD data extraction to a fastest allowable speed according to both data request rate from host and disk quality Support Fixed Packet, Variable Packet, TAO, SAO, DAO, Random Access time |
| Peso di spedizione | 0.16 kg |
| Dimensioni del pacco | 130 × 128 × 15 mm |
Domande su questo articolo
Does this 12.7mm SATA DVD burner need a separate SATA data cable and power connection inside my laptop?
The drive uses a standard SATA interface and draws power through the laptop's internal SATA power connector; no extra cables are required for an internal notebook installation.
Will the tray-load mechanism and 350 ms DVD access time work reliably with my older DVD±R discs recorded at lower speeds?
Yes, the burner reads DVD-ROM at 8X and writes DVD±R at 8X, so it handles legacy media at their rated speeds without issue.
How can I verify that SMART-BURN and SMART-X are active after I install the drive?
Burning software will show real-time write-speed adjustments and OPC calibration during a burn, confirming the intelligent features are operating.
