Small rectangular OLED display board with 40-pin header, joystick and three buttons

LORDWORLD

LORDWORLD 1.3inch OLED Screen SH1106 128x64 development board

SKU CH-9C06-EXJEY

A 1.3 inch OLED HAT with 128x64 resolution, SPI and I2C interfaces, a 5-position joystick and three pushbuttons for Raspberry Pi and Jetson Nano

  • 3 inch OLED gives crisp 128 x 64 visuals
  • 40-pin GPIO header fits Raspberry Pi and Jetson Nano
  • Switch between SPI and I2C via onboard resistor
  • Built-in joystick and three pushbuttons for quick input
  • Example code and manual included for faster development

Product Identity

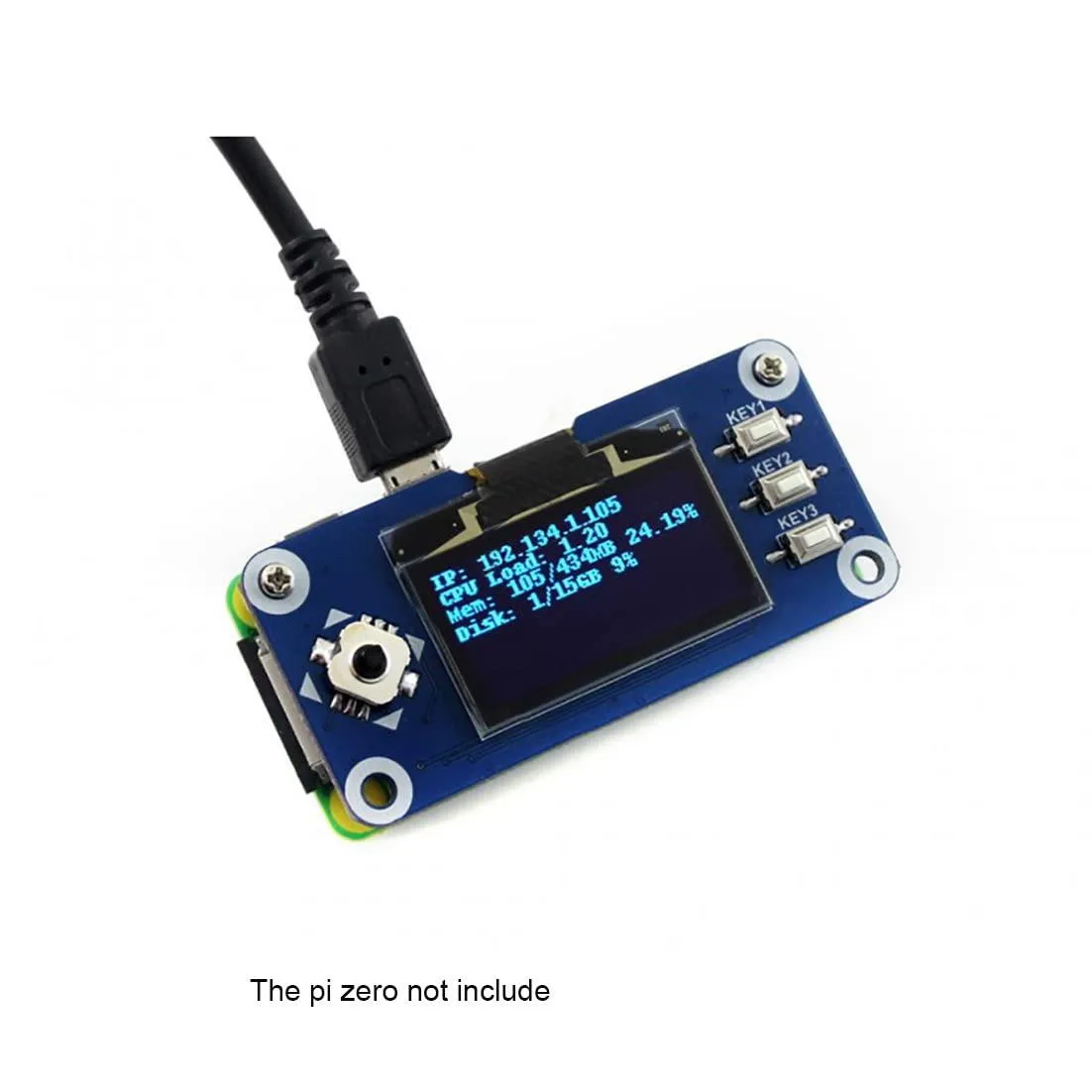

This new LORDWORLD 1.3inch OLED development board integrates a 128x64 SH1106 display with a standard 40-pin GPIO header for Raspberry Pi and Jetson Nano. It includes a 5-position joystick and three pushbuttons for direct user input.

Target Users

Makers building compact Raspberry Pi or Jetson Nano projects that need a small status screen and onboard controls will find this HAT convenient. Builders who require a larger display area, touch input, or a different communication protocol should consider other options.

Deciding Specification

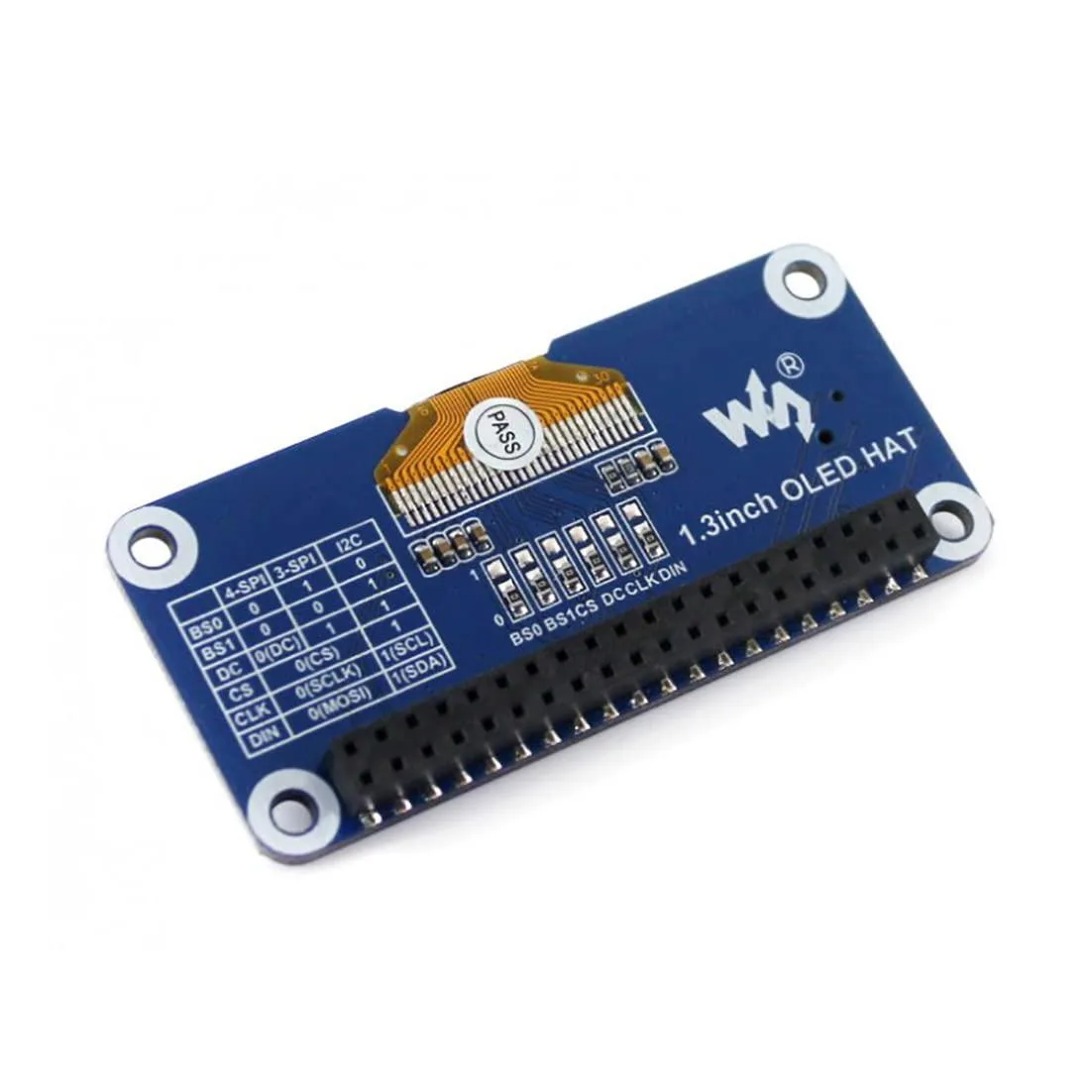

The board offers selectable 4-wire SPI, 3-wire SPI, or I2C interfaces configured by an onboard resistor, which determines how the host controller communicates with the display.

Punti di forza

  • 3 inch OLED gives crisp 128 x 64 visuals
  • 40-pin GPIO header fits Raspberry Pi and Jetson Nano
  • Switch between SPI and I2C via onboard resistor
  • Built-in joystick and three pushbuttons for quick input
  • Example code and manual included for faster development

Caratteristiche tecniche

BrandLORDWORLD

Domande su questo articolo

Will the 40-pin GPIO header on this board fit my Raspberry Pi 3B+ without blocking other HATs?

The board uses the standard 40-pin RPi GPIO extension header so it aligns with every Raspberry Pi model that has a 40-pin header, including the 3B+.

How can I verify the 128x64 SH1106 panel is alive after I solder the interface resistors?

Run the supplied Raspberry Pi or Jetson Nano example code; the screen should show graphics or text at 128 by 64 pixels if the SPI or I2C link is working.

Does the package include the 5-position joystick and three push-buttons, or must I buy them separately?

The box contains the OLED HAT with the 5-position joystick and three push-buttons already mounted; no extra input parts are required.
