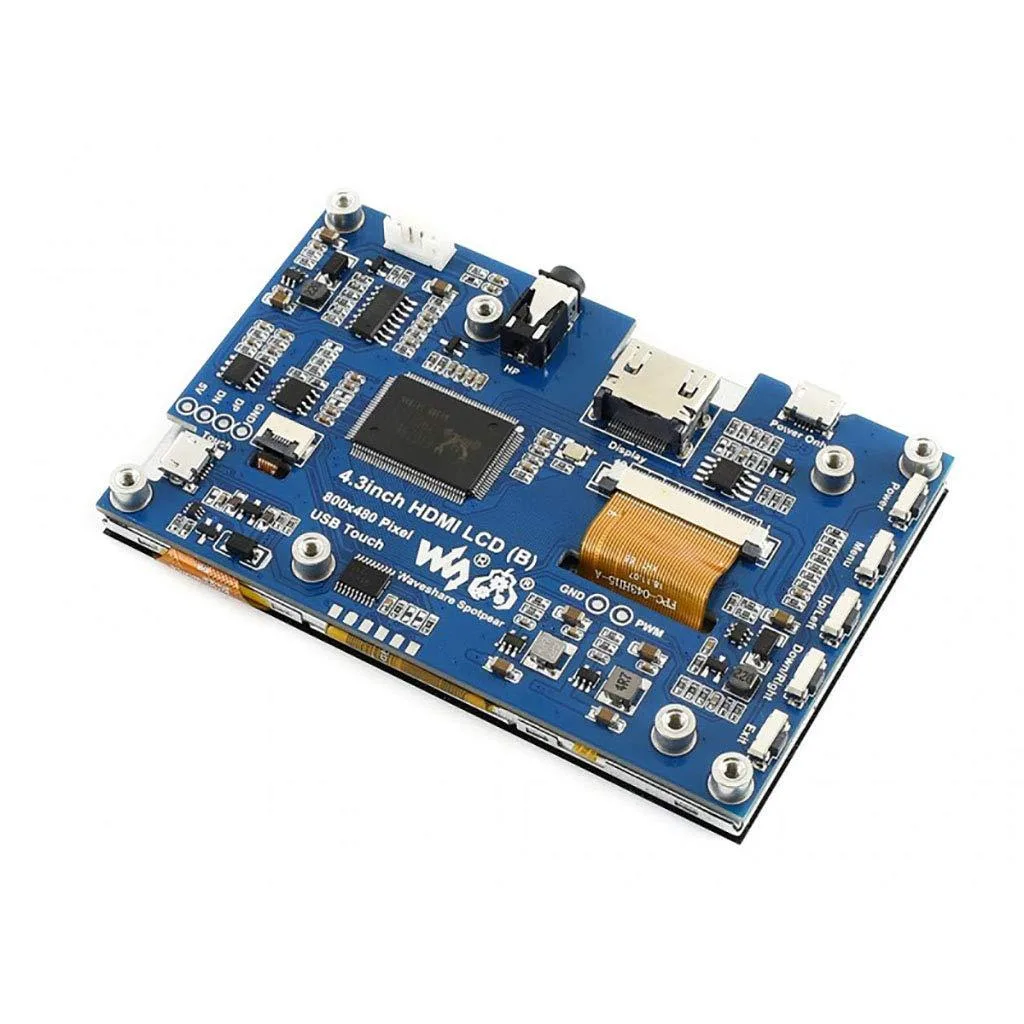

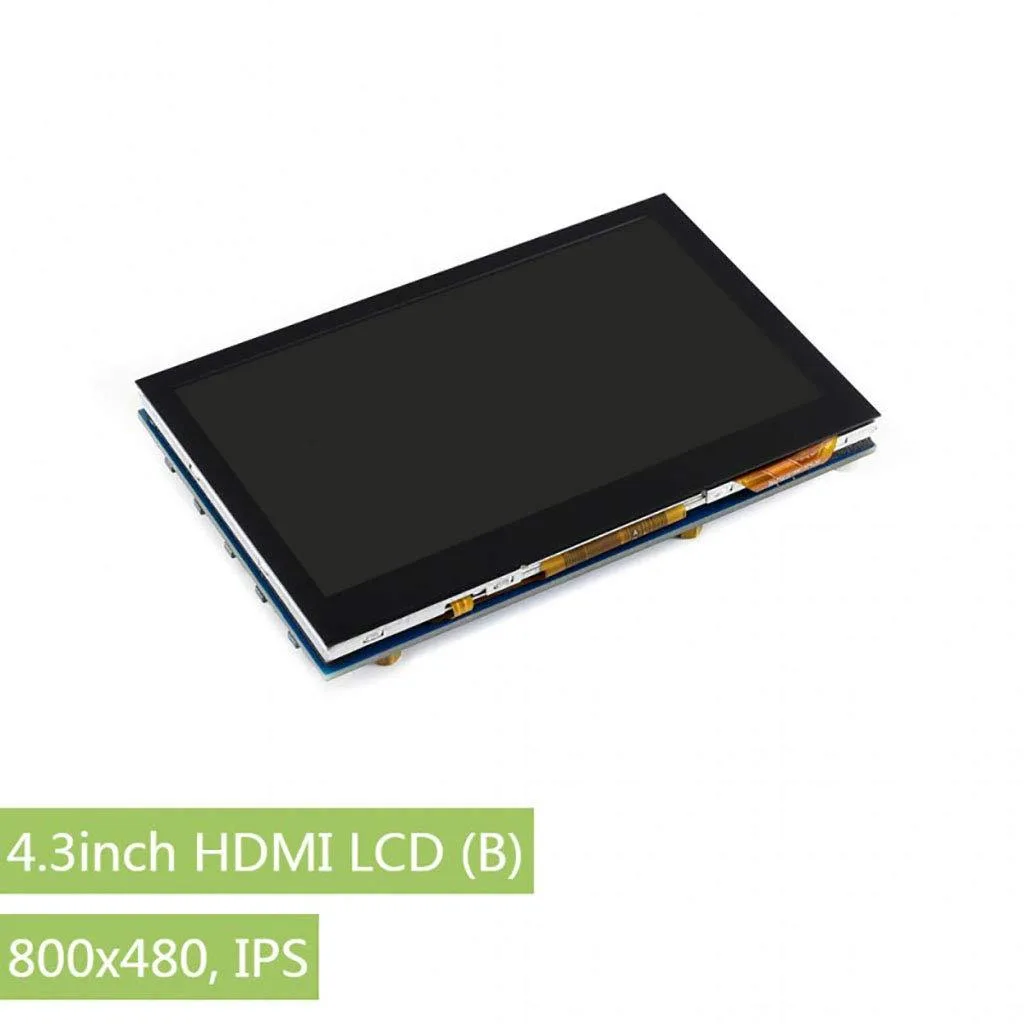

4.3 inch IPS touch display board with HDMI and audio connectors

LORDWORLD

LORDWORLD 4.3inch 800x480 IPS HDMI Touch Development Board

SKU CH-EFC6-DA542

A 4.3 inch IPS touchscreen with 800x480 hardware resolution, HDMI input, five-point touch and driver-free operation on Raspberry Pi, Jetson Nano and Windows desktops

  • 3 inch IPS panel gives wide viewing angles
  • 800×480 hardware resolution scales by software to 1920×1080
  • Works with Raspberry Pi, Jetson Nano, BeagleBone Black and Banana Pi
  • Driver-free five-point touch on Windows 10/8.1/8/7 and major Pi OSes
  • 5 mm audio jack plus speaker connector for HDMI audio output

Compact IPS touch display for embedded projects

The LORDWORLD 4.3inch board delivers an 800x480 hardware resolution that can be scaled up to 1920x1080 through software configuration. It connects via HDMI to Raspberry Pi, Jetson Nano, BeagleBone Black or Banana Pi and also works as a standard monitor for Windows 10, 8.1, 8 or 7 desktops. Five-point capacitive touch operates driver-free on all supported platforms. A multi-language OSD menu handles brightness, contrast and power settings.

Low thermal load and silent operation

The panel draws minimal power from the host HDMI port and runs without a fan, so it adds no audible noise to a bench or enclosure. A 3.5 mm audio jack and a separate speaker connector pass HDMI audio through to external speakers or headphones. Heat output remains negligible during typical UI, media playback or headless server monitoring tasks.

Stable output during extended sessions

Because there are no moving parts and the backlight is LED-based, brightness and colour stay consistent over long development or kiosk runs. The driver-free design means no kernel-module regressions after OS updates on Raspberry Pi Raspbian, Ubuntu, Kali, Retropie or Windows 10 IoT. The board is not suited for builders who need a larger viewing area or higher native pixel density.

Punti di forza

  • 3 inch IPS panel gives wide viewing angles
  • 800×480 hardware resolution scales by software to 1920×1080
  • Works with Raspberry Pi, Jetson Nano, BeagleBone Black and Banana Pi
  • Driver-free five-point touch on Windows 10/8.1/8/7 and major Pi OSes
  • 5 mm audio jack plus speaker connector for HDMI audio output

Caratteristiche tecniche

BrandLORDWORLD

Domande su questo articolo

How do I connect the 4.3inch IPS display to a Raspberry Pi and which step is often missed?

Plug the HDMI cable into the Pi and the board, then supply 5 V power to the display’s micro-USB port; the step many miss is powering the screen separately instead of expecting the Pi’s HDMI port to drive it.

What part of the LORDWORLD board is most likely to need replacement after extended use?

The capacitive touch panel or the 3.5 mm audio jack are the components most exposed to wear; the IPS panel itself is solid-state and rarely fails.

What is the first limitation you hit when running the 800x480 screen at 1920x1080 for long periods?

The panel down-scales 1920x1080 to its native 800x480, so fine text becomes unreadable and the OSD menu cannot add detail the hardware lacks.
