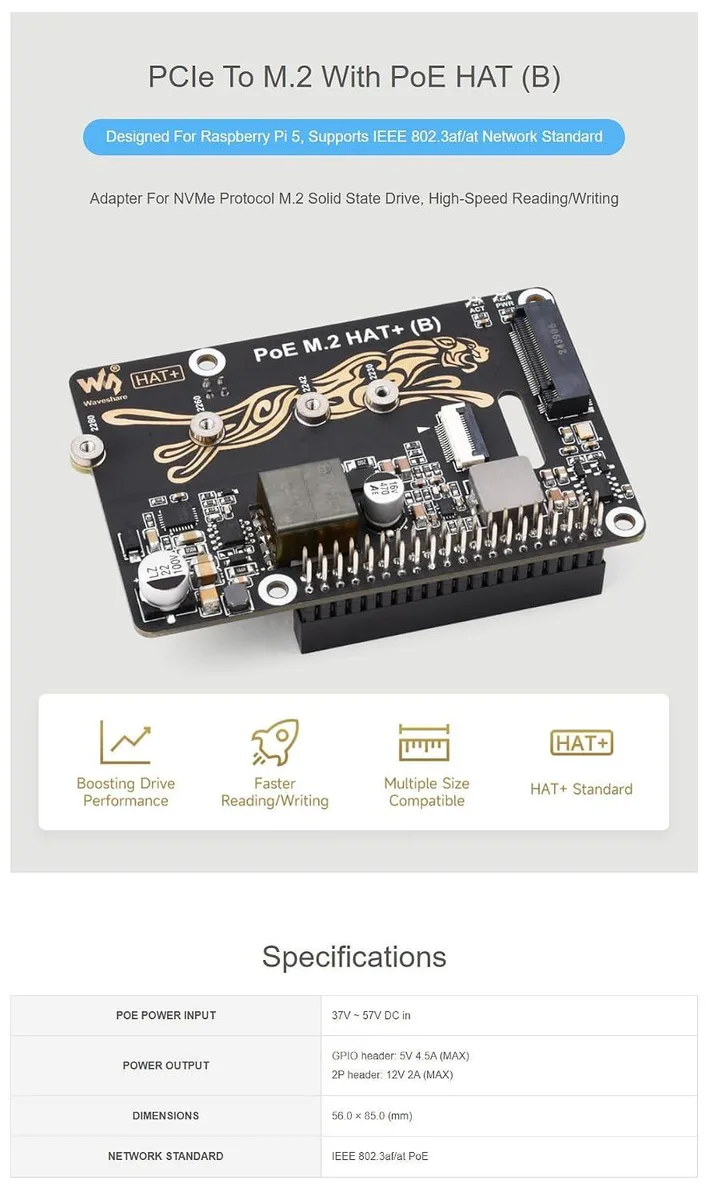

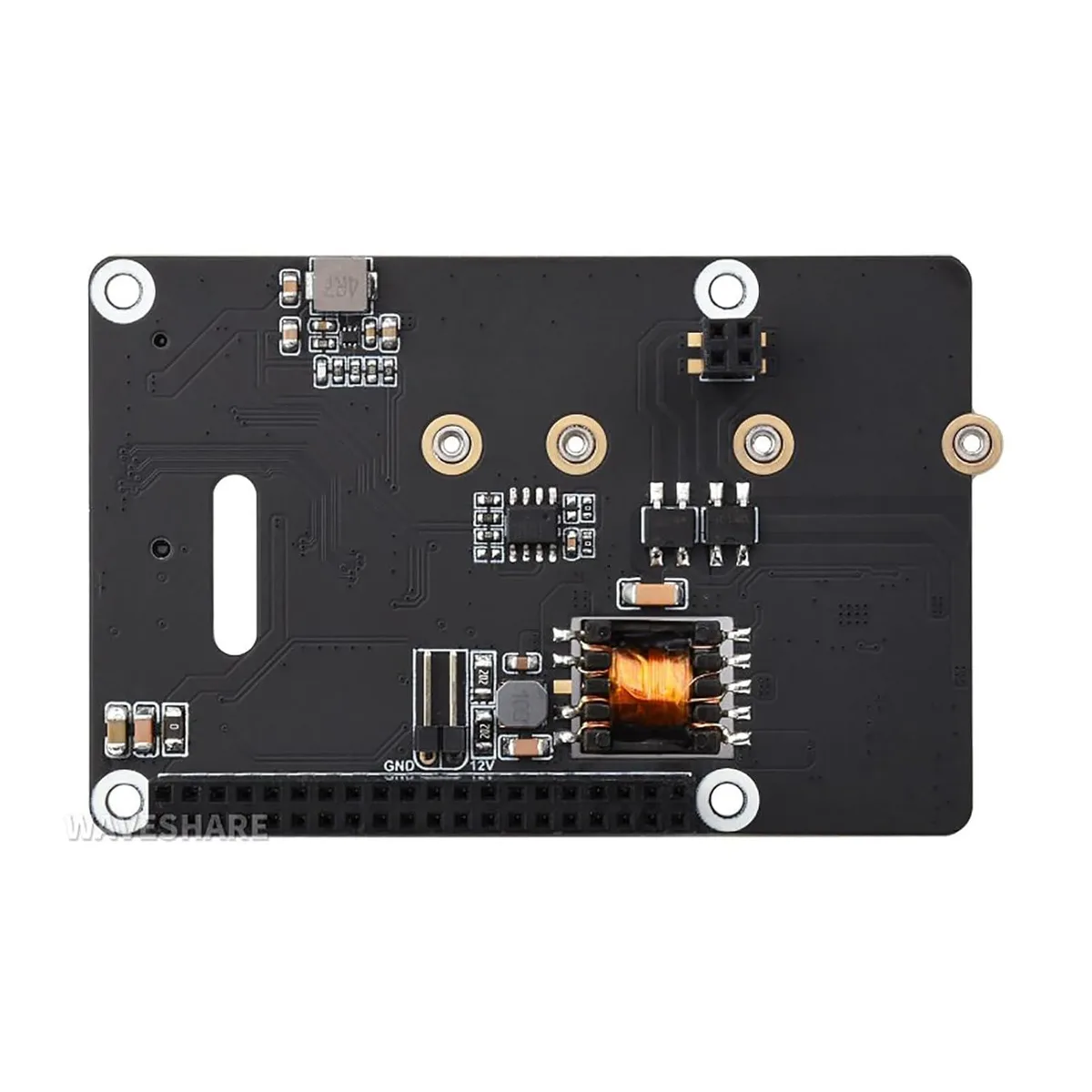

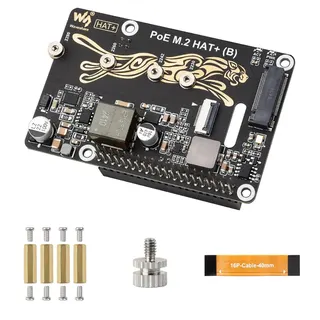

Gold-finish PCIe to M.2 adapter board with Ethernet port and dual LEDs

LORDWORLD

LORDWORLD PCIe to M.2 Adapter (B) PoE HAT for Raspberry Pi 5

SKU CH-32MC-HQNZ1

Adds NVMe M.2 storage and IEEE 802.3 PoE power to Raspberry Pi 5 via 16-pin PCIe with dual status LEDs

  • Adds NVMe storage to Raspberry Pi 5 via 16-pin PCIe
  • Powers Pi and peripherals up to 25 W through IEEE 802.3af/at PoE
  • Fits M.2 NVMe SSDs in 2230, 2242, 2260 and 2280 sizes
  • Dual on-board LEDs show power and activity status at a glance
  • Immersion-gold PCB resists oxidation and corrosion for long-term reliability

Raspberry Pi 5 PCIe to M.2 Adapter with PoE

This LORDWORLD adapter connects a Raspberry Pi 5 to an NVMe M.2 SSD through the 16PIN PCIe interface while adding IEEE 802.3 af/at Power over Ethernet. It accepts 2230, 2242, 2260, and 2280 form factors and supports Gen2 and Gen3 signalling. The board delivers up to 25W of combined 5V and 12V power to the Pi and attached peripherals.

Makers needing NVMe storage and single-cable power

Developers who want fast NVMe storage on a Pi 5 and prefer powering the whole system through one Ethernet cable will benefit from the integrated PoE HAT and dual status LEDs. Builders who need a different physical interface or who do not require Power over Ethernet should look at other expansion options.

16PIN PCIe connection defines compatibility

The adapter plugs directly into the Pi 5's 16PIN PCIe flex connector, so it only fits that single-board computer. If your project uses another Pi model or a board without this exact connector, this HAT cannot be installed.

Punti di forza

  • Adds NVMe storage to Raspberry Pi 5 via 16-pin PCIe
  • Powers Pi and peripherals up to 25 W through IEEE 802.3af/at PoE
  • Fits M.2 NVMe SSDs in 2230, 2242, 2260 and 2280 sizes
  • Dual on-board LEDs show power and activity status at a glance
  • Immersion-gold PCB resists oxidation and corrosion for long-term reliability

Caratteristiche tecniche

BrandLORDWORLD

Domande su questo articolo

Does the Raspberry Pi 5 need its own power supply when using this HAT?

No, the HAT delivers up to 25 W combined through the IEEE 802.3 af/at PoE link, so a single Ethernet cable powers the Pi 5 and the NVMe SSD.

Can I stack another HAT on top while using the 16-pin PCIe connector?

Yes, the board includes stackable GPIO headers that leave the 40-pin bus free for additional HATs.

What do the two on-board LEDs show after I boot the Pi 5?

One LED confirms PoE power is active; the other flashes when the NVMe drive is being accessed.
