Green circuit board with 40-pin header and 3.5mm audio jack

LORDWORLD

LORDWORLD SIM7600G-H 4G HAT for Jetson Nano Development Board

SKU CH-HVKM-G0EX3

Adds global LTE Cat 4 up to 150 Mbps, multi-constellation GNSS, voice via 3.5 mm jack and 40-pin GPIO to Jetson Nano

  • Global LTE CAT4 connectivity up to 150 Mbps
  • Multi-constellation GNSS with GPS, BeiDou, Glonass and LBS
  • 40-pin GPIO header for direct Jetson Nano integration
  • Onboard 3.5 mm audio jack for voice calls with headset
  • Development resources and examples for Jetson Nano, Raspberry Pi, Arduino and STM32

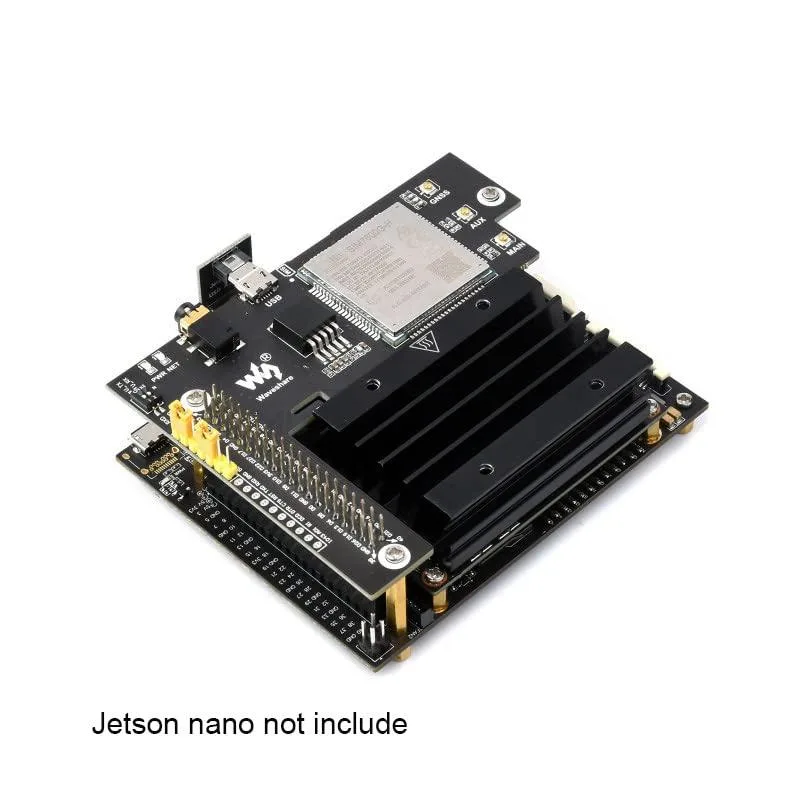

Cellular expansion for Jetson Nano

This SIM7600G-H HAT adds global LTE connectivity to a Jetson Nano development board. It targets makers and engineers building IoT edge devices that need mobile data, voice and positioning without a fixed network. The 40-pin GPIO header keeps the full pinout accessible for additional sensors or actuators.

LTE CAT4 up to 150 Mbps

The single specification that decides fit is the supported LTE category. CAT4 provides up to 150 Mbps downlink, which determines whether the module meets your bandwidth requirement. The board also handles 3G and 2G fallback where CAT4 coverage is unavailable.

Multi-constellation GNSS and audio

Onboard GPS, BeiDou, Glonass and LBS positioning gives location awareness for asset tracking or navigation projects. A 3.5 mm audio jack with microphone support enables voice calls directly from the board. Development examples cover Jetson Nano, Raspberry Pi, Arduino and STM32 platforms.

Punti di forza

  • Global LTE CAT4 connectivity up to 150 Mbps
  • Multi-constellation GNSS with GPS, BeiDou, Glonass and LBS
  • 40-pin GPIO header for direct Jetson Nano integration
  • Onboard 3.5 mm audio jack for voice calls with headset
  • Development resources and examples for Jetson Nano, Raspberry Pi, Arduino and STM32

Caratteristiche tecniche

BrandLORDWORLD

Domande su questo articolo

What does the 150 Mbps LTE Cat 4 figure mean for real-world throughput on the Jetson Nano?

The 150 Mbps is the theoretical downlink peak of the SIM7600G-H module; actual speeds depend on carrier coverage, signal quality and network congestion, so typical throughput will be lower.

Which host interface does the HAT use and what bandwidth does it limit the connection to?

The board connects through the 40-pin GPIO header using USB signalling, so the link speed is governed by the Jetson Nano's USB 2.0 OTG port.

What physical mounting does the expansion board require on the Jetson Nano?

It plugs directly onto the 40-pin GPIO header and aligns with the standard HAT mounting holes, needing no extra brackets or cables.
