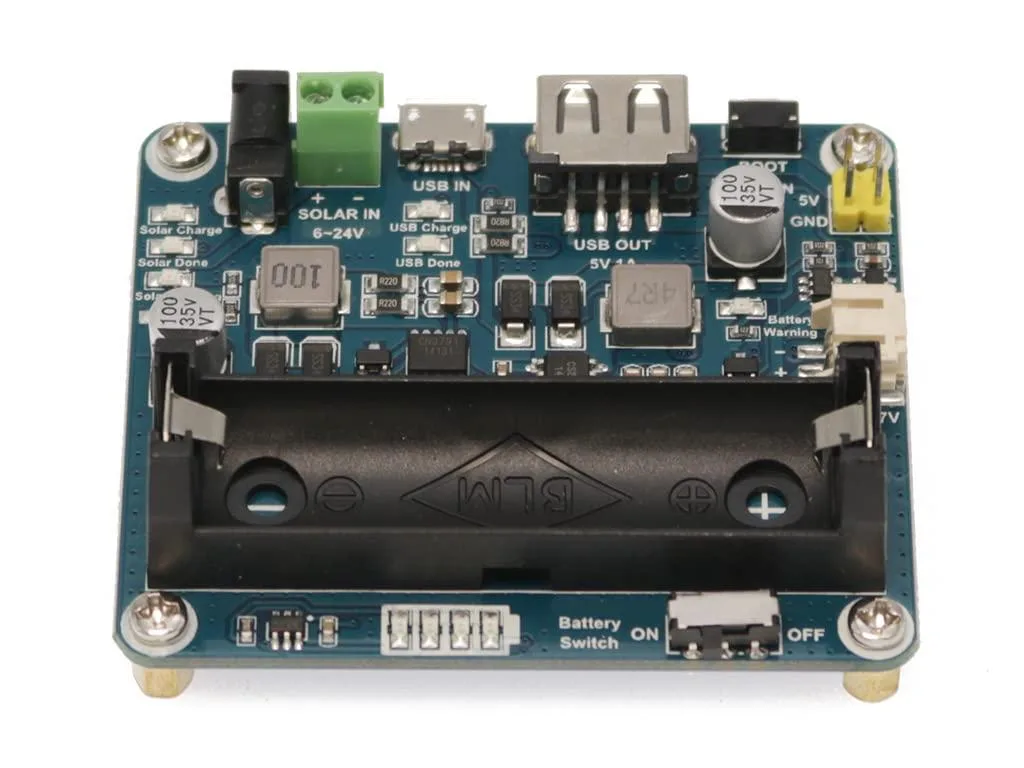

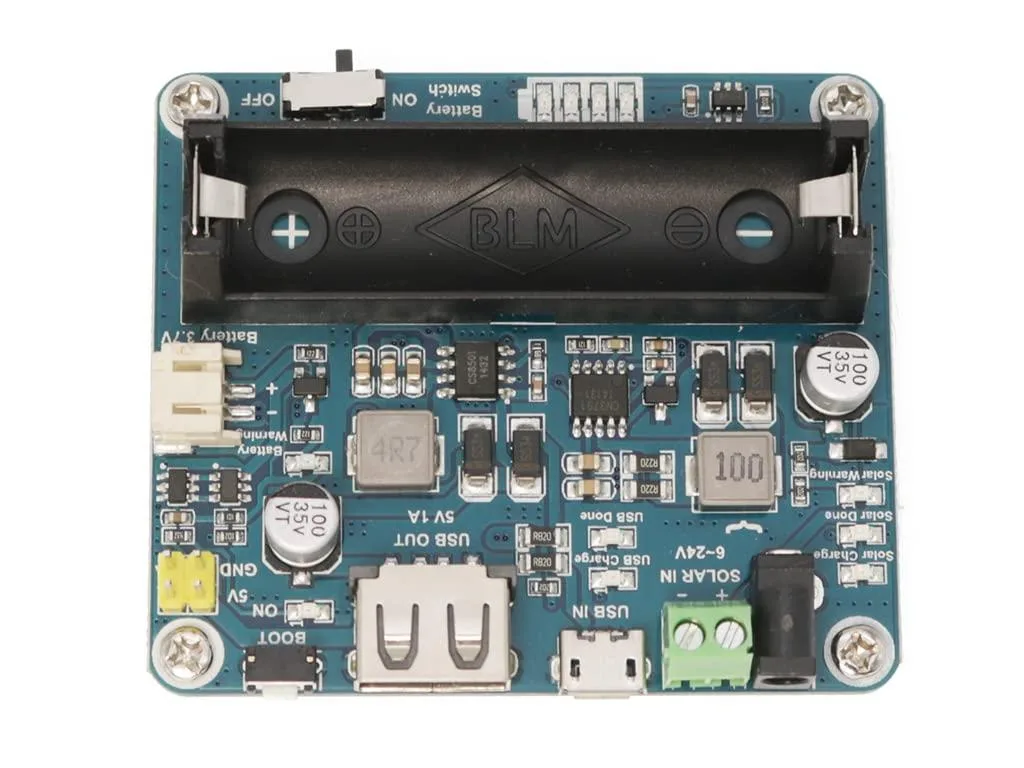

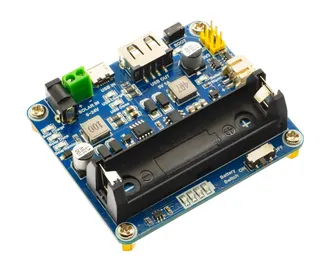

Green rectangular circuit board with screw terminals, barrel jack, USB port, pin headers, switch and LED indicators

LORDWORLD

LORDWORLD Solar Power Management Module 6V-24V MPPT development board

SKU CH-8TRV-XAF0Y

Charges batteries from 6 V to 24 V solar panels or USB with MPPT, provides dual 5 V outputs via pin headers and USB, and includes an MPPT set switch plus LED status indicators

  • Maximises solar yield with onboard MPPT tracking
  • Accepts 6V to 24V panels via jack or screw terminals
  • Dual 5V outputs on pin headers and USB port
  • MPPT set switch lets you tune input level for better efficiency
  • LED indicators show panel and battery status at a glance

Solar power management for maker projects

This LORDWORLD module adds Maximum Power Point Tracking to solar panels rated from 6V to 24V. It accepts input through a DC-002 jack or screw terminals and provides two 5V outputs via pin headers and a USB port. The board is aimed at developers building battery-charging IoT edge devices.

Suits solar charging prototypes not high-power

Makers who need efficient energy harvesting for small batteries will benefit from the onboard MPPT SET switch and status LEDs. The design includes aluminium electrolytic and ceramic capacitors to reduce ripple. Builders requiring higher voltage outputs or integrated wireless connectivity should look at other solutions.

Adjustable MPPT switch

The MPPT SET switch lets you select the voltage level closest to your panel for better charging efficiency. Multiple LED indicators show real-time solar and battery status without extra instrumentation. Capacitors on board smooth the output, so connected loads see a more stable 5V supply.

Punti di forza

  • Maximises solar yield with onboard MPPT tracking
  • Accepts 6V to 24V panels via jack or screw terminals
  • Dual 5V outputs on pin headers and USB port
  • MPPT set switch lets you tune input level for better efficiency
  • LED indicators show panel and battery status at a glance

Caratteristiche tecniche

BrandLORDWORLD

Domande su questo articolo

What voltage range must my solar panel provide to work with this module?

The module accepts input from 6V to 24V solar panels via DC-002 jack or screw terminals.

Can I keep using a 5V microcontroller board powered from the USB port on this module?

Yes, the board provides two 5V outputs — pinheaders and a USB port — suitable for powering 5V devices.

How do I confirm the MPPT setting matches my panel after wiring it up?

Use the onboard MPPT SET switch to select the level closest to your panel voltage and watch the LED indicators for solar and battery status.
