Rectangular silver bench power supply, 14 by 19 by 3.5 inches, front panel display and controls

Matrix

Matrix MPS-1800S-30-60 30V 60A 1800W programmable DC industrial power supply

SKU CH-480F-RX1SD

Programmable DC bench supply delivering 0-30 V and 0-60 A with 1800 W output, five-digit readout, OVP/OCP/OTP/short-circuit protection, key lock and RS-232/RS-485 interfaces

  • TypeMATRIX MPS-1800S-30-60 High Voltage Programmable DC Power Su
  • Watts1800 watts
  • Engine BrandMATRIX
  • Voltage30 volts
  • Size/Dimensions14 in x 19 in x 3.5 in
  • Input VoltageMATRIX MPS-1800S-30-60 High Voltage Programmable DC Power Su
  • Programmable 30 V 60 A output covers diverse test needs
  • 1800 W switching design delivers high power in a compact 2U form
  • Five-digit simultaneous voltage and current display enables precise adjustment
  • OVP OCP OTP and short-circuit protection safeguard the unit and load
  • RS-232 and RS-485 interfaces allow automated remote control

Industrial bench supply for lab and test use

The Matrix MPS-1800S-30-60 is a new programmable DC power supply built for bench and laboratory work. It delivers adjustable output up to 30 volts and 60 amps with a maximum of 1800 watts. Engineers and technicians who need precise, repeatable voltage and current settings will find the five-digit simultaneous display and front-panel preset buttons practical for daily use.

Output range of 0-30 V and 0-60 A at 1800 W

The single specification that decides fit is the combined output envelope of 30 volts, 60 amps and 1800 watts. If a test setup requires higher voltage, higher current or more power than these limits, this unit will not meet the requirement. The supply accepts single-phase AC 220 V ±10 % at 50 Hz and provides remote voltage compensation for accuracy at the load.

Thermals noise and power draw in normal use

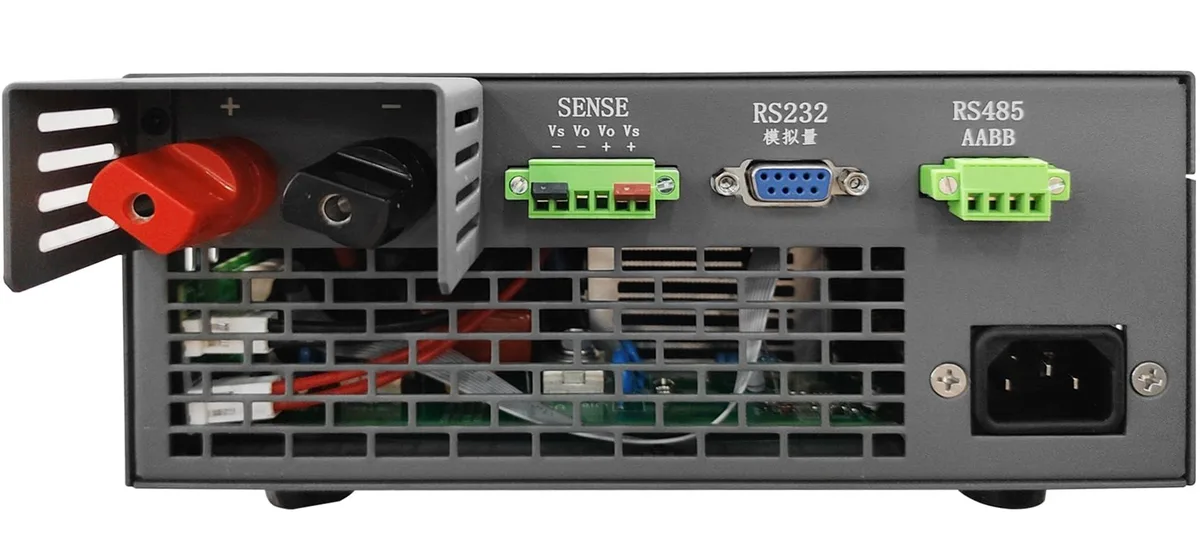

The switching design with PWM modulation and high-gain amplification runs at full load continuously thanks to imported key components. Protective functions include over-voltage, over-current, over-temperature and short-circuit protection that shut down the output before components overheat. A key-lock feature prevents accidental changes during long runs. Communication interfaces are RS-232 and RS-485 for automated control.

Punti di forza

  • Programmable 30 V 60 A output covers diverse test needs
  • 1800 W switching design delivers high power in a compact 2U form
  • Five-digit simultaneous voltage and current display enables precise adjustment
  • OVP OCP OTP and short-circuit protection safeguard the unit and load
  • RS-232 and RS-485 interfaces allow automated remote control

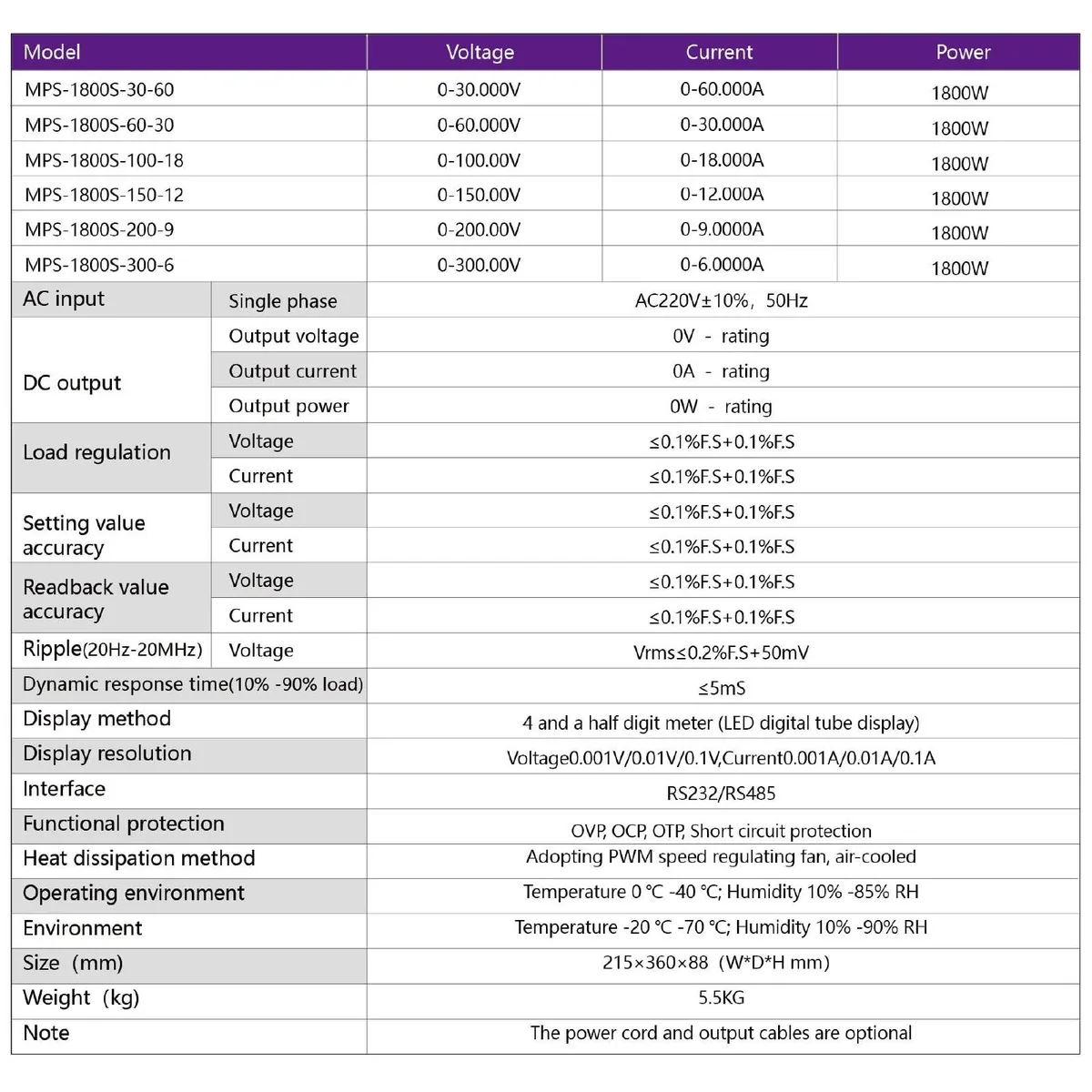

Caratteristiche tecniche

TypeMATRIX MPS-1800S-30-60 High Voltage Programmable DC Power Supply 30V 60A 1800W High-Power with OVP, OCP, OTP, Short Circuit Protection, Input AC 220V 50Hz, adjustable bench dc power supply 1800w variable lab dc power supply switching dc power supply
Watts1800 watts
Engine BrandMATRIX
Voltage30 volts
Size/Dimensions14 in x 19 in x 3.5 in
Input VoltageMATRIX MPS-1800S-30-60 High Voltage Programmable DC Power Supply 30V 60A 1800W High-Power with OVP, OCP, OTP, Short Circuit Protection, Input AC 220V 50Hz
Output VoltageMPS-1800S-30-60, MATRIX MPS-1800S-30-60 High Voltage Programmable DC Power Supply 30V 60A 1800W High-Power with OVP, OCP, OTP, Short Circuit Protection, Input AC 220V 50Hz, adjustable bench dc power supply 1800w variable lab dc power supply switching dc power supply
Output AmpsMPS-1800S-30-60, MATRIX MPS-1800S-30-60 High Voltage Programmable DC Power Supply 30V 60A 1800W High-Power with OVP, OCP, OTP, Short Circuit Protection, Input AC 220V 50Hz
Input Amps2U, MATRIX MPS-1800S-30-60 High Voltage Programmable DC Power Supply 30V 60A 1800W High-Power with OVP, OCP, OTP, Short Circuit Protection, Input AC 220V 50Hz
Styleadjustable bench dc power supply 1800w variable lab dc power supply switching dc power supply
SeriesMPS-1800S-30-60
Operating Frequencynot_applicable
Regulationnot_applicable
RippleMATRIX MPS-1800S-30-60 High Voltage Programmable DC Power Supply 30V 60A 1800W High-Power with OVP, OCP, OTP, Short Circuit Protection, Input AC 220V 50Hz
Featuresadjustable bench dc power supply 1800w variable lab dc power supply switching dc power supply, MATRIX MPS-1800S-30-60 High Voltage Programmable DC Power Supply 30V 60A 1800W High-Power with OVP, OCP, OTP, Short Circuit Protection, Input AC 220V 50Hz
Parts3 Years
Labor3 Years

Domande su questo articolo

What does the 1800 W rating mean when the supply is running at full load?

At full load the unit can deliver up to 30 V at 60 A, giving a maximum output power of 1800 W.

What do the RS-232 and RS-485 interfaces let me control in practice?

Both serial interfaces allow remote programming of voltage, current and protection settings.

What rack space and clearance does the 3.5 in high chassis need?

The chassis is 2U high (3.5 in) and 14 in deep, so it fits a standard 19 in rack with at least 14 in of usable depth.
